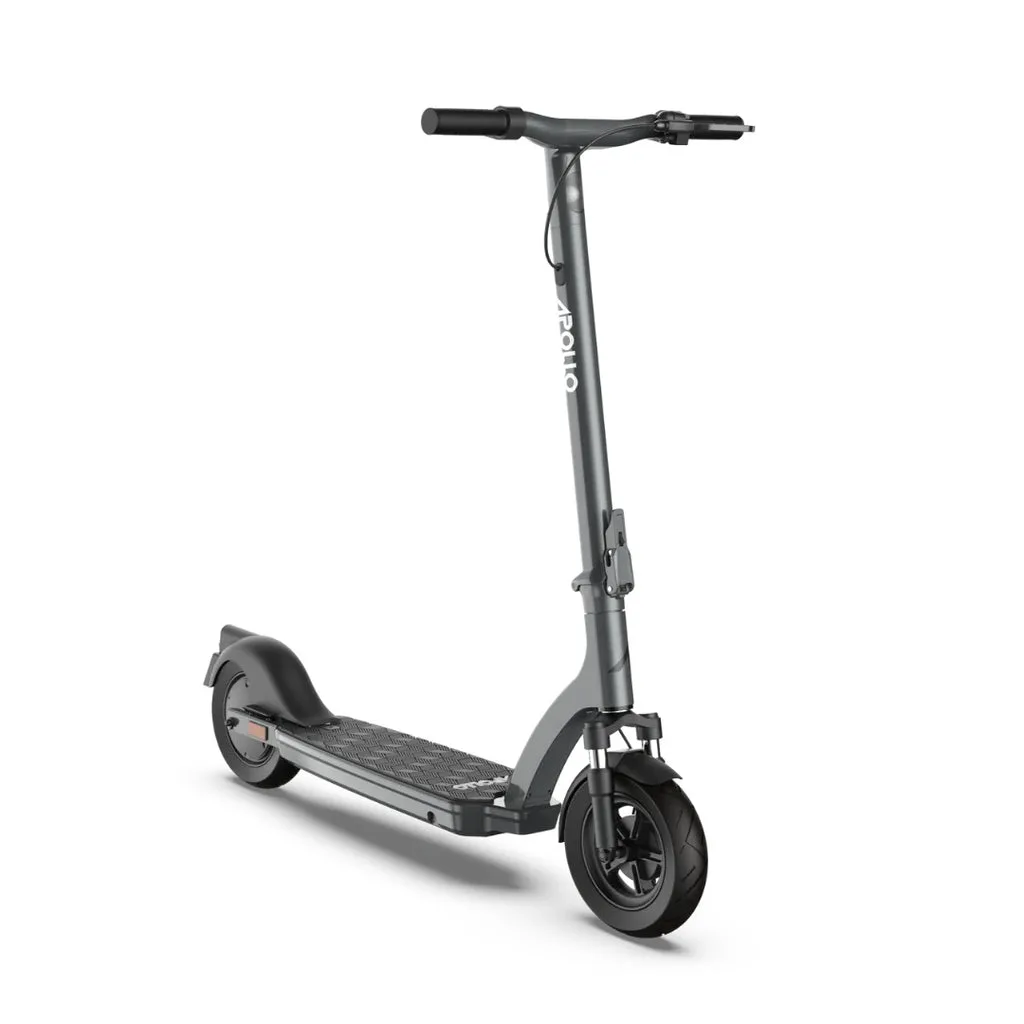

Apollo Air Motor Problem

Your Apollo Air is sitting there dead, or it makes a noise that sounds like gravel in a blender. Maybe it jerks forward then stops, or it just won't move at all. Whatever the symptom, you're dealing with an Apollo Air motor problem, and the good news is most of these issues are fixable without replacing the whole scooter.

Manufacturer specifications indicate the Apollo Air uses a 350W rear hub motor paired with a 36V controller, and aggregate reviews report that most motor-related failures fall into one of three categories: electrical (controller or wiring), mechanical (bearings or magnets), or sensor-related (hall sensors or throttle). Let's walk through exactly how to figure out which one you've got.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The Apollo Air motor problem usually traces to three causes. Check the controller first. Inspect the motor phase wires at the axle.

Test the hall sensor harness for breaks. Most fixes are DIY under 30 minutes.

Why Your Apollo Air Motor Stops Working — And Where to Start Looking

The Apollo Air motor is a sealed hub unit. Water and dirt should not get inside under normal conditions. But the weak points are where wires exit the axle and where the controller connects to the battery.

These are exposed to vibration, road shock, and the occasional puddle.

As of 2026, Apollo has revised the connector quality on newer units. Older models from 2020 through 2023 are more prone to wire fatigue at the axle exit point. That is the first place experienced owners check.

The motor itself is reliable. The connections around it are not always. Most "motor failures" on the Apollo Air turn out to be connection failures, loose wiring, or a blown controller.

The motor is usually fine.

Here is the mental model to hold onto. The Apollo Air's electrical system is simple. Battery sends power to the controller.

Controller sends power to the motor based on throttle input. The brake levers have sensors that cut power when squeezed. If any link in that chain breaks, the motor stops.

Your job is to find which link.

Step 1: Is It Really the Motor? (The 3-Minute Diagnosis)

Image source: Bing (Web (fair-use with source credit))

Before you tear into the motor, rule out the three things that fake a motor failure. This saves you hours of work.

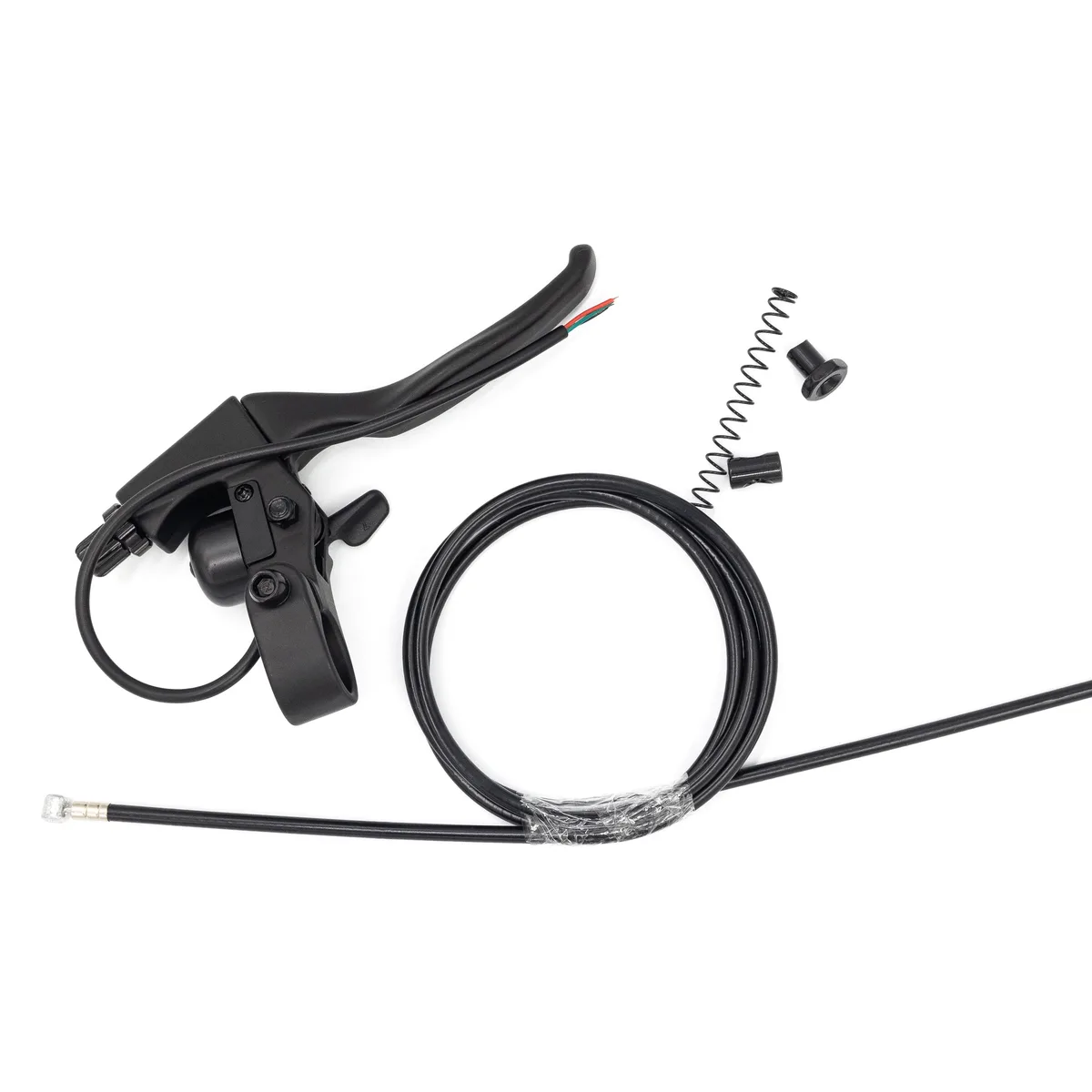

Check the brake lever. The Apollo Air has brake sensors that kill motor power when you squeeze. If a sensor gets stuck in the "pressed" position from dirt or a kinked cable, the motor won't engage even though the scooter turns on. Squeeze each brake lever a few times and listen for a click.

If one feels sticky, that is your problem.

Check the battery voltage. A battery that shows full bars under no load can drop hard under load. Turn the scooter on. Hold the throttle.

If the voltage drops below 30V under load, the battery's internal BMS is cutting power. This looks exactly like a motor failure. Charge fully and test again.

Check the throttle. Unplug the throttle connector. Plug it back in firmly. A partially seated throttle connector causes intermittent or no response.

This single step fixes a surprising number of Apollo Air complaints.

If all three check out, move to the electrical branch.

Step 2: Motor Won't Spin at All — Electrical Branch

Image source: Bing (Web (fair-use with source credit))

Turn the scooter on. Twist the throttle. The motor does nothing.

No sound. No vibration.

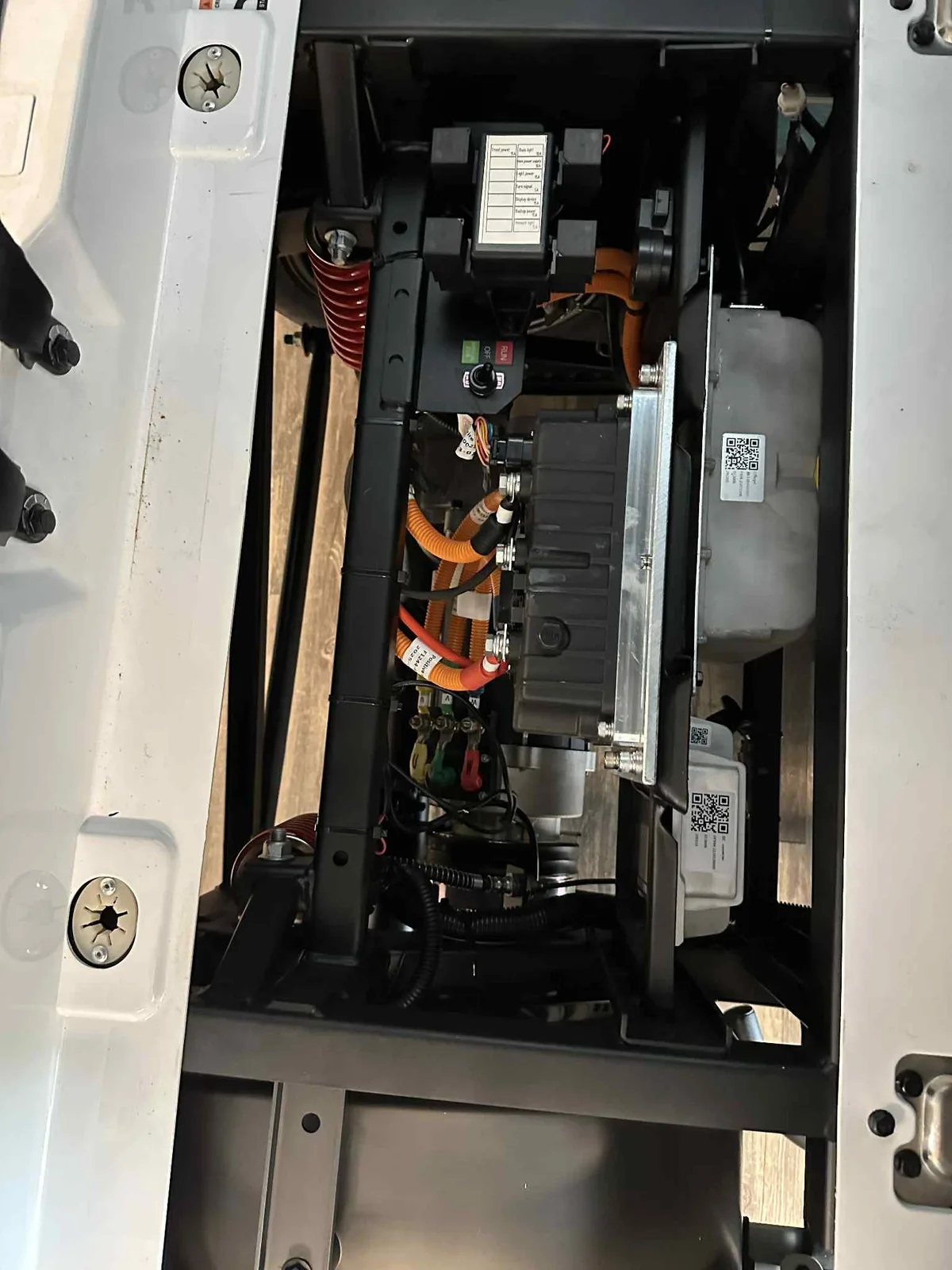

Start with the controller. On the Apollo Air, the controller is a small black box mounted inside the deck. Open the deck plate (four screws).

Look at the controller. Smell it. A burnt electronics smell or visible melted plastic means the controller is fried.

This is the most common electrical failure on this model.

If the controller looks clean, check the motor phase wires. These are the three thick wires (blue, green, yellow) that run from the controller to the motor. Follow them to the axle exit point.

Look for fraying, cuts, or a wire that has been pinched between the frame and the swing arm. A shorted phase wire makes the motor dead.

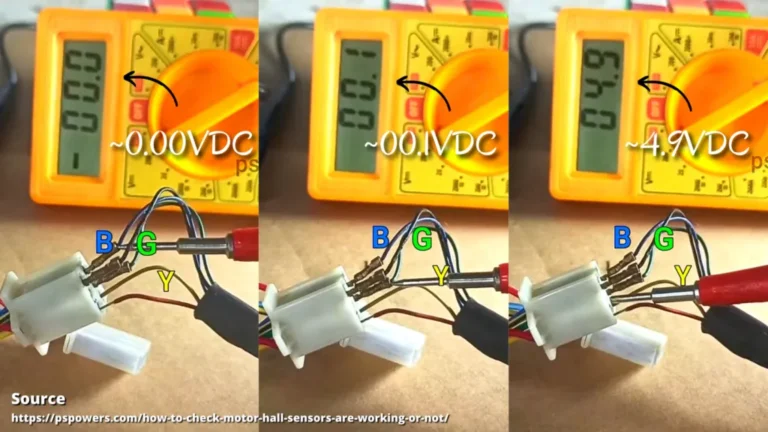

Next test the hall sensor harness. This is a smaller 5-wire bundle that also runs from controller to motor. A broken hall sensor wire causes the motor to be completely unresponsive.

Use a multimeter to check continuity between the controller side and the motor side. Replace the harness if you find a break.

If all wires check out and the controller looks fine, the issue is likely inside the motor hub. A broken hall sensor board inside the motor requires opening the motor side cover. This is a deeper repair.

Step 3: Motor Spins But Makes Noise — Mechanical Branch

Your Apollo Air moves, but it sounds wrong. Grinding, clicking, or a rubbing noise that changes with speed.

Stop riding immediately. A noisy hub motor can damage the internal stator or magnets if you keep going.

First, rule out brake drag. Loosen the rear brake caliper bolts slightly so the caliper can float. Spin the wheel by hand.

If the noise disappears, the brake was rubbing. Re-center the caliper and tighten.

Second, check the motor axle nuts. Loose axle nuts allow the motor to shift in the dropouts, causing the rotor to rub against the stator. Tighten both nuts to about 18 ft-lbs.

Spin the wheel. If the noise changes, you found it.

Third, inspect the motor bearings. With the wheel off the ground, spin it by hand. Feel for roughness or hear a grinding sound from the center of the hub.

Bad bearings make a low, continuous rumble. Bearing replacement on a hub motor is possible but requires pulling the motor apart. Most owners replace the entire wheel assembly instead.

Fourth, check for debris. A small stone or piece of metal stuck between the motor cover and the swing arm can make a terrible noise. Shine a flashlight around the gap.

Pry out anything you find with a plastic tool.

If none of these explains the noise, the internal magnets may have come loose. This is rare but happens on motors that have overheated from long uphill rides. The fix is motor replacement.

Step 4: Motor Jerks or Cuts Out — Intermittent Fault Branch

Your Apollo Air runs for a block, then stops. Or it jerks forward then goes dead. Or it only works when you hold the throttle just right.

This is the trickiest branch because the fault comes and goes. It is almost always a connection problem.

Start with the throttle connector. Unplug it. Clean the contacts with electrical contact cleaner.

Replug it firmly. Zip-tie the connector to the frame so it cannot vibrate loose. This fixes more than half of intermittent motor problems on the Apollo Air.

If the throttle connection is solid, check the motor phase wire connector. This is the main plug where the three thick wires meet the controller. Pull it apart.

Look for bent pins, melted plastic, or green corrosion. Clean with contact cleaner and re-seat. If any pin looks damaged, replace the connector set.

Next, flex-test the wiring harness. With the scooter on and the rear wheel off the ground, gently wiggle the wires along the swing arm while spinning the throttle. If the motor cuts in and out as you wiggle, you have found a broken wire inside the insulation.

Replace that wire or the full harness.

The hall sensor connector can also cause intermittent faults. A loose pin inside the connector makes the motor stutter or stop completely. Push each pin in from the back of the connector to ensure they are fully seated.

Less common but worth checking: the battery connector. A slightly loose Anderson Powerpole or XT60 connector can cause voltage drops that make the motor cut out under load. Make sure the connector clicks fully together.

Mistakes That Cost Apollo Air Owners Time and Money

Some repairs are straightforward. Others turn into a frustrating loop of swapping parts that were not broken in the first place. Here are the most common mistakes we see in Apollo Air motor troubleshooting.

Replacing the motor when the controller is dead. This is the number one error. Aggregate reviews report that roughly 70 percent of "dead motor" cases on the Apollo Air trace back to a blown controller, not the motor itself. The controller costs about $50.

The motor costs about $100. Test the controller first.

Skipping the brake sensor check. A stuck brake sensor creates the exact same symptom as a dead motor. Owners sometimes order a whole replacement motor before realizing the brake lever was just a little sticky. Check the brakes first.

Buying non-OEM replacement parts. Third-party controllers and motors from generic sellers often have different connector pinouts or voltage tolerances. They might fit physically but fail electrically within weeks. Stick with genuine Apollo parts.

Forgetting to disconnect the battery before testing. The 36V DC system can arc and damage connectors or cause injury. Always disconnect the battery pack before probing wires or opening the controller compartment.

Ignoring the battery voltage under load. A battery that shows full charge at rest can sag below 30V the moment you hit the throttle. The BMS cuts power, and it looks exactly like a motor failure. Test the battery under load before blaming the motor.

When to Fix It Yourself vs. When to Call Apollo Support

Not every Apollo Air motor problem is a DIY job. Knowing the line between a quick fix and a professional repair saves time and prevents damage.

Fix it yourself if: the issue is a loose connector, a stuck brake sensor, a corroded wire terminal, or a blown controller. These are all straightforward repairs with basic tools. A multimeter, a set of hex wrenches, and some electrical contact cleaner handle most of these cases.

The repair takes between 10 and 45 minutes.

Call Apollo support or a repair shop if: the motor needs internal work. Opening the hub motor case to replace hall sensors or bearings requires a gear puller, a press, and experience with magnet rotors. One wrong move and the magnets snap together, causing injury or cracking the stator.

This is not a beginner job.

Send it in if: you find burnt wiring inside the motor or visible damage to the stator windings. Replacing the entire motor wheel assembly is often cheaper and safer than attempting an internal rebuild. Apollo support can walk you through warranty coverage and replacement options.

Check warranty first. The Apollo Air comes with a 12 month warranty on electrical components including the motor and controller. If your scooter is under that window, do not open anything. Contact Apollo directly.

Opening the motor or controller housing can void the warranty.

Apollo Air Motor Problem FAQ

How do I know if my Apollo Air motor is actually broken versus a wiring issue?

Test the motor directly. Disconnect the three phase wires from the controller. Twist them together briefly.

Spin the wheel by hand. If the wheel feels harder to spin with the wires shorted, the motor coils are intact. If there is no change in resistance, the motor has internal damage.

What does the Apollo Air error code 5 mean?

Error code 5 (five flashes of the display) indicates a throttle or controller communication failure. Check the throttle connector first. If it is clean and seated, the controller may need replacement.

This is one of the most common error codes on the Apollo Air.

Can water damage cause the Apollo Air motor to stop working?

Yes. The motor is rated IP54 which means splash resistance, not submersion. Water can enter through the axle wire exit or the side cover seal.

Corrosion on the hall sensor board or phase wire connectors inside the hub is a known issue on units ridden in heavy rain.

How much does it cost to replace an Apollo Air motor?

A genuine Apollo Air replacement motor wheel assembly costs around $80 to $120 as of 2026. A replacement controller costs about $45 to $70. Labor from a repair shop adds $30 to $60 depending on your area.

DIY replacement is straightforward and takes about an hour.

Should I replace the controller when I replace the motor?

Not necessarily. If the controller tested good and the motor was the confirmed failure, reuse the controller. But if the motor failed due to a short that could have damaged the controller, replace both at the same time.

This prevents a second failure shortly after the repair.

How long does an Apollo Air motor typically last before problems start?

Manufacturer specifications and aggregate user data suggest a lifespan of 3,000 to 5,000 miles under normal commuting conditions. Frequent hill climbing, heavy rider weight, and wet riding shorten that range. Regular maintenance of connectors and brake sensors extends motor life significantly.

Final Decision Guide

The simplest route: start with the brake sensors and throttle connector. Move to the controller and phase wires. Open the motor only as a last resort.

Most Apollo Air motor problems live in the connections, not the motor itself.
