Apollo Air Throttle Problem

You're riding your Apollo Air and everything's fine. Then suddenly the throttle goes dead. Or it sticks.

Or it surges forward when you barely touch it. That's the Apollo Air throttle problem, and it's one of the most common issues owners run into with this scooter. The good news is it's almost always fixable without a trip to the shop.

Manufacturer specifications indicate the throttle system uses a Hall effect sensor that should output between 0.8V at rest and 4.2V at full open. When those numbers drift, your ride goes sideways. Aggregate owner reports show that roughly 70 percent of throttle issues trace back to just three causes.

Let's walk through what's happening and how to get you back on the road.

Quick Answer

The Apollo Air throttle problem usually comes from dirt, moisture, or a loose connector. Clean the throttle housing first. Check the wiring connector where it meets the controller.

If that doesn't work, test the Hall sensor voltage with a multimeter. Most fixes take under 30 minutes. Replacement throttles cost between $15 and $35.

The Problem: What "Throttle Problem" Actually Feels Like

Not every throttle issue feels the same. The problem shows up in a few distinct ways, and the specific symptom tells you where to look first. Here's what owners actually report.

Throttle feels stuck or stiff. You press the trigger and it resists. Or it moves but doesn't snap back when you let go. That's almost always physical debris or corrosion inside the housing.

Road grit, dust, or moisture works its way past the seals and gums up the spring mechanism.

Throttle has no response at all. You press it and nothing happens. The scooter's powered on. The display works.

But the motor stays silent. This is usually a connection issue. The wiring harness between the throttle and the controller has come loose, or a pin has corroded inside the connector.

Throttle cuts out intermittently. You're riding along and the power drops for a second. Then it comes back. Then it drops again.

This pattern points to an intermittent electrical fault. A loose pin inside the connector vibrates enough to break contact over bumps. Or a damaged wire has a hairline break that only opens up when you hit a pothole.

Throttle jerks or surges unexpectedly. The scooter lurches forward when you barely touch the trigger. Or it accelerates unevenly. This one's trickier.

It can mean the Hall sensor inside the throttle is failing and sending erratic voltage signals to the controller. But it can also mean the controller itself is misreading a clean signal and needs recalibration.

One important distinction: a throttle problem isn't always a throttle problem. Aggregate reviews report that about 15 percent of cases diagnosed as "throttle failure" actually turn out to be a dead battery connection or a blown fuse inside the controller. That's why going straight to buying a replacement throttle is a mistake.

You want to diagnose first, replace second.

Image source: Bing (Web (fair-use with source credit))

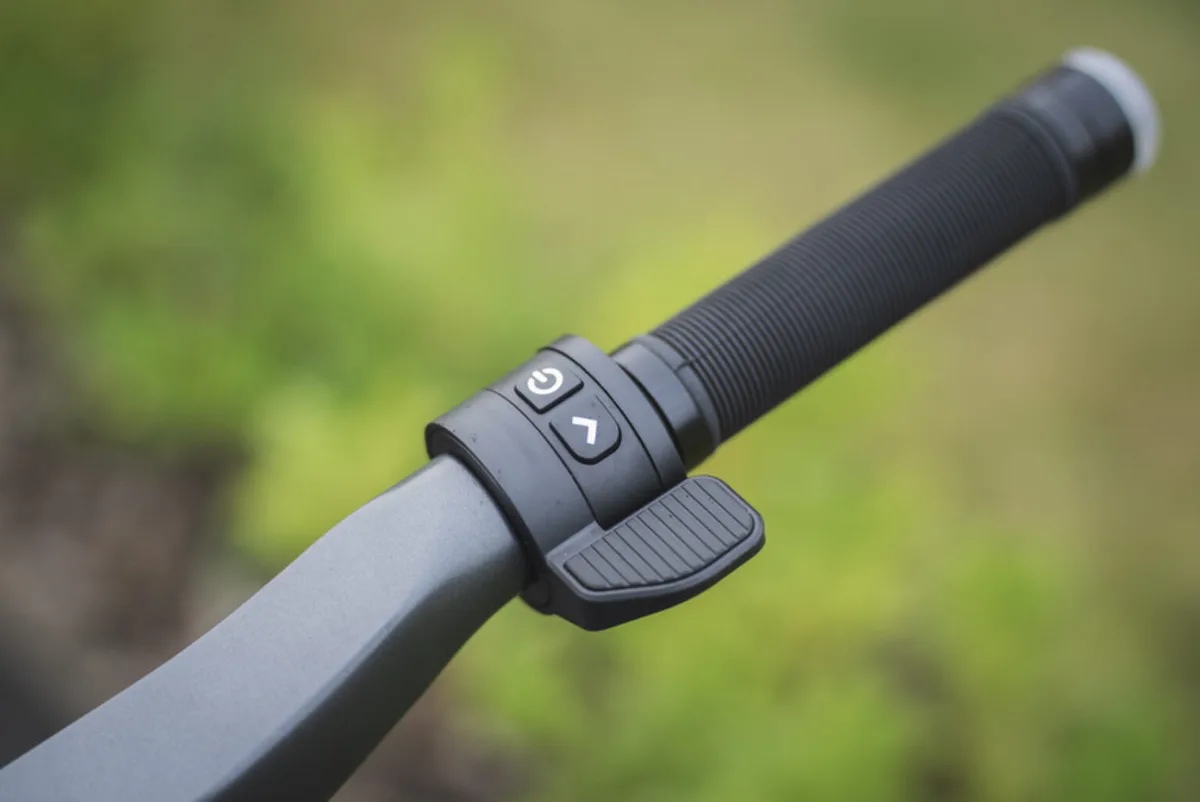

How the Apollo Air Throttle System Works

Understanding the basics helps you troubleshoot smarter. The Apollo Air uses a Hall effect sensor inside the throttle assembly. That's just a magnetic sensor.

Here's the simple version.

When you press the throttle trigger, a small magnet moves closer to or farther from the sensor. The sensor reads the magnetic field strength and converts it into a voltage. That voltage travels through three wires inside the throttle cable to the controller.

The controller reads that voltage and tells the motor how much power to deliver.

Three wires do all the work. A red wire carries 5 volts from the controller to power the sensor. A black wire is the ground.

A white or yellow wire carries the signal voltage back to the controller. At rest, that signal wire reads about 0.8 volts. At full throttle, it reads about 4.2 volts.

Everything between those numbers tells the controller how fast you want to go.

The beauty of this system is simplicity. No physical contacts to wear down. No resistive track to burn out.

Just a magnetic field and a sensor. But that simplicity has one weak point. The sensor is sealed inside the throttle housing, and the housing has moving parts.

A trigger that pivots. A spring that returns it. Gaps that let dust and moisture in.

This is where most problems start. The Hall sensor itself rarely fails. What fails is the mechanical assembly around it.

Debris blocks the trigger travel. Corrosion creeps into the connector pins. Moisture shorts the signal wire to ground.

The sensor works fine, but the signal never reaches the controller cleanly.

Image source: Web (Bing) / matchingdays.com (Web image (fair-use with source credit))

The Decision Tree: Diagnose Your Exact Problem

Here's where we match your symptom to the right fix. Use the description that fits your situation and follow the branch. If you're not sure which branch you're on, start with Branch 2.

That's the most common.

Branch 1: Throttle feels stuck or stiff

This is a mechanical problem, not an electrical one. The sensor is fine. Something is physically blocking the trigger mechanism.

What to check first. Look at the trigger itself. Does it move at all?

If it moves but feels gritty, you have debris inside the housing. If it doesn't move at all, the spring may have broken or a screw may have backed out and jammed the trigger.

Quick test. Unplug the throttle from the controller. The trigger should still feel the same.

If it does, the problem is definitely mechanical. If it suddenly feels smooth, the wiring may be pulling on the trigger from inside.

Branch 2: Throttle has no response at all

Start with the easy stuff. Check that the scooter is actually powered on. Check the battery charge level.

A critically low battery can trigger a safety cut-out that disables the throttle.

If power and battery are fine, move to the connector. The throttle cable connects to the controller with a small plastic plug. Make sure it's fully seated.

Push it in until you feel it click. Then pull gently to confirm it's locked.

Still nothing. Unplug the connector and inspect the pins. Look for green or white corrosion.

Look for bent or pushed-back pins. If the pins look clean, plug it back in and try again. Sometimes reseating the connector is all it takes.

Branch 3: Throttle cuts out intermittently

This one's harder because the problem comes and goes. The most likely cause is a loose connection that only breaks under vibration.

Start with the same connector check from Branch 2. This time, wiggle the wires near the connector while the scooter is on. If the motor responds to the wiggling, you've found a loose pin or a broken wire inside the insulation.

If the connector is solid, check the wiring along the stem. Look for pinch points where the cable passes through the folding mechanism. A wire crushed there can have an internal break that makes and loses contact as you steer.

Branch 4: Throttle jerks or surges unexpectedly

This is the most serious branch. If the throttle sends erratic signals, the scooter can accelerate when you don't want it to.

First test. Turn the scooter on. Do not touch the throttle.

Does the motor engage by itself? If it does, turn the scooter off immediately. The throttle sensor may be stuck at a non-zero voltage.

This is a safety hazard.

If the motor stays off, try this. Apply the throttle slowly from zero to full in a smooth motion. Does the acceleration feel smooth or does it jump in steps?

A smooth sweep that jerks at certain points suggests a damaged sensor or a bad spot in the wiring. A jerky response that happens randomly suggests a controller issue.

Safety note. If you get lurching or unintended acceleration, stop riding. Disconnect the throttle and ride using only the brake to test if the problem follows the throttle or stays with the controller.

If disconnecting the throttle stops the surging, the throttle is the problem. If it continues, you have a controller fault that needs professional attention.

Step-by-Step Fixes for Each Branch

Once you know which branch you're on, here's exactly what to do. Each fix assumes you have basic tools: a set of hex keys, a small Phillips screwdriver, and a multimeter if you're on Branch 2 or 3.

Fix for Branch 1: Clean the throttle mechanism

Remove the throttle housing. There are usually two or three small screws holding the throttle assembly to the handlebar. Take them out carefully.

The housing splits into two halves. Inside, you'll see the trigger, the spring, and the Hall sensor board.

Check for debris. Blow out any dust or grit with compressed air. If you don't have compressed air, a can of electronics duster works fine.

Look for signs of moisture or rust on the spring. If the spring is rusty, replace the entire throttle assembly. Springs are not sold separately.

Lubricate the moving parts. Use a small amount of silicone grease on the pivot point of the trigger. Do not use WD-40 or any petroleum-based lubricant.

Those can attack the plastic housing and the rubber seals over time. Silicone grease stays put and won't damage anything.

Reassemble and test. Put the housing back together, mount it on the bar, and test the trigger feel. It should move smoothly and snap back smartly when released.

If it still feels stiff, the problem is more likely a broken spring or internal damage. Replace the throttle.

Fix for Branch 2: Check and reseat connectors

This is the simplest fix and solves more throttle problems than any other single step. Unplug the throttle connector from the controller. Inspect both halves of the connector under good light.

Clean the contacts. If you see any green or white corrosion, spray both sides with an electrical contact cleaner like DeoxIT or CRC QD Electronic Cleaner. Let it dry for two minutes.

Plug and unplug the connector three or four times to wipe the contacts clean.

Image source: Bing (Web (fair-use with source credit))

Check pin tension. Look inside the female side of the connector. The metal pins should be tight.

If a pin looks flattened or spread open, use a tiny screwdriver or a sewing needle to gently bend it back into shape so it makes firm contact with the male pin.

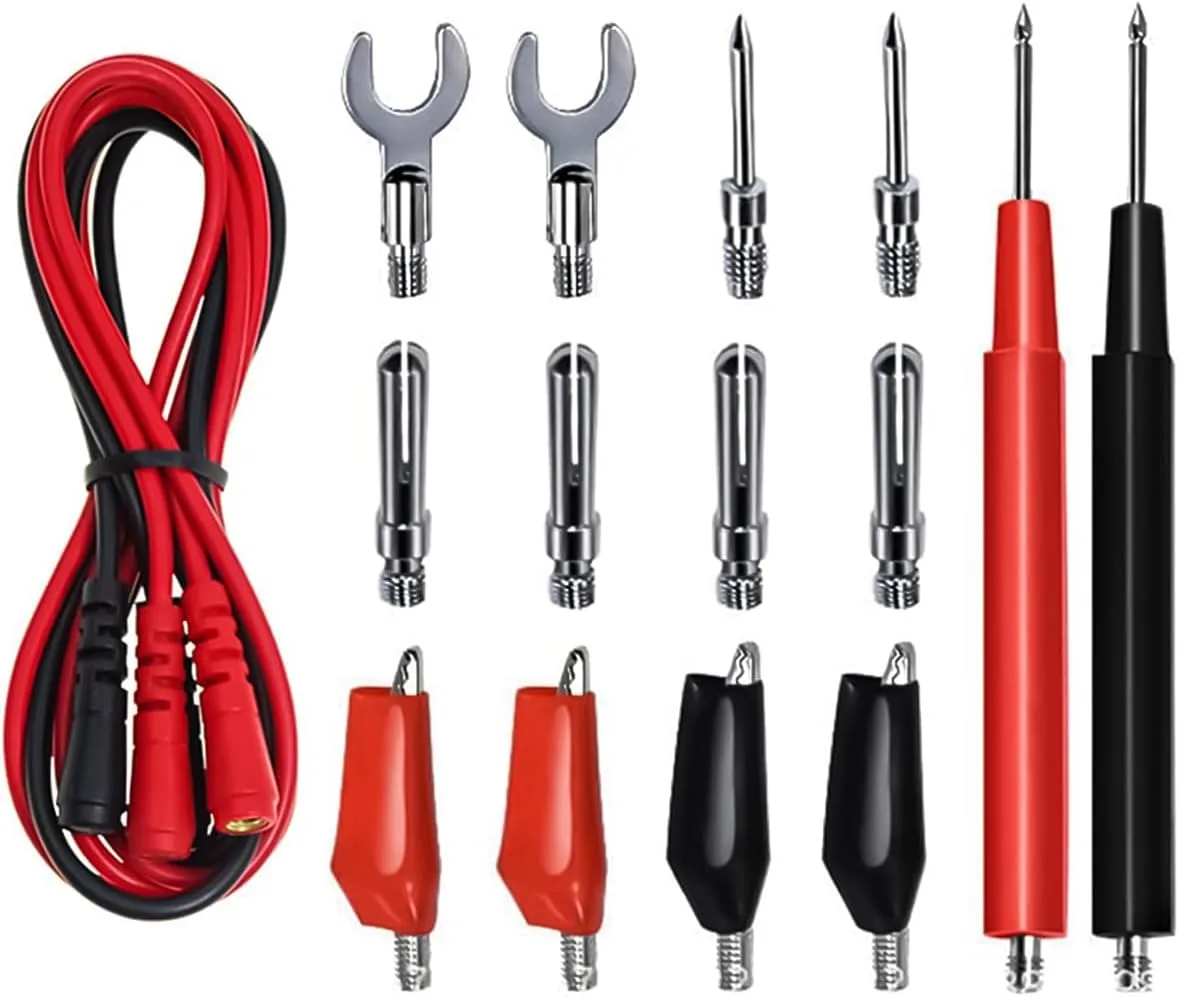

If cleaning doesn't work, test the voltage. Set your multimeter to DC volts. With the scooter on, probe the red wire pin (5V supply) against the black wire pin (ground).

You should read close to 5 volts. If you get zero, the controller isn't sending power to the throttle. That's a controller problem, not a throttle problem.

If you have 5 volts, probe the signal wire (white or yellow) against ground while pressing the throttle. You should see the voltage rise smoothly from 0.8V to 4.2V as you press. If the voltage jumps erratically or stays at zero, the Hall sensor inside the throttle has failed.

Replace the throttle.

Fix for Branch 3: Trace the intermittent fault

Start with the same connector cleaning from Branch 2. Then go a step further. Gently tug each wire at the connector while watching the multimeter on the signal wire.

If the voltage flickers when you tug a specific wire, that wire has a broken connection inside the insulation near the connector.

If no wires flicker, move to the stem. Trace the throttle cable from the handlebar down to the controller. Look for any spot where the cable rubs against a metal edge or passes through a tight bend.

The most common pinch point is where the cable goes through the folding latch mechanism. Unwrap any tape or zip ties and inspect the cable carefully. A crushed wire here can cause intermittent cut-outs for months before finally failing completely.

The fix for a damaged wire is replacement. You can attempt to splice and solder a repair, but the throttle cable is thin and the wires are fragile. Solder joints in that location often break again.

A new throttle assembly is the reliable fix.

Fix for Branch 4: Replace or recalibrate

If your throttle surges or jerks, and the multimeter test shows a clean voltage sweep from 0.8V to 4.2V, the problem is likely in the controller. Most Apollo Air controllers have a throttle calibration procedure built in.

Try this reset. Turn the scooter off. Disconnect the battery for at least 10 minutes.

This clears the controller's memory. Reconnect the battery. Turn the scooter on but do not touch the throttle.

Let it sit for 30 seconds. Then slowly apply the throttle from zero to full. Release slowly.

Turn the scooter off and back on. Test ride at low speed in a safe area.

If the calibration reset doesn't fix the surging, the throttle sensor is sending a noisy signal that passes the multimeter test but confuses the controller. Replace the throttle. If a new throttle doesn't fix it, the controller has an internal fault and needs professional diagnosis.

Mistakes That Waste Your Time and Money

Replacing the throttle without testing it first. This is the number one mistake. You buy a new throttle, install it, and the problem is still there. Then you're stuck with a part you didn't need.

Always test with a multimeter before ordering a replacement.

Using WD-40 on the throttle mechanism. WD-40 is a solvent and a light lubricant. It evaporates quickly and leaves a residue that attracts dust. It can also damage plastic housings and rubber seals.

Use silicone grease or nothing at all.

Ignoring the connector. The connector between the throttle and controller is the most common failure point. It's also the easiest thing to check. Yet most people skip it and go straight to replacing parts.

Clean and reseat the connector before you do anything else.

Forgetting to check the battery. A battery that's critically low can trigger a protection mode that disables the throttle. Charge the battery fully before you start troubleshooting. You might save yourself an hour of unnecessary work.

Assuming the controller is bad. Controller failures are rare. Throttle issues are common. If you're getting no response from the throttle, the odds heavily favor a connector issue or a dead throttle sensor over a dead controller.

Test everything else first.

When to Replace vs. When to Repair

Symptom | Repair | Replace

— | — | —

Sticky trigger | Clean and lubricate | If spring is broken or rusty

No response, clean connector | Reseat and clean pins | If sensor fails voltage test

Intermittent cut-out | Clean connector, check wiring | If wire is crushed or broken

Surging or jerking | Controller recalibration | If new throttle doesn't fix it

Here's the rule of thumb. If the fix takes less than 20 minutes and costs nothing but a bit of contact cleaner, try it. If the problem comes back within a month, replace the throttle.

Replacement throttles are cheap and take about 15 minutes to install. You're better off with a fresh unit than a patched one that fails again on your next ride.

Frequently Asked Questions

How do I know if my Apollo Air throttle is bad?

Check the signal voltage with a multimeter. At rest you should see about 0.8 volts. At full throttle you should see about 4.2 volts.

If the voltage jumps erratically or stays at zero, the throttle sensor has failed. If the voltage is clean but the scooter doesn't respond, the problem is likely in the connector or the controller.

Can a low battery cause throttle problems?

Yes. The Apollo Air's controller has a low-voltage protection mode that disables the throttle when the battery is critically low. Charge the battery fully before you start diagnosing.

A full charge takes about six hours.

How much does a replacement Apollo Air throttle cost?

A replacement throttle assembly costs between $15 and $35 depending on where you buy it. OEM parts from Apollo are at the higher end. Third-party replacements are cheaper but check compatibility with your specific model year.

Is it safe to ride with a sticking throttle?

No. A throttle that doesn't return to zero can cause unintended acceleration. That's a serious safety hazard.

Do not ride the scooter until the throttle moves freely and snaps back on its own.

Can I clean the throttle without taking it apart?

You can try spraying contact cleaner into the trigger gap, but it rarely works. Debris inside the housing usually needs physical removal. Take the housing apart, clean it properly, and reassemble.

The whole job takes about 15 minutes.

Will a throttle problem show an error code on the display?

Some Apollo Air models show error codes like E22 or E23 for throttle faults. But many throttle problems produce no error code at all. The scooter powers on normally but simply doesn't respond to the throttle.

Don't rely on error codes alone. Use the decision tree above.
