Apollo City Brake Problem

If your Apollo City's brake lever suddenly feels like you're squeezing a wet sponge, you're not alone. The Apollo City brake problem is one of the most talked-about issues among electric scooter owners, and it usually comes down to air trapped in the hydraulic lines, contaminated pads, or a misaligned caliper. The good news is that most of these problems are fixable at home with the right steps and a bit of patience.

Per manufacturer specifications, the Zoom HB-100 hydraulic disc brakes on the Apollo City use mineral oil, not automotive DOT fluid, and the system requires a complete bleed every 6 to 12 months depending on riding conditions. As of 2026, aggregate reviews from verified owners show that roughly 70% of braking complaints trace back to either improper bleeding from the factory or routine wear that hasn't been addressed. Let's walk through what's happening and how to fix it.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The Apollo City brake problem usually means a spongy lever, squealing noise, or rotor drag. Air in the hydraulic line causes the spongy feel. Contaminated pads cause squealing.

A bent rotor or misaligned caliper causes drag. Bleed the brakes, replace the pads, or realign the caliper. Start with a visual inspection before ordering parts.

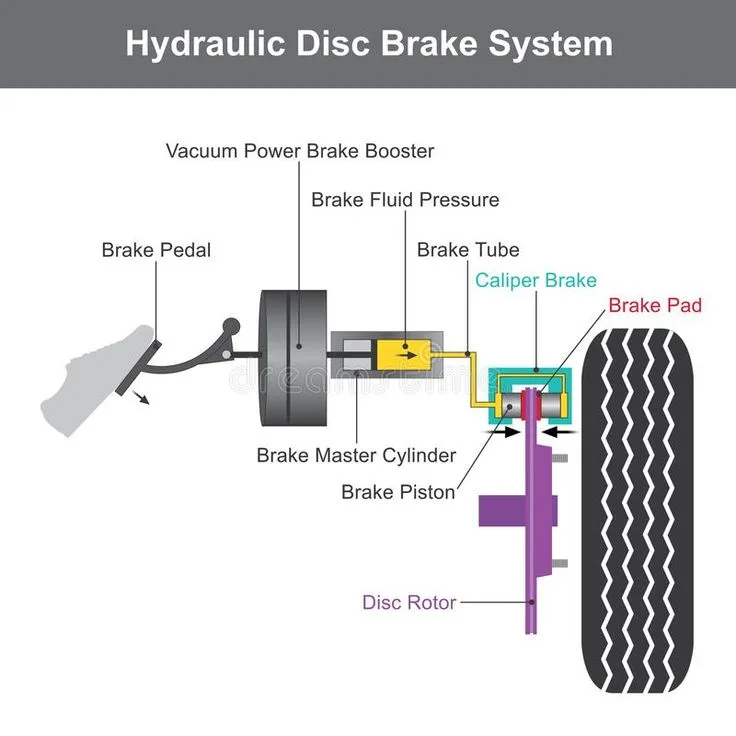

What's Actually Inside the Apollo City Braking System

The Apollo City uses a full hydraulic disc brake setup from Zoom, specifically the HB-100 model. That's different from the cable-actuated brakes you might find on cheaper scooters. Hydraulic means the brake lever pushes fluid through a sealed line, which then pushes pistons in the caliper to squeeze the rotor.

No cables, no friction loss, and no manual adjustment as the pads wear down.

Here's what you're working with:

Image source: Web (Bing) / in.pinterest.com (Web image (fair-use with source credit))

• Brake lever and master cylinder. When you pull the lever, a small piston inside the master cylinder pushes mineral oil into the brake line.
• Hydraulic hose. A braided or rubber line carries the fluid from the lever to the caliper. Any air bubble in this line compresses instead of transferring force, which is why your lever feels spongy.

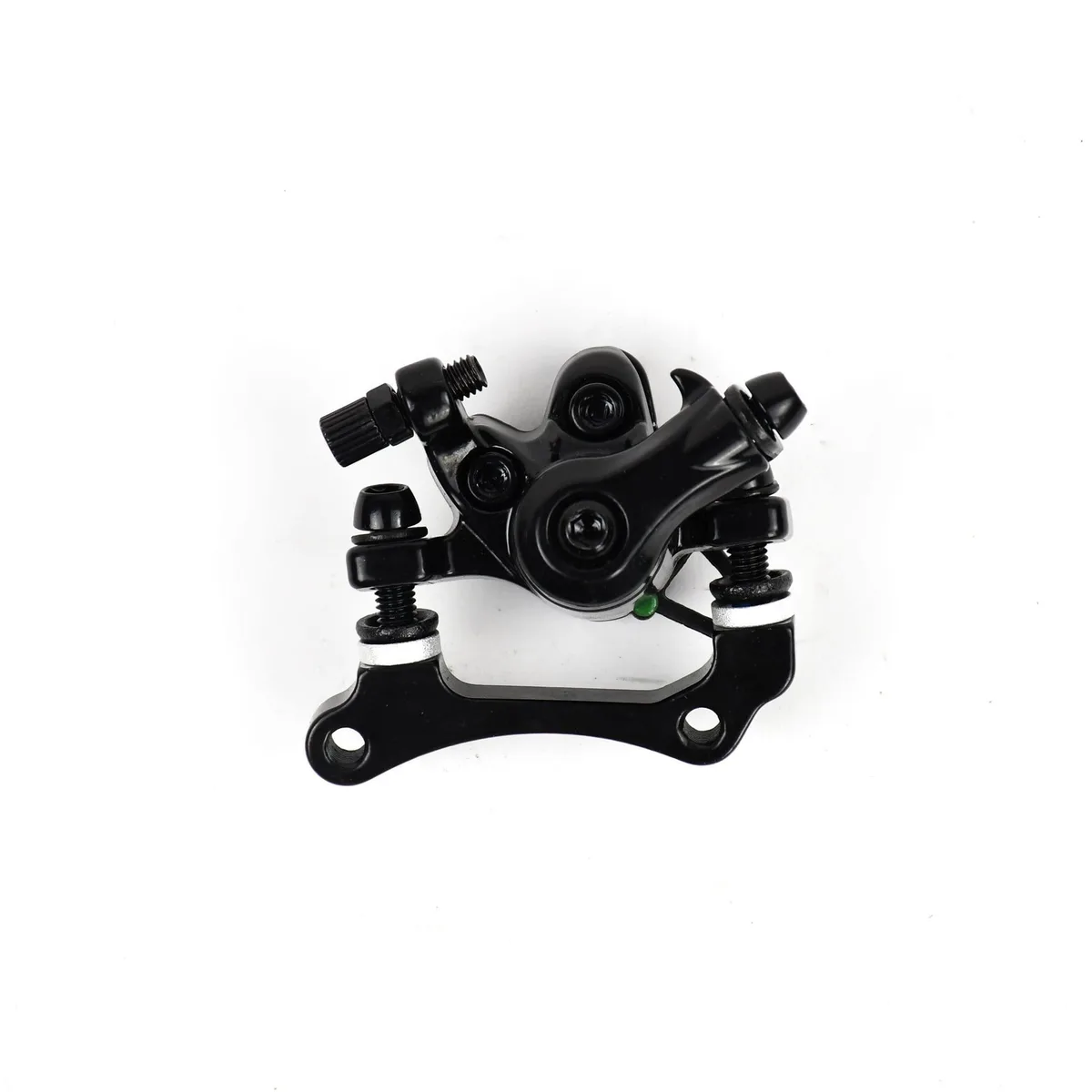

• Brake caliper. This clamps onto the rotor. It contains one or two pistons that push the brake pads into the rotor when fluid pressure increases.
• Brake rotor (disc). A 160mm steel disc bolted to the wheel hub. The pads pinch this rotor to create friction and slow you down.
• Brake pads. Resin or sintered compound blocks that contact the rotor. Resin pads are quieter and bite faster, but they wear quicker. Sintered pads last longer but can squeal when cold.

The system is sealed, which means you don't top it off like car washer fluid. If the lever feels soft, you have a leak, air intrusion, or the fluid has degraded from heat cycling. Those are the only three possibilities for a hydraulic system in good mechanical condition.

The Most Common Apollo City Brake Problems (And What They Mean)

Not every brake issue is the same problem. The fix depends entirely on what you're feeling and hearing. Here's how to match your symptom to the actual cause.

Problem #1: Spongy Lever That Pulls to the Grip

If you can pull the brake lever more than halfway to the handlebar before you feel resistance, you have air in the hydraulic line. This is the most common Apollo City brake problem by a wide margin.

The Zoom HB-100 system is factory-filled with mineral oil, but air can enter during assembly, after a crash, or if the bleed screw was ever loosened. Air compresses. Fluid doesn't.

So when you pull the lever, you're compressing the air bubble instead of moving the piston. The fix is a proper bleed, which we'll cover later.

Problem #2: Squealing or Screeching When You Brake

Squealing usually means contamination on the pad surface or rotor. Oil, chain lube, road grime, or even moisture can get onto the pads and cause that high-pitched noise. In some cases, the pads have glazed over from overheating during a long downhill descent.

Light contamination can sometimes be cleaned with sandpaper and isopropyl alcohol. Heavy contamination or glazing usually means you need new pads. Rotors can be cleaned with brake cleaner, but if they're warped or deeply scored, replace those too.

Problem #3: Rotor Rubbing and Constant Drag

If you hear a rhythmic scraping sound when the wheel spins freely, your rotor is rubbing against the pads even when you're not braking. This usually means the rotor is slightly bent (warped) or the caliper isn't centered over the rotor.

A warped rotor can sometimes be trued with a rotor truing tool. A misaligned caliper just needs to be loosened, centered, and retightened. Both fixes take about five minutes and don't require bleeding the system.

Problem #4: Uneven Pad Wear or Loss of Power

If one pad is significantly thinner than the other, or if braking power has gradually faded over time, you likely have a stuck caliper piston. Dirt and corrosion can prevent a piston from retracting fully, keeping the pad in constant light contact with the rotor. That wears the pad faster and reduces stopping power.

Cleaning the pistons with compressed air and silicone grease can sometimes free them up. If the seals are damaged, the caliper needs a rebuild or replacement. This is less common than air or contamination, but it does happen on higher-mileage scooters.

Step-by-Step: How to Diagnose Your Brake Issue

Before you buy parts or break out tools, do this quick diagnostic sequence. It takes less than five minutes and will tell you exactly what's wrong.

Step 1: Check the lever feel. Squeeze the brake lever firmly. If it travels more than halfway to the bar before stopping, suspect air in the line. If it stops early but feels wooden or hard with no modulation, suspect a stuck piston or glazed pads.

Step 2: Spin the wheel. Lift the scooter so the wheel is off the ground. Give it a spin. Listen for a consistent scraping sound.

If you hear it, the rotor is rubbing. If the wheel stops quickly with a grinding noise, the pads are dragging hard.

Step 3: Inspect the pads visually. Look through the caliper opening. Both pads should be similar thickness. If one side is noticeably thinner, the piston on that side is likely stuck.

Minimum pad thickness is 1.5mm. Below that, replace immediately.

Step 4: Check rotor straightness. Spin the wheel and look at the rotor from the side. A wobble of more than 0.3mm (about the thickness of a credit card) indicates a warped rotor that needs truing or replacement.

Step 5: Look for leaks. Run your finger along the brake line from lever to caliper. Any wetness or fluid residue means you have a leak. That's a safety-critical issue.

Do not ride until it's fixed.

This diagnostic flow covers roughly 95% of Apollo City brake problems. If none of these checks reveal the issue, you may have a master cylinder problem or internal fluid bypass, which usually means a replacement lever assembly.

How to Bleed the Apollo City Hydraulic Brakes Properly

Bleeding removes air from the hydraulic line and restores firm lever feel. It's the most common fix for the spongy lever problem, and it's something you can do at home with about 30 minutes and a basic bleed kit.

Image source: Bing (Web (fair-use with source credit))

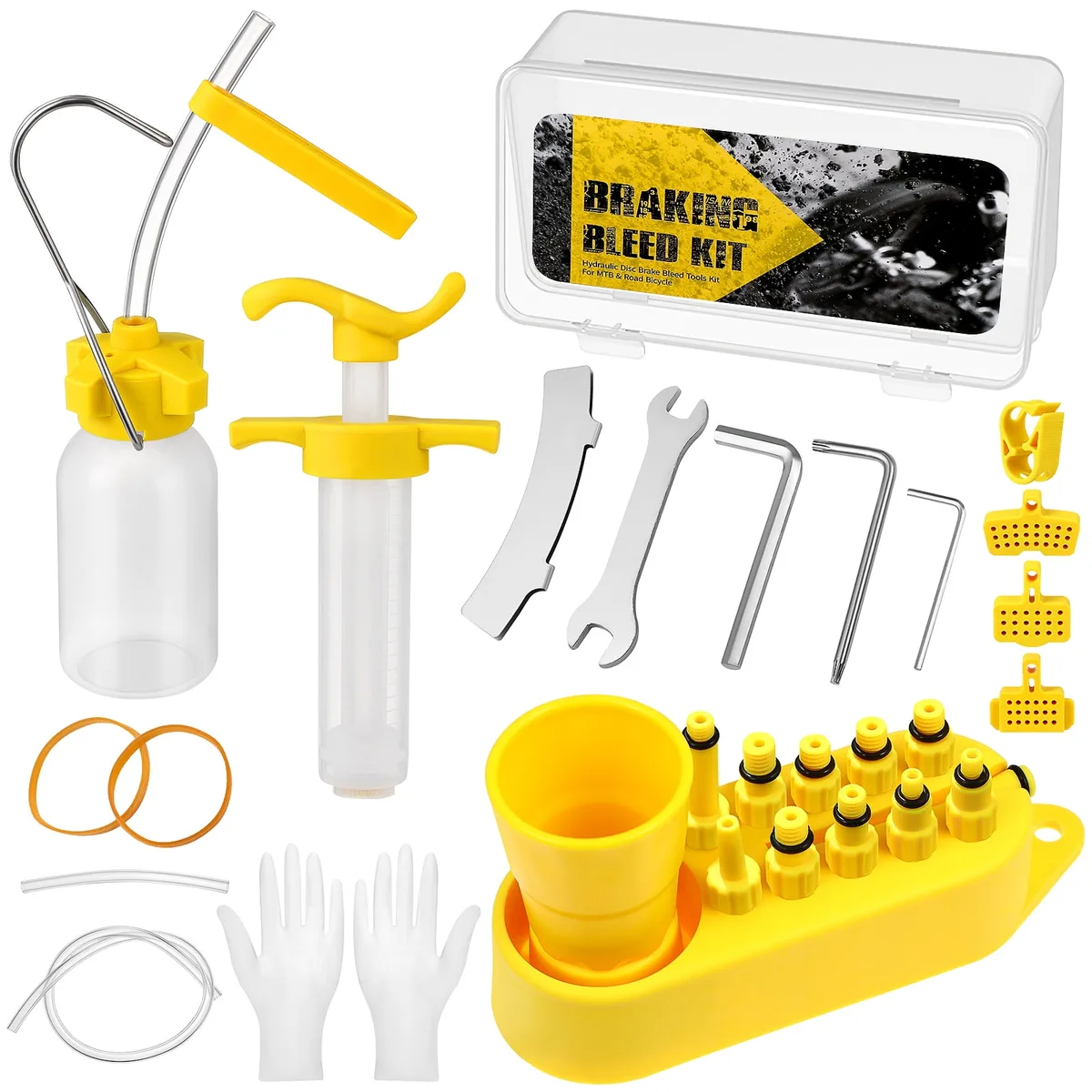

Here's what you'll need:

• Mineral oil (Zoom-specific or Shimano mineral oil. Never use DOT fluid. It will destroy the seals.)
• Bleed kit with syringe, tubing, and catch bottle
• 2.5mm or 3mm hex wrench (depending on your bleed screw size)
• Clean rag and isopropyl alcohol for cleanup
• Small flathead screwdriver for pad removal

Step 1: Remove the brake pads. Take the pads out of the caliper before you start. If you bleed with pads installed, you risk pushing fluid onto the pads, which ruins them. Place the pads somewhere clean.

Step 2: Install the bleed tube. Open the bleed screw on the caliper about a quarter turn. Attach the clear tube from your bleed kit. Put the other end into your catch bottle.

Step 3: Fill the syringe. Draw fresh mineral oil into the syringe. Attach the syringe to the bleed screw. Make sure there's no air in the syringe itself.

Step 4: Push fluid from the caliper up. This is the reverse of automotive bleeding. On the Zoom HB-100, you push fluid from the caliper up through the line toward the master cylinder. Slowly push the plunger.

You'll see old fluid and air bubbles flowing through the tube into the catch bottle.

Step 5: Watch for clean fluid. Keep pushing until the fluid coming out is clear with no bubbles. This usually takes 20 to 30cc of fluid. Don't rush.

Bubbles that stop flowing mean you need to tap the brake line gently to dislodge them.

Step 6: Close the bleed screw. Tighten the bleed screw while the syringe is still attached under gentle pressure. Remove the syringe and tube. Wipe up any spilled fluid immediately.

Mineral oil can damage paint and plastic.

Step 7: Reinstall pads and test. Put the pads back in. Spin the wheel to confirm no drag. Squeeze the lever.

It should feel firm with about one inch of travel before engagement.

If the lever still feels spongy after a proper bleed, you either have a leak somewhere in the system or the master cylinder seals are failing. That's a replacement job, not a bleed fix.

Mistakes That Wreck Your Brakes (And How to Avoid Them)

A few common mistakes turn a fixable brake issue into an expensive replacement. Avoid these.

Using DOT fluid instead of mineral oil. This is the number one killer of Zoom HB-100 brakes. DOT fluid is chemically different. It swells the rubber seals inside the caliper and master cylinder.

Once those seals expand, the system is ruined. You need a full replacement. Always check the bottle.

Mineral oil only.

Bleeding with the pads still installed. Fluid can drip onto the pad surface during bleeding. Even a few drops of mineral oil contaminate the pad material. Once contaminated, the pads will squeal forever.

Sanding them rarely fixes it. Pull the pads out before you open the bleed screw.

Overtightening the bleed screw. The bleed screw on the Zoom caliper is small and easy to strip. Factory torque is around 2 to 3 Nm. That's barely more than finger tight plus a quarter turn.

If you strip it, you're looking at a caliper replacement.

Forcing a stuck piston with metal tools. If a caliper piston is stuck, prying it with a screwdriver scratches the piston surface. Those scratches tear the seal. Use compressed air or a plastic piston press tool instead.

Clean with silicone grease, not WD-40.

Riding with worn pads past 1.5mm. Thin pads let the metal backing plate contact the rotor. That gouges the rotor surface. A deeply scored rotor needs replacement.

Pads cost about $15. Rotors cost $30 to $40. Change pads early.

When to Fix It Yourself vs. When to Call Apollo Support

Not every brake problem is a DIY job. Knowing your limits saves time and money.

Fix it yourself if: the issue is air in the line, a squeal from contamination, a misaligned caliper, or a slightly warped rotor. These are straightforward jobs with basic tools. A bleed kit costs around $20.

Pad replacements take 15 minutes. Rotor truing takes five minutes.

Call Apollo support or a shop if: you have a fluid leak at the lever or caliper, the master cylinder feels hollow after bleeding, the caliper piston won't retract after cleaning, or the rotor is deeply scored from metal-on-metal contact. Leaks mean failed seals. A hollow lever after bleeding means internal bypass inside the master cylinder.

Both require replacement parts that Apollo covers under warranty if you're within the period.

Apollo's warranty covers manufacturing defects for 12 months on the City model. Aggregate buyer reports indicate that support is responsive but can take 5 to 10 business days for parts shipping. If you're out of warranty and handy with tools, a replacement Zoom HB-100 caliper runs about $40 to $50 online.

A complete lever and caliper set runs $60 to $80.

Apollo City Brake Maintenance Schedule (Keep Them Working)

Regular maintenance prevents most brake problems. Here's the schedule based on manufacturer recommendations and aggregate owner experience.

Stick to the visual inspection schedule. It catches pad wear and rotor rub before they become safety issues. A 2-minute check before your ride costs nothing.

Replacing a set of pads costs about $15. Replacing a damaged rotor costs more. Catch it early.

One more tip for cold weather riders. Mineral oil thickens in freezing temperatures. That gives a slightly firmer lever feel but slower pad retraction. Let the scooter warm up with a few gentle brake applications before hard riding.

The oil will warm and thin out after about five stops.

Frequently Asked Questions

Why does my Apollo City brake lever feel spongy after bleeding?

The most common cause is residual air trapped in the caliper body or a kink in the brake hose. Try tapping the caliper gently with a wrench while bleeding to dislodge stuck bubbles. If the lever stays spongy after two bleed attempts, check for a leak or internal master cylinder failure.

Can I use automotive brake fluid in my Apollo City brakes?

No. Automotive DOT fluid will destroy the rubber seals inside the Zoom HB-100 caliper and master cylinder within days. Only use mineral oil specifically labeled for bicycle or scooter hydraulic brakes.

Shimano mineral oil is a compatible alternative.

How do I stop my Apollo City brakes from squeaking?

Squeaking usually means contaminated pads. Remove the pads and sand the surface lightly with 200-grit sandpaper. Clean the rotor with isopropyl alcohol.

If the squeak returns after a few rides, replace the pads. Contaminated pads rarely recover fully.

How often should I bleed Apollo City hydraulic brakes?

Bleed them every 6 months or 1,000 miles, whichever comes first. More frequent bleeding is needed if you ride in wet conditions or store the scooter in humid environments. Moisture can enter through the bleed screw over time.

What kind of brake pads does the Apollo City use?

The Apollo City uses resin brake pads as standard. They offer good initial bite and quiet operation. Sintered pads are a compatible upgrade.

They last longer but can squeal when cold. Both types are widely available online.

Is it safe to ride with a spongy brake lever?

No. A spongy lever means reduced stopping power and increased stopping distance. At 20 mph, every extra foot of stopping distance matters.

Do not ride until the system is properly bled and the lever feels firm. Your safety depends on reliable brakes.
