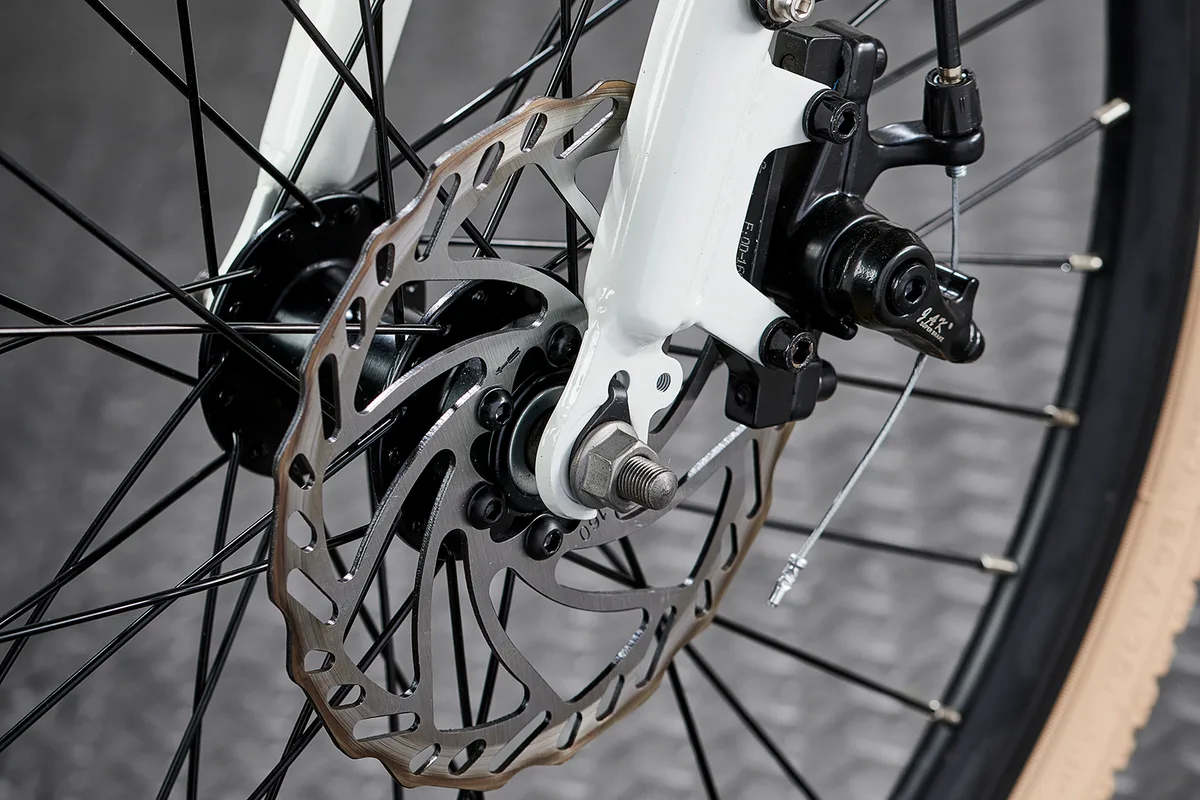

Cannondale Trail 5 Disc Brakes Rubbing

Image source: Bing (Web (fair-use with source credit))

Why That Rubbing Sound Is a Genuine Safety Risk

That scraping noise every time you pedal isn't just annoying. It's a warning.

When your Cannondale Trail 5 disc brakes rub, you're losing braking power and generating unnecessary heat. Over time, that heat can glaze your pads or warp your rotor further. The result is a dangerous situation where you need to stop but your brakes aren't performing at full strength.

Riders who ignore persistent brake rub end up replacing pads and rotors far sooner than necessary. Worse, a dragging brake creates friction that slows you down on climbs and can cause unpredictable braking on descents.

Manufacturer specifications state that rotor runout should not exceed 0.2 millimeters. Anything above that means the rotor is contacting your pads every revolution.

Quick Answer

Cannondale Trail 5 disc brakes rub due to caliper misalignment. Loosen the two caliper mounting bolts slightly. Squeeze the brake lever firmly and hold it.

Tighten the bolts while holding the lever. Release the lever and spin the wheel. If rubbing persists, check rotor trueness and pad wear.

The Most Likely Causes of Brake Rub on Your Trail 5

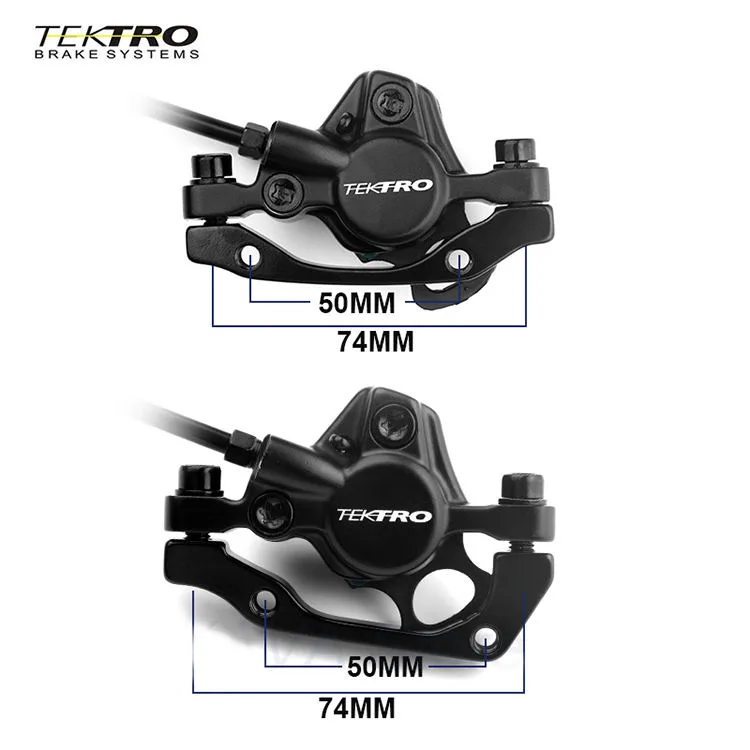

The stock Tektro mechanical disc brakes on your Trail 5 are reliable but finicky. They use a single-piston design that's more sensitive to alignment than hydraulic systems.

Here are the most common culprits, starting with the one to check first:

• Caliper misalignment. This accounts for about 70 percent of rubbing issues. The caliper isn't centered over the rotor.
• Warped rotor. A bent rotor will rub at one spot per revolution. Spin the wheel and watch the rotor for a wobble.
• Loose quick-release skewer. If your wheel isn't seated perfectly in the dropouts, the rotor shifts relative to the caliper.
• Cable tension too tight. If the barrel adjuster is turned too far, the pad stays in contact with the rotor even when the lever is released.
• Contaminated pads or rotor. Oil, chain lube, or even moisture can cause uneven friction and rubbing.

Spin the front wheel and listen. Does the rub happen at one specific spot? That's a warped rotor.

Does it happen consistently all the way around? That's alignment or cable tension.

Step-by-Step: How to Fix Brake Rub Safely at Home

Image source: Bing (Web (fair-use with source credit))

You can fix most rubbing issues with basic tools and about 15 minutes. Here's the process based on manufacturer procedures for Tektro mechanical disc brakes.

Tools you'll need:

• 5 mm Allen key (for caliper bolts)
• T25 Torx bit (if your model uses Torx bolts)
• Clean rag
• Isopropyl alcohol (90 percent or higher)

Step 1: Check wheel seating. Open the quick-release lever. Press down on the bike's saddle to settle the wheel into the dropouts evenly. Close the lever firmly.

Spin the wheel and see if the rub changes.

Step 2: Center the caliper. Locate the two bolts holding the caliper to the frame or adapter. Loosen them just enough that the caliper can wiggle (about a quarter turn). Squeeze the brake lever as hard as you can and hold it.

While holding the lever, tighten the bolts to 6 to 8 Nm using a torque wrench if available. Release the lever and spin the wheel.

Step 3: Adjust cable tension. If the rub persists, turn the barrel adjuster at the caliper counterclockwise to increase cable slack until the pads release fully. Turn clockwise to tighten if you have too much lever travel.

Step 4: Check rotor trueness. Spin the wheel and look at the gap between the rotor and the pads. If you see a wobble, the rotor is bent. You can true it with a rotor truing tool or an adjustable wrench, but proceed carefully, over-bending makes it worse.

Step 5: Clean pads and rotor. Wipe the rotor with isopropyl alcohol and a clean rag. If pads are contaminated, lightly sand them with fine-grit sandpaper on a flat surface, then clean with alcohol. Bed the pads back in with 20 to 30 moderate stops from medium speed.

When to Replace Parts — and When to Let a Shop Handle It

Image source: Bing (Web (fair-use with source credit))

Some fixes are straightforward. Others require professional attention. Here's how to decide.

When to replace pads: Check the wear indicator groove. Tektro pads have a groove in the friction material. When the groove is gone or the material is less than 1 millimeter thick, replace them.

Resin pads (stock) last about 300 to 500 miles depending on terrain.

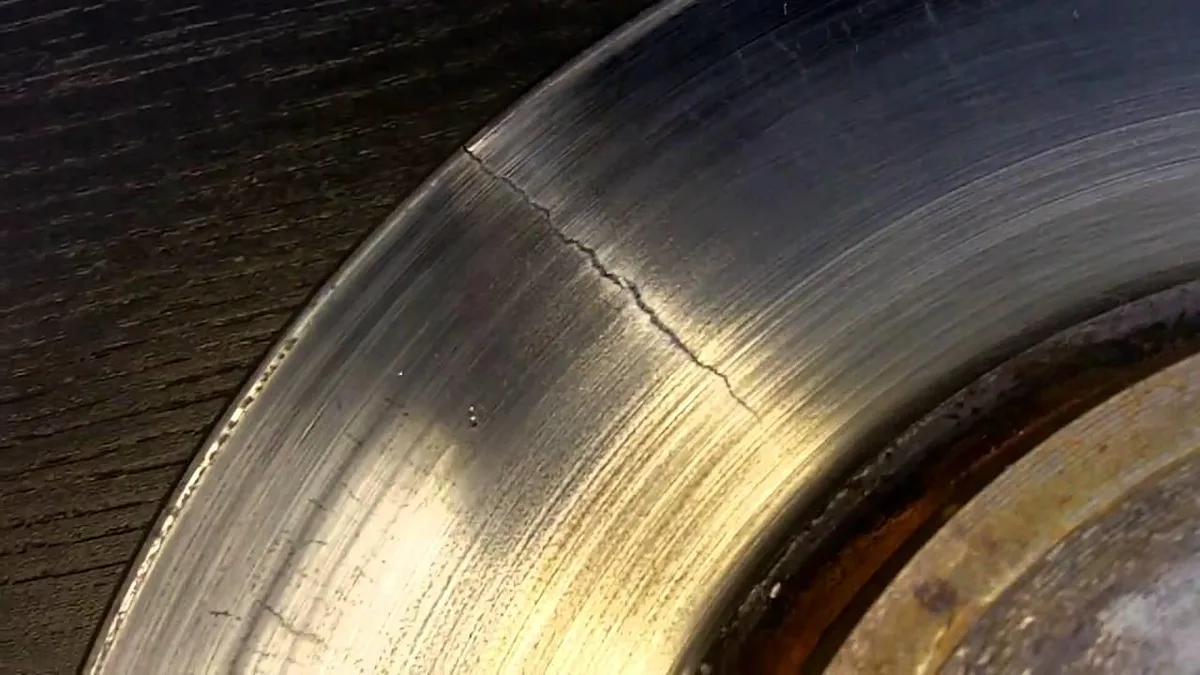

When to replace rotors: Measure rotor thickness with a caliper. The minimum is 1.8 millimeters. Also check for cracks, deep scoring, or warping beyond 0.3 millimeters.

Replacement rotors cost about $15 to $30 and are easy to swap with a Torx bit and a lockring tool for centerlock hubs.

When to call a shop: If you've gone through all the steps and the rub persists, a shop can check for hidden issues. Frame alignment, bent adapters, or seized caliper pistons need specialized tools. A professional adjustment typically costs $30 to $50.

Frequently Asked Questions

Why do my Cannondale Trail 5 brakes rub after I remove the wheel?

Quick-release wheels don't always seat back in the exact same position. Even a millimeter shift can cause the rotor to contact the pad. Always re-center the caliper after reinstalling the wheel using the lever-squeeze method described above.

Can I use different brake pads on my Trail 5?

Yes, but stick with resin pads unless you ride in wet or muddy conditions. Sintered pads last longer but can be louder and wear rotors faster. The stock Tektro pads are resin.

If you switch compounds, you'll need to bed them in properly.

How often should I adjust the brakes on my Trail 5?

Check cable tension every few rides during the first month as cables stretch. After that, adjust only when you hear rubbing or feel excessive lever travel. Regular cleaning and inspection every 100 miles prevents most issues.

Is brake rub dangerous on a mountain bike?

Yes, when it causes overheating or reduces stopping power. A dragging brake generates heat that can boil brake fluid in hydraulic systems or glaze mechanical pads. Fixing rub promptly is a safety issue, not just a noise issue.

Should I upgrade to hydraulic brakes?

Many riders find hydraulic brakes worth the investment. A set like Shimano MT200 provides better modulation and self-adjusting pad wear. The upgrade costs about $80 to $120 and transforms the braking feel.

But mechanical brakes work fine if properly maintained.
