Cannondale Trail 8 Fork Making Noise

Your Cannondale Trail 8 fork making noise is one of the most common complaints we see from owners. It's not a design flaw that ruins the bike, but it is an annoyance that almost always has a clear, fixable root cause. The good news?

Most fixes take under fifteen minutes and cost nothing beyond a bit of grease.

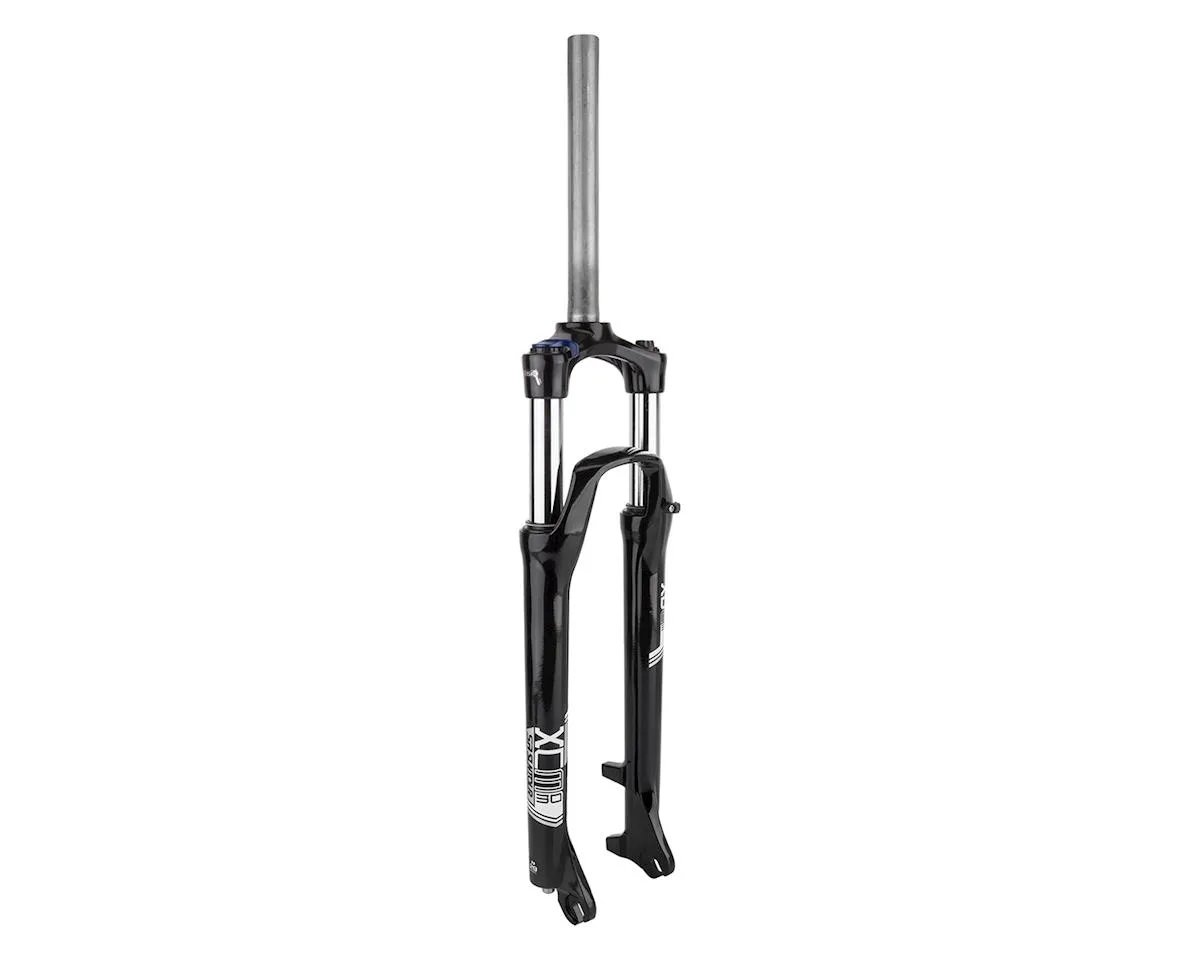

The Trail 8 ships with a Suntour XCM coil fork. It's a budget-friendly, heavy-duty unit built for trail riding. Coil forks are simple by design, and that simplicity means noise usually comes from one of four specific places.

Let's walk through the diagnosis step by step, starting with identifying exactly what you're hearing.

Image source: Bing (Web (fair-use with source credit))

Diagnosing the Noise: What Kind of Sound Is It?

Image source: Bing (Web (fair-use with source credit))

Before you touch a single bolt, stop and listen. The specific sound your fork makes tells you more than any visual inspection can. Riders describe three distinct noises, and each points to a different culprit.

The "clunk" sounds like a metal-on-metal thud when the fork compresses hard. It's a dull, heavy sound that travels right up through the handlebars. If you hear this, it's almost always an internal issue with the coil spring or a loose headset.

The "creak" is a dry, raspy groan when you turn the bars while braking, or when you rock the bike side to side. That's a friction noise, typically from a dry headset bearing or a star-fangled nut that's not torqued properly.

The "squeak" is a high-pitched chirp that syncs with every bump. This one is less about the fork internals and more about surface friction. Dry wiper seals, a dusty stanchion tube, or even a brake rotor rubbing lightly can produce this exact sound.

If the noise only happens on the first few rides of the season, temperature is likely the culprit. Grease thickens in cold weather, and the seals can chirp until they warm up. If the noise is constant regardless of conditions, you've got a genuine mechanical issue to chase down.

The 4 Most Likely Culprits (and How to Check Them)

Once you've identified the sound type, you can narrow down the likely source. These four issues account for the vast majority of noise complaints on this exact model.

1. Quick-Release Skewer Tension

The axle quick-release on the Trail 8 has to be tight enough to lock the fork dropouts against the hub. If it's finger-tight but not cammed over with firm pressure, the fork can shift slightly under braking, creating a clunk. Check this first because it takes five seconds.

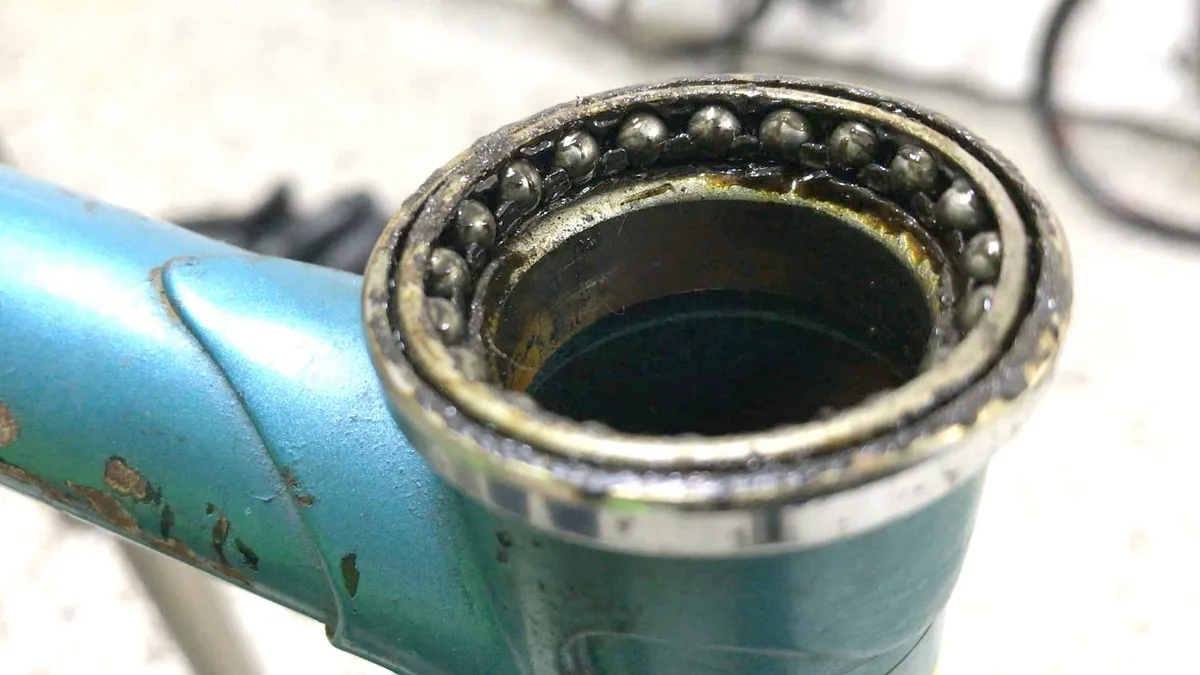

2. Headset Bearings

The headset stack sits between the fork crown and the frame. If the top cap bolt is too loose, the bearings rattle inside their cups, producing a creak or a light ticking. If it's too tight, you'll feel heavy steering and hear a grinding sound when you turn the bars.

3. Coil Spring and Wiper Seals

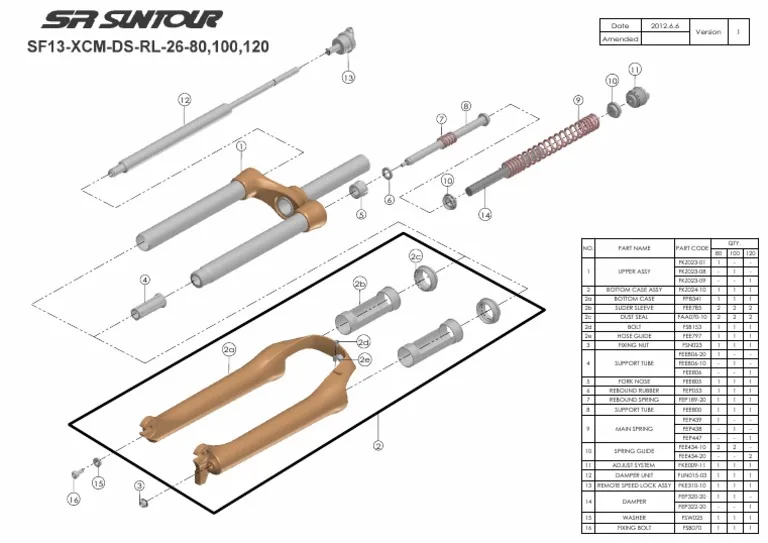

Inside the XCM fork, a steel coil spring sits in an oil bath. The wiper seals on top of the stanchions keep that oil in and dirt out. When the seals dry out, they squeak.

When the spring loses its lubrication, it can clunk on compression.

4. Brake Rotor Rub

Sometimes the noise isn't the fork at all. A bent rotor or a misaligned caliper can produce a rhythmic squeak that syncs with wheel rotation. Lift the front wheel, spin it, and listen.

If the sound is tied to the wheel spinning, it's the brake, not the suspension.

Step-by-Step Fix Guide

Image source: Bing (Web (fair-use with source credit))

Now let's get that fork quiet. Grab a few basic tools before you start: a 4mm hex wrench, a 5mm hex wrench, a torque wrench if you have one, and a tube of suspension grease or light lithium grease. Park the bike on a solid surface, not a workstand that lets the front wheel swing.

Step 1: Tighten the quick-release skewer.

Open the lever, push the wheel firmly into the dropouts, and close the lever with enough force to leave a slight imprint on your palm. If the lever closes too easily, tighten the nut on the opposite side of the hub by a quarter turn and try again.

Step 2: Set the headset preload.

Loosen the two stem bolts (usually 4mm or 5mm) that clamp the stem to the fork steerer tube. Then tighten the top cap bolt (5mm) to about 2 Nm, which is roughly a quarter turn past finger-tight. This removes play from the bearings.

Re-tighten the stem bolts to 6-8 Nm, and check that the bars turn smoothly with no binding.

Step 3: Clean and regrease the wiper seals.

Lower the front wheel to the ground and compress the fork a few times to expose the stanchion tubes. Wipe them down with a clean rag, then push the dust wiper seal down with a plastic tire lever. Clean out any grit underneath, apply a thin layer of grease, and push the seal back into place.

This cures 90% of squeaks.

Step 4: Adjust the coil spring preload.

The XCM has a preload adjuster knob on top of the left fork leg. Turn it fully clockwise to stiffen, then back it off to your riding weight setting. A loose preload adjuster can rattle internally, and tightening it eliminates that free play.

Mistakes to Avoid and Maintenance Tips

The absolute worst thing you can do is over-tighten components while hunting for a fix. Crank the top cap bolt too far and you'll crush the headset bearings, which ruins the steering feel permanently. Tighten the stem bolts without setting preload first and you'll create a false load that makes the bars sticky.

A common mistake we see in forums is applying automotive grease to the stanchion tubes. That's wrong. The stanchions need a light oil or dedicated suspension grease, not thick grease that will attract dust.

The wiper seals need grease, but the exposed tube surface should stay oiled, not greased.

Per manufacturer service intervals, the XCM fork should have its lowers removed and the coil spring regreased once a year, or every 150 hours of riding, whichever comes first. For most casual riders, that's an annual spring ritual. If you ride in mud or heavy rain, cut that interval in half.

Ignore the noise and it won't destroy the fork overnight, but it will accelerate wear. A dry wiper seal lets dirt into the bushing, which scores the stanchions. A loose headset bearing gets brinelled, which means you'll need a new bearing race, not just a re-grease.

Fix it early and the fork will last years.

Frequently Asked Questions

Is a noisy Cannondale Trail 8 fork dangerous?

No, a creak or squeak alone won't cause a catastrophic failure. The noise is usually friction or a loose fitting, not a structural crack. However, if you hear a loud click followed by excessive fork play or oil leaking from the seals, stop riding and inspect the fork.

That combination points to internal bearing damage.

How often should I service the fork?

The manufacturer recommends a lower-leg service once per year or every 150 hours of riding. This involves cleaning the inside of the lower legs, applying fresh grease to the coil spring and bushings, and replacing the oil in the damper side. Wet-weather riders should do this twice per year.

Can I upgrade to an air fork instead of fixing the noise?

Yes, the Trail 8 frame is compatible with aftermarket forks using a tapered steerer tube and 110x15mm or 110x9mm axle standards. Check your current axle type before buying. An air fork is lighter and more tunable, but it costs between $200 and $400.

If the noise is the only complaint, a proper service fixes the stock fork for under $30.

Why does my fork only make noise when it's cold?

Cold weather thickens the grease inside the fork and on the wiper seals. This creates friction until the fork warms up from riding. It's not a defect, but it's worse if the seals are dry.

Regreasing the wiper seals before winter reduces cold-weather squeak substantially.

Should I use a torque wrench on the headset?

Yes, absolutely. The top cap bolt only needs about 2 Nm, and the stem bolts should be torqued to 6-8 Nm. A torque wrench removes the guesswork and prevents you from over-tightening, which is the leading cause of crushed bearings and stripped bolts on this bike.
