Chevrolet Equinox Engine Overheating

A Chevrolet Equinox engine overheating situation can go from a minor warning to thousands in repairs in a matter of minutes. Whether you're sitting in traffic watching that temperature needle climb or you've just pulled over with steam pouring from under the hood, knowing what to do next matters more than almost any other car maintenance knowledge you'll ever need.

GM's Dex-Cool coolant specification calls for a change interval of up to five years or 150,000 miles. But many Equinox owners experience cooling system failures well before that window. The good news is that most overheating events trace back to a short, diagnosable list of culprits.

Here's how to walk through them.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

A Chevrolet Equinox engine overheats when the cooling system cannot remove heat fast enough. The most common causes are low coolant, a stuck thermostat, or a failing water pump. Pull over immediately and turn the engine off.

Check the coolant reservoir level once the engine cools down. Never open the radiator cap while the system is pressurized.

Stop Right Now: The First 3 Moves When Your Equinox Gets Hot

The moment your temperature gauge hits the red zone or a "coolant temperature high" warning flashes on your dashboard, you need to act. Don't try to limp to the next exit. Don't crank the heater and hope for the best.

Pull over to a safe spot. Turn the engine off completely. Put it in park and set the parking brake.

Do not open the radiator cap or the coolant reservoir cap. The system is pressurized when hot. Popping that cap releases boiling coolant and steam.

The risk of severe burns is real.

Wait at least 30 to 45 minutes before checking anything under the hood. GM Service Technical College guidelines recommend letting the system reach ambient temperature before inspection.

Your three immediate moves:

• Check the coolant reservoir. Once cooled, look at the overflow tank. The level should sit between the "cold" and "hot" marks. If it's below the cold line or empty, low coolant is your primary suspect.
• Look for puddles. Check under the vehicle for any wet spots. Coolant is typically orange for Dex-Cool or green for universal coolant. Fresh puddles narrow the search fast.
• Note what happened. Were you idling? Cruising at highway speed? Just starting the car? This detail changes the entire diagnosis path.

If the reservoir is full and you see no leaks, you're dealing with a component failure rather than a simple fluid loss. The next section helps you figure out which one.

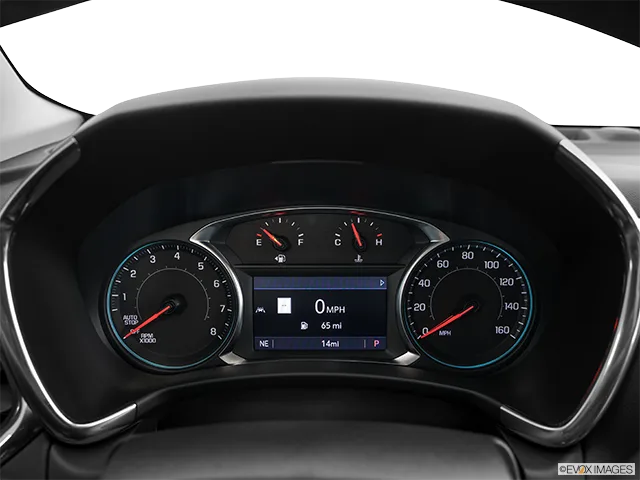

Is It a Spike or a Lie? Gauges, Sensors, and Low Coolant Levels

Not every temperature spike means your Equinox is truly overheating. Some gauge movements are false alarms. Others are genuine warnings you cannot afford to ignore.

If the gauge rises slowly over several minutes of driving and then stabilizes, your thermostat might be stuck partially open. The engine runs cooler than normal for a while, then climbs as the system struggles to regulate temperature.

A sudden spike to the red zone that coincides with loss of cabin heat usually means real trouble. When the heater blows cold while the gauge climbs, the system has lost coolant circulation. The coolant level is too low to reach the heater core.

Some third-generation Equinox models use a digital temperature display rather than a traditional gauge. Per GM owner documentation, the "Engine Hot / A/C Off" message triggers when coolant temperature exceeds approximately 248 degrees Fahrenheit (120 degrees Celsius). That's well into the danger zone.

A failed engine coolant temperature (ECT) sensor can also give bad readings. If the gauge spikes but the engine doesn't feel hot and you're still getting warm air from the vents, the sensor may be lying to you. A scan tool reading live ECT data settles the question.

Normal operating temperature sits between 195 and 220 degrees Fahrenheit (90 to 105 degrees Celsius).

If you've got access to an OBD-II scanner, pull the live data. Compare the ECT reading to what the gauge shows. A mismatch of more than 20 degrees points toward a sensor or wiring issue, not an actual overheating event.

Branch 1: External Leak vs. Internal Leak (Check the Coolant Reservoir)

This is where the diagnostic decision tree splits. Once you've confirmed the engine is genuinely overheating, your first question is whether coolant is escaping the system or staying put.

External Leak: You'll Find Evidence

Check these spots:

• Under the vehicle. Look for orange or green fluid directly below the engine or radiator area. Dex-Cool leaves a distinctive orange residue as it dries.
• Along radiator seams. Hairline cracks at the top or bottom tanks are common on higher-mileage Equinoxes.
• Around the thermostat housing. On the 1.4L and 1.5L turbo engines, the plastic thermostat housing is a known weak point. It cracks and weeps coolant slowly. You'll often see crusty orange buildup around the housing area.
• At hose connections. Squeeze the upper and lower radiator hoses. Look for wetness at the clamps.

Internal Leak: Coolant Is Disappearing, But You Can't See Where

If the reservoir level drops over days or weeks with no visible puddles, you may have an internal leak. This is the expensive scenario. Common causes include:

• A failing head gasket allowing coolant into the combustion chamber
• A cracked cylinder head
• A leaking intake manifold gasket, especially on the 2.4L Ecotec engine

A combustion leak test, sometimes called a block test, uses a chemical that changes color when exhaust gases are present in the coolant. It's the most reliable way to confirm a head gasket issue without tearing the engine apart. Independent shops typically charge $50 to $100 for this test.

Branch 2: Overheating In Traffic vs. On the Highway

When your Equinox overheats, the driving conditions at the moment of failure tell you a lot. Two scenarios dominate.

Overheating at Idle or in Stop-and-Go Traffic

If the temperature climbs when you're barely moving, the issue is almost always airflow-related. The radiator relies on the electric cooling fan to pull air through the fins when the vehicle isn't moving fast enough to force air through naturally.

Possible culprits:

• The cooling fan is not turning on at all (check the fan fuse, relay, and wiring first)
• The fan runs but only on low speed when it should hit high speed
• The fan clutch is failing on models with a mechanical clutch fan
• The radiator fins are clogged with debris, reducing airflow even when the fan works

You can test this at home. With the engine at normal operating temperature, let the car idle. The fan should kick on when the coolant temperature rises.

If it doesn't, trace the electrical circuit before replacing the fan assembly. That approach saves you from swapping a $200 fan when the real problem is a $15 relay.

Overheating at Highway Speed

This points to a different problem. At highway speeds, the fan matters less because air is being forced through the radiator by the vehicle's forward motion.

Causes here include:

• A collapsed or kinked radiator hose blocking coolant flow
• A radiator partially blocked internally from scale or debris buildup
• A water pump that's failing to move coolant at sufficient volume
• Severe air pockets in the cooling system from a recent coolant flush that was not properly bled

If your Equinox only overheats on the highway but idles fine, start with the water pump and radiator flow. If you're cross-shopping the Equinox against other midsize SUVs, our Chevy Equinox vs Jeep Grand Cherokee comparison breaks down how these two stack up on reliability and long-term ownership.

Equinox Known Failure Points: Plastic Housing, Water Pump, and Radiator Fans

Image source: Bing (Web (fair-use with source credit))

Every vehicle has its weak spot. The Equinox, particularly models from 2010 to 2017, has a handful of cooling system components that fail more often than they should.

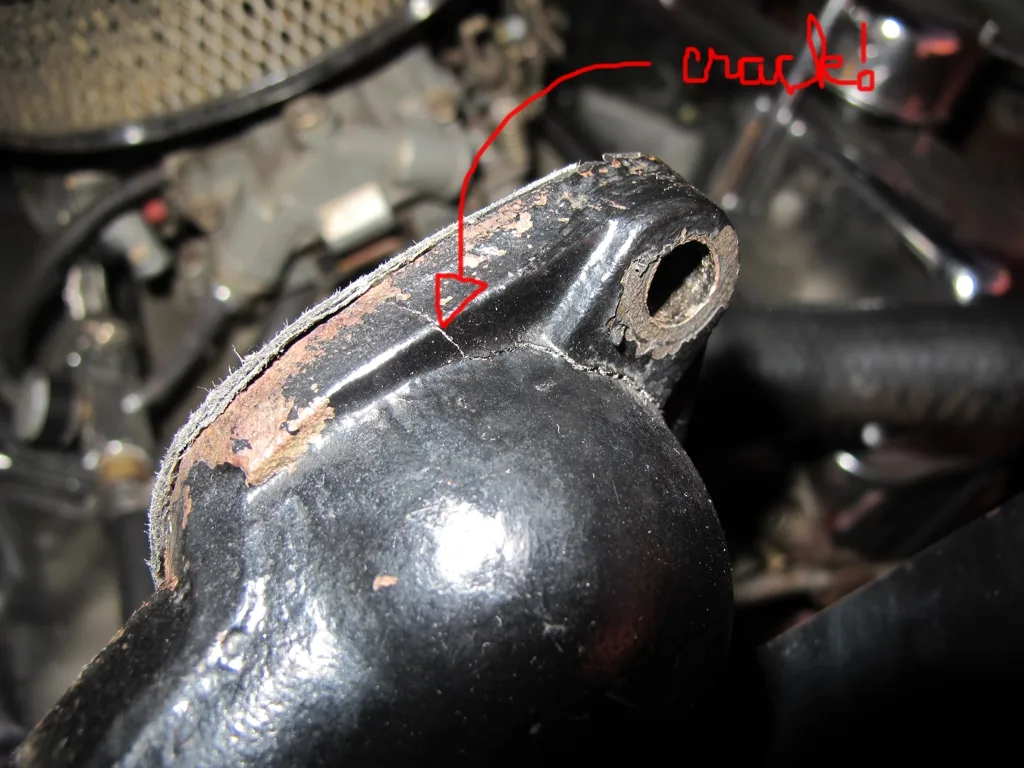

Plastic Thermostat Housing

This is the number one frustration among Equinox owners and mechanics. The thermostat housing on the 1.4L turbo and 1.5L turbo engines is made of plastic. Over time, the plastic becomes brittle and cracks.

The leak starts small and slow. Most owners don't notice until the reservoir is nearly empty.

Replacement cost at an independent shop typically runs $150 to $300 including parts and labor. The part itself is usually under $40.

Water Pump Failure

The water pump on the 2.4L Ecotec engine is driven by the timing chain. When it starts to leak, coolant seeps into the oil pan. This is a serious concern because it contaminates the engine oil and can lead to bearing failure.

Signs include a coolant-oil mix on the dipstick and a sweet smell from the exhaust.

If you're comparing engine durability across SUV platforms, our Jeep 3.6 vs 3.8 engine breakdown covers how different engine architectures handle long-term stress.

Radiator and Fan Issues

The electric cooling fan on many Equinox models is controlled by a module that fails intermittently. The fan works sometimes, then doesn't. This causes temperature spikes that seem random.

The fan control module sits in the engine bay and is exposed to heat cycles that degrade its circuitry over time.

Aggregate owner reviews consistently flag cooling system repairs as a top concern after 60,000 miles. The Chevy Equinox vs Jeep Cherokee comparison also tracks how Equinox cooling system repair frequency compares to other SUVs in its class.

The Step-by-Step Diagnostic Guide: From Radiator Cap to Head Gasket

Image source: Bing (Web (fair-use with source credit))

Work through these steps in order. Each one either confirms a suspect or clears it.

Step 1: Cold Inspection. With the engine completely cool, check the reservoir level. Then inspect the radiator cap. A worn cap fails to hold the 13 to 16 psi pressure the system needs.

Replacement caps cost about $10 and are a common fix for intermittent overheating.

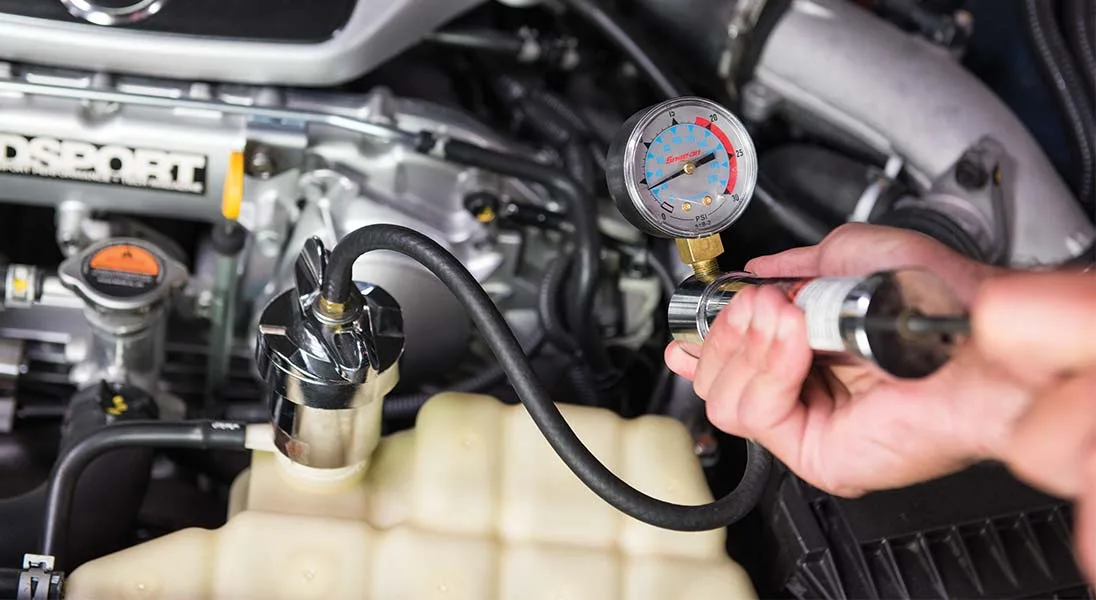

Step 2: Pressure Test. A cooling system pressure tester attaches where the radiator cap goes. It pushes air into the system at the rated pressure. If the gauge drops, you have a leak.

Look for seepage at the water pump weep hole, thermostat housing, and radiator seams. NHTSA complaint data shows these as recurring Equinox failure locations.

Step 3: Combustion Leak Test. If pressure holds but coolant still vanishes, test for exhaust gases in the coolant. The fluid turns from blue to yellow if the head gasket is leaking. On the 2.4L Ecotec engine, this often follows a previous overheating event rather than appearing suddenly.

Step 4: Validate the ECT Sensor. A scan tool showing coolant temperature that stays stuck at the same value while the gauge fluctuates suggests sensor or wiring failure. The sensor itself typically costs $25 to $50. Before replacing it, check the connector for corrosion since engine bay heat degrades these terminals over time.

Mistakes That Kill Equinox Engines (And What Repairs Really Cost)

The biggest mistake Equinox owners make is driving after the gauge enters the red zone. Even a minute or two of severe overheating can warp an aluminum cylinder head. That turns a $300 thermostat repair into a $2,500 head gasket job or a $4,000 engine replacement.

Another costly error? Adding water and calling it fixed. Water lacks the corrosion inhibitors and lubricants that Dex-Cool provides.

Over time, it promotes internal rust that gradually blocks the heater core and radiator passages.

Do not switch coolant types either. Mixing green universal coolant with GM's Dex-Cool creates a chemical reaction that turns the system into a thick sludge. Flushing that mess out costs several hundred dollars.

Some owners also skip burping the system after refilling coolant. Air pockets get trapped in the cooling system, causing false overheating readings and erratic temperature spikes. GM service procedures emphasize this step because the coolant fill procedure requires a slow pour to prevent trapped air.

As of 2026, here are the replacement cost ranges you can expect:

• Radiator cap: $10 to $30
• Thermostat and housing: $150 to $300
• Water pump: $400 to $800
• Radiator replacement: $300 to $600
• Head gasket repair: $1,500 to $3,000
• Engine replacement: $4,000 to $6,500

Frequently Asked Questions

Can I drive my Equinox with a slight temperature spike?

No. A temperature spike means the cooling system has lost its ability to maintain safe operating temperature. Pull over and shut off the engine.

Even minor spikes can stress the aluminum cylinder head and lead to warping over time.

How long can I drive with an overheating engine?

You shouldn't drive at all once the gauge reaches the red zone. If you must move, drive no more than a minute to reach a safe stopping point. Every additional minute increases the chance of permanent internal engine damage.

Why does my Equinox overheat only when the AC is on?

The AC condenser sits in front of the radiator and radiates its own heat. When the AC runs, the cooling fan must work harder to pull air through both the condenser and the radiator. A weak cooling fan or a fan control module that fails intermittently can't keep up with this added load.

How much does it cost to fix an overheating Chevy Equinox?

It depends on the root cause. The minimum fix, a new radiator cap or thermostat, runs under $300. A water pump replacement lands between $400 and $800.

The worst case, a blown head gasket from driving while overheating, costs $1,500 or more.

Is the Chevy Equinox known for overheating problems?

Owner feedback and mechanic reports indicate the cooling system is one of the weaker areas of the Equinox, particularly on the 1.4L turbo and 2.4L engines. The most common failures involve the plastic thermostat housing, the electric fan module, and premature water pump wear around the 60,000 to 80,000 mile mark. For drivers weighing long-term ownership, our Chevrolet Tahoe vs Jeep Grand Cherokee showdown examines how GM's larger SUVs handle similar component wear.
