Chevrolet Equinox Suspension Noise

Chevrolet Equinox suspension noise is one of the most common owner complaints, and it rarely means the whole suspension is falling apart. Usually, one worn component is making the racket, and that part can often be fixed in a weekend. The hard part isn't the repair.

It's knowing which part to replace.

Manufacturer specifications show the Equinox uses MacPherson struts up front and a multi-link rear setup, with sway bar links, ball joints, and bushings that all wear at different rates. As of 2026, NHTSA complaints and owner feedback point to a handful of repeat offenders. Let's walk through them one by one, starting with the most likely.

Image source: Bing (Web (fair-use with source credit))

Why Your Equinox Makes That Suspension Noise (And What's Most Likely Breaking)

Your Equinox's suspension has one job: keep the tires on the road while absorbing impacts. When a part starts to fail, it announces itself with a specific sound. Clunks over bumps usually mean loose sway bar links or worn strut mounts.

Creaks while turning point to a dry ball joint or a failing strut bearing. A low humming that changes with speed often means a wheel bearing. A clicking that gets louder on turns points to a CV axle.

In our research, the most frequent failure points on this platform are the front sway bar end links, the strut mounts, and the lower control arm bushings. Those three account for a big share of Equinox suspension noise complaints. They also happen to be the easiest parts to inspect with basic hand tools.

If you're also cross-shopping the Equinox against other midsize SUVs, the same wear patterns show up across the brand's crossover platform.

The good news is that you don't have to replace everything. The Equinox suspension is designed for modular repairs. You can swap a single link or a mount and silence the noise without touching the rest of the system.

That's the approach we'll use here: match the symptom to the part, then fix the part.

Match the Noise to the Suspect: Clunks, Groans, Rattles, and Grinds

The fastest way to find a suspension problem is to listen like a mechanic. Don't just focus on the noise. Focus on when it happens.

The table below maps common sounds to the parts most likely causing them.

Use the table as a first guess, not a final verdict. Symptoms overlap. A worn sway bar link can clunk over bumps and pop during turns.

A failing wheel bearing can hum at highway speed and grind through corners.

To narrow it down, drive slowly over rough pavement with the windows down. Then repeat the drive with someone else behind the wheel while you sit in each seat. This moves the noise source to the front or rear and cuts your suspect list in half.

If you want to compare the Equinox to a similarly sized rival, our breakdown of the Equinox and the Cherokee covers how they differ in ride tuning.

No Tools Needed: The Driver's Side Diagnostic Test

Before you crawl under the car, you can rule out half the system from the driver's seat. These tests take five minutes and require only an empty parking lot.

The Bounce Test

Push down on the front bumper and let go. The car should rise and settle once. If it keeps bouncing, the struts are weak.

Weak struts often clunk over driveways and feel floaty at highway speed. Push on each corner in turn and compare the response. A corner that bounces longer than the others is the one you need to inspect.

The Turning Test

Find a quiet parking lot and turn the wheel to full lock. Drive at walking speed in a tight circle. Listen for a rhythmic tick from the front wheels.

If it speeds up with wheel speed, that's usually a worn CV axle joint. A deep groan while turning points to the strut mount bearing on that side. Turn the other direction and repeat the test.

The Braking and Backing Test

Stop the car hard at low speed. If you feel a knock through the floor, the rear control arm bushings are the likely culprit. Back up in a straight line, then brake gently.

A thunk during reversing often means the front sway bar links have worn through their bushings.

These tests won't identify every problem, but they will narrow the search to one corner of the car. That's enough to start the visual inspection.

Under the Equinox: The 15-Minute Visual and Pry-Bar Inspection

Once the road test points to one side, get the Equinox level on solid ground. Chock the rear wheels, support the front frame rails on jack stands, and let the suspension hang free. Never work under a car supported only by a hydraulic jack.

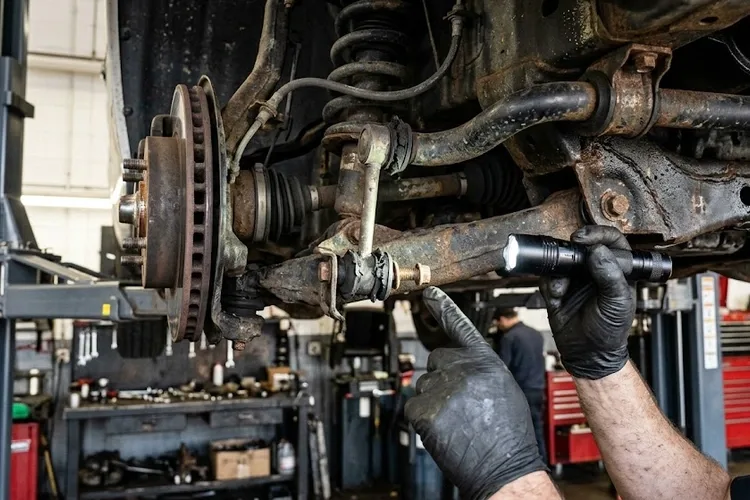

This is also the moment to look at the sway bar link, since it's the most common noise source on this model.

Image source: Bing (Web (fair-use with source credit))

Sway Bar Links

Grab the link between the sway bar and the strut, then shake it hard. It should barely move. If you hear a clunk or feel play, the link is done.

Torn boots are another giveaway. The Equinox uses short links that wear quickly in cold weather and stop-and-go driving.

Strut Mounts and Springs

Check the top rubber mount where the strut passes through the body. Cracks, gaps, or a metal collar that moves independently mean the mount is failing. Then inspect the coil spring.

A broken spring often sits lower on one side and makes a sharp clicking noise over small bumps.

Ball Joints and Control Arm Bushings

Put a pry bar under the lower control arm and lift gently. If the ball joint stud moves, or if the boot is torn, plan on replacing it. Then look at the bushings where the control arm mounts to the frame.

Dry rot, cracks, and visible slop all count as failure.

Wheel Bearings and CV Axles

Spin the wheel by hand and listen for a growl. Grab the tire at 9 and 3 o'clock and rock it. Movement points to the tie rod.

Then rock it at 12 and 6 o'clock. Movement there points to the wheel bearing. Check the CV axle boot for cracked rubber or grease flung around the inner wheel area.

What Everyone Gets Wrong: Expensive Misdiagnoses and Half-Fixes

The most expensive mistake is assuming any suspension noise means new struts. Plenty of owners replace a full strut set, only to hear the same clunk because the real problem was a $40 sway bar link. The reverse happens too.

They swap the links, the noise stays, and it turns out the strut mount was cracked.

Aggregate shop reports and verified owner reviews show three consistent errors:

• Replacing parts without a road test. The noise follows you home.
• Installing only one side of a worn pair. The other side fails within months.
• Skipping a four-wheel alignment after strut, control arm, or ball joint work. Your tires pay the price.

There's also a safety angle. A ball joint with visible play isn't just noisy. It can separate while you're driving.

NHTSA data includes ball joint and suspension complaints on higher-mileage Equinox models. If your inspection shows movement at the ball joint, park the car until it's replaced.

The smarter path is simple. Treat every noise as a hypothesis. Test it, inspect it, confirm it, then fix it.

That order saves money, and it keeps the car safe.

Repair Decision Guide: What It Costs and Where the Money Goes

Once you know the failed part, the cost decides everything else. Here's what typical Equinox suspension repairs run at a standard independent shop as of 2026.

Image source: Bing (Web (fair-use with source credit))

DIY vs Shop vs Dealership?

If you're comfortable with a jack, a socket set, and a torque wrench, sway bar links and strut mounts are weekend jobs. DIY saves the labor cost, which is most of the bill. Control arms and wheel bearings need more skill, plus a press in some cases.

Dealerships charge the most, but they use genuine GM parts and factory torque specs.

Replace One Side or Both?

For links, struts, and strut mounts, replace both sides at once. The worn side is just ahead of the other one. Doing one side means paying double labor later.

For control arms, the same logic applies. Since an alignment is needed anyway, doing both arms is usually worth the extra parts cost.

Repair vs Car Replacement — When to Stop Investing

Add up the repair cost against the Equinox's current value. If the car is rusted underneath or has high mileage, a $1,500 suspension bill might exceed its worth. Some owners end up weighing a newer replacement instead of sinking more money in.

A good rule: if the repair cost is more than half the car's value, it's time to start shopping.

Equinox Suspension Noise FAQ

Is it safe to drive with a clunking suspension?

It depends on the part. A rattle from a sway bar link is annoying but not immediately dangerous. A loose ball joint is a safety risk and can separate at speed.

If your visual inspection showed movement at the ball joint, park the car until you replace it.

Why does my Equinox creak when turning slowly?

The strut mount bearing is likely dry or worn. Spin the bearing by hand after removing the strut. If it catches or grinds, replace it.

A creak can also come from a dry ball joint, so check both during your inspection.

How long should Equinox sway bar links last?

Most last between 50,000 and 80,000 miles. Salt belt cars see premature failure due to corrosion. Ticking or clunking on rough roads is the first sign.

If one link is worn, replace both sides to keep the suspension balanced.

Can I replace Equinox struts myself?

Yes, with an impact wrench, a spring compressor, and good jack stands. The front struts are bolted at the top mount and the steering knuckle. It's a fair amount of work but doable in a garage over a weekend.

Never use improvised spring compression tools.

Should I replace all four struts at once?

No, front and rear wear independently. Replace them in pairs on the same axle. If the rear struts feel fine and show no leaks, leave them alone.

Focus your budget on the axle that's making noise and showing visible wear.
