Ford Mustang Engine Overheating

A Ford Mustang engine overheating is one of the scariest things a driver can face. The needle climbs, the warning light flashes, and your mind jumps straight to blown head gaskets and five-figure repair bills. The good news is that most overheating issues trace back to a handful of common parts: the thermostat, water pump, radiator, cooling fan, or a leaking plastic end tank.

Manufacturer specifications indicate that a healthy cooling system holds 13 to 16 psi of pressure and keeps coolant temperatures between 195°F and 220°F under normal driving. Once you know what those numbers mean, you can turn a panic moment into a step-by-step diagnosis. This guide walks you through the exact process.

Image source: Bing (Web (fair-use with source credit))

How Hot Is Too Hot? Know Your Mustang's Normal Temperature Range

For most modern Mustangs, the thermostat opens between 180°F and 195°F. Once the engine is at operating temperature, the coolant temp should settle somewhere between 195°F and 220°F. If you're seeing 230°F or higher, the cooling system is working too hard.

At 240°F, you're in the danger zone for warped cylinder heads and failed gaskets.

Image source: Bing (Web (fair-use with source credit))

Here's what the numbers actually tell you:

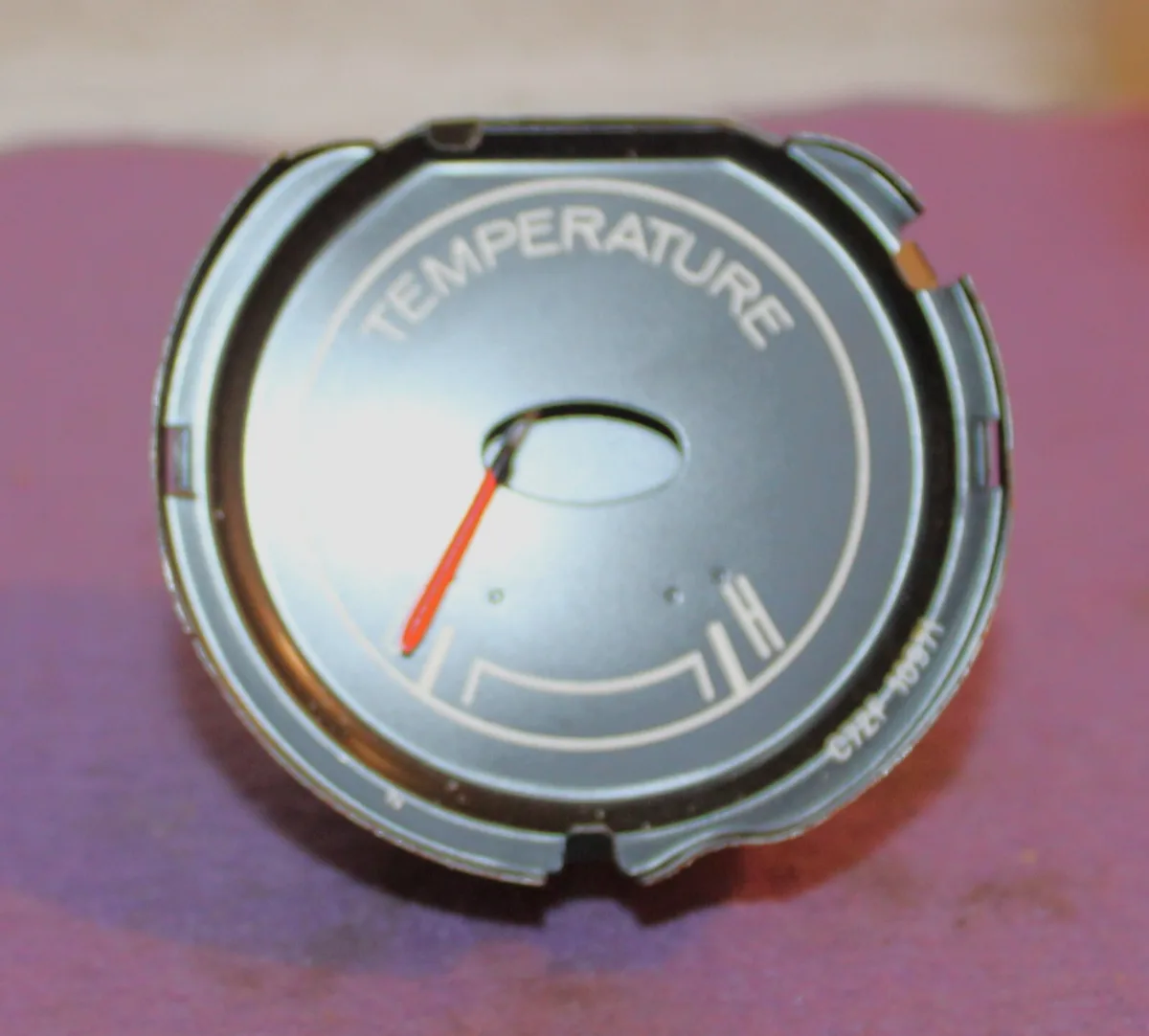

The stock dash gauge has a huge dead zone. It can sit in the same spot from 170°F all the way to 230°F. Pull the live reading from the coolant temperature sensor with an OBD-II scanner instead.

As of 2026, every Mustang sold uses the same sensor-based logic, so the scanner reading is always more accurate than the needle. Whether you drive a Mustang or something from our 2021 Jeep Grand Cherokee L vs Toyota Highlander comparison, the same operating temperature rules apply.

The Gauge Just Spiked: Your First 60 Seconds Matter

If the needle is pinned to H or a warning light is flashing, you have seconds, not minutes. Pull over safely, turn off the A/C, and let the engine idle for about a minute before shutting it off. That brief idle lets the water pump move hot coolant away from the cylinder heads.

Do not open the hood immediately. The cooling system is under pressure, and coolant can reach 260°F or more. Wait until the upper radiator hose feels firm but not rock-hard.

Then check the expansion tank, but only when the engine is cool enough to touch.

If the car overheated because of a fan failure, idling may actually help because the fan moves air at low speed. If the temperature keeps climbing at idle, the water pump or thermostat is likely the culprit. Let the engine cool completely, then check coolant level, belt, hoses, and obvious leaks before restarting.

If you must restart the engine

Cycle the key to run and wait for the fuel pump to prime. Then crank it immediately and watch the temperature gauge. If it climbs past 220°F within two minutes, shut it down again.

Driving a hot engine never ends well.

The Symptom Tree: Pinpointing the Cause by When and How It Overheats

Overheating is rarely random. The pattern tells you which component to inspect first. This same symptom-based logic works across platforms, and it's the same approach we used in our BMW X3 vs Jeep Cherokee analysis.

Start with the branch that matches your situation.

Overheats at idle, cools down while driving

This points to airflow problems. The radiator can't shed heat when the car is stationary.

• Electric cooling fan not spinning
• Fan relay or fuse blown
• Fan clutch worn out on older models
• Low fan speed because of a bad resistor

Check the fan first. With the engine warm, the fan should kick on automatically. If it doesn't, test the relay and fuse with a multimeter.

Overheats at speed or under load

This is usually a flow problem, not an airflow problem. The engine builds heat faster than the coolant can move.

• Stuck-closed thermostat
• Collapsed lower radiator hose
• Failing water pump impeller
• Clogged radiator core

Feel the upper radiator hose. It should get hot once the thermostat opens. If it stays cold while the engine is hot, the thermostat isn't opening.

Coolant disappears but there's no puddle underneath

This indicates an internal leak or a slow weep that burns off.

• Head gasket failure
• Intake manifold gasket leak
• Heater core leak
• Cracked expansion tank

Check for white smoke from the exhaust and a sweet coolant smell. Also look under the oil cap for a milky, frothy residue.

The gauge spikes suddenly vs. creeps up slowly

Sudden spikes usually mean a total loss of coolant, a burst hose, or a major leak. Slow creeping usually means gradual flow loss or a failing sensor. Treat a sudden spike as an emergency and stop immediately.

The same is true for the engine choices covered in our Jeep 3.6 vs 3.8 engine comparison. Sudden overheating is never normal.

Mustang Cooling System Weak Points: The Parts That Fail First

Every Mustang generation has its own failure pattern, but the cooling system shares common weak points. Knowing these helps you skip random part swapping.

Image source: Bing (Web (fair-use with source credit))

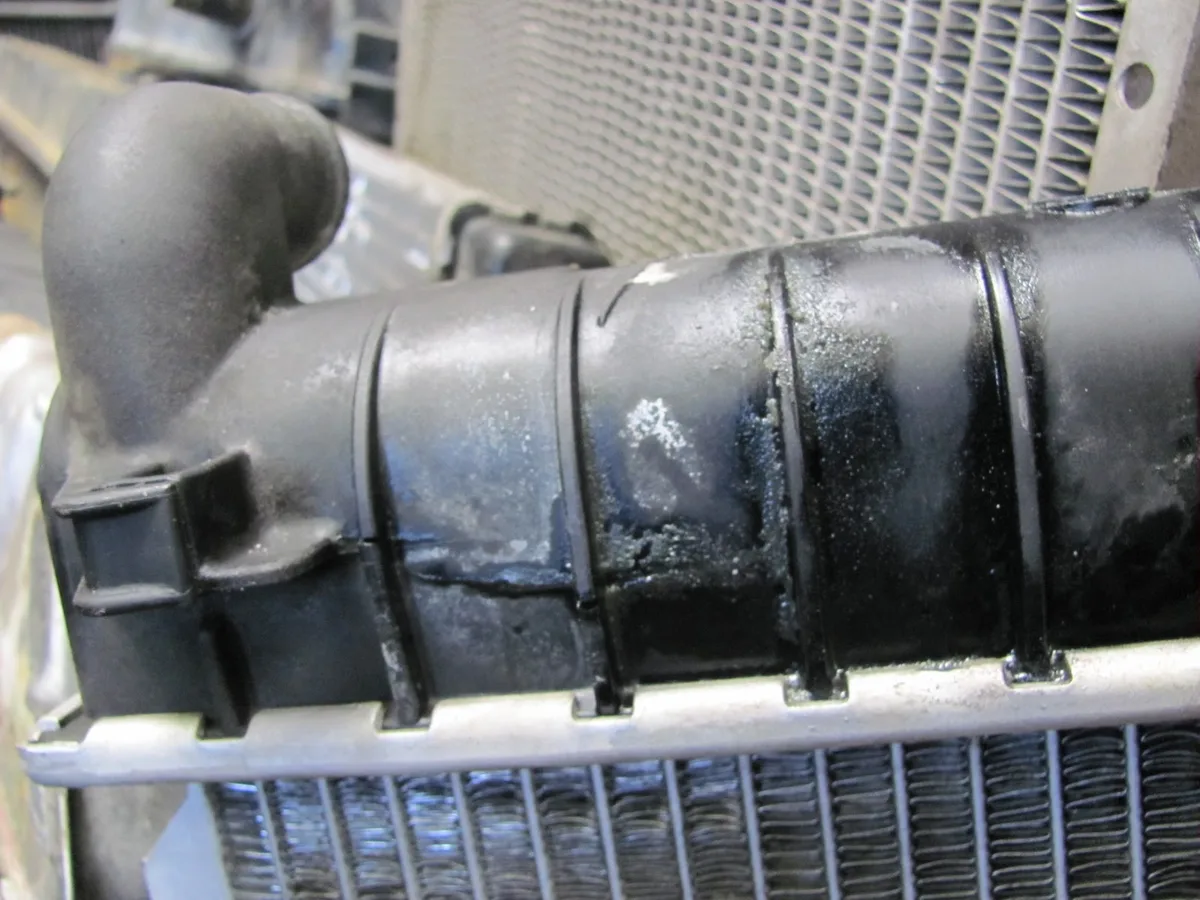

The radiator end tanks are the most notorious failure point. On many S550 and late S197 models, the plastic tanks crack where they meet the aluminum core. You'll spot a thin line of dried coolant along the side.

Overheating follows because the system loses pressure and coolant at the same time.

The water pump is the next suspect. On the 3V and 4V modular engines, the pump uses a stamped steel impeller that corrodes and separates from the shaft. The pump still spins, but it moves almost no coolant.

If your car overheats randomly with a full coolant level, pull the water pump and inspect the impeller.

Other weak links include the thermostat housing on the 2V engines, which becomes brittle, and the heater core bypass valve on EcoBoost models, which can stick closed. On higher-mileage cars, the radiator cap weakens and won't hold the factory 13 to 16 psi. Replace it every few years as preventive maintenance.

Overheating Mistakes That Turn a Cheap Fix into a Blown Engine

Many Mustang owners end up with an engine replacement because of one of these mistakes. Avoid them at all costs.

Adding cold water to a hot engine

Cold water hitting a hot aluminum cylinder head can crack it instantly. Wait until the engine is cool, or add coolant slowly through the expansion tank while the engine idles.

Trusting the dash gauge completely

The stock gauge has a massive dead zone. It stays in the same position from 170°F to 230°F. By the time the needle moves, the engine is already dangerously hot.

Use an OBD-II scanner to read the real temperature.

Ignoring small leaks

A tiny puddle after every drive is not normal. That leak lets air into the system, which causes hot spots and eventual gasket failure. Fix the leak when it's a $30 hose, not a $3,000 gasket job.

Replacing parts without confirming the cause

A thermostat doesn't cause a slow fan. A water pump doesn't fix a cracked radiator. Throw parts at the problem without testing, and you'll spend hundreds while still overheating.

Use the symptom tree to confirm the diagnosis first.

Forgetting to burp the system

After any coolant work, air pockets get trapped in the engine block. That air causes false temperature spikes and localized boiling. Always bleed the system with a radiator funnel kit and run the heater on full until the bubbles stop.

Preventive Maintenance That Keeps Your Mustang Cool

Preventive maintenance is far cheaper than replacing an engine. A few minutes each month can catch a failing part before it strands you. Check the cooling system when the engine is completely cold.

• Check the coolant level in the expansion tank. It should sit between the cold and hot marks.
• Squeeze the upper radiator hose. It should feel firm but not rock-hard when warm.
• Look for dried coolant residue around hoses, the water pump, and the radiator end tanks.
• Clean debris from the radiator fins with a low-pressure spray from a garden hose.

Manufacturer specifications recommend a full coolant flush every three to five years or 30,000 to 45,000 miles. Stick with the coolant type listed in your owner's manual, such as Motorcraft Orange for many late-model engines. Mixing coolant chemistries can cause gelling that blocks the heater core.

Replace the radiator cap every few years too. A weak cap lowers system pressure and drops the boiling point.

The U.S. Environmental Protection Agency regulates antifreeze disposal because ethylene glycol is toxic to animals and humans. Never pour old coolant onto the ground or into a storm drain.

Collect it in a sealed jug and take it to a local recycling center or parts store that accepts used fluids. The same long-term reliability thinking applies to the vehicles in our Chevy Equinox vs Jeep Grand Cherokee comparison. Regular cooling system care matters on every vehicle.

Quick Reference Guide: Symptoms, Causes, and First Checks

If you're stuck on the side of the road, this guide points you to the right first test. Work through it in order. The cheapest fix is usually the simplest cause.

• Watch the temperature readout on an OBD-II scanner, not just the dash gauge.
• Check the coolant level in the expansion tank first, but only when the engine is cool.
• Look for coolant pooling under the radiator, water pump, and heater core area.
• Confirm the cooling fan spins by hand when cold, and that it kicks on when hot.

These checks take about five minutes. If they don't reveal the issue, move to a pressure test. A cooling system pressure tester will find leaks that don't drip when parked.

Check the radiator cap seal and replace it if it looks worn. Never open the radiator cap while the engine is hot.

FAQs: Mustang Overheating Questions, Answered

Why does my Mustang overheat at idle but cool down while driving?

The cooling fan or fan clutch isn't moving enough air across the radiator at low speed. At higher speeds, airflow through the grille takes over and keeps the engine cool. Test fan operation when the engine reaches about 220°F and replace the fan motor, relay, or fan clutch as needed.

What coolant temperature is dangerous for a Mustang?

Anything above 240°F for more than a minute is dangerous. At that temperature, aluminum cylinder heads can warp and the head gasket can fail. Shut the engine off if you see 240°F on the scanner.

The stock dash gauge may not show movement until it's too late.

Is it safe to drive a Mustang with an overheating engine?

No. Even short trips with high coolant temperatures can cause serious internal damage. If the temperature is creeping past 230°F, pull over and let the engine cool.

Continuing to drive turns a small repair into a full engine replacement.

How do I burp the cooling system after a flush?

Use a funnel kit that seals into the expansion tank and let the engine idle until the thermostat opens. Then top off the coolant and run the heater on full. Watch for bubbles leaving the funnel, and shut off the engine only when the flow is steady.
