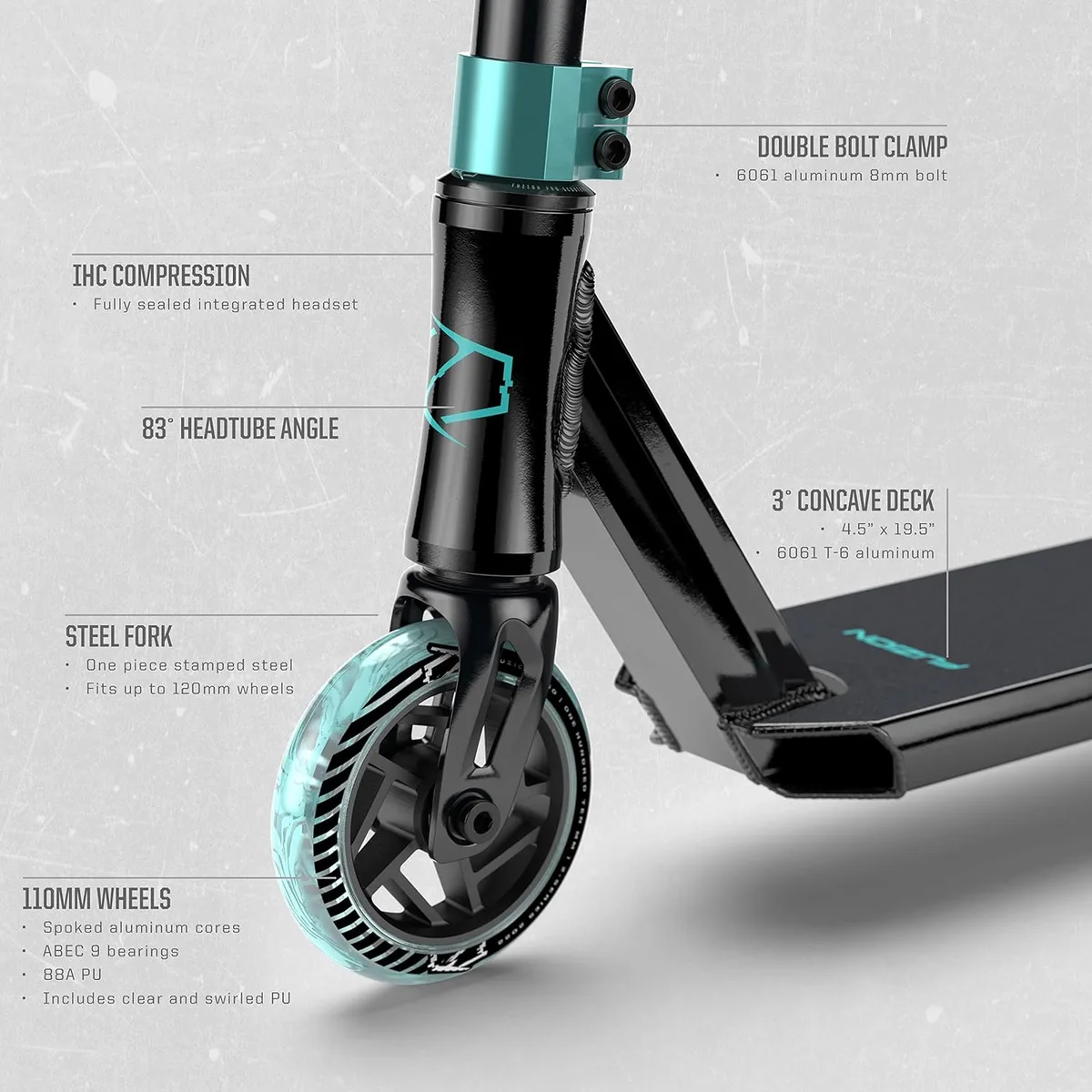

Fuzion Z250 Folding Mechanism Problem

Image source: Bing (Web (fair-use with source credit))

Quick Answer: What's Your Fuzion Z250 Symptom?

Before touching any tools, figure out what you're feeling. The fix differs based on the symptom. Here are the four most common failure modes and their causes.

• Wobble while riding: Loose hinge pin or stripped bolts.
• Latch won't click shut: Misaligned latch hook or debris in the pocket.
• Latch won't release: Stuck spring, rust, or a jammed mechanism.
• Mechanism feels stiff: Corrosion, paint buildup, or a bent hinge pin.

If the deck feels stable but the stem wobbles, your problem is usually the hinge pin. If the lever moves but the hook doesn't, suspect the spring. These two checks narrow down the repair fast.

Step-by-Step Fixes for Each Symptom

Grab a 4mm and 5mm Allen wrench, a flathead screwdriver, and a dry silicone lubricant. Avoid regular WD-40 as a solvent; it strips existing grease.

Fixing a loose hinge (tighten bolts, check pin wear)

Image source: Bing (Web (fair-use with source credit))

Locate the two hex bolts on the hinge plate. Turn them clockwise until hand-tight, then give a quarter turn. No torque wrench needed.

If the wobble persists, the hinge pin itself may be worn, so inspect it for flat spots or scoring.

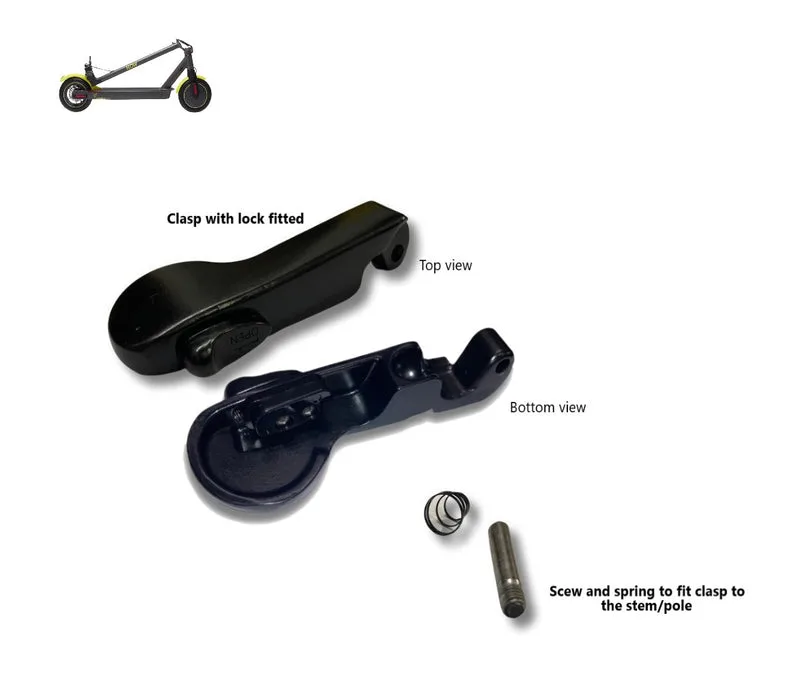

Fixing a latch that won't close (clean debris, realign latch hook)

Image source: Bing (Web (fair-use with source credit))

Open the latch fully and look at the hook and receiver. Debris like gravel or dried grease can block engagement. Clean with a brush and compressed air.

If it still won't close, loosen the hinge plate bolts slightly, shift the plate 1-2mm, and retighten.

Fixing a stuck latch (lubricate spring, free corrosion)

Spray dry lube into the spring pocket, then work the latch open and shut ten times. If resistance remains, the return spring is likely broken. Pop the old spring out with needle-nose pliers and replace it with a $3 part.

Mistakes That Make It Worse (and Safety Checks)

The biggest mistake is overtightening bolts. You'll strip the threading in the aluminum frame, turning a $5 fix into a $50 replacement. Hand-tight plus a quarter turn is the max.

Another common error is using oil-based lubricants. They attract dust, which eventually turns into a grinding paste. Dry silicone or Teflon spray works better.

Never ride with a loose latch. Aggregate reviews report a few cases where the stem folded forward at speed, causing falls. Always test the lock with a firm push on the deck before every ride.

If the mechanism feels jammed, don't force it. Forcing often bends the latch hook.

Also, check the quick-release lever if your model has one. Some Z250 variants use a lever instead of a push-button. A loose lever can mimic a hinge problem.

Frequently Asked Questions

Can I ride if the hinge is slightly loose?

No. Even a small wobble means the latch isn't fully engaging. Continued riding can wear the hinge pin and damage the frame.

Stop and tighten the bolts or replace the latch before your next ride.

Where do I find replacement springs or latch kits?

Fuzion's official website sells latch assembly kits for the Z250. Local scooter shops often stock generic spring hooks that fit. Check Amazon and eBay for "Fuzion Z250 latch spring" and read recent reviews.

How often should I lubricate the folding mechanism?

Every 30 to 60 days, depending on exposure to rain or humidity. Apply one drop of dry lube to the latch hook, the spring pocket, and the hinge pin. Wipe off any excess after working the mechanism.

Is this problem covered under warranty?

Most Z250 scooter warranties cover defects for 90 days from purchase. Wear items like springs and bolts are usually excluded. If your latch failed within that window, contact Fuzion customer support for a free replacement.

Final Decision Guide: Repair vs. Replace

Replace the latch assembly when the hook is bent or the housing cracks. Replace the entire scooter when the frame or stem shows stress fractures. A cracked frame can't be welded reliably.

Swap the latch hook or spring for under $20. If the hinge pin's bore in the frame is cracked or stripped, replacement is the safer option. A bike shop can swap the latch for you for $10 to $20 in labor.

For most owners, the Fuzion Z250 folding mechanism problem is a minor fix. Keep the mechanism clean, dry, and lightly lubed, and it'll last for years. If in doubt, spend a few bucks on the latch kit before risking a collapse on the street.
