Giant Contend AR 4 Brake Rubbing

If you own a Giant Contend AR 4, you’ve probably noticed that annoying tshh-tshh-tshh sound every time the wheel turns. Giant Contend AR 4 brake rubbing is one of the most common complaints from owners of this otherwise solid all-road bike. The good news?

It’s almost always a simple alignment issue you can fix in under ten minutes without any special tools.

Manufacturer specifications indicate the AR 4 uses Tektro C550 mechanical disc brakes with 160 mm rotors. These are cable-actuated, not hydraulic, which means they need more frequent manual centering. Let’s walk through exactly why the rub happens and how to stop it for good.

Image source: Bing (Web (fair-use with source credit))

Why Your Giant Contend AR 4 Has Brake Rub (And Why It’s Not Always a Big Deal)

Brake rub on a mechanical disc brake happens when one pad stays too close to the rotor. With the Tektro C550 caliper, the most common cause is the caliper shifting slightly out of center when you remove the front or rear wheel. The quick-release skewer on the AR 4 doesn’t always seat the wheel perfectly back into the dropouts, and that tiny misalignment translates into rotor contact.

A small amount of rub that only happens during hard cornering or when you lean the bike is usually harmless. But if you hear a constant scraping as you roll on flat pavement, you’re dealing with pad drag. That not only slows you down.

It wears out the pads unevenly. You want quiet, free-spinning wheels. Let’s diagnose.

The 3-Minute Decision Tree: Diagnose Your Brake Rub

Here’s a quick flowchart you can run through without any tools.

Is the rub constant, or does it come and go?

• Constant rub → Most likely a caliper that shifted off-center. Move to the step-by-step fix.
• Rub only when pedaling hard uphill → Could be spokes flexing into the rotor (rare on the AR 4’s wheels). Check spoke tension.
• Rub only when turning → Rotor is slightly bent. See the rotor truing section.

Does it happen on both wheels or just one?

• One wheel only → That wheel wasn’t re-seated properly, or that specific rotor is warped.
• Both wheels → Cable tension is too high overall, or you have pad material transfer. Check that your brake levers aren’t pulled slightly by a tight cable housing.

When did the rub start?

• Right after installing a new wheel or taking the bike off a car rack? → Caliper centering is the fix.
• After a long ride in wet mud? → Pad material or rotor contamination. Clean with isopropyl alcohol.
• After a crash or dropping the bike on the rotor side? → Rotor is likely bent. Truing needed.

This diagnostic tree will point you to the right fix in about 90 seconds.

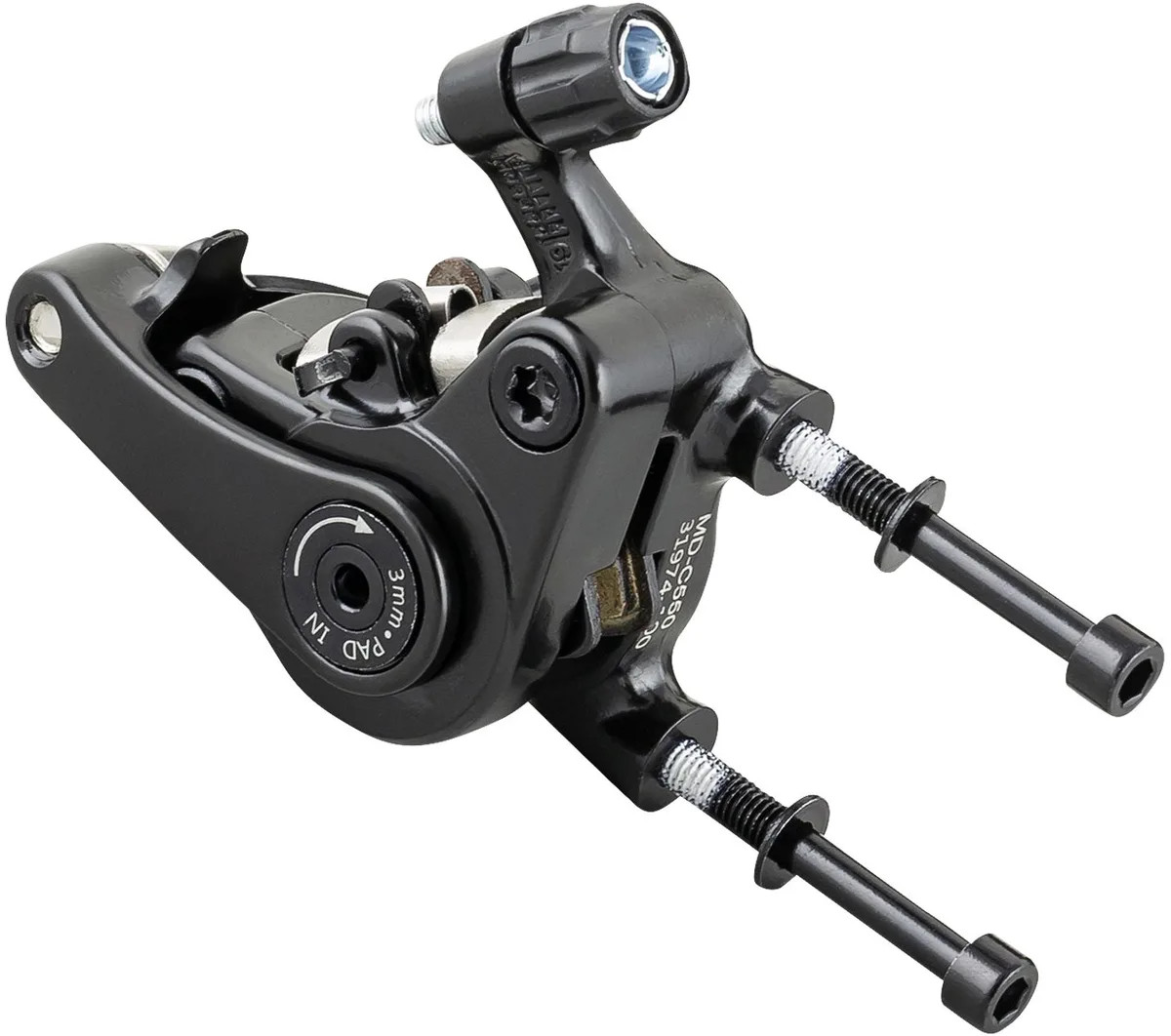

Step-by-Step Fix: Centering the Caliper (The Most Likely Fix)

Image source: Bing (Web (fair-use with source credit))

This is the fix that solves 8 out of 10 brake-rub cases on the Contend AR 4. Here’s what you do:

Tools needed: 5 mm Allen key (standard hex wrench). That’s it.

1. Loosen the two caliper mounting bolts about a quarter turn. Don’t remove them. You want the caliper to wiggle freely.
2. Squeeze and hold the brake lever firmly. This pushes both pads evenly against the rotor and centers the caliper.
3. While holding the lever, tighten the mounting bolts alternately (a little on one, then the other) to about 8, 10 Nm. If you don’t have a torque wrench, tighten firmly without overdoing it.
4. Release the brake lever. Spin the wheel. The rub should be gone.

If the rub persists, the caliper was not fully centered during step 2. Repeat. Sometimes the rotor is slightly bent, but this simple centering will fix it if the bend is within spec.

When It’s Not the Caliper: Rotor Truing, Cable Tension, and Pad Wear

Image source: Bing (Web (fair-use with source credit))

If centering the caliper didn’t kill the rub, the problem is somewhere else. Here are the three other suspects.

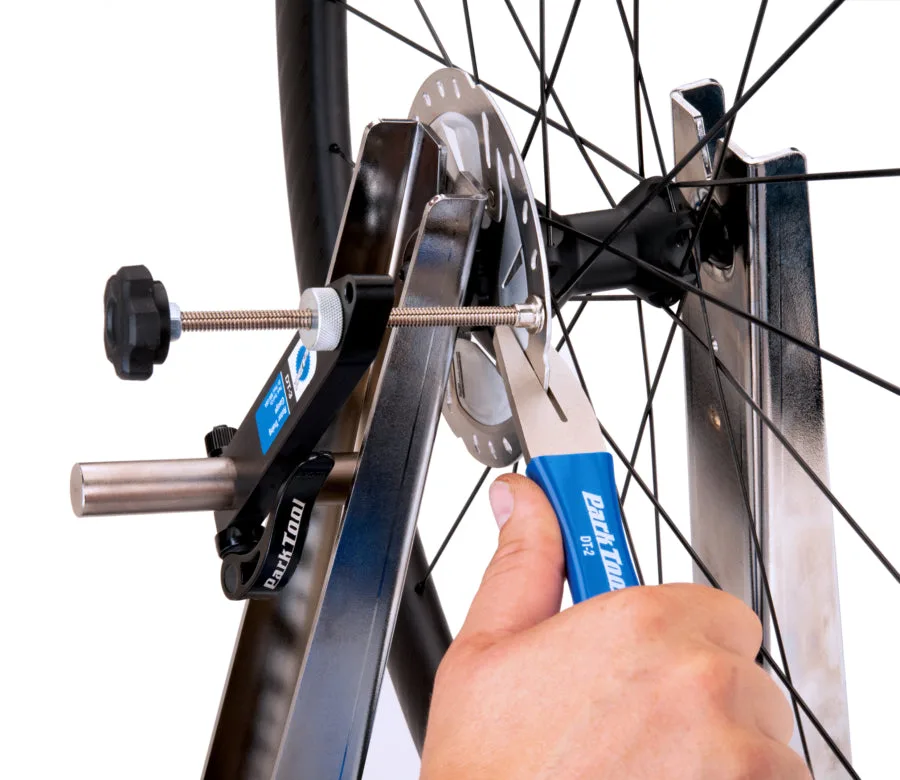

1. Rotor is warped

Hold a wheel off the ground and spin it. Watch the rotor face as it passes the caliper. If it wobbles side to side visibly, it’s bent.

You can true it with a rotor truing fork (or adjustable wrench). Gently bend the high spot back toward the center. Work in small increments.

If the wobble exceeds about 0.3 mm, replacement is safer.

2. Brake cable tension is too high

Check your brake lever travel. If the lever feels spongy or the pads engage too early, the cable is too tight. Back off the barrel adjuster (where the cable enters the caliper) by turning it counter-clockwise.

You should have about 1, 2 mm of pad clearance on each side of the rotor before the pads bite.

3. Pad wear is uneven

Look at the pads through the caliper slot. If one pad is visibly thinner than the other, replace the set (resin pads for the AR 4 are cheap and easy to swap). Uneven wear can cause the caliper to sit crooked, leading to rubbing.

FAQs: Common Questions About Brake Rub on the AR 4

Is a little rub normal on the Giant Contend AR 4?

A very faint rub that only occurs when you’re out of the saddle or leaning hard is common with mechanical disc brakes. It’s not ideal, but it won’t damage anything. If it’s constant and loud, fix it.

Do I need to replace the rotors if they’re bent?

Only if the wobble is severe (over 0.5 mm) and can’t be trued back. Truing works for gentle bends. If you’ve crashed hard or hit a pothole, inspect the rotor for cracks.

Replace if damaged.

Can I use a hydraulic brake caliper on the AR 4?

The frame and fork accept flat-mount calipers, but switching to hydraulic requires new levers, hoses, and possibly an adapter plate. It’s a significant upgrade and not necessary to solve rubbing. Keep the Tektro C550, they work fine once centered.

How often should I check brake alignment?

Every time you remove a wheel for transport or cleaning. Also after any ride in heavy rain or mud, because contamination can shift pad position. A quick visual check takes ten seconds.

Will upgrading brake pads stop the rub?

No. Better pads (like sintered metal) last longer and work better in wet conditions, but they don’t fix alignment. Rub is a mechanical position problem, not a pad performance problem.
