Giant Contend AR 4 Saddle Noise
That creak you hear from under the saddle? Giant Contend AR 4 saddle noise is one of the most common complaints from owners, and it's almost never the saddle itself. It's the unique D-Fuse seatpost system and how it interacts with the frame.
As of 2026, the Contend AR 4 still uses the D-shaped D-Fuse post. Manufacturer specifications indicate the wedge should be torqued to 5, 6 Nm, and most noise complaints trace back to that wedge being loose or dry. The fix takes about 15 minutes.
You'll need a torque wrench, a hex key, and a tiny dab of grease. Let's walk through exactly where to start.
Start Here: That Creak Isn't Just a Saddle Problem
Before you blame the saddle, understand this: the Giant Contend AR 4 uses a D-shaped D-Fuse seatpost with an internal wedge. That wedge sits inside the frame's seat tube and presses the post tight against the front of the frame. If the wedge shifts, dries out, or isn't seated perfectly, it creaks under load.
Quick Triage: Where Is the Noise Coming From?
Stand next to the bike. Grip the saddle with both hands and rock it side to side. If you hear a click, it's likely the saddle rail clamp.
If the noise only happens when you pedal, especially out of the saddle, it's almost certainly the wedge or the seatpost collar.
What You'll Need Before You Start
Gather these tools:
- 4mm, 5mm, and 6mm hex keys (or a multi-tool)
- A torque wrench that reads 3, 8 Nm
- Bicycle-specific grease (not anti-seize)
- A clean rag
- Rubbing alcohol for degreasing
Image source: Bing (Web (fair-use with source credit))
29% off Today's Exclusive Deals
Limited-time Exclusive Deals. Check current discount on Amazon.
Check Price on Amazon As an Amazon Associate I earn from qualifying purchases.Why Giant's D-Fuse Seatpost Creaks Under Power
The D-Fuse system is designed for compliance. That D shape allows the post to flex slightly, smoothing out rough roads. But that same shape creates a specific contact surface inside the frame that can dry out and generate noise.

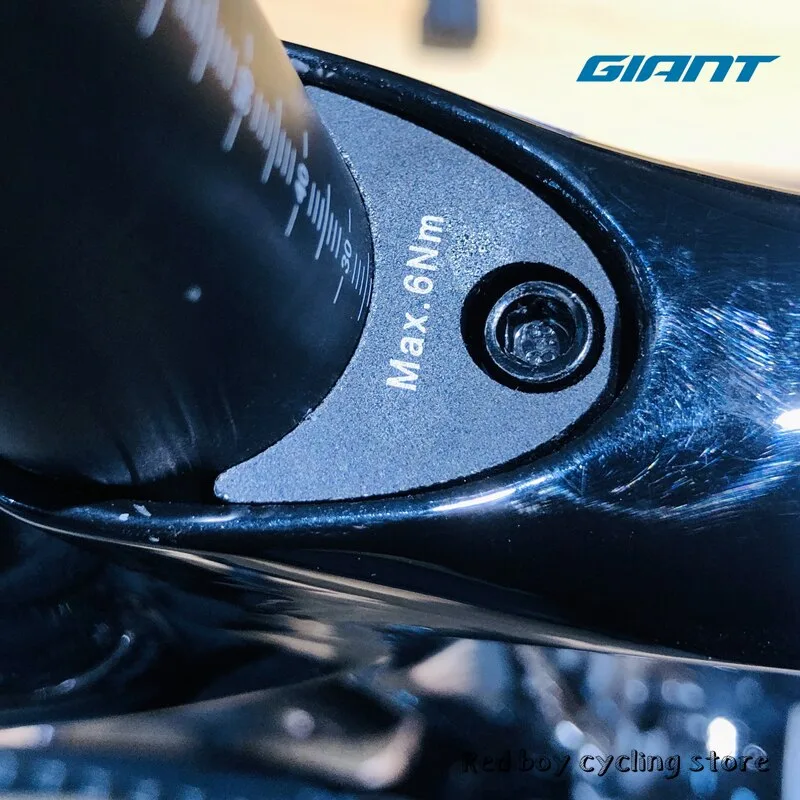

The Wedge Design: A Smart System With a Common Quirk
The wedge is a filler piece that sits behind the seatpost. When you tighten the bolt inside the frame's top binder, the wedge presses the post forward. If the wedge isn't aligned perfectly, or if the mating surfaces aren't clean and greased, the metal-to-metal contact rubs and creaks.
Saddle Clamp vs. Seatpost Collar vs. Wedge: How to Tell Them Apart
| Component | Location | Typical Noise |
|---|---|---|
| Saddle clamp | Under the saddle, around the rails | Click when rocking saddle or shifting weight |
| Seatpost collar | Top of the frame seat tube | Creak under every pedal stroke |
| D-Fuse wedge | Inside the frame, behind the post | Creak when pedaling hard or out of saddle |
Image source: Bing (Web (fair-use with source credit))
If the noise stops when you stand, the saddle and wedge area is the source. If it continues while standing, the problem lies elsewhere. For model-specific torque values, consult Giant Bicycles.
The 15-Minute Troubleshooting Tree for Saddle Noise
Follow this order. It eliminates the most common causes first, so you don't waste time.
Step 1: Tighten the Saddle Clamp Bolts the Right Way
Use a torque wrench. Most Giant saddle clamps call for 5, 7 Nm. Tighten in a cross-pattern if there are two bolts.
If you don't have a torque wrench, snug them evenly and stop. Overtightening can crack the rails.
Step 2: Remove the Saddle and Test the Seatpost Alone
Unbolt the saddle from the rail clamp. Leave the seatpost in the frame. Go for a short ride on a bumpy road.
No noise? The problem was the saddle clamp. Grease the rail contact points and reinstall.
Step 3: Clean, Degrease, and Reinstall the D-Fuse Wedge Correctly
Loosen the wedge bolt, usually a 5mm hex inside the frame's top binder. Pull the seatpost out. Wipe both the post and the wedge with rubbing alcohol.
Apply a thin layer of grease to the wedge and the front of the seatpost where it contacts the frame. Reinsert the post, making sure the D-shape is oriented correctly with the flat side forward. Tighten the wedge bolt to 5, 6 Nm.

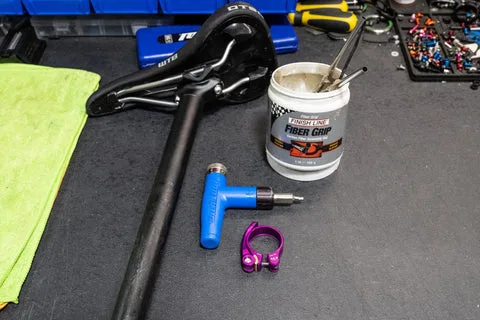

Step 4: Torque Everything to Spec and Do a Shake-Down Ride
Reinstall the saddle and torque the rail clamp. Tighten the seatpost collar to 5, 6 Nm. Ride over a bumpy stretch for 2, 3 miles.
If the creak is gone, you're done. If it returns within a week, repeat the cleaning and greasing process.
Image source: Bing (Web (fair-use with source credit))
Mistakes That Make Saddle Creaks Worse
Even experienced riders make these errors. They turn a 15-minute fix into a recurring headache.
Why Carbon Paste on Alloy Parts Backfires
Carbon paste contains gritty particles meant to grip smooth carbon surfaces. On an alloy D-Fuse post and wedge, those particles act like sandpaper. They wear the metal and actually increase noise.
Use plain bicycle grease instead.
The Overtightening Trap and Other Common Errors
Applying more torque than spec won't stop the creak. It can dent the seatpost or crack the wedge. Another common error: greasing the outside of the seatpost but not the wedge.
The wedge is the noise source, so it needs grease where it contacts the frame.
When It's Supposed to Be Noisy and How to Tell What's Normal
All bikes make some noise. A faint tick from the drivetrain or a slight frame flex sound under heavy load is normal. What's not normal is a loud creak that repeats with every pedal stroke, especially if it's located under the saddle.
If you've done the procedure above and the creak persists, the issue might be a cracked frame or worn wedge. In that case, visit a certified Giant dealer.
Frequently Asked Questions
Does this happen on every Contend AR 4?
Not every bike, but it's common. The D-Fuse wedge is a maintenance point. It's more likely to show up after wet or gritty conditions than on a brand-new bike.
How long does the fix last?
If done correctly, cleaning and greasing the wedge, the fix typically lasts several months. Reapply grease whenever you do a deep clean or pull the seatpost.
What if the noise is coming from the frame?
A creak that persists after the saddle, wedge, and collar are all properly serviced may indicate a cracked frame. Look for hairline cracks around the seat tube or chainstays. Stop riding and have a mechanic inspect it.
Can I use WD-40 instead of grease?
No. WD-40 is a solvent, not a lubricant. It will dry out and attract dirt, making the creak worse.
Stick with bicycle-specific grease.
Do I need to take it to a shop?
Most riders can fix this themselves. But if you don't own a torque wrench or aren't comfortable working on your bike, a shop can do it in ten minutes for a minimal labor fee.
