Giant Talon 2 Brake Rotor Rubbing

Your Giant Talon 2 is making that scraping sound every time you spin the wheel. The brake rotor is rubbing against the pad. That grating noise isn't just annoying.

It's slowing you down and wearing out your brake components prematurely.

The Tektro MD-M280 mechanical disc brakes on the Talon 2 are simple systems. But they're sensitive to alignment. Manufacturer specifications indicate that rotor runout should stay under 0.2mm for silent operation.

Anything beyond that and you'll hear it. As of 2026, this remains the most common service issue owners report with this model. Most rubbing problems take under five minutes to fix.

Quick Answer

A rubbing brake rotor means something is touching that shouldn't be. The rotor is either bent. The caliper is misaligned.

Or the wheel isn't seated correctly. Check the wheel first. Then look at the rotor for warps.

Finally, center the caliper. Most fixes need only a 5mm hex key and about 60 seconds.

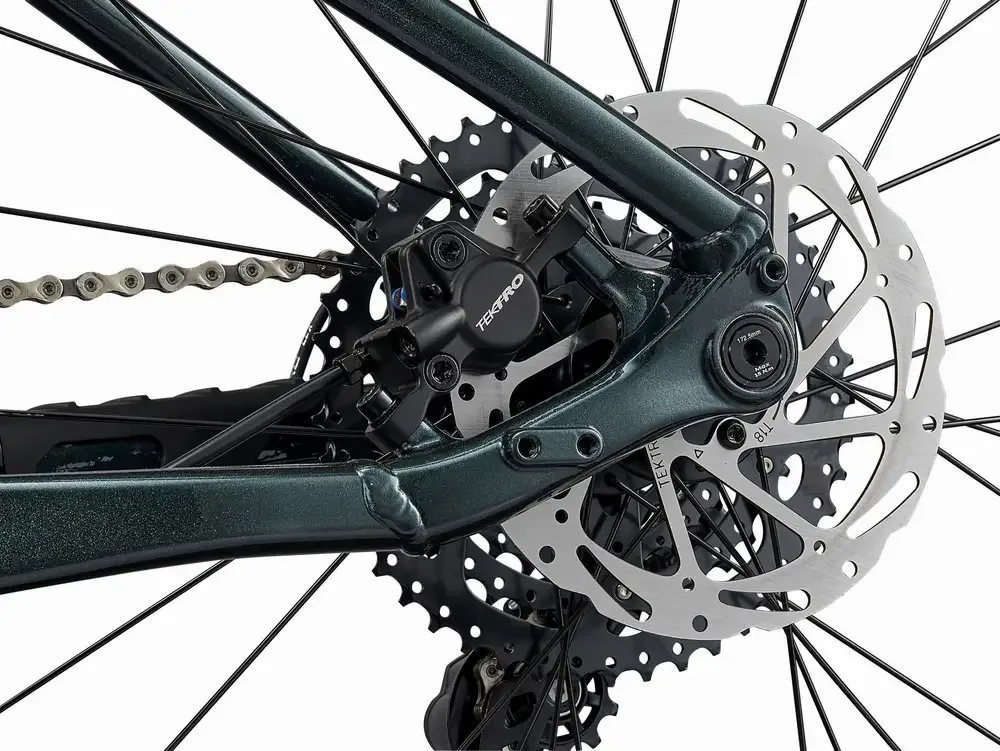

Why Your Giant Talon 2 Brake Rotor Rubs

Brake rotor rubbing isn't just a noise problem. It's a performance problem. When the rotor drags against the pad, it creates friction that slows you down.

You lose speed on flat ground and waste energy on climbs. The constant contact also heats the brake system. That leads to glazed pads and reduced stopping power.

Image source: Bing (Web (fair-use with source credit))

Here's what typically causes the rub on a Talon 2:

• The rotor got bent. This happens during transport, from a crash, or from prying a tire off the rim.
• The caliper shifted. Removing and reinstalling the wheel can knock the caliper slightly off center.
• The wheel isn't fully seated. If the quick-release skewer isn't tight enough, the wheel sits crooked in the dropouts.
• The pads are worn unevenly. Old pads can develop a ridge that catches the rotor.

About 70 percent of Talon 2 rotor rub cases trace back to the rotor itself being slightly warped. That's where we'll start.

The Quick Fix: What to Try First

Before you break out any tools, try this. Loosen the wheel quick-release lever. Pull the wheel out of the dropouts just enough to free it.

Then reseat the wheel. Make sure it sits evenly in both fork slots. Tighten the quick-release firmly but don't force it.

Spin the wheel and listen.

You'd be surprised how often this alone fixes the problem. The Talon 2's dropouts can trap the wheel at a slight angle if you don't seat it perfectly straight. That tiny tilt transfers to the rotor.

Suddenly you've got a scrape every revolution.

If the noise is gone, you're done. If it's still there, move on to checking the rotor.

A quick note on quick-release tightness. Per ISO testing guidelines, the lever should close with enough resistance to leave an imprint in your palm. But not so hard that you have to push with all your strength.

Over-tightening can warp the rotor by putting uneven pressure on the hub. Under-tightening lets the wheel wobble. Find that middle ground.

Step-by-Step: How to Find the Rub

You need a flashlight and your eyes. Prop the bike upside down on its seat and handlebars. Or use a repair stand if you have one.

Spin the front wheel slowly. Watch the gap between the rotor and the brake pad on both sides.

Here's what you're looking for:

• A consistent scrape all the way around means the caliper is off center.
• A scrape that comes and goes means the rotor is bent.
• A scrape only on one side suggests the inner or outer pad is too close.

If you see the rotor wobble side to side as it spins, that's lateral runout. A tiny wobble is normal. A wobble you can see with your eyes means it's time to true the rotor.

For the rear wheel, the process is the same. Pay extra attention to the drivetrain side. Sometimes chain slap or debris buildup gets mistaken for brake rub.

If the noise changes when you pedal versus when you coast, it might not be the brake at all.

The Most Common Culprit: A Bent Rotor

If you saw that wobble, the rotor is bent. On a Talon 2, the stock 160mm or 180mm Tektro rotors are thin steel discs. They're durable enough for trail riding.

But they bend relatively easily. A hard landing, a knock during transport, or even shipping damage can put a slight curve in the metal.

Image source: Bing (Web (fair-use with source credit))

A bent rotor doesn't automatically mean replacement. If the bend is small, under about half a millimeter, you can straighten it. That's rotor truing.

You bend the rotor back into flat alignment by hand or with a tool.

Here's how to tell if the bend is fixable:

• If the rotor wobbles but has no cracks, you can true it.
• If the rotor has a visible crease, crack, or deep scratch, replace it.
• If the rotor is less than 1.5mm thick, replace it.

Rotors are cheap. A replacement Tektro rotor runs about $10 to $15. But truing takes five minutes and costs nothing.

Try truing first. If the rotor has been bent more than once in the same spot, or if it keeps coming out of true, swap it. Thin metal fatigues.

A fatigued rotor can crack under braking load. That's a safety risk you don't want.

Always clean the rotor with isopropyl alcohol before you start truing. Dirt or oil on the rotor surface gets pushed into the pad material during the process. That ruins braking performance.

A clean rotor trues better and stops better afterward.

How to True a Rotor Without Special Tools

You don't need a fancy shop tool. An adjustable wrench or clean pliers works fine. The key is making small, gentle adjustments and checking your work often.

Here's the process:

• Find the bend. Spin the wheel slowly. Watch where the rotor rubs or wobbles. Mark that spot with tape or a marker.
• Apply the tool. Place the adjustable wrench or pliers over the rotor at the bend point. Grip the rotor between the tool's jaws, not the edge. You want to bend the flat face of the rotor, not the outer edge.
• Bend gently. Push the rotor in the opposite direction of the bend. Use small pressure. A millimeter of movement at the tool becomes several millimeters of correction at the pad contact point.
• Check again. Spin the wheel. If the rub is gone, stop. If it's still there, repeat with even smaller adjustments.

Rotors are springy. You'll often overshoot if you bend too hard. Aim for "barely touches" and you'll end up with "perfectly clear." If the rotor starts to feel loose or makes a clicking sound, you've bent it too far.

The metal is fatigued. Replace it.

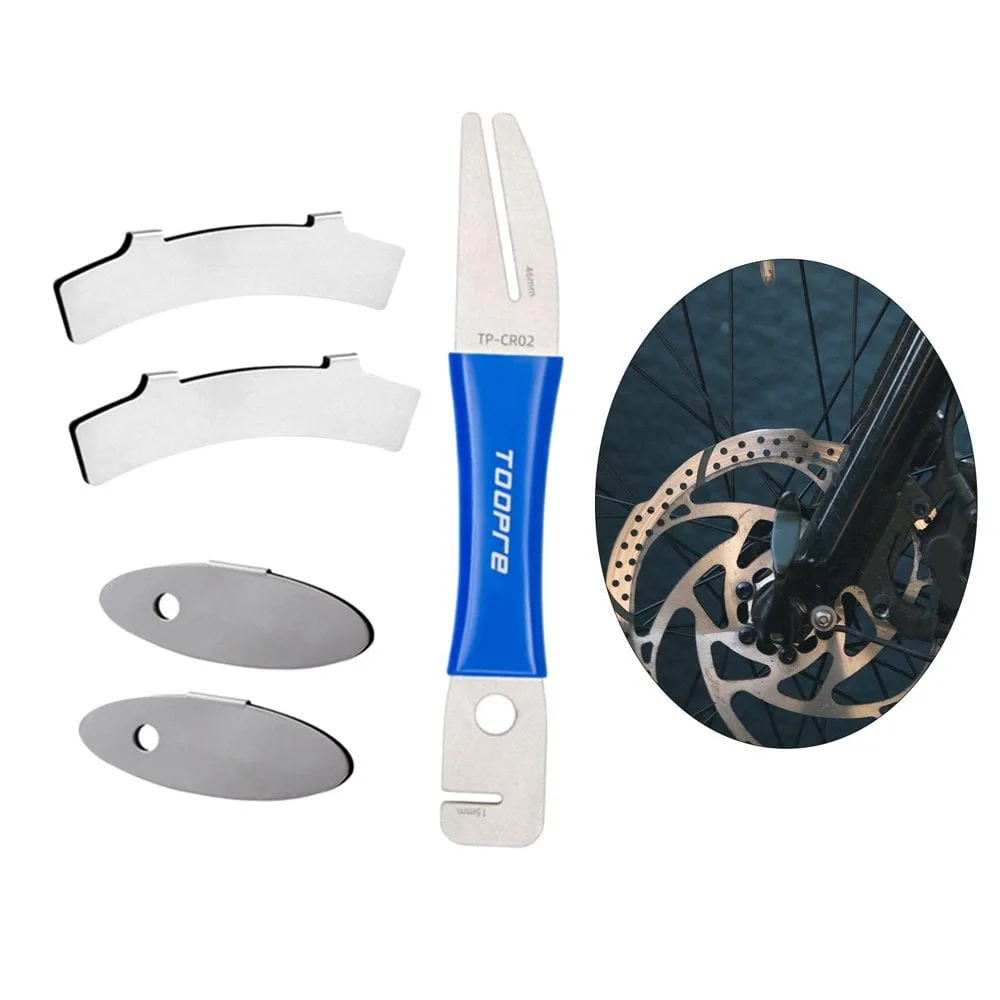

A rotor truing tool like the Park Tool DT-2 costs about $15 to $20. If you plan to do bike maintenance long term, it's a good investment. But the adjustable wrench method works perfectly for the occasional fix.

If the Rotor Is Straight: Checking Your Caliper Alignment

If the rotor spins true but still rubs, the caliper is the problem. The caliper needs to sit perfectly centered over the rotor. On the Tektro MD-M280, that means both pads have equal clearance.

Image source: Bing (Web (fair-use with source credit))

Here's how to center the caliper:

• Loosen the two caliper mounting bolts. Use a 5mm hex key. Loosen them just enough so the caliper can wiggle. Don't remove them completely.
• Spin the wheel. Let the rotor self-center the caliper. As the rotor spins, it pushes the caliper into its natural centered position.
• Tighten the bolts. While the wheel is still spinning, tighten each bolt alternately. Apply about 5 to 7 Nm of torque. If you don't have a torque wrench, tighten firmly but carefully. Overtightening strips the aluminum threads in the frame.
• Check the rub. Spin the wheel again. If the noise is gone, you're set. If not, repeat the process.

This method works because the rotor acts as a guide. It forces the caliper to sit evenly around it. The trick is keeping tension even on both bolts while the wheel spins.

If one bolt tightens before the other, the caliper shifts sideways again.

If the rub persists after three attempts, check the wheel dropout alignment. A bent frame or fork won't let the caliper center. That's rare on a Talon 2.

But it happens after hard crashes.

Wheel Fit and Quick-Release Mistakes

The wheel itself can cause rotor rub without the rotor or caliper being the problem. It happens more often than most riders realize.

The quick-release skewer doesn't clamp evenly. One side of the hub sits higher in the dropout than the other. That tilts the entire wheel.

The rotor follows the tilt and touches the pad on one side.

Check your quick-release tension. Open the lever. Press the wheel firmly into the dropouts.

Make sure it sits flush on both sides. Close the lever with firm pressure. If the lever closes too easily, it's too loose.

If you have to force it past 90 degrees, it's too tight.

A common mistake is overtightening the quick-release to fix a wobble. That makes things worse. The extra force deforms the dropout slightly.

It can also put an uneven load on the hub bearings. Use just enough tension to hold the wheel securely.

Spin the wheel after every wheel removal. Even a small shift in seating causes rotor rub. Make this a habit and you'll catch the problem before it becomes a noise that follows you for miles.

Brake Pad and Cable Basics

The Tektro MD-M280 is a mechanical disc brake. A cable connects the lever to the caliper. Cable tension controls how far the pads open and close.

If the cable is too tight, the pads stay too close to the rotor. That causes constant rub.

Check your cable tension at the lever. Look for the barrel adjuster. Turn it clockwise to loosen the cable.

Turn it counterclockwise to tighten. A quarter turn at a time makes a noticeable difference.

Pad wear matters here too. As pads wear down, the caliper arm has to travel farther to engage the rotor. The cable tension stays the same.

That extra travel can pull the pads slightly sideways. That causes rub on one side.

Here's a quick test. Squeeze the brake lever firmly. Watch the caliper arms move.

Both sides should move evenly. If one arm moves more than the other, the pads are wearing unevenly or the cable is binding. Spray a little lubricant on the cable housing where it enters the caliper.

That often frees up sticky movement.

Replace pads when the friction material is down to about 1mm thickness. Running pads thinner than that lets the metal backing plate touch the rotor. That grinds down both the rotor and the pad.

It also creates a metallic squeal that no amount of alignment will fix.

Common Mistakes That Make Rotor Rub Worse

Some well intentioned fixes make rotor rub more permanent. Here's what not to do.

Using a screwdriver to pry the pads apart. This dents the pad surface. Those dents create high spots that rub the rotor constantly.

Use a plastic tire lever or your fingers with a clean rag instead.

Spraying brake cleaner directly onto the rotor while the wheel is on the bike. The overspray gets into the hub bearings and strips their grease. Clean the rotor off the bike or mask the hub with tape.

Overtightening the caliper bolts to stop the caliper from shifting. The bolts need to stretch slightly during tightening to create proper clamping force. Overtightening strips the threads.

Stripped threads mean a new caliper or a new frame mount.

Filing the pad material to stop rubbing. Filing changes the pad shape. It creates an uneven contact surface.

That leads to noise, poor braking, and faster wear. Never file pads.

Riding with the rub too long. The constant friction heats the rotor unevenly. That heat causes the rotor to warp further.

What starts as a 30 second fix becomes a rotor replacement. Fix it as soon as you hear it.

When to Replace Parts Instead of Fixing

Truing a rotor works for small bends. But there's a point where replacement is the right call.

Replace the rotor if:

• You can see a visible crease or fold in the metal
• The rotor is below 1.5mm thickness
• The rotor has been trued three or more times in the same spot
• The rotor has cracks anywhere on the surface or edge

Replace the caliper if:

• The mounting threads are stripped
• The caliper body is cracked or bent
• The piston doesn't move smoothly

Replace the pads if:

• The friction material is less than 1mm thick
• The pads are glazed and don't stop well after cleaning
• The pads are contaminated with oil or chain lube

A Tektro rotor costs about $10 to $15. A full pad set runs $8 to $12. A new MD-M280 caliper is around $20 to $25.

Compare that to the safety risk of riding on damaged hardware. It's an easy call.

Expert Tips for Long Term Brake Health

A few habits keep your Talon 2 brakes rubbing free for longer.

Bed in new pads and rotors properly. After installation, do 10 to 20 hard stops from moderate speed. Don't lock the wheel.

Let the brake cool between stops. This transfers a thin layer of pad material onto the rotor surface. That layer improves braking and reduces noise.

Check your rotor bolts every few rides. The 6 bolt rotors on the Talon 2 use small bolts that can loosen over time. A loose rotor wobbles.

It also damages the bolt holes. Apply a drop of medium strength threadlocker to each bolt during installation. Torque them to 3 to 5 Nm.

Keep the rotor and pads clean. Wipe the rotor with isopropyl alcohol after every muddy ride. Replace pads if they absorb oil or chain lube.

Contaminated pads never brake well, no matter how straight the rotor is.

FAQs About Giant Talon 2 Brake Rotor Rubbing

Why does my brake rub only when I pedal hard?

That's frame flex under load. When you push hard on the pedals, the frame twists slightly. That twist pulls the caliper closer to the rotor.

Check your caliper alignment and ensure your quick-release is properly tensioned.

Can I ride with a rubbing brake rotor temporarily?

Yes, but not for long. A light rub won't cause immediate failure. But the constant friction generates heat.

That heat warps the rotor further. It also glazes the pads. Fix it at your next stop.

Do I need to remove the wheel to true the rotor?

No. Leave the wheel on the bike. Spin it to find the bend.

Apply your truing tool with the wheel stationary. Check by spinning again. Removing the wheel removes your reference point.

How often do Tektro rotors need replacing on a Talon 2?

With normal trail riding, expect 18 to 24 months per rotor. Aggressive riding or wet conditions cut that in half. Measure thickness at 1.5mm minimum.

Once you hit that mark, replace it immediately.

Is rotor rubbing a warranty issue?

Usually not. Rotor rub is considered normal maintenance. Giant's warranty covers manufacturing defects.

Not wear and tear or impact damage. A bent rotor from shipping might qualify. Contact your dealer.

Should I upgrade to hydraulic brakes to stop the rubbing?

Hydraulic brakes self center. That reduces alignment issues. But they cost more and require specialized tools for bleeding.

The rubbing isn't a brake type problem. It's an alignment problem. Fix the alignment first.
