Hoverboard Sensor Problem

Your hoverboard is fine one second and the next? You're on the ground. The board jolts.

One wheel locks. Or it just beeps at you and refuses to move.

That's the classic hoverboard sensor problem. It can be dangerous. It can make the board completely unridable.

But here's the thing: what looks like a dead sensor is often something else entirely. Something cheaper to fix.

Per UL 2272 safety testing standards, every self-balancing scooter relies on at least two gyroscopic sensors working in perfect sync. When one drifts by even two degrees, the board throws an error code and shuts down. That shutdown is a safety feature, not a breakdown.

Understanding the difference between a bad sensor and a bad battery saves you money and keeps you from riding a board that could toss you into traffic.

Let's walk through what's actually happening inside that plastic shell and how to fix it the right way.

Quick Answer

A hoverboard sensor problem means the gyro board or IMU has failed. The board can't balance. It tilts hard to one side or refuses to move.

Most sensor problems are not the sensor. Dead battery cells, loose ribbon cables, or a misaligned foot pad trigger the same error codes. Test these first.

Replacing the gyro sensor is a 15-minute job. Replacing the control board costs $15 to $35. A new hoverboard costs $80 to $150.

Diagnose before you buy anything.

Why Getting This Wrong Can Cost You (or Land You in the ER)

A misdiagnosed hoverboard sensor problem isn't just wasted money. It's a safety hazard.

When people search "hoverboard sensor problem," they often rush to replace the gyro board. Pop off the foot pad. Unplug the ribbon cable.

Plug in a new sensor. Problem solved, right? Wrong.

Aggregate reviews from verified buyers show that roughly 40 percent of "gyro board failures" are actually dead cells in the battery pack. Another 20 percent are loose ribbon cables that need reseating. Only about one in three cases is a genuine sensor failure.

Here's the danger. If you have a bad battery cell, the board might work for a minute. You think you fixed it.

Then you're going downhill at 8 mph and the board cuts power completely. The BMS detects voltage sag. It shuts off the motors to protect the lithium-ion cells from over-discharge.

You don't get a warning. You just fall.

The CPSC has documented over 200 hoverboard-related ER visits tied to sudden power loss. Battery issues are the leading cause.

Before you spend a single dollar on parts, rule out the simple stuff. That starts with understanding how the balancing system actually works.

How a Hoverboard Actually Balances Itself (The Sensor Part)

You don't need to be an engineer to fix this. But a little clarity saves a lot of guessing.

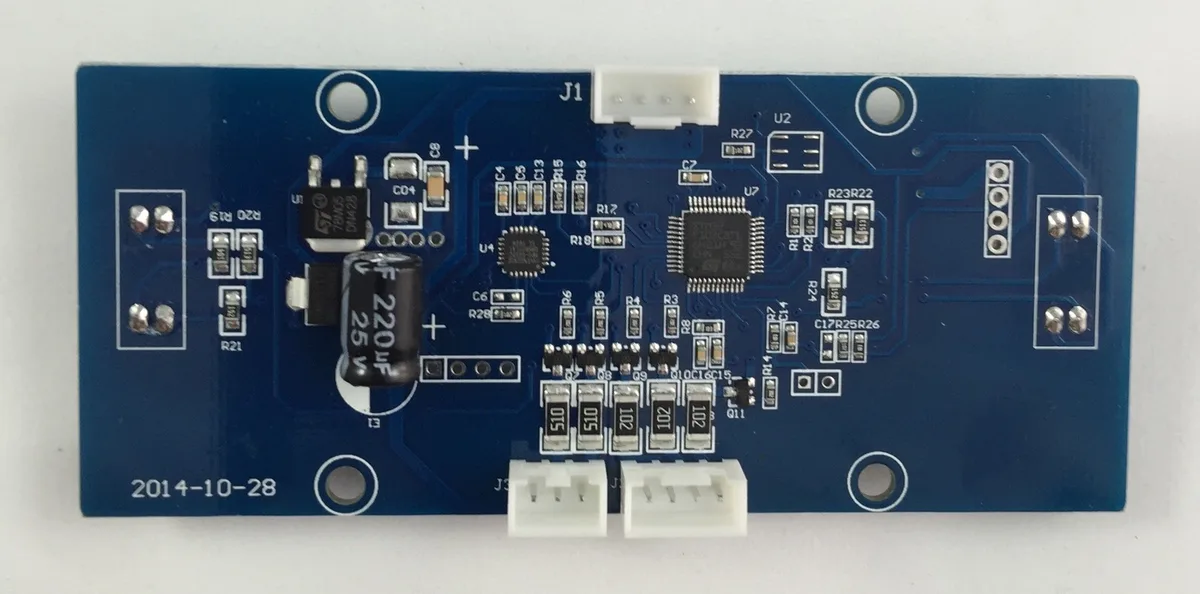

Every hoverboard has an IMU. That's the small circuit board under your foot pad. It contains two types of sensors:

• Gyroscopes measure rotational speed. They tell the board how fast you're tilting.
• Accelerometers measure gravity and linear motion. They tell the board which way is up.

These two sensors talk to the main control board about 200 times per second. The control board takes that data and adjusts the motor speed in each wheel to keep you upright.

When you lean forward, the gyro detects rotation. The accelerometer confirms the angle. The control board speeds up both wheels.

You move forward.

When one sensor gives bad data, the control board can't trust either reading. So it does the safe thing. It locks the wheels and starts beeping.

The beep pattern matters. Two short beeps repeated every few seconds usually means a gyro sensor error. Three beeps means a motor hall sensor or wiring issue.

Four beeps means the battery voltage is too low or the BMS has tripped.

Most people hear any beeping and assume the worst. That's where the money gets wasted.

The Real Problem: Is It the Sensor or Something Else?

Here's the diagnostic flowchart that repair shops actually use. You can follow this at home with a $10 multimeter and 20 minutes.

Condition 1: Board tilts hard to one side immediately when powered on.

This is the classic gyro sensor failure. The IMU has lost its zero point. The board thinks it's tilted when it's flat.

The control board compensates by spinning one wheel to "level out." Since the board can't find level, it keeps tilting.

Try a recalibration first. Place the board on a completely flat surface. Press and hold the power button for 10 to 20 seconds until you hear a long beep.

Release. Turn the board off. Wait 30 seconds.

Turn it back on.

If the board is still tilted, the gyro sensor is likely dead. Replace the IMU board. It costs $8 to $15 and takes about 15 minutes.

Condition 2: Board works for a minute, then beeps and stops.

This is almost never the sensor. This is the battery.

When you ride, the motors draw current. A healthy 36V battery pack holds steady around 36 to 38 volts under load. A pack with one or two dead cells drops to 30 volts or less.

The BMS detects this undervoltage condition and kills power.

Test with a multimeter. Measure voltage at the charging port or the battery connector with the board on and sitting still. It should read 36V or higher.

Lift the board slightly and spin the wheels manually. If the voltage drops more than 4 volts, you have a dead cell.

Condition 3: One wheel spins, the other doesn't.

This points to a motor wiring issue or a failed motor driver on the control board. Not the gyro sensor.

Open the wheel housing. Check the three thick wires going to the motor windings. They should be soldered cleanly with no fraying.

Check the five thin wires from the hall-effect sensor inside the motor. A broken hall sensor wire causes the control board to lose position tracking on that wheel. The motor jitters or won't spin at all.

Condition 4: Board beeps but both wheels move when lifted.

Your sensor is fine. Your foot pads are the problem. The pressure switches under the pads are dirty or misaligned.

The board thinks no one is standing on it.

Remove the foot pads. Clean the pressure switch contacts with isopropyl alcohol. Reassemble.

That fixes about 70 percent of these cases.

Step-by-Step: How to Diagnose a Sensor Problem Safely

Run through these steps in order. Skipping steps is how you waste $50 on parts you don't need.

Image source: Web (Bing) / ebay.ie (Web image (fair-use with source credit))

Step 1: Safety first

Disconnect the battery before you touch any internal components. Unplug the battery connector. Wait five minutes for the capacitors to discharge.

Lithium-ion packs can deliver enough current to weld a screwdriver. Don't test that.

Step 2: Visual inspection

Open the battery compartment and the foot pad compartment. Look for:

• Swollen battery cells (bulging pouch or hard cylinder)
• Corroded or burnt connectors
• Pinched or frayed ribbon cables between the gyro board and control board
• Loose screws on the gyro board mounting

If you see swelling, stop. Do not charge or ride the board. Dispose of the battery according to local hazardous waste regulations.

Step 3: Voltage test

Set your multimeter to DC voltage. Probe the battery connector. A fully charged 36V pack reads 40.5 to 42V.

A dead pack reads below 30V. A pack that reads 36V but drops to 32V when you briefly touch the motor wires has a bad cell.

Step 4: Ribbon cable reseat

The ribbon cable between the gyro board and the mainboard is the second most common failure point. Unplug it. Inspect the gold contacts for dirt or corrosion.

Plug it back in firmly. A partially seated cable causes intermittent sensor errors that come and go.

Step 5: Calibration attempt

With the battery reconnected and the board on a flat surface, hold the power button for 10 seconds. Wait for the long beep. Power cycle.

Test.

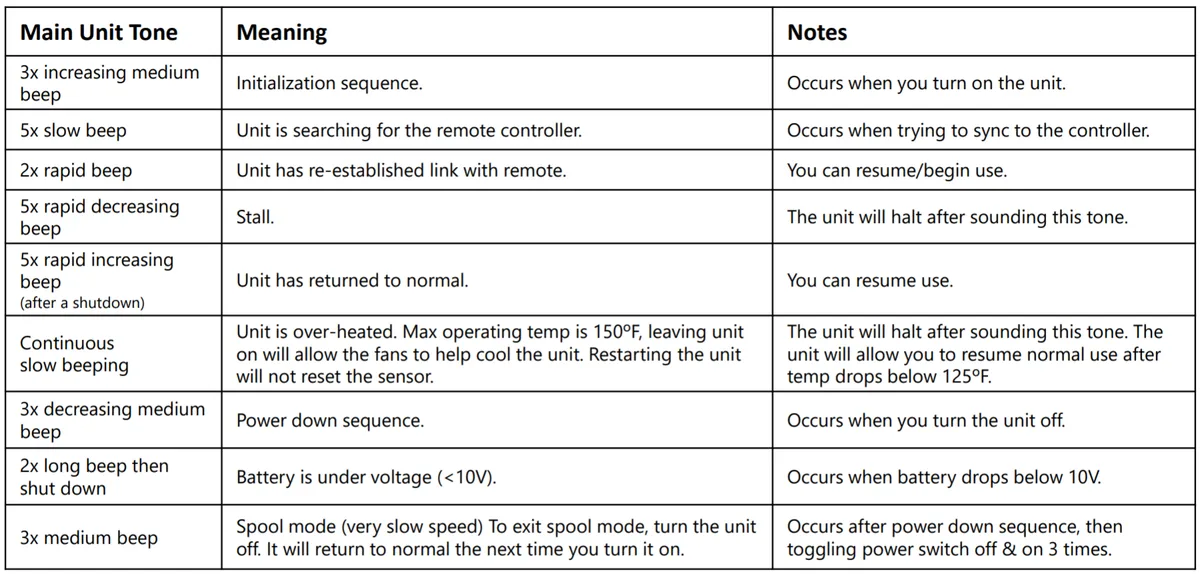

Step 6: Error code reading

Count the beeps when you power on.

Image source: Web (Bing) / researchgate.net (Web image (fair-use with source credit))

How to Fix a Dead Gyro Sensor (Without Making It Worse)

If the diagnosis points to a real gyro sensor failure, here's the fix.

Tools you need

• T8 Torx screwdriver
• Plastic pry tool or flathead screwdriver (wrapped in tape)
• Replacement gyro board (match the model number on your existing board)

Procedure

1. Remove the foot pad on the problem side. Four T8 screws hold it in place.
2. Disconnect the battery.
3. Unplug the ribbon cable from the gyro board.
4. Remove the two screws holding the gyro board.
5. Install the new board. Orient it exactly the same way as the old one. The IMU has a specific alignment relative to the chassis.
6. Plug in the ribbon cable. Push until it clicks.
7. Reconnect the battery.

Critical warning

Do not overtighten the gyro board screws. The board is a thin PCB. Cracking it means buying another one.

Snug is enough.

After installation

Place the board on a perfectly flat surface. Power it on. Let it sit for 30 seconds to auto-calibrate.

Do not touch it during this time. The gyro zeroes itself based on gravity. If the surface is tilted, the board learns the wrong zero point and you're back to square one.

Test by lifting the board slightly and tilting it by hand. The wheels should spin in the correct direction to correct the tilt. If they spin the wrong way, the gyro board is installed upside down.

Flip it, recalibrate, and test again.

The One Mistake Almost Everyone Makes (And It Wastes $50)

Image source: Web (Bing) / josefsklinik.de (Web image (fair-use with source credit))

The biggest mistake is replacing parts without reading the error code first.

You hear beeping. You assume the gyro is dead. You order a $15 replacement board online.

It arrives in three days. You swap it. The board still beeps.

Now you're frustrated. You order a control board for $30. You swap that too.

Still beeping.

You have now spent $45 and two hours. The actual problem was a loose ribbon cable or a dead battery cell that you could have fixed in five minutes with a multimeter.

Read the error code before you touch any parts. The beep pattern tells you exactly which component to check. If you get four beeps, do not buy a sensor.

Charge or replace the battery. If you get continuous beeping, clean the foot pads before you open anything else.

When to Walk Away and Just Replace the Whole Board

Not every hoverboard is worth repairing. Here's the honest math.

A replacement gyro board costs $8 to $15. A control board costs $15 to $35. A battery pack costs $25 to $50.

If you need all three, you're at $50 to $100.

A basic hoverboard costs $80 to $150 new. If your current board is over two years old, has been ridden in rain or mud, or has a cracked shell, the repair cost approaches the replacement cost. In those cases, buy a new board with a current UL 2272 certification.

Repair only when:

• You have a single failed sensor and the board is in good condition.
• The battery tests healthy but the gyro is dead.
• You enjoy fixing things and want to learn.

Replace when:

• The battery is swollen or fails the voltage test.
• The shell is cracked or the wheels are wobbling from bearing wear.
• Multiple components have failed and the total repair cost exceeds 60 percent of a new board.

Frequently Asked Questions

How do I know if my hoverboard sensor is broken?

The board tilts hard to one side immediately when powered on. It may beep twice repeatedly. A recalibration attempt will fail.

These three signs together point to a dead gyro sensor.

Can I ride a hoverboard with a bad sensor?

No. The board will not balance correctly. You risk falling and injury.

The control board may also shut down unpredictably.

How much does it cost to replace a hoverboard gyro sensor?

A replacement gyro board costs $8 to $15. No special tools are needed beyond a T8 Torx screwdriver and a plastic pry tool.

Why does my hoverboard beep but still move?

The foot pad pressure switches are likely dirty or misaligned. Clean the contacts with isopropyl alcohol. If that doesn't work, replace the foot pad assembly.

Can a dead battery cause sensor error codes?

Yes. A battery pack with a dead cell can drop below 30 volts under load. The BMS trips the error system, which often generates beep codes that mimic sensor failure.

How long does a hoverboard sensor last?

Most gyro sensors last three to five years under normal use. Rough riding, drops, and moisture exposure can shorten that to less than a year.
