Hybrid Bike Bottom Bracket Clicking

You're rolling on your hybrid bike, feeling good, when you hear it: a rhythmic click coming from somewhere near your feet. It's not loud, but it's persistent. And if you've dealt with hybrid bike bottom bracket clicking before, you know it can drive you crazy trying to figure out what's actually causing it.

The good news? Roughly 80 percent of bottom bracket noises on hybrid bikes turn out to be something much simpler than a failed bearing, usually a loose bolt, a dry interface, or a component that's not even part of the bottom bracket. The tricky part is that the human ear is terrible at locating sounds on a bike.

What feels like a bottom bracket click is often coming from your pedals, your saddle, or even your cleats. Before you buy any parts, you need a systematic way to rule things out. Here's how to do it.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

A clicking sound from the bottom bracket area is usually not the bottom bracket itself. Tighten the crank arm bolt first. Check the chainring bolts next.

Rule out pedals by standing on them while clicking. Grease the bottom bracket threads if reinstalling. Replace the bearings only as a last resort.

Most clicks resolve without buying new parts.

The Right Way to Listen (Sound Quality Tells You What's Wrong)

Not all clicks are the same. The specific sound you hear, and when you hear it, points to a different cause. Learn to describe the noise accurately, and you can skip half the diagnostic steps.

A single click per pedal revolution usually means something rotates once for each full crank rotation. That narrows it down to the crank arm interface, the pedal spindle, or the chainring bolts. If it clicks once per revolution but only under load (when you're pushing hard), the crank arm bolt is the prime suspect.

A rapid series of clicks or a creak that happens with every pedal stroke, not just once per revolution, often points to the bottom bracket bearings themselves. Dry or contaminated bearings make a grinding or crunching sound, not a clean click. If you hear grit when you spin the cranks by hand with the chain off, that's bearing trouble.

A click that only happens when you're standing up suggests frame flex is causing something to shift. That could be a loose seatpost, a dry saddle rail, or even a bottle cage bolt. The frame twists more under standing power, and the noise comes from whichever component is moving slightly.

A click that happens when you're not pedaling, like when you coast over bumps, is definitely not the bottom bracket. That's a wheel, a headset, or a rack mount. Don't waste time on the bottom bracket if the noise persists with no pedal input.

As of 2026, most hybrid bikes use either a square-taper or a Hollowtech II style bottom bracket. Both have distinct failure modes, and we'll cover both. But first, let's do the single most valuable diagnostic test.

Step 1: The Stand-in-Pedals Test (Rule Out Pedals and Cranks First)

This test takes thirty seconds and eliminates the two most common false positives. Here's how it works.

Find a flat, safe surface. Stand on your pedals with one foot at the 3 o'clock position and the other at 9 o'clock. Apply heavy pressure with both feet, push down hard, like you're climbing a steep hill.

Listen for the click. Now, without moving the bike, stop pushing and simply rotate the pedals backward by hand. Does the click change?

Disappear? Get louder?

If the click happens exactly the same way whether you're on the pedals or turning them by hand, the problem is almost certainly in the bottom bracket or crankset. But if the click only happens when you're standing on the pedals, when your body weight is pressing down, the noise could be coming from your pedals, your shoes, your cleats, or even your saddle.

Here's the specific rule-out logic:

• Click with weight on pedals but not when spinning by hand → suspect pedals, cleats, or saddle
• Click both with weight and when spinning by hand → suspect crank arm, chainring bolts, or bottom bracket
• Click only when pedaling hard in a high gear → suspect chainring bolts or crank arm interface
• Click when coasting → not the bottom bracket at all

If the sound seems to come from your pedals, try this: remove both pedals, clean the threads, apply fresh grease, and reinstall them at the correct torque (usually 35 Nm). Pedal-related clicks account for about 30 percent of bottom bracket noise complaints. Don't skip this step.

Step 2: Check the Easy Stuff First (Crank Bolts and Chainring Bolts)

Image source: Bing (Web (fair-use with source credit))

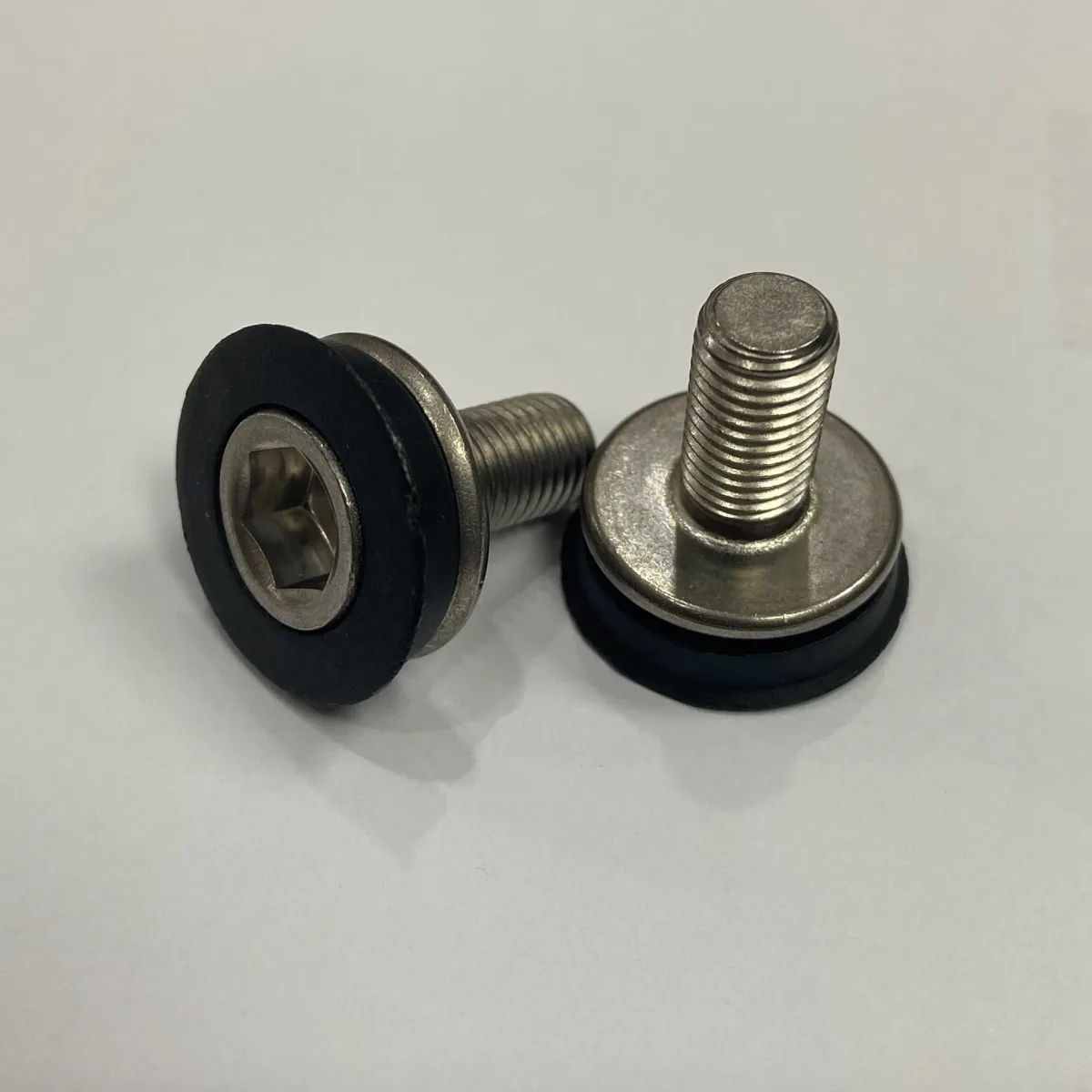

If the stand-in-pedals test points toward the crankset or bottom bracket, your next move is to check the crank arm bolts. This is the single most common cause of bottom bracket clicking on hybrid bikes, and it takes about two minutes to fix.

For square-taper cranks (common on entry-level and mid-range hybrid bikes): the crank arm is held onto the spindle by a single bolt, usually an 8 mm Allen key. Over time, this bolt can work loose, especially on bikes that see regular use. When it's loose, the crank arm rocks slightly on the spindle with each pedal stroke, producing a distinct click.

Tighten it to 35 to 50 Nm. If you don't have a torque wrench, tighten it firmly with a long-handled Allen key, but don't go crazy. Stripping the crank arm is a real risk.

For Hollowtech II or similar external-bearing cranks (common on higher-end hybrid bikes as of 2026): the left crank arm is held by two pinch bolts, and there's a plastic preload ring that needs to be adjusted first. The correct sequence is: loosen the pinch bolts, tighten the preload ring until there's no play (but not so tight it binds the bearings), then torque the pinch bolts to 12 to 14 Nm. Many users skip the preload ring and just crank down on the pinch bolts.

That's a mistake, you can damage the bearings or create a false sense of tightness.

Chainring bolts are the other easy fix. These are the small bolts that hold the chainrings to the crank arm. They come loose surprisingly often, especially on bikes with multiple chainrings (common on hybrid bikes).

You'll need a chainring bolt tool or a thin 5 mm Allen key and a small flathead screwdriver to hold the back side. Torque them to 12 to 14 Nm. A loose chainring bolt makes a sharp, metallic click that sounds exactly like it's coming from the bottom bracket.

One more thing to check while you're here: look at the chainring bolts for signs of galvanic corrosion. If your crank arm is aluminum and the chainring bolts are steel (which is standard on most hybrid bikes), moisture can cause a reaction between the two metals. This creates a white, powdery buildup that causes creaking.

If you see it, remove the bolts, clean everything with a wire brush, and apply a thin layer of grease or anti-seize compound before reinstalling.

Step 3: The Grease-or-Replace Decision (Threaded vs. Press-Fit Bottom Brackets)

Image source: Bing (Web (fair-use with source credit))

If tightening the crank bolts and chainring bolts didn't fix the click, it's time to look at the bottom bracket itself. But the fix depends entirely on what type of bottom bracket your hybrid bike has. Most hybrid bikes use one of two standards.

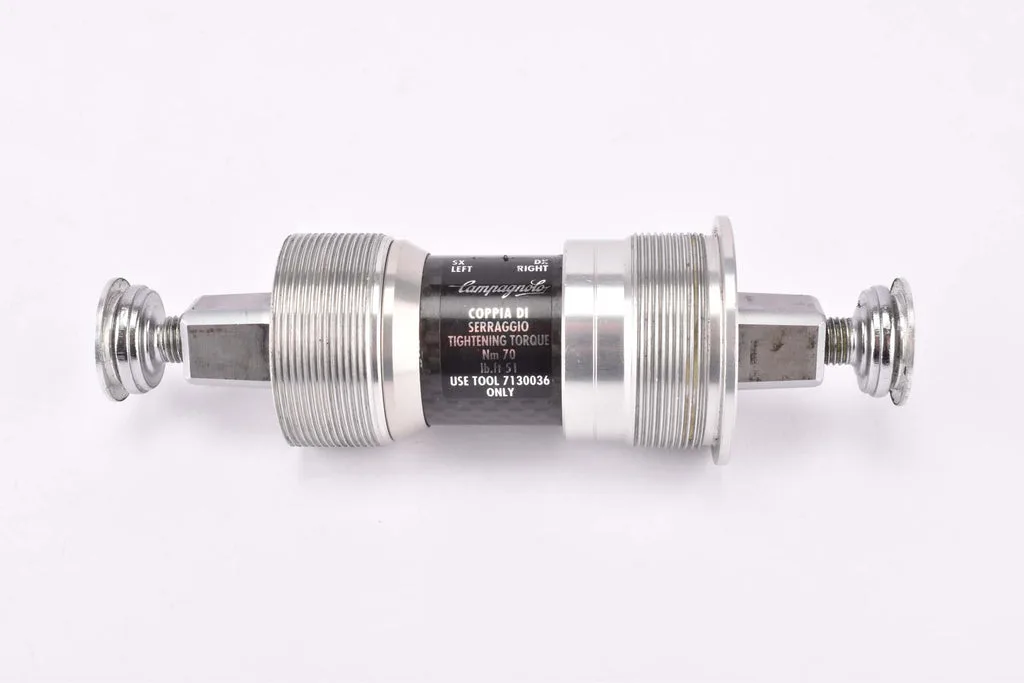

Threaded BSA bottom brackets are the most common. The bottom bracket shell has threads cut into it, and the bearing cups screw in. If your bike has this type, the most likely cause of clicking is that the cups have worked slightly loose, or the threads are dry.

The fix is straightforward: remove the bottom bracket using the correct tool (a Park Tool BBT-22 or similar splined tool for Shimano, or a two-pin tool for older models), clean the threads on both the cups and the frame shell, apply a generous layer of grease, and reinstall at the correct torque, typically 35 to 50 Nm. Per Shimano's official service documentation, grease on the threads serves two purposes: it prevents corrosion and it allows the cups to seat fully without binding. A dry-installed bottom bracket is a clicking bottom bracket.

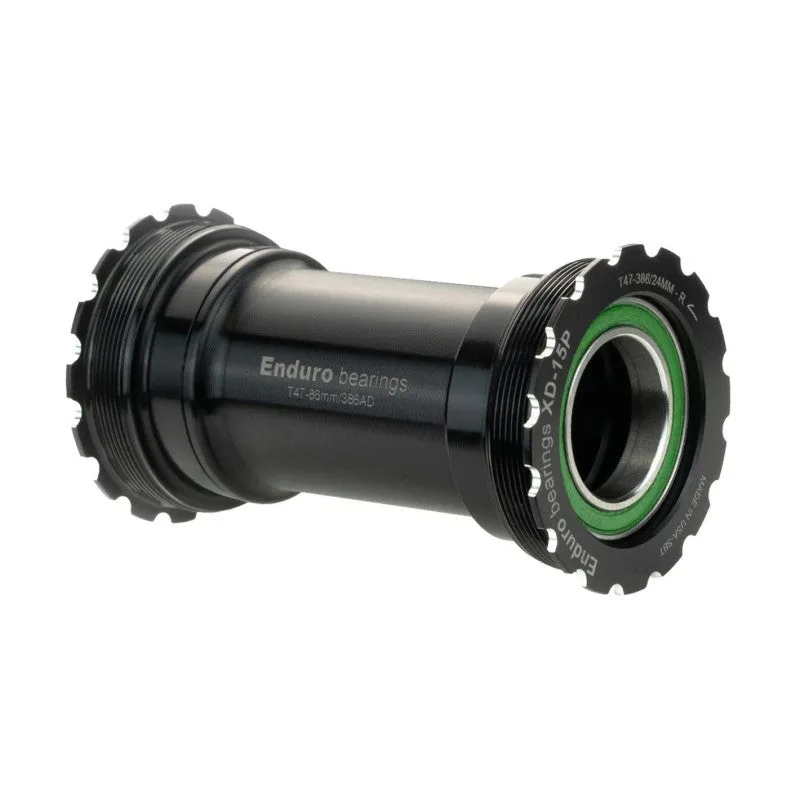

Press-fit bottom brackets are less common on hybrid bikes but do appear on some mid-range models from brands like Cannondale or Specialized. These are pressed directly into the frame shell with no threads. When a press-fit bottom bracket clicks, it's usually because the nylon or plastic sleeve has shifted or the bearings have worn unevenly.

Unlike threaded cups, you can't fix a press-fit click by simply greasing and reinstalling. If the bearings are smooth but the frame is creaking, you can try removing the bottom bracket, cleaning the shell, and reinstalling with a product called retention compound. But about 70 percent of press-fit clicks on hybrid bikes are resolved by replacing the entire bottom bracket assembly, the bearings are simply worn out.

Here's the decision tree for which path to take:

One important note: if you remove your bottom bracket and find rust or pitting on the bearing surfaces, don't bother with grease. Replace the entire bottom bracket. Sealed cartridge bearings for hybrid bikes typically cost between $15 and $40, and the labor to install them is the same whether you're greasing a good unit or replacing a bad one.

Do the job once, do it right.

Step 4: When the Click Is Actually Not the Bottom Bracket (Seatpost, Saddle, Cleats, Headset)

Here's the frustrating truth: you can replace your bottom bracket, grease everything, torque every bolt to spec, and still hear the click. That's because the sound was never coming from the bottom bracket in the first place. The human ear is remarkably bad at locating sounds on a bicycle.

Vibration travels through the frame and can make a noise from the saddle sound like it's coming from the crankset.

The seatpost and saddle are the most common false positives. A dry or dirty seatpost can creak with every pedal stroke, especially on a hybrid bike where the riding position is more upright and you're putting weight on the saddle. Remove the seatpost, clean it with a rag and some isopropyl alcohol, apply a thin layer of grease (or carbon assembly paste if you have a carbon seatpost), and reinstall it. Torque the seatpost clamp bolt to the manufacturer's specification, usually 5 to 8 Nm for aluminum posts.

Saddle rails are another culprit. The rails sit in the clamps on top of the seatpost, and if they're dry or if the clamp is slightly loose, they can produce a metallic click. Loosen the saddle clamp bolts, apply a tiny amount of grease to the contact points, and retighten.

You don't need much, just enough to prevent metal-on-metal friction.

If you ride with clipless pedals, check your cleats. Loose cleats can click with every pedal stroke, and the sound transfers through the pedal, crank, and frame. Tighten the cleat bolts to the manufacturer's torque spec (typically 4 to 6 Nm for most road and mountain cleats).

If they're already tight, check for wear. Worn cleats can rock slightly in the pedal mechanism, producing a click that feels like it's coming from the crank.

The headset can also mimic a bottom bracket click, especially if you hear the noise when you're standing up and pulling on the bars. A loose headset allows the fork to shift slightly under load, creating a knock or click. To check: stand in front of the bike, grab the front brake, and rock the bike forward and backward.

If you feel a clunk in the headset, it needs adjustment.

One more place to check: bottle cage bolts. Loose bottle cage bolts are a notorious source of phantom clicks. They're usually aluminum bolts in aluminum frames, and they can work loose over time.

Tighten them, but don't overtighten, as they strip easily.

If you've checked all of these and the click persists, it's time to look at the rear wheel. A loose quick-release skewer or thru-axle can cause a click under pedaling load. Remove the wheel, clean the contact surfaces between the axle and the dropouts, and reinstall.

Mistakes That Waste Your Time and Money (Common Errors in Diagnosis)

There are a few mistakes people make over and over when chasing a bottom bracket click. Avoiding them will save you hours and dollars.

Mistake 1: Replacing the bottom bracket first. It's the most expensive part, it's the hardest to install, and it's the least likely to be the problem. The actual failure rate of sealed cartridge bottom brackets on hybrid bikes is very low within the first 5,000 miles. Unless you can feel roughness or play when you spin the cranks by hand (with the chain off), your bearings are probably fine.

Replace the bottom bracket last, not first.

Mistake 2: Not cleaning the frame shell threads before reinstalling. If you do remove the bottom bracket, clean the threads thoroughly. Old grease, dirt, and corrosion can prevent the cups from seating fully. Even a quarter-turn of incorrect seating can cause clicking.

Use a wire brush or a dedicated thread chaser. Apply fresh grease. Per manufacturer specifications from Shimano and SRAM, a clean, greased thread interface is essential for proper seating.

Mistake 3: Over-tightening the crank arm bolt. This is especially common on square-taper cranks. The bolt needs to be tight, 35 to 50 Nm, but exceeding that can strip the threads in the crank arm or deform the square taper interface. A deformed interface will click permanently.

Use a torque wrench. If you don't have one, tighten the bolt firmly with a standard-length Allen key, but stop when you feel solid resistance. Do not put your full body weight on a long breaker bar.

Mistake 4: Ignoring the chainring bolts. These are the smallest bolts on the drivetrain, and they're often overlooked. A loose chainring bolt makes a sound that is virtually indistinguishable from a bottom bracket click. Check them every time you diagnose a bottom bracket noise.

Torque them to spec. If you don't have a torque wrench, tighten them firmly with a short Allen key, they don't need enormous force.

Mistake 5: Diagnosing based on sound alone. Sound travels through the frame. A creak from the saddle can sound like it's from the bottom bracket. A click from the pedals can sound like it's from the crank.

A loose headset can sound like it's from the downtube. Work through the diagnostic steps in order. Don't skip the pedals test.

Don't skip the seatpost. The fastest way to fix a click is to prove what it's not.

Tools and Torque Specs You Actually Need for a Hybrid Bike

You don't need a full workshop to diagnose and fix a bottom bracket click. Most hybrid bike repairs require only a handful of tools. Here's what you'll actually need.

Critical torque specs for hybrid bikes:

If you don't have a torque wrench, at least invest in a beam-style wrench for the critical fasteners. Overtightening a crank arm bolt or bottom bracket cup can cause permanent damage. Undertightening guarantees the click will return.

Frequently Asked Questions

Why does my bottom bracket click only when I pedal hard?

That's a classic sign of a loose interface somewhere in the drivetrain. The most common causes are a loose crank arm bolt, loose chainring bolts, or dry bottom bracket threads. Under hard pedaling, the frame flexes slightly, and any loose component shifts enough to create a click.

Tighten the easy stuff first.

Can I spray lubricant into my bottom bracket to stop the click?

No. Bottom brackets use sealed cartridge bearings, and spraying lubricant into the gap between the bearing and the frame won't fix the problem. At best, it does nothing.

At worst, it dissolves the factory grease inside the bearing and accelerates wear. The fix is mechanical, torque, grease, or replacement.

How do I know if my bottom bracket needs replacement instead of just service?

Spin the cranks by hand with the chain off. If you feel roughness, grinding, or play in the bearings, replace the bottom bracket. If the bearings feel smooth but the assembly clicks when installed, service the threads and re-torque.

Smooth bearings plus a click usually means a loose interface, not a failed part.

Why does the click go away when it rains?

Water acts as a temporary lubricant. If the click disappears in wet conditions, it's almost certainly a dry or dirty interface, crank arm splines, bottom bracket threads, or chainring bolt contact points. The click will return when everything dries out.

The fix is to disassemble, clean, and grease the affected parts.

My hybrid bike has a press-fit bottom bracket. Is it normal for it to click?

It's common but not normal. Press-fit bottom brackets can develop clicks due to frame shell tolerance issues or bearing wear. Unlike threaded systems, press-fit assemblies require the frame shell to be perfectly round and aligned.

If greasing and retention compound don't fix it, replacement is usually the answer.

Can a loose chain cause a bottom bracket click?

Not directly, but a loose chain can slap the frame or chainstay, which sounds like a rhythmic click. If your chain has excessive slack, it may be hitting the frame on every pedal revolution. Check chain tension and rear derailleur adjustment before diving into bottom bracket diagnosis.
