Hybrid Bike Pedals Won’t Turn

If your hybrid bike pedals won't turn, you're probably staring at your bike wondering if you need a whole new drivetrain. Most of the time, you don't. The fix is usually one specific component that's failed, not the entire system.

Understanding which part is actually stuck saves you time, money, and a lot of frustration.

Manufacturer specifications for hybrid bikes typically use a square taper bottom bracket and sealed cartridge bearings. As of 2026, this design is still the most common setup on commuter and fitness hybrids. The good news is that both the pedals and the bottom bracket are replaceable with basic tools.

The trick is knowing which one to replace. Let's walk through exactly how to figure that out.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Remove the chain from the chainring. Spin the crank arm by hand. If it won't spin, the bottom bracket is seized.

If it spins but the pedal feels gritty or catches, the pedal bearing is the problem. If the crank spins fine without the chain but binds under load, check the chain and derailleur for damage.

The Real Problem: Why Your Hybrid Bike Pedals Are Locked Up

Here's what most people don't realize. When you say "my pedals won't turn," you're actually describing one of three completely different mechanical failures. The pedals themselves might be fine.

The crank arms might be fine. But something in the rotating assembly has stopped moving.

The first possibility is a seized bottom bracket bearing. This is the bearing inside the frame that the crank arms attach to. On a hybrid bike that lives outside or in a damp garage, water seeps past the bearing seals.

Over months of neglect, rust forms inside the cartridge. Eventually, the bearing locks up completely. The crank arm won't rotate more than a few degrees.

The second possibility is a failed pedal bearing. Each pedal has its own set of tiny bearings inside the pedal body. Sand, grit, and rain work their way in.

The bearing gets rough, then notchy, then fully seized. The pedal won't spin freely on its axle anymore. The crank still moves, but the pedal at the bottom of the stroke drags and catches.

The third possibility is mechanical damage to the crank arm or pedal threads. If you crashed the bike, dropped it, or hit a curb, the crank arm can bend slightly. Bent crank arms bind against the frame.

Cross-threaded pedal installation can also strip the crank arm threads, causing the pedal to sit crooked and lock up under pressure.

The simplest way to tell them apart requires no tools. Just your hands and a few seconds.

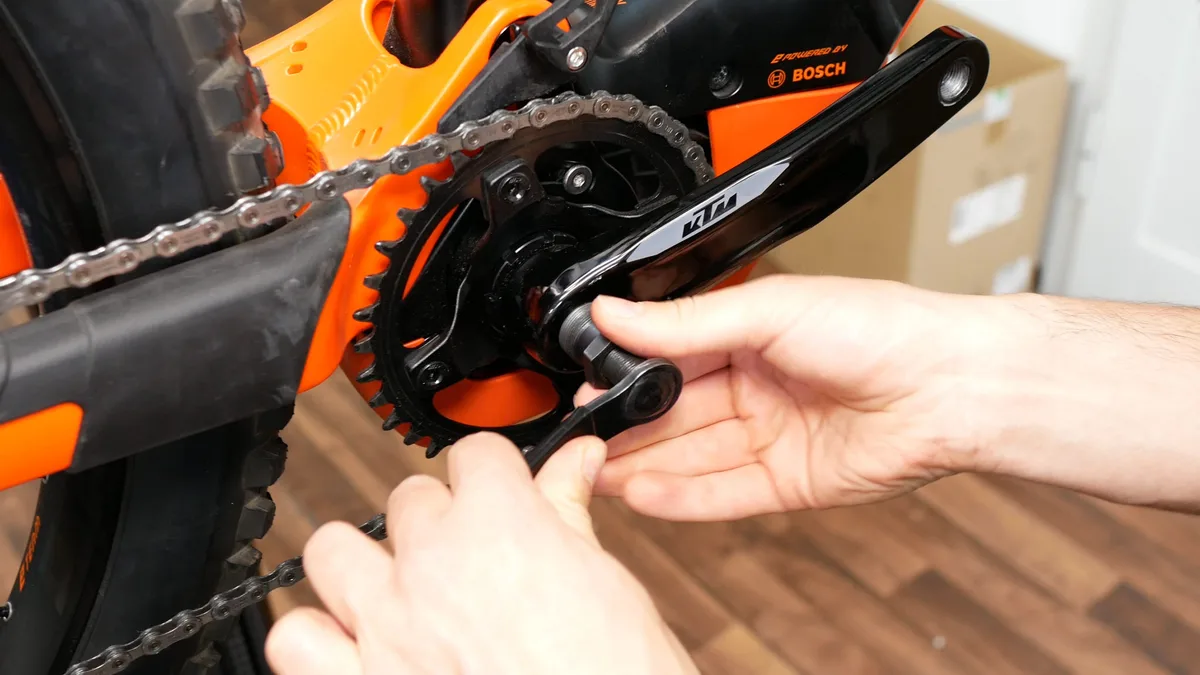

Quick Test: Pedal vs. Bottom Bracket (The One Check That Tells You Everything)

Image source: Bing (Web (fair-use with source credit))

This test takes two minutes and saves you from buying parts you don't need.

Start by lifting the rear wheel off the ground. A bike stand is ideal, but flipping the bike upside down onto its seat and handlebars works fine for a quick check. Shift the chain onto the smallest chainring and the smallest rear cog.

This gives you the easiest access to the chain.

Step one: Pull the chain off the chainring completely. Just lift it off the teeth and let it rest on the bottom bracket shell. This removes all drivetrain drag from the equation.

Now spin the crank arm by hand.

If the crank arm spins smoothly with zero resistance, your bottom bracket is fine. The problem isn't there.

If the crank arm won't rotate at all, or rotates with a grinding, crunchy feeling, the bottom bracket bearing is seized or damaged. That's your culprit.

Step two: If the crank spun fine, put the chain back on the chainring. Now spin each pedal by hand. Grab the pedal body and twist it.

Does it spin smoothly on its axle? Or does it feel gritty, notchy, or completely locked?

A healthy pedal spins freely with a slight amount of resistance from the grease inside. A failed pedal either won't spin at all, spins with a rough grinding feel, or has noticeable side-to-side play.

Step three: If both the crank and pedals spin fine when the bike is upside down but the problem only happens when you ride, check the rear derailleur. A bent derailleur hanger can push the chain into the spokes, creating resistance that feels like the pedals are locked. Also check if the chain is rubbing against the front derailleur cage.

That's the entire diagnostic process. Three checks. Two minutes.

Now you know exactly which branch of the decision tree to follow.

Branch 1: The Crank Won't Spin at All (Bottom Bracket Seized)

This is the most common failure on hybrid bikes that are three to five years old and have never had bottom bracket service. Sealed cartridge bearings have a finite lifespan. Most manufacturers rate them for 5,000 to 10,000 miles or two to three years, whichever comes first.

When a bottom bracket seizes, the crank arm becomes nearly impossible to turn by hand. You might get a few degrees of rotation before it binds. You might hear a grinding or crunching sound.

In the worst cases, the crank is completely locked in place.

You need to replace the bottom bracket. There is no repair for a seized sealed cartridge bearing. You cannot re-grease it or free it up. The bearing is a sealed unit.

Once it fails, you remove it and install a new one.

Here's what you'll need to know. Your hybrid bike almost certainly uses a square taper bottom bracket. The standard shell width for most hybrid frames is 68 millimeters.

The spindle length varies by manufacturer, but 113 millimeters is common for Shimano-compatible cranksets. Measure your old one before ordering a replacement or check the manufacturer specs for your bike model.

The removal process requires a bottom bracket tool specific to your bracket type. Shimano cartridge bottom brackets use the TL-UN74-S or a compatible splined tool. SRAM and other brands may use a different tool.

Park Tool BBT-9 or BBT-22 covers most standard models. You also need a crank puller to remove the crank arms first.

A warning about seized bottom brackets. If the bike has been sitting outside for years, the bottom bracket may be rusted into the frame threads. Attempting to force it out without proper technique can strip the threads in the frame. That turns a $25 repair into a $200 frame repair.

If the bracket won't budge with reasonable force, take the bike to a shop. They have the tools and experience to handle rusted-in brackets.

Once the new bottom bracket is installed, torque it to manufacturer specifications. Shimano recommends 35 to 50 Newton-meters for the crank arm bolts. Over-tightening can strip the square taper interface.

Under-tightening causes the crank arm to work loose and wobble. Both scenarios lead to another repair down the road.

Branch 2: The Pedal Feels Gritty or Catchy (Pedal Bearing Failure)

If your crank spins fine but the pedal itself feels rough, you've got a pedal bearing problem. This is actually good news. Pedal replacement is simpler and cheaper than bottom bracket replacement.

Pedal bearings fail because they're exposed to the elements. Hybrid bike pedals sit low to the ground. They pick up road grit, rainwater, and road salt.

Over time, contamination works past the bearing seal. The grease dries out or gets contaminated. The bearing surfaces wear down.

You start feeling a gritty, sandy sensation when the pedal rotates.

The fix is to replace the pedals. Most hybrid bike pedals are not designed to be serviced. The bearing is pressed into the pedal body and cannot be replaced separately. A new set of quality hybrid pedals costs between $20 and $60.

That's cheaper than a shop visit to diagnose and replace a single bearing.

When choosing replacement pedals, look for ones with sealed cartridge bearings. This is a standard feature on pedals priced above $30. The seal keeps water and grit out significantly longer than the basic bushing-style pedals that come stock on most budget hybrid bikes.

Installation warning. This is where people make expensive mistakes. The right pedal (drive side) has a right-hand thread. Turn it clockwise to tighten.

The left pedal (non-drive side) has a left-hand thread. Turn it counterclockwise to tighten. This is the opposite of what feels natural.

If you force the left pedal the wrong way, you will strip the crank arm threads. That means a new crank arm or an entire new crankset.

Apply a small amount of anti-seize compound to the pedal threads before installation. This prevents the pedal from seizing into the crank arm. It also makes future removal much easier.

Torque the pedals to about 30 to 40 Newton-meters. A standard 15-millimeter pedal wrench or an 8-millimeter hex key works for most pedals.

Branch 3: The Pedal Turns But Feels Loose or Wobbly (Crank Arm or Thread Damage)

This branch is less common but more serious. If the pedal spins but the whole crank arm feels loose, or if the pedal wobbles side to side as it rotates, you're dealing with mechanical damage rather than bearing failure.

Loose crank arm on the square taper spindle. The crank arm is held onto the square taper bottom bracket spindle by a single bolt. If that bolt works loose, the crank arm develops play. It wobbles as you pedal.

Over time, the square taper deforms. The crank arm gets sloppy. If you catch it early, you can simply tighten the crank bolt to specification.

If the taper is already damaged, you need a new crank arm.

Wobbly pedal due to damaged threads. If the pedal threads in the crank arm are stripped, the pedal won't sit straight. It wobbles under load. This happens most often when someone cross-threaded a pedal during installation.

It also happens if the pedal was installed without enough torque and worked itself loose. Damaged threads in an aluminum crank arm usually mean the crank arm needs replacement. Steel crank arms are less common on hybrid bikes but can sometimes be re-threaded with a tap.

Bent crank arm from impact. If you've crashed the bike or hit a solid object with the pedal, the crank arm can bend. A bent crank arm won't rotate in a true circle. It binds against the frame or the front derailleur at one point in the rotation.

The fix is crank arm replacement. Attempting to straighten a bent crank arm weakens the metal and risks catastrophic failure while riding.

Checking yourself: Remove the pedal from the suspicious crank arm. Clean the threads on both the pedal spindle and the crank arm. Inspect them under good light.

Look for flattened or missing threads, visible cracks, or deformation. Spin the crank arm without the pedal attached. If it wobbles or binds, the issue is the crank arm or bottom bracket.

If it spins smoothly, the issue was the pedal threads or the pedal itself.

Tools You'll Actually Need (No Guessing)

Image source: Bing (Web (fair-use with source credit))

You don't need a full workshop to fix this. But you do need the right tools for the specific branch you're on. Trying to remove a bottom bracket with a wrench you found in the garage is how threads get stripped.

Here's exactly what each repair requires.

For bottom bracket replacement:

• Crank puller (Park Tool CCP-22 or equivalent)
• Bottom bracket tool (Park Tool BBT-9 for Shimano, or BBT-22 for universal fit)
• Large adjustable wrench or socket wrench
• Torque wrench (optional but recommended, 35 to 50 Nm range)

For pedal replacement:

• 15-millimeter pedal wrench or 8-millimeter hex key
• Anti-seize compound
• Torque wrench (optional, 30 to 40 Nm)

For crank arm tightening or replacement:

• 8-millimeter hex key or socket
• Torque wrench (35 to 50 Nm)
• Crank puller (if replacing the crank arm)

For inspection and cleaning:

• Rag or shop towel
• Degreaser
• Flashlight for thread inspection
• Needle-nose pliers (for stubborn chain removal)

That's the complete list. Most of these tools are under $20 each. A crank puller and bottom bracket tool together cost about $40 to $60.

Compare that to a $100 shop minimum charge for a bottom bracket replacement. The tools pay for themselves on the first job.

Mistakes That Will Cost You Time or Money

These are the most common errors people make when diagnosing or fixing a stuck pedal or crank. Avoid these and you'll save yourself a second trip to the hardware store or bike shop.

Mistake one: Forcing the left pedal clockwise. The left pedal has a left-hand thread. You must turn it counterclockwise to tighten and clockwise to loosen. Forcing it the wrong way strips the crank arm threads.

A new crank arm costs $20 to $50. A new crankset costs $60 to $120. Don't learn this lesson the expensive way.

Mistake two: Trying to re-grease a sealed pedal bearing. Sealed cartridge bearings cannot be serviced. There is no grease fitting. There is no way to open the bearing without destroying it.

If the pedal feels gritty, replace the pedal. Trying to "fix" it with spray lubricant wastes time and never works.

Mistake three: Using the wrong bottom bracket tool. There are at least five different bottom bracket tool patterns. The splined Shimano tool won't fit a SRAM bracket. The two-pin tool won't fit an eight-spline bracket.

Check your bracket type before buying the tool. Park Tool's website has a compatibility chart that shows which tool fits which brand and model.

Mistake four: Ignoring a loose crank bolt. That slight wobble you feel today will be a fully stripped square taper tomorrow. Tighten the crank bolt as soon as you notice play. A few minutes with a hex key now prevents a $40 crank arm replacement later.

Mistake five: Using WD-40 as a lubricant. WD-40 is a solvent and water displacer. It is not a grease. It will wash out the existing grease in a bearing and make the problem worse faster.

Use grease for bearings and anti-seize for threads. WD-40 is only useful for loosening rusted bolts before you remove them.

Mistake six: Overtightening the bottom bracket. More torque is not better. Bottom bracket cartridges are designed to be snug, not crushed. Overtightening distorts the bearing race and causes premature failure.

Follow the manufacturer's torque spec. If you don't have a torque wrench, tighten firmly with a standard wrench and stop. The bracket should not require extreme force to install.

Frequently Asked Questions

Can I just spray lubricant into the pedal to fix it?

No. Most hybrid bike pedals use sealed cartridge bearings. There is no way to get lubricant inside the bearing without destroying the seal.

Spray lubricant only cleans the outside. The gritty feeling comes from contamination inside the sealed unit. Replace the pedals.

How do I know if the bottom bracket or the pedal is the problem?

Remove the chain from the chainring and spin the crank by hand. If the crank won't spin, the bottom bracket is seized. If the crank spins but the pedal feels rough, the pedal bearing is bad.

This test takes two minutes and requires no tools.

Is it safe to ride with a seized bottom bracket?

No. A seized bottom bracket can lock the crank mid-pedal stroke. This can cause you to lose balance and fall.

It can also damage the frame threads. Stop riding immediately and replace the bottom bracket before using the bike again.

Can I replace just one pedal or do I need a pair?

You can replace just one pedal if the other is in good condition. But pedals wear at similar rates. If one bearing has failed, the other is likely close behind.

Replacing both at the same time saves you from doing the job again in a few months.

Why does my left pedal always feel tighter than the right?

The left pedal has a left-hand thread. Tightening it counterclockwise feels unnatural. Most people instinctively turn it clockwise, which tightens the right pedal but loosens the left.

This is also why the left pedal is more likely to fall off if not properly torqued. Double-check your direction every time.

How much does a bike shop charge to fix a seized bottom bracket?

Most shops charge between $60 and $120 for a bottom bracket replacement. That includes the part and labor. The part itself costs $15 to $40.

If the bracket is rusted into the frame, expect additional charges for extraction. Doing it yourself costs $40 to $60 in tools plus the cost of the bracket.
