Hyundai Elantra Battery Problem

Your Hyundai Elantra battery problem is rarely a mystery. It's a process. A dead battery, a slow crank, or a clicking starter each points to a different root cause.

Diagnose the symptom first, and you'll avoid wasting money on parts you don't need.

A healthy 12V battery reads about 12.6 volts at rest. That baseline applies across every Elantra trim and model year, and manufacturer specifications for the charging system confirm it. Let's walk through the diagnosis step by step, starting with the checks that cost nothing.

Image source: Bing (Web (fair-use with source credit))

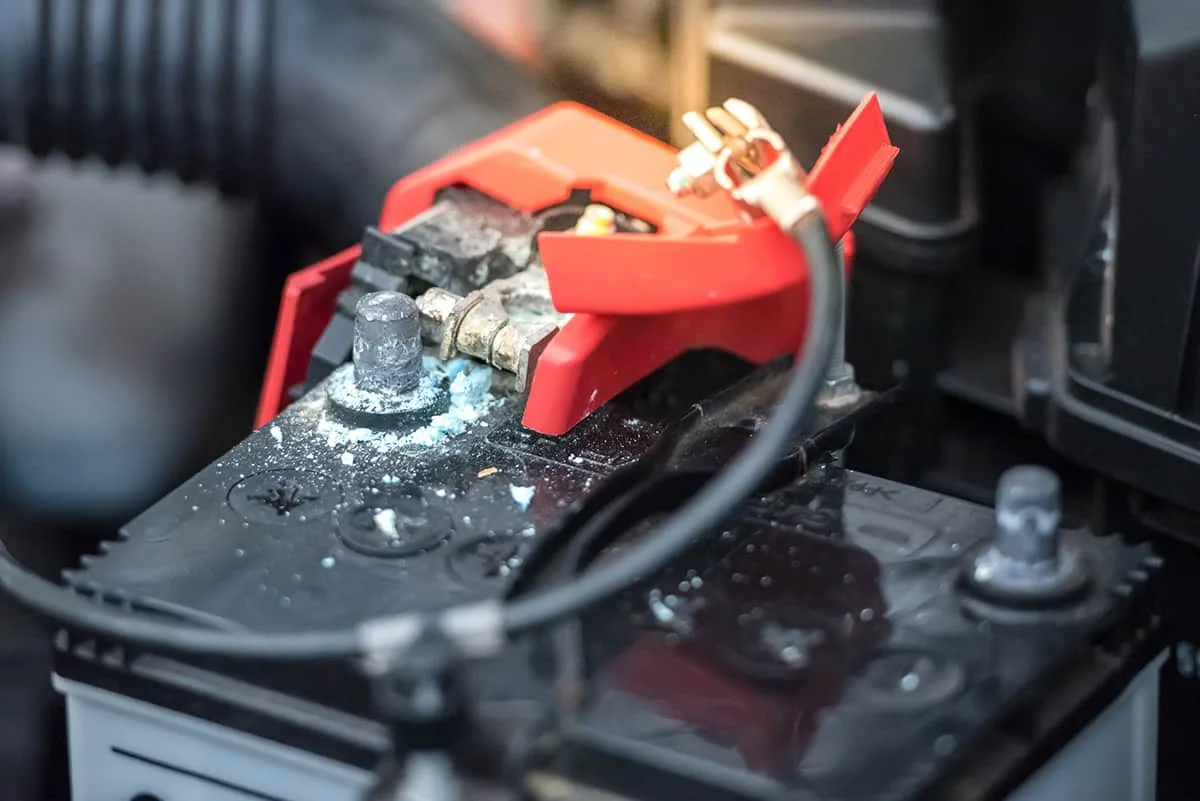

First, Check the Obvious: Terminals, Corrosion, and the Physical Battery

Start with the cheapest fixes first. Pop the hood and look at the battery. A loose terminal is the most common cause of a no-start Elantra.

So is a layer of white or blue-green crust on the posts.

Here's what to check:

• Terminal tightness. Wiggle the cables. If they move more than a few millimeters, they're loose.
• Corrosion. That colored crust acts like an insulator and interrupts current flow.
• Case condition. Look for swelling, cracks, or acid residue.
• Fluid level. On open-cell batteries, check that the plates stay covered.

If the case looks swollen or cracked, stop right there. Don't jump it. Don't charge it.

Replace it immediately. A damaged case can leak acid and ruin nearby components.

Clean terminals with a wire brush and a baking soda-water mix. Reconnect the positive cable first, then the negative. If the car starts, you just saved yourself a trip to the parts store.

If everything looks clean and snug, you've ruled out the simple stuff. The next step is measuring voltage.

Resting Voltage and Load Testing: What 12.6V Really Tells You

Image source: Bing (Web (fair-use with source credit))

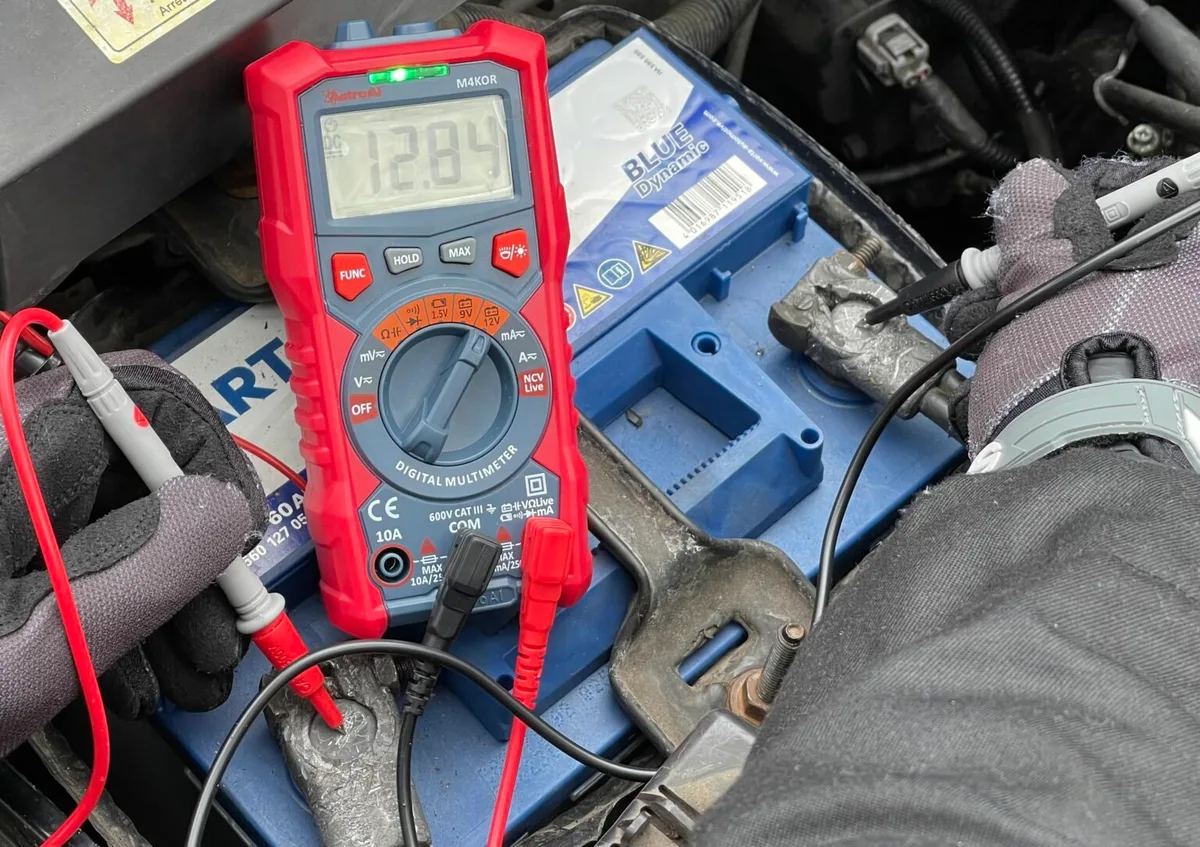

Resting voltage tells you the state of charge, not the health of the battery. You need a digital multimeter for this. Set it to DC volts and touch the probes to the battery posts, positive to positive, negative to negative.

A fully charged battery should read about 12.6V. At 12.4V, you're at 75 percent charge. Below 12.0V, the battery is effectively depleted.

If the battery reads low, charge it fully, then let it sit for at least 12 hours. Test again. If it dropped below 12.4V, the battery won't hold a charge and needs replacement.

But a good resting voltage is only half the story. A battery can read 12.6V and still fail when you load it with the starter motor's demand. That's where a load test comes in.

Auto parts stores do these for free. You can also buy a handheld conductance tester.

Slow Crank vs. Clicking: Reading the Symptoms Without Guessing

The starter's behavior is your best clue. Listen to what the car actually does when you turn the key.

Rapid clicking happens when the starter solenoid doesn't get enough voltage. The lights dim because the battery drops under load. That's a classic charge or connection problem.

Address the connections first. If the clicking persists after cleaning, your battery is likely weak.

A single click with bright lights is different. The circuit has power, but the starter isn't engaging. That points to the solenoid or the starter motor, not the battery.

Slow cranking is the middle ground. The engine turns over but sounds tired. This often means the battery needs a load test, or the alternator isn't charging it back up.

Alternator or Parasitic Drain? Two Tests That End the Guesswork

Image source: Bing (Web (fair-use with source credit))

Two tests isolate the charging system from a parasitic drain. Both require a multimeter.

Alternator output test:

1. Turn the engine on.
2. Measure voltage at the battery terminals.
3. Expect 13.5 to 14.5V at idle.
4. Turn on the headlights and blower motor.
5. Voltage should stay above 13V.

If it drops below 13V under load, the alternator is struggling. If it reads over 15V, the voltage regulator is overcharging, which can cook the battery. Either way, the alternator needs attention.

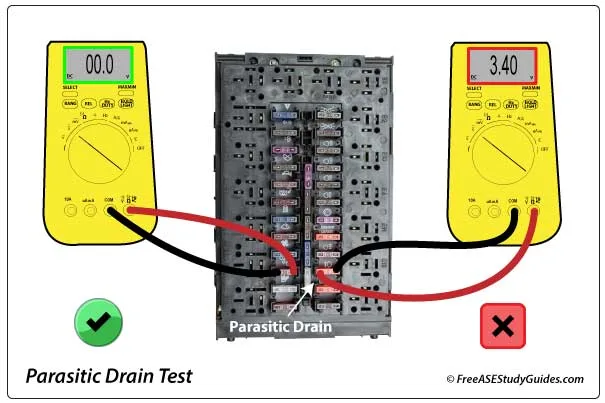

Parasitic draw test:

1. Turn the car off and close all doors.
2. Wait 15 minutes for modules to sleep.
3. Disconnect the negative terminal.
4. Set the multimeter to amps, using the 10A slot.
5. Connect the meter in series between the negative cable and the negative post.

A draw under 50 milliamps is normal for modern cars. The Elantra has a battery management system and always-on modules. Over 100 milliamps means something is staying awake.

Pull fuses one by one until the draw drops. The fuse that kills the drain identifies the circuit.

This step-by-step logic is how you separate a failing alternator from an unintended discharge. Both kill a battery, but the fix is entirely different.

Choosing the Right Replacement Battery for Your Elantra

Once you know the battery is dead, look for the right replacement. The correct group size for most Elantras is Group 47, also called H4. Check the owner's manual for the exact CCA rating, because engine size changes the spec.

A 2.0L four-cylinder typically needs around 410 CCA. Smaller engines can get away with less.

You'll also decide between flooded and AGM batteries. Here's the tradeoff:

The Elantra doesn't require AGM unless the trim has start-stop. In that case, stick to AGM to match the battery management system. For standard trims, a quality flooded battery is perfectly fine.

Battery life follows a 3 to 5 year pattern. Hot climates shorten that significantly. If you replace the battery at the first sign of trouble, you avoid getting stranded.

And when the old battery comes out, recycle it. Most parts stores accept them, and the EPA regulates lead-acid battery disposal.

Battery Life, Climate, and Maintenance Habits: Making It Last

A healthy Elantra battery typically lasts 3 to 5 years. Heat is the silent killer. Underhood temperatures in warmer states can cook a battery from the inside, so don't expect the full five years in Phoenix or Atlanta.

Cold weather hurts differently. It thickens engine oil and demands more cranking current. A battery that tests weak in October will likely leave you stranded in January.

That's why testing before winter makes sense.

Simple habits stretch battery life. Drive the car weekly if it sits. Short trips don't fully recharge the battery, so a 20-minute highway run helps.

Keep the posts clean and coated with terminal grease. We've seen batteries fail early simply because corrosion went unnoticed.

If the car sits for weeks, consider a trickle charger. The Elantra's always-on electronics draw a small current even when parked. That's normal, but over a month it drains the battery.

Elantra Battery FAQ: Quick Answers to the Most Searched Questions

How long should a Hyundai Elantra battery last?

Most Elantra batteries last between 3 and 5 years. Hot climates shorten that timeline. If your car is over 3 years old and showing slow cranks, have the battery tested before it leaves you stranded.

What does the battery warning light on the dash mean?

That light means the charging system isn't working properly. It usually points to a failing alternator, not the battery itself. Check the alternator output first.

Driving with this light on can damage the battery and leave you stranded.

Why does my Elantra battery die after sitting for a few days?

A parasitic drain is likely. The car's modules should sleep within 15 minutes, dropping the draw below 50 milliamps. If something stays awake, it can kill the battery overnight.

Use the fuse-pull test we described earlier to find the culprit.

Can I jump-start a Hyundai Elantra?

Yes, with the correct procedure. Connect positive to positive, then negative to an unpainted metal surface on the dead car, not the battery post. This reduces spark risk.

Idle the donor car for a few minutes before cranking.

Should I replace an Elantra battery myself?

You can, but it's heavy and awkward. The battery weighs about 30 pounds. Disconnect the negative terminal first, then the positive.

Reverse the order when installing the new one. If you're unsure, a shop can do it in under an hour.
