Hyundai Elantra Engine Overheating

If your Hyundai Elantra engine overheating gauge has climbed toward the red zone, you've got minutes to act, not hours. An overheating Elantra is one of those car problems where panic replaces logic fast. The good news?

Most overheating situations trace back to a fixable root cause.

Hyundai's Elantra cooling systems typically operate between 195°F and 220°F. Once coolant temperature pushes past that range, you're looking at real damage risk: warped cylinder heads, blown head gaskets, and ruined engine internals. Here's what to do immediately, what's likely wrong, and what each repair costs.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Hyundai Elantra engine overheating is usually caused by low coolant, a stuck thermostat, a failed cooling fan, a clogged radiator, or a worn water pump. Pull over immediately, shut off the engine, and let it cool for at least 30 minutes. Never open the radiator cap while hot.

Check coolant level once cool, look for visible leaks, and drive to a mechanic if the temperature climbs again. Most common fixes cost between $130 and $900, but ignoring the problem can destroy the head gasket or engine block.

The First 60 Seconds: What to Do When the Temperature Gauge Spikes

Stop driving. That's the single most important move when the temperature gauge climbs toward red. Pull over safely, shift to park, and turn off the engine right away.

Your instinct might be to crank the heater and keep rolling. That strategy buys a few minutes in mild cases. But on an Elantra with serious overheating, you're trading short-term convenience for real engine damage.

Shutting down is always the safer call.

Let the engine cool for at least 30 minutes before touching anything. Pressurized coolant sits above boiling point inside the system. Removing the radiator cap while hot releases steam that can burn your hands and face badly.

Once the engine is fully cool, check the coolant reservoir. Look for visible leaks under the front of the car. Dried green or orange residue near the water pump, hose clamps, or radiator seams tells you where coolant has been escaping.

If the reservoir is low, top it off with a 50/50 mix of coolant and distilled water. Start the engine, watch the gauge closely, and drive straight to a shop if the temperature starts climbing again.

Why High Heat Destroys Elantra Engines: Head Gaskets, Cylinder Heads, and Hidden Damage

Image source: Bing (Web (fair-use with source credit))

An engine is a precision machine with metal parts machined to thousandths-of-an-inch tolerances. Heat is the enemy of those tolerances. When coolant temperature gets too high, those tight clearances disappear fast.

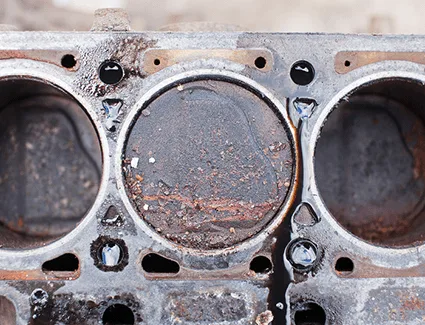

The head gasket sits between the engine block and the cylinder head. It seals combustion gases, coolant, and oil in their separate passages. Extreme heat warps the aluminum cylinder head and crushes the gasket.

Once the gasket fails, coolant mixes with oil, combustion gases enter the cooling system, or both happen at once.

Symptoms show up quickly: white sweet-smelling exhaust smoke, milky oil on the dipstick, or bubbling visible inside the coolant reservoir while the engine runs. A chemical combustion leak test confirms exhaust gases in the coolant.

The cylinder head itself can crack under extreme heat. Replacing a cracked head on the 2.0L Elantra engine runs $2,000 to $3,000 or more. Compare that to a $150 thermostat replacement caught early.

Engine bearings also suffer. Oil thins at high temperatures, reducing its ability to protect moving parts. Even after temperatures return to normal, bearing damage may already be permanent.

That's why early detection matters so much. Different engine designs handle thermal stress differently, and engine displacement and configuration play a real role in how heat builds and dissipates.

The Usual Suspects: Common Overheating Causes in Hyundai Elantras

Most Elantra overheating traces back to five or six culprits. Knowing what to look for saves diagnostic time and repair money.

Low coolant is the most frequent cause. A slow leak from a hose, the water pump, or the radiator lets coolant drop over weeks. By the time the gauge reads hot, you're well below safe operating volume.

A stuck thermostat stops coolant from flowing between the engine and radiator. The thermostat should open as the engine warms. When it sticks closed, heat builds fast and the gauge spikes within minutes.

Cooling fan failure matters most at low speeds and idle. The electric fans should turn on as coolant temperature rises. A dead fan relay, blown fuse, or failing motor removes all airflow through the radiator when you need it most.

A clogged radiator restricts flow and blocks air. Bent fins, packed debris between the radiator and condenser, or internal corrosion all reduce cooling capacity over time.

A failing water pump can't push enough coolant through the system. Look for dripping from the pump's weep hole or a grinding noise from the front of the engine.

A cracked radiator cap seems minor, but it prevents the system from holding pressure. Without proper pressure, coolant boils at a much lower temperature. Others in the same segment, like compact crossovers sharing similar drivetrain architecture, face similar cooling system demands under heavy loads.

How to Diagnose an Overheating Elantra: DIY Tests That Actually Work

Image source: Bing (Web (fair-use with source credit))

You don't need a full mechanic's setup to narrow down the cause. These checks handle most Elantra cooling system problems at home.

Check coolant level first. With the engine cold, look at the reservoir. The level should sit between the MIN and MAX lines. If it drops consistently, you have a leak somewhere.

Test the thermostat. Remove it from the housing and submerge it in a pot of boiling water on the stove. A working thermostat opens fully at around 195°F. If it stays closed in boiling water, replace it.

Verify the cooling fans. Start the engine and let it warm to operating temperature. The fans should kick on as the gauge reaches the midpoint. If they don't, check the fuse and relay before assuming the motor is bad.

A scan tool reading live ECT sensor data helps confirm the ECU is sending the fan signal.

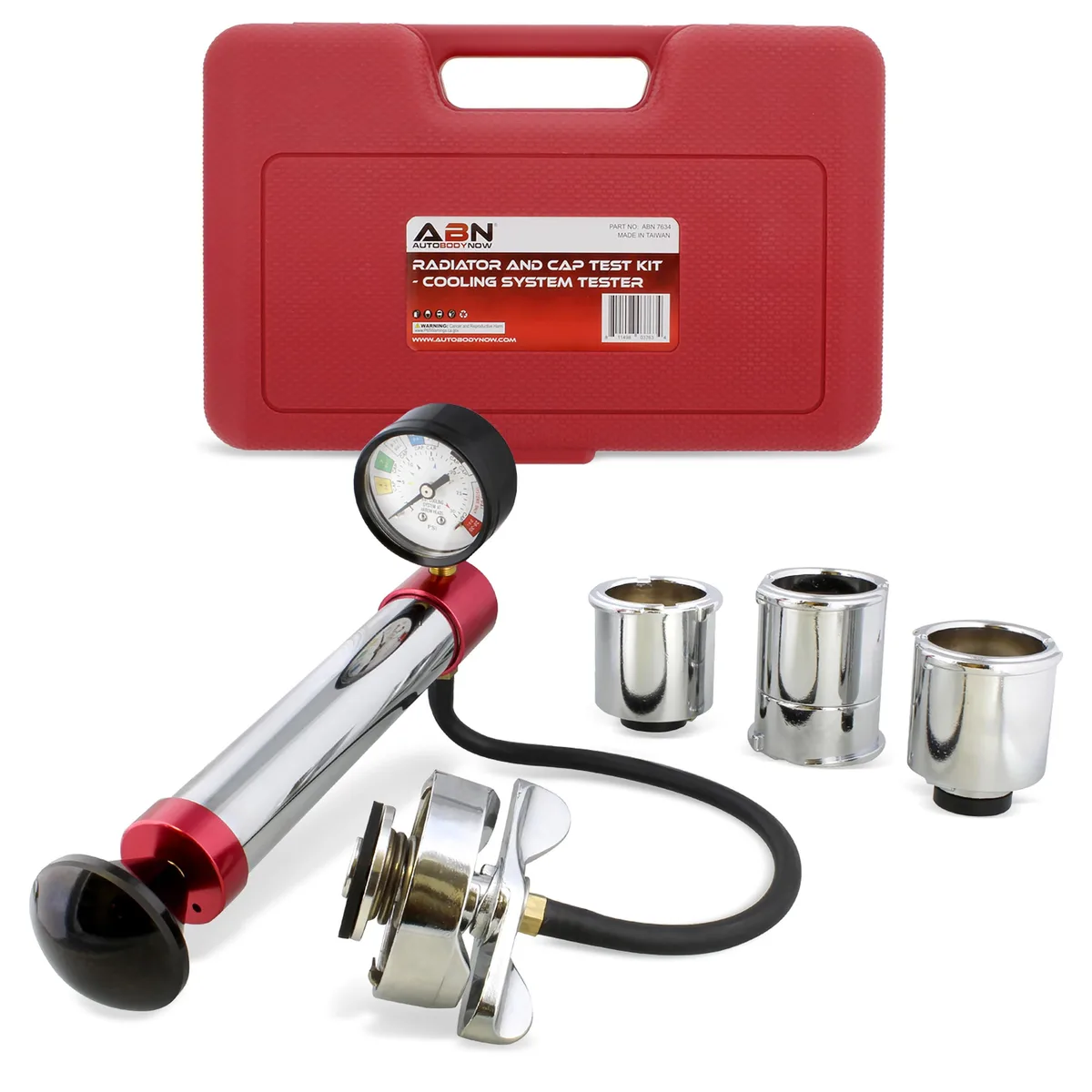

Pressure test the system. A radiator pressure tester pushes air into the cooling system at a set PSI. If pressure drops, you've got a leak. Inspect hose clamps, the water pump, radiator seams, and thermostat housing for wet spots.

Combustion leak test. If you suspect a head gasket problem, a chemical block tester changes color when exhaust gases are present in the coolant. This is the most reliable field test for head gasket failure.

What Each Repair Costs: Thermostats, Water Pumps, Radiators, and Head Gaskets

Repair costs vary widely based on the root cause. Here's what to expect at independent shops and dealerships as of 2026.

The pattern is clear. Cheap parts like thermostats and caps cost almost nothing to replace. Head gaskets and cracked heads are where costs spiral because labor dominates the bill.

On a high-mileage Elantra, a side-by-side look at vehicle value comparison might help you decide whether a major engine repair makes financial sense versus moving on.

A Hyundai dealer typically charges 20 to 40 percent more than an independent mechanic for the same cooling system work. Independent shops that specialize in Hyundai and Kia often have the right diagnostic tools and know the common failure points on the 2.0L and 1.6L engines.

Always request a written estimate before authorizing repairs. Ask the shop to replace related parts like the thermostat and coolant hoses while they're already inside the cooling system. Doing it all at once saves you from paying labor twice.

Overheating Mistakes That Turn a Small Fix Into a $2,000 Repair

Sometimes the root cause is minor. The expensive part is everything you do wrong afterward. These mistakes turn a $150 fix into a $2,000 engine repair.

• Opening the radiator cap while the engine is hot. Pressurized steam can cause severe burns, and letting coolant spray everywhere guarantees air gets into the system.
• Pouring cold water into a hot engine. A sudden temperature swing can crack the aluminum cylinder head instantly.
• Skipping the air-bleed procedure after refilling coolant. Air pockets cause false overheating readings and waste hours of guesswork.
• Using the wrong coolant type. Hyundai's newer engines specify phosphate-free coolant. Mixing incompatible fluids can clog the heater core and radiator passages.
• Ignoring a collapsed radiator hose. A soft hose can suction shut under load, which mimics a thermostat failure.

Most of these mistakes share one theme: acting in a hurry. Slow down, let the engine cool, and follow the factory service sequence. Regular preventive upkeep, just like on any modern car, catches most engine trouble before it becomes expensive.

When to Stop and Hand It to a Hyundai Technician

Some jobs genuinely need a shop. If you've replaced the thermostat, flushed the system, and confirmed the fans run, then you're past the easy fixes. Persistent overheating points to internal problems.

Watch for the classic head gasket signals. Milky oil on the dipstick, white smoke from the tailpipe, and bubbling in the coolant reservoir all mean combustion gases are entering the cooling system. A simple combustion leak test at a shop confirms it in minutes.

You also need professional help when the diagnosis requires specialized tools. A cooling system pressure test, a scan tool that reads live ECT data, and a borescope for inspecting cylinder walls are beyond most home toolboxes.

Check your vehicle's VIN against the NHTSA safety database for any outstanding recalls related to engine or cooling system components before paying for repairs. Hyundai has issued recall notices for some model years, and some repairs may be covered at no cost.

Driving a hot Elantra to the mechanic is never the right move. Once the gauge spikes, shut the engine off and call a tow truck. The tow bill is pennies compared to a cracked cylinder head.

If the repair estimate exceeds what the car's worth, weighing replacement options starts looking more practical. That's the point where many owners step back and decide to move on.

Elantra Overheating: Quick FAQs

Here are the most common questions we get about Elantra cooling system trouble.

Can a Hyundai Elantra overheat without a coolant leak?

Yes. A stuck thermostat, a failed cooling fan, or an air pocket in the system can all cause overheating when the coolant level is perfectly fine.

Is it safe to drive with an overheating Elantra?

No. Even a few miles of driving in the red zone can warp the cylinder head, blow the head gasket, or score the engine bearings. Pull over and shut the engine off.

Why does my Elantra overheat only at idle?

That usually points to the electric cooling fan. At speed, airflow through the radiator keeps temperatures down. When you stop, the fan is responsible for pulling air, and a dead motor leaves the coolant to boil.

How much does it cost to fix an overheated Hyundai engine?

It depends on the root cause. Thermostat replacement runs $130 to $280. Water pump jobs run $380 to $800.

Head gasket repairs start around $1,600 and climb from there.
