Your Jetson V6 hoverboard charging port problem is rarely the battery. In most cases, the port itself is loose, broken, or dirty enough to break the connection. The good news?
It's fixable, often for under $15 and with basic tools.
Manufacturer specifications indicate the Jetson V6 uses a 5.5mm x 2.1mm DC barrel jack with center-positive wiring. The charger delivers 25.2V, and the whole unit is built to UL 2272 fire-safety standards. As of 2026, replacement ports are easy to source, and the repair takes most people about 30 minutes.
Before you buy a new hoverboard, let's walk through the symptoms and fixes step by step.
Image source: Bing (Web (fair-use with source credit))
Quick Check: Why Your Jetson V6 Won't Charge
If your hoverboard isn't charging, the charging port is the first thing to suspect, but it's not the only explanation. Here are the most common culprits, in order of frequency:
- A broken or loose charging port. The jack wiggles, or the plug falls right out.
- Corroded or bent pins inside the port.
- Cold solder joints where the port connects to the motherboard.
- A dead charger or a charger with the wrong polarity.
- A battery pack that's dropped below its safe voltage and won't wake up.
Start with the charger. If the charger's LED stays green when plugged into the hoverboard, the hoverboard isn't pulling any power. That points to a connection problem, often the port.
If the LED is red but the battery never fills, the port may be making partial contact.
29% off Today's Exclusive Deals
Limited-time Exclusive Deals. Check current discount on Amazon.
Check Price on Amazon As an Amazon Associate I earn from qualifying purchases.Rule Out the Charger and Battery First
Before you open the hoverboard, test the easiest components.
- Test the charger with a multimeter. Set it to DC volts and touch the probes to the charger tip. You should read close to 25.2V. No voltage means a dead charger.
- Check polarity. Some third-party chargers wire the tip center negative instead of center positive. Getting this wrong can damage the control board.
- Plug the charger into the hoverboard and watch the LED. A green light right away means no connection. A red light means the board is drawing power.
- Check the battery voltage if you can reach it. After opening the case, measure the battery pack's main leads. Below about 20V for a 6S pack often triggers battery protection mode.
A fully discharged battery can act like a dead port. If the charger reads fine but the port looks clean, try leaving it plugged in for 10 to 15 minutes. Some BMS units reset after receiving a small trickle.
Inspecting the Charging Port: What a Broken Port Looks Like

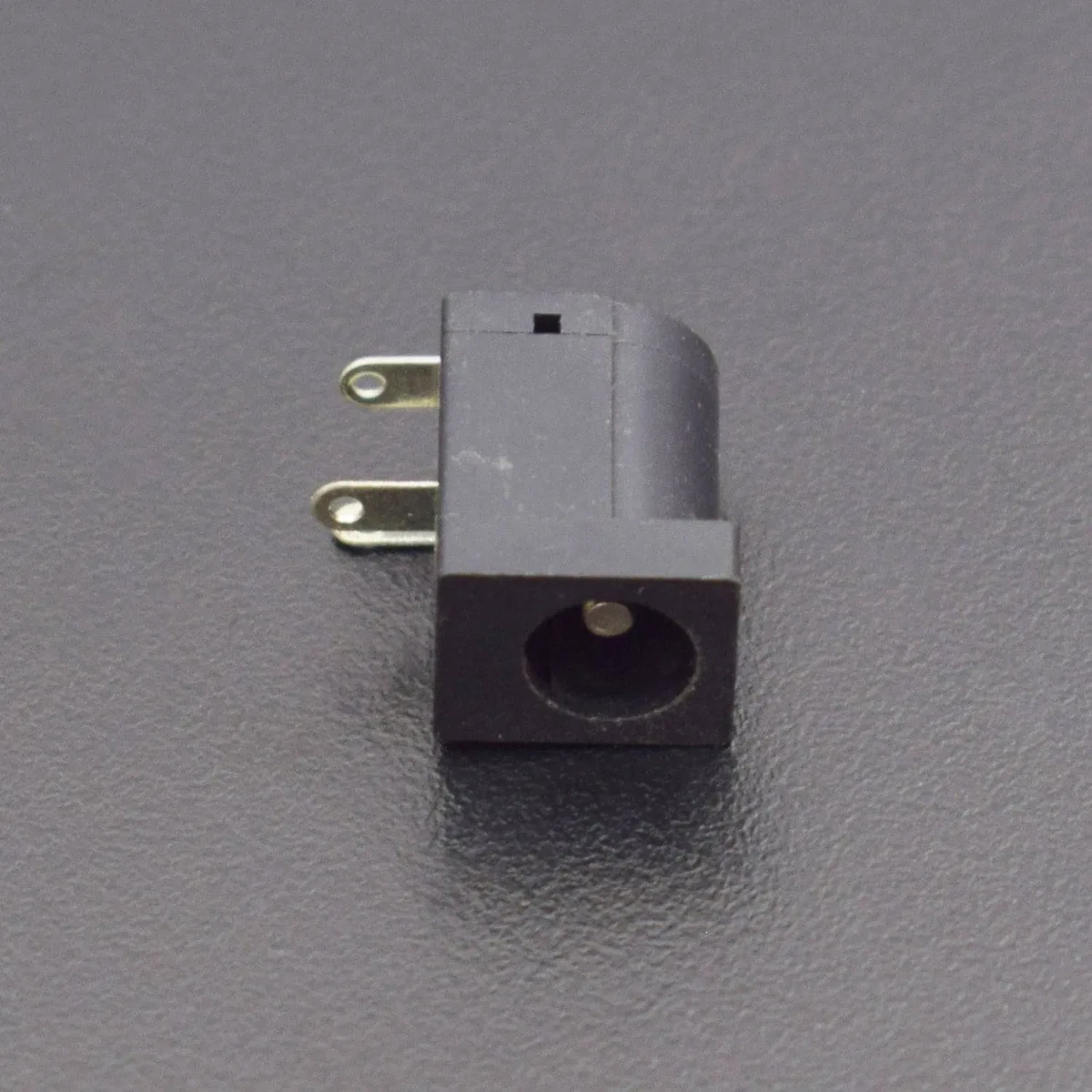

The charging port on the Jetson V6 is a small barrel jack mounted in the side of the foot deck. It connects to the control board by two or three solder tabs. Because the port is plastic and exposed, it takes physical abuse every time someone plugs in a charger.
Image source: Web (Bing) / abhimanyusir.blogspot.com (Web image (fair-use with source credit))
Here's what to look for:
- Cracks in the plastic housing. Even a small crack lets the plug seat at an angle.
- A recessed or pushed-in port. This happens when the charger plug is yanked out hard.
- Bent or broken center pin. The center pin is the positive contact. If it's flattened, it won't grab the charger tip.
- Dark spots or green corrosion. Moisture gets in easily. Corrosion blocks current flow.
- Loose solder joints. You can't see these without opening the case, but a port that moves slightly when plugged in often has broken solder underneath.
If the port looks cosmetic but intact, shine a light inside. A healthy port has a shiny center pin and clean inner walls. Dirt and grime are common, especially if the hoverboard lives in a garage or backpack.
The Charging Port Decision Tree: Match Your Symptom to the Fix
Use your specific symptom to find the right repair path. This is the fastest way to avoid fixing the wrong part.
| Symptom | Likely Cause | Recommended Action |
|---|---|---|
| Charger stays green when connected | No circuit | Clean the port, check for bent pin, then test the charger |
| Port wiggles when plug is inserted | Broken solder joints | Open the case and resolder the port tabs |
| Plug falls out easily | Worn or cracked port | Replace the barrel jack |
| Port smells burnt or shows melted plastic | Short circuit or wrong charger | Replace the port and inspect the control board |
| Charger turns red but never stops charging | Battery issue, not port | Test battery voltage and consider replacement |
If the port is loose, resoldering is the most common fix. If it's physically cracked, replacement is safer than glue. If the pad on the control board lifted, you'll need to solder to a nearby trace or replace the board.
Replacing the Port: A Step-by-Step DIY Guide
Replacing the charging port is the most reliable fix for a broken Jetson V6 charging port problem. It takes about 30 minutes and requires minimal tools.
What you'll need:
- Precision screwdriver set, usually Torx T8 or T10
- Replacement 5.5mm x 2.1mm DC barrel jack, center positive
- Soldering iron and solder
- Desoldering wick or a solder sucker
- Multimeter for post-repair testing
Image source: Bing (Web (fair-use with source credit))
- Remove the foot mats. They're held in place with adhesive. Warm them with a hair dryer to loosen the glue.
- Unscrew the lower plate. Set all screws aside in a safe spot.
- Disconnect the battery. This is non-negotiable. Soldering near a live lithium pack is a fire risk.
- Locate the charging port on the control board. Take a photo of the wiring first so you remember the orientation.
- Desolder the old port. Use wick to remove the existing solder. If the port is riveted into the plastic housing, drill out the rivets gently.
- Solder in the new port. Match the polarity exactly. Center pin positive, outer barrel negative.
- Reassemble and test. Plug in the charger. The LED should switch from green to red. Wait a few seconds and check that the port stays firm.
If you don't feel comfortable soldering, many electronics repair shops will do this for $30 to $50. That's still far cheaper than a new hoverboard.
Common Charging Port Mistakes That Cause Bigger Problems
The most common DIY mistake is forcing the charger plug in when it doesn't seat smoothly. That bends the center pin and turns a $10 repair into a $45 control board replacement. If the plug fights you, stop and inspect the port first.
Another frequent error is using a non-Jetson charger with matching voltage but wrong polarity. A center-negative plug will fry the charging circuit instantly. Always verify the charger label says center positive before plugging it in.
Soldering with the battery connected is a fire hazard. Lithium-ion packs can deliver enormous current if your iron accidentally shorts a trace. Disconnect the battery before any internal work.
Don't glue a cracked port. Superglue and epoxy make the port nearly impossible to replace later, and you'll crack more plastic housing when you eventually solder in a new one. A proper port replacement is not hard.
Also, ignore the green light trap at your peril. A green LED when the charger is connected to the board usually means zero current is flowing. That's a wiring or signal problem, not a full battery.
Finally, never yank the charger out by the cable. That loosens the solder tabs over time. Pull from the plug base instead, and your port will last much longer.
Before starting any repair, check the official U.S. Consumer Product Safety Commission hoverboard recall page for your specific model. Some early hoverboards had safety defects, and Jetson has issued recalls in the past.
If you'd rather shop for a replacement than keep repairing, our guide to the best hoverboards for kids covers reliable options across every price range.
Jetson V6 Charging Port FAQ
How do I know if my Jetson V6 charging port is broken?
The physical signs are a port that rocks side to side, a plug that falls out, or a visibly bent center pin. Electrically, the charger stays green when connected because no current flows through the broken connection. Use a multimeter to check continuity between the port and battery leads.
Can I charge my Jetson V6 with a different charger?
Only if the replacement matches the original voltage, amps, and polarity. The Jetson V6 uses a 25.2V barrel charger with center-positive wiring. Using a 36V charger or a center-negative plug can destroy the control board or battery.
Check the original charger label before testing another.
Why does my hoverboard charger show green even when the battery is empty?
The green light means the charger detects no load, not that the battery is full. This usually points to a broken charging port, a corroded pin, or a disconnected wire between the port and the motherboard. The battery itself is probably fine.
Can I fix a loose charging port without soldering?
Temporarily, yes, but it's not a real fix. You can clean the port, bend the center pin slightly outward for better contact, or wedge the plug in place with a toothpick. A permanent repair requires resoldering the barrel jack or replacing it.
If you're not comfortable soldering, a repair shop can do it for $30 to $50.
Should I replace the battery or the port if my hoverboard won't charge?
Check the port first. Open the case and measure voltage across the battery leads while the charger is plugged in. If the port is physically intact and you see voltage at the battery, the port is likely fine and the battery may need replacement.
If the port is loose or cracked, replace it first. And if your child is around 10 and you're debating whether to repair at all, our roundup of the best hoverboard for a 10-year-old might help you decide.
