Kick Scooter Folding Mechanism Stuck

A kick scooter folding mechanism stuck in the middle of a commute is one of those annoyances that feels bigger than it is. It’s not always a broken part, and it’s not always an expensive repair. In most cases it’s a seized pin, a misaligned latch, or a jammed pivot collar.

The right fix starts with figuring out which one you’re dealing with.

In our research, most folding clamps rely on a steel locking pin and a spring-loaded latch, tensioned by a 4mm or 5mm Allen bolt. As of 2026, the European safety standard EN 14619:2015 still governs the structural requirements for kick scooters, including folding joints. That means a mechanism can be repaired without replacing the whole deck, as long as the frame itself isn’t bent.

Let’s walk through how to diagnose your specific problem.

Image source: Bing (Web (fair-use with source credit))

First, Check Which "Stuck" State You're Dealing With

Quick answer: a stuck folding mechanism usually falls into one of three states. Either the lever barely moves, the pin won’t line up, or the hinge won’t budge. Which state you’re in decides whether you need penetrating oil, a tension adjustment, or a new part.

Before you grab tools, try to fold the scooter once. Watch the latch, not the handlebar. If the lever almost moves but stops, that’s usually corrosion or packed grit.

If the lever moves freely but the pin won’t seat into the frame hole, you’re looking at an alignment or spring issue. If the whole joint feels frozen solid, the hinge itself is probably rusted or bent.

Don’t force anything yet. Forcing a stuck latch is how metal ears snap off. In our research, a large share of broken folding clamps trace back to someone prying or hammering a latch that was simply dry.

Grab the handlebar and put a little downward pressure on it. That helps you see whether the play is in the clamp or the joint. A wobbly stem that won’t release is a different problem from a latch that won’t move.

Skipping this diagnostic step is the fastest way to strip a bolt that didn’t need touching.

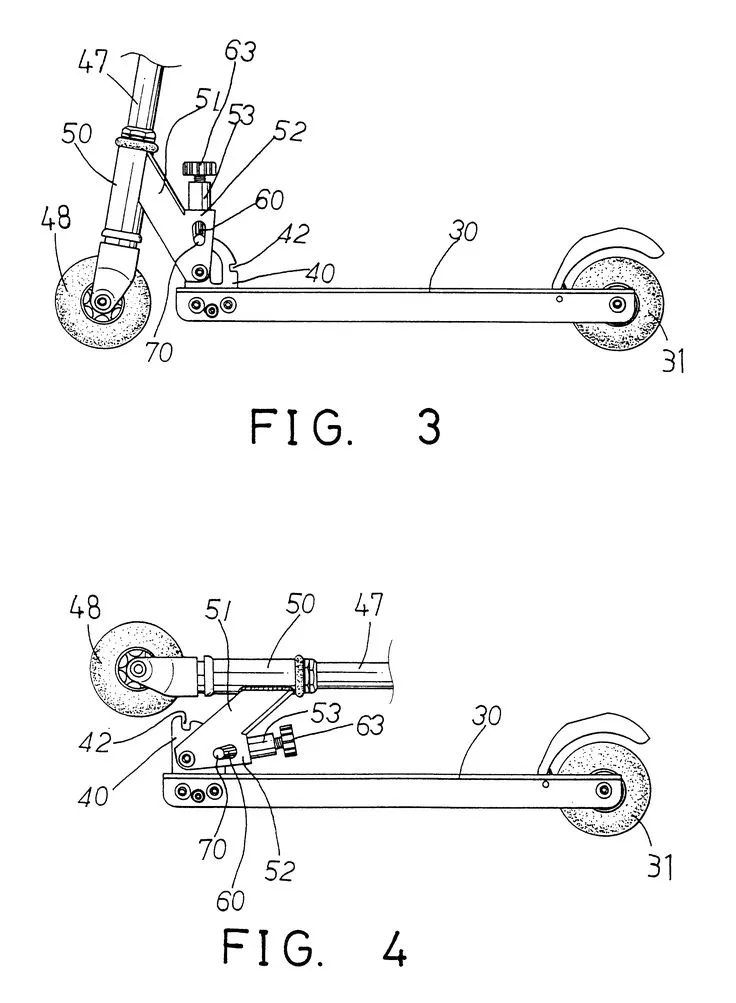

What You're Actually Working With: The Latch, Pin, and Clamp

Every folding mechanism uses the same basic layout. A latch lever sits on the collar. Underneath it, a spring-loaded locking pin slides into a hole in the inner stem.

Around the outside, a clamping ring squeezes the two halves together when you close it.

Here’s the parts list you’re really dealing with:

• Latch lever: your hand interface, moves the pin
• Locking pin: steel peg that seats into the stem hole
• Return spring: pushes the pin back into the hole
• Tension bolt: sets how tightly the collar grips
• Pivot hinge: lets the deck fold upward
• Frame holes: the notches or bores the pin locks into

Most commuter scooters as of 2026 use one of two layouts. The first is a push-button latch, which fails when the button sticks. The second is a quick-release lever, which fails when its cam or tension bolt jams.

Knowing which one you have narrows your fix immediately.

Per EN 14619:2015, the folding joint must withstand repeated load cycling without loosening. That’s why these mechanisms are usually repairable rather than disposable. The weak points are almost always the spring and the tension bolt, not the frame.

Image source: Bing (Web (fair-use with source credit))

The Fix Decision Tree: Match the Symptom to the Solution

Treat this like a checklist. Work through each branch and stop when your symptom matches. The correct tool usually shows up in the solution.

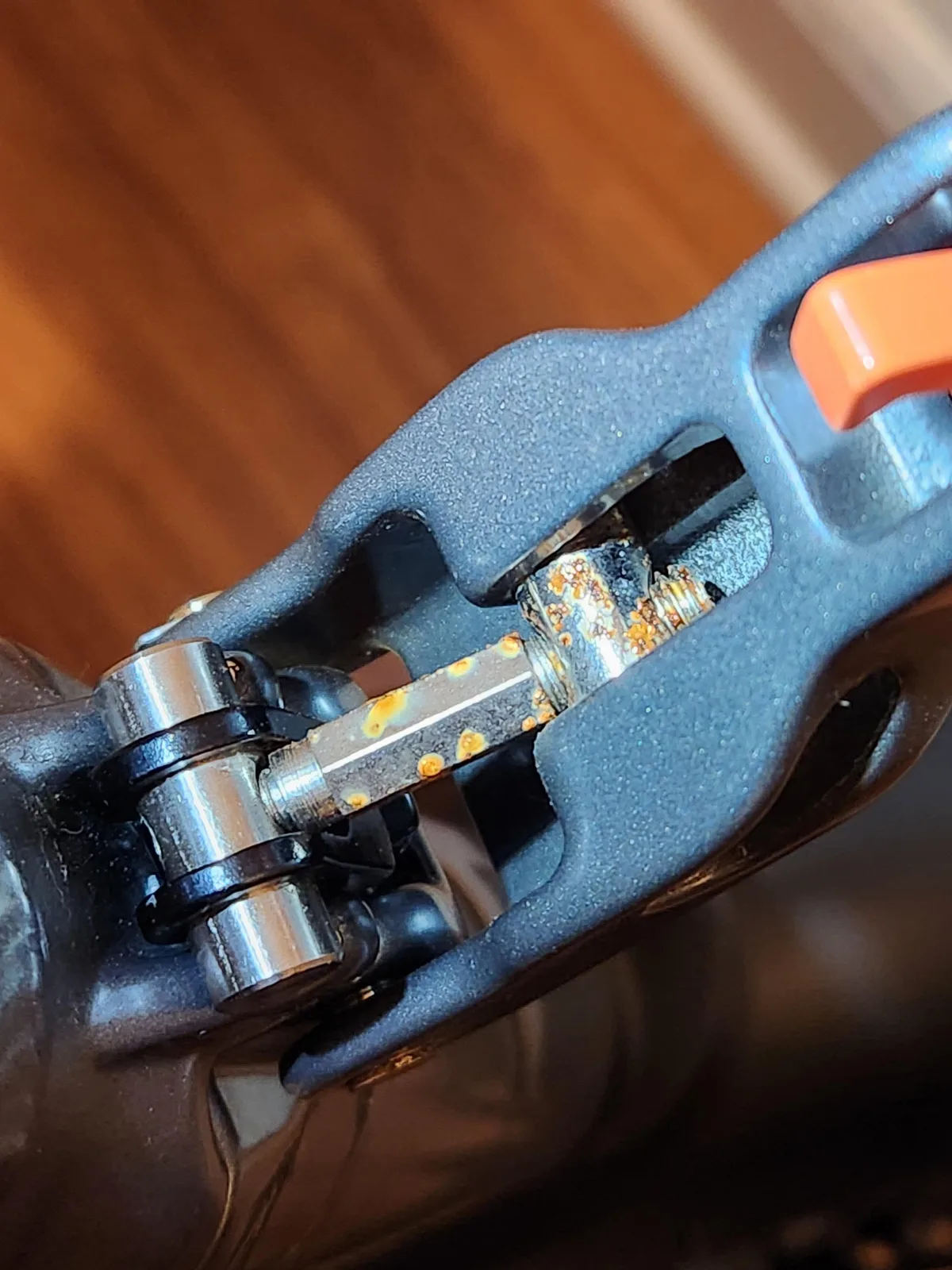

Lever Won't Move

If the latch lever is hard to pull or push, grime is your first suspect. Sand, road salt, and dried grease form a paste that jams the pivot. Spray the pivot area with penetrating oil and let it soak for 5 to 10 minutes.

Work the lever gently back and forth after the soak. If you feel metal-on-metal grinding, remove the latch and inspect the spring. A broken or weak return spring will make the lever feel stiff even when the joint is clean.

Pin Won't Seat into the Locking Hole

This happens when the pin doesn’t line up with the hole in the inner stem. Loosen the tension bolt a half turn and try again. Often the collar is squeezing the stem out of position.

If the pin still misses, use a hex key to slightly rotate the handlebar stem while pressing the latch. When the pin drops in with a click, tighten the tension bolt back down. Don’t overtighten.

Finger-tight plus a quarter turn is usually enough.

Joint Won't Fold or Close

A hinge that refuses to move is usually corroded or packed with grit. Apply penetrating oil around the hinge, wait a few minutes, then tap the joint with a rubber mallet. Never strike the latch itself.

If the joint still won’t move, disassemble the collar and inspect the hinge. A bent bushing or a swollen plastic insert can bind the whole fold. Replacing a bushing is cheap, and it’s far easier than forcing a rusted joint back into shape.

Image source: Bing (Web (fair-use with source credit))

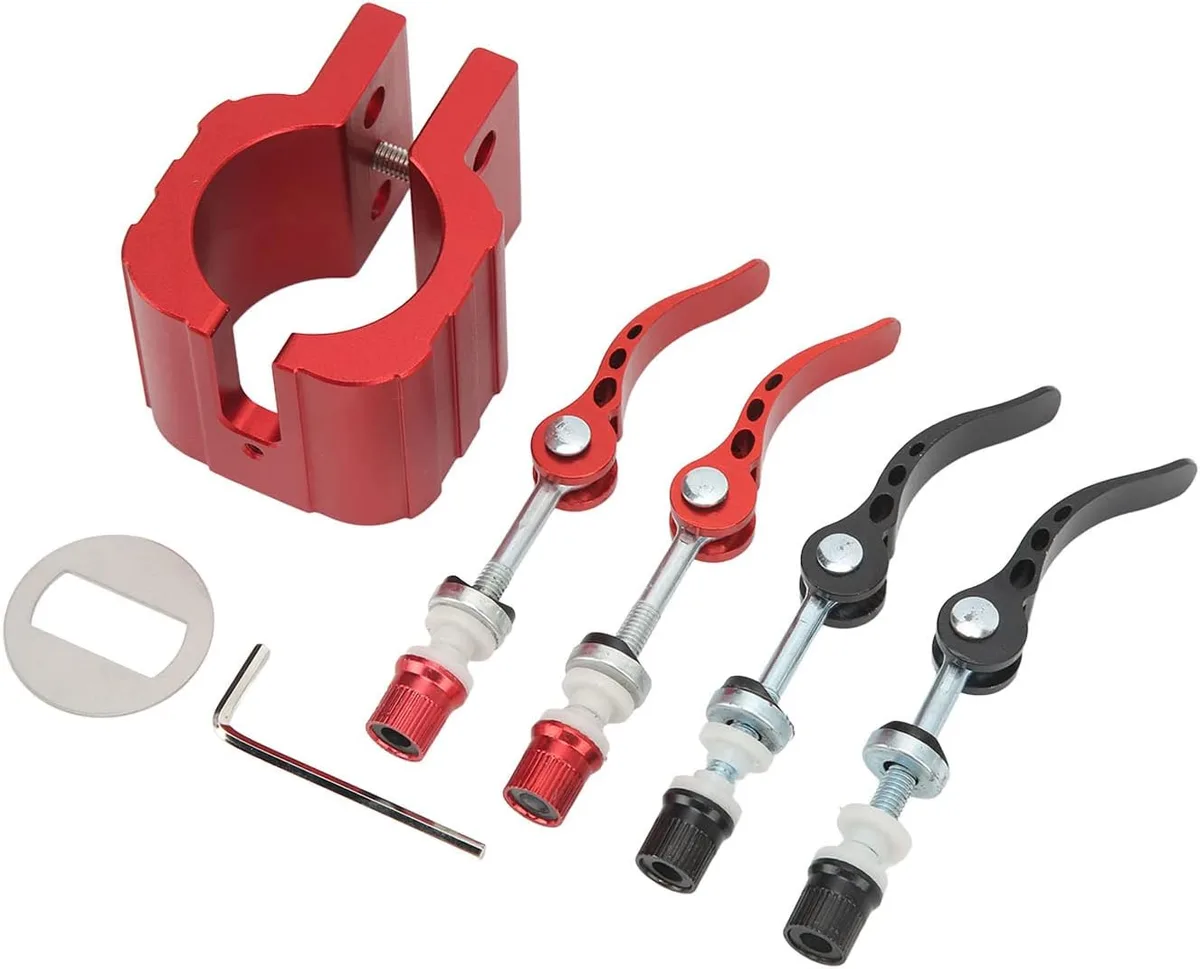

Tools and Replacement Parts Worth Having on Hand

Most fixes take about fifteen minutes and need less than ten dollars in tools. Here’s what we recommend keeping close when you own any folding scooter.

Replacement parts vary by brand, but a generic folding collar runs about $10 to $30. Springs are usually under $5. If your scooter is from a major brand, check the official manual for the exact bolt size before buying anything.

A cheap caliper also helps if you’re ordering parts. You’ll need the pin diameter and the hinge width. Measuring twice beats ordering the wrong spring and waiting another week.

Mistakes That Turn a Quick Fix into a New Scooter

The most common reason a folding clamp ends up in the bin is forcing the lever. If the latch won’t move with normal hand pressure, stop. C-clamps and pliers bend the lever ear, and a bent lever never pulls smoothly again.

Overtightening the tension bolt is the second big one. Too much clamp squeezes the stem, which makes the joint bind. People assume “tight” means “safe,” but the folding joint is designed to move.

Using the wrong lubricant is another mistake. WD-40 is a penetrant, not a long-term grease. It helps initially but dries out fast, leaving a sticky film that attracts more grit.

Use a light synthetic grease after the penetrating oil has done its job.

Finally, don’t ignore a bent hinge. If the scooter took a hit, a hinge that won’t align is not a lube problem. Replacing the damaged collar is safer than riding on a latch that clicks but doesn’t fully catch.

Before you spend money on parts, check the CPSC recall database for your model. A small number of folding scooters have been recalled due to latch failures. Knowing that up front saves you from repairing a design with a known defect.

When to Stop Fixing and Replace the Part Instead

Not every stuck mechanism is salvageable by cleaning alone. Some failures are structural, and playing backyard mechanic with a damaged hinge is how frames snap mid-ride. Know the line between repairable and replaceable before you start.

Replace the folding collar immediately if you see any of these signs:

• The locking pin hole is oval-shaped instead of round
• The hinge has visible cracks around the weld or the pivot ear
• The lever ear is bent outward from someone prying it
• The return spring is snapped and the latch won’t stay engaged

A collar with a worn pin hole is not fixable. That oval shape means the pin has been hammering against metal while riding. The joint will keep loosening no matter how well you grease it.

Aggregate user feedback across multiple scooter forums confirms that riding on a worn pin hole eventually leads to the stem folding forward under braking.

The price difference usually settles it honestly. A replacement folding collar runs $10 to $30. A whole new scooter costs $80 to $200.

If your scooter is more than a few years old and the hinge shows corrosion through the paint, replacing the collar is the smarter move. OEM parts from the manufacturer are safest. Generic collars sometimes don’t align perfectly with the stem hole spacing.

One exception: if the scooter is a budget model with a plastic-reinforced latch, replacement may not exist as a separate part. In that case, upgrading to a scooter with a machined aluminum collar is worth the money. The cheap ones corrode faster and don’t repair as cleanly.

Long-Term Care: How to Keep the Folding Joint Smooth

A folding mechanism that gets regular attention never jams in the first place. The maintenance routine is short and easy. Do it once every two months or after every 50 miles, whichever comes first.

Flush the latch pivot with compressed air or a small brush to clear grit. Road salt and sand love collecting in the gap between the lever and the collar. Spray a light penetrating oil on the hinge pin and the spring recess.

Wipe off the excess so it doesn’t attract more dirt.

Apply a dab of synthetic grease to the locking pin before you fold it closed. This keeps the pin sliding smoothly instead of grinding against dry metal. Do not use heavy lithium grease.

It thickens in cold weather and slows the latch action.

Check the tension bolt every few weeks. A quarter turn looser in winter, a quarter turn tighter in summer. Temperature changes affect aluminum and steel at different rates, and a collar that feels perfect in June can bind in January.

Per EN 14619:2015, folding joints are tested at standard temperature, and real-world climate shifts do alter the clamp force.

If you store the scooter in a damp garage or shed, bring it inside during wet months. Moisture in the hinge area is the primary cause of seized pins. A scooter stored indoors for a single winter will outlast three stored outdoors.

Frequently Asked Questions

How do I know if my scooter latch is broken or just stuck?

A broken latch will feel loose or rattly even when closed. A stuck latch resists movement but feels solid when engaged. If the lever flops around, the spring or pin is broken.

If it won’t budge, it’s seized.

Can I use WD-40 to fix a stuck folding mechanism?

Yes, but only as a short-term penetrant. WD-40 frees the stuck parts temporarily. After it dries, it leaves a film that attracts more grit.

Follow up with synthetic grease for lasting smoothness.

Why does my folding latch keep loosening while I ride?

The tension bolt may be vibrating loose. Apply thread-locking compound to the bolt threads and retighten it after cleaning the hole. This is common on scooters used on rough pavement.

How much does it cost to repair a stuck folding mechanism?

Usually nothing. Cleaning and lubricating costs less than five dollars if you need a new brush or oil. A replacement spring is under five dollars.

A new folding collar runs ten to thirty dollars.

Is it safe to ride a scooter with a sticky latch?

No. A latch that sticks open or closed can release without warning. If the mechanism is hard to operate, fix it before riding again.

The frame can fold while you are moving at speed.

What tools do I need to disassemble the folding clamp?

Most clamps need a 4mm or 5mm hex key and a small flathead screwdriver to pop out the spring. A 10mm wrench helps for tension nuts on some models. That is usually enough for a full disassembly.
