Kick Scooter Handlebar Replacement Problem

If your kick scooter handlebars are bent, wobbling, or stripped out, you're dealing with a common repair that often looks simpler than it really is. The kick scooter handlebar replacement problem usually comes down to one thing: you're trying to fit a new bar into a system you haven't fully identified. Different scooters use different attachment methods, and using the wrong approach can leave you with a loose, unsafe ride or stripped threads.

As of 2026, nearly every non-motorized kick scooter on the market uses one of three attachment systems: a threaded quill stem, a threadless headset with a stem clamp, or a gooseneck-style folding clamp. Each one needs a slightly different tool set and procedure. Once you know which system you have, the repair takes 20 to 30 minutes with basic hand tools.

Let's walk through it step by step.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The kick scooter handlebar replacement problem comes down to matching sizes. Identify your scooter's attachment type. Loosen the clamp and remove the old bar.

Match the clamp diameter and steer tube size, or add a shim. Install the new bar, align it with the front wheel, and tighten to spec. Test for steering play before riding.

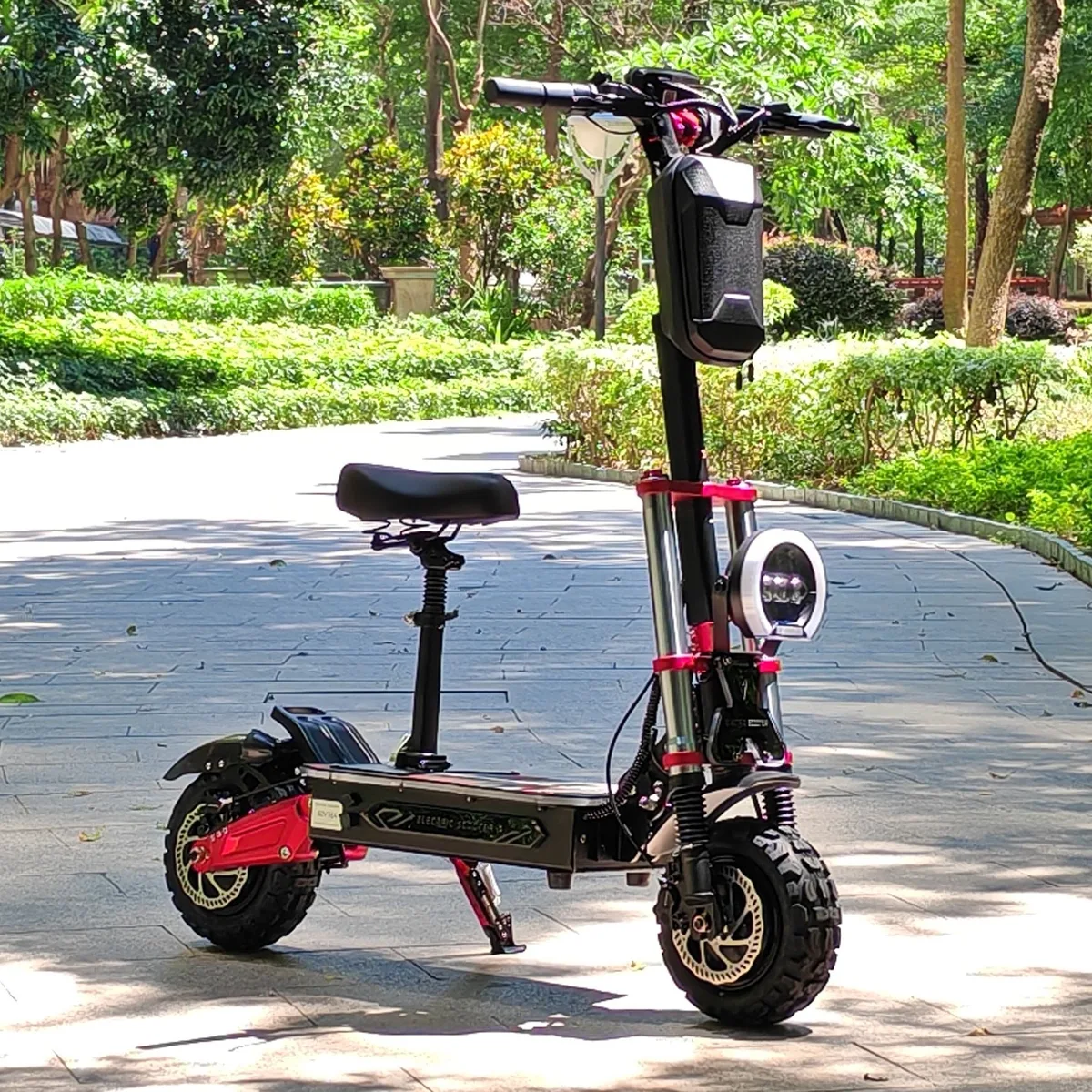

Step One: Figure Out Which Handlebar System You're Working With

Image source: Web (Bing) / electricscootermanufacturers.com (Web image (fair-use with source credit))

Before you touch a single bolt, look at the top of the steering column. The attachment style tells you everything about how to remove the old bar and what replacement will fit.

Threaded quill system. Most common on classic Razor A-series and many children's kick scooters. You'll see a large hex nut or round headset nut at the top of the fork tube. A bolt runs down the center into a wedge inside the steer tube.

Loosen that center bolt, the wedge releases, and the bar slides out. This system uses a one-piece handlebar that goes all the way into the fork.

Threadless headset system. Standard on most pro stunt scooters and higher-end adult kick scooters. There's no top nut. Instead, you see a stem with two or four clamp bolts on the front.

Above that, a compression cap sits over the steer tube. Loosen the stem clamp bolts, remove the compression cap, and the stem slides off. Handlebars here are often two-piece (bars clamp onto the stem, not into the fork).

Gooseneck / folding clamp system. Found on many modern foldable kick scooters (Micro brand scooters and similar). The handlebar connects to a gooseneck-shaped neck that folds down. A quick-release lever or a pair of bolts holds the handlebar at the top of the neck.

These often use a smaller clamp diameter.

Not sure which one you have? Check the manufacturer's model number. Searching that plus "replacement handlebar" on the official site confirms the system type.

Once you know what you're working with, removal is straightforward.

How to Remove the Old Bar (Without Stripping Any Bolts)

Stripped bolts are the most frustrating part of this job. Use the correct size hex key before you apply force. Most clamp bolts use a 5 mm or 6 mm Allen key, but some use 4 mm.

Never force a metric key into an imperial bolt, and vice versa.

Start with the grips. If they're glued on, slide a flathead screwdriver under the edge and spray a little isopropyl alcohol or warm soapy water inside. Twist and pull. Roll rubber grips off if you can.

For threaded quill systems. Loosen the center bolt at the top of the steer tube (usually 6 mm hex). Don't remove it completely until you hear a click. That click means the wedge has released.

If the bolt spins freely without clicking, the wedge is stuck. Tap the top of the bolt sharply with a rubber mallet. Then lift the handlebar straight out.

For threadless systems. Remove the compression cap first. It sits on top of the steer tube and is usually a hex bolt or socket cap. Then loosen the two or four clamp bolts on the stem.

The stem should slide off the steer tube. If it's stuck, spray penetrating oil around the seam and wait 15 minutes. Tap the stem sideways with a rubber mallet.

For gooseneck folding clamps. Open the quick-release lever or loosen the bolts. The handlebar usually slides out upward. If it's seized, use penetrating oil and gentle twisting.

One universal tip: if any bolt feels like it's about to strip, stop. Apply penetrating oil (WD-40 Specialist or PB Blaster) and let it sit for 15 minutes. Then try with a fresh hex bit that fits snugly.

A stripped bolt can turn a simple repair into a week-long project.

Choosing a Replacement: Size, Clamp Type, and the Shim Question

This is where most people get stuck. You can't just buy any handlebar that looks similar. The critical measurements are the handlebar's clamp diameter and the fork's steer tube diameter.

The shim question. If your replacement bar has a smaller clamp diameter than your fork or stem requires, use a metal shim (also called a reducer sleeve) to take up the gap. For example, a 31.8 mm bar in a 34.9 mm clamp needs a 1.5 mm thick shim. Shims are cheap and widely available online.

If the bar is too wide for the clamp, it simply won't fit. You need a bar with the correct clamp diameter.

One-piece vs. two-piece. One-piece bars (common on older threaded quill scooters) have the stem built into the bar. You must replace them with another one-piece bar with the same steer tube diameter. Two-piece bars (pro style) let you swap bars independently of the stem.

Always match the replacement bar to the scooter's intended use. A chromoly steel pro bar is overkill for a child's sidewalk scooter but essential for park riding. For casual use, standard aluminum is fine.

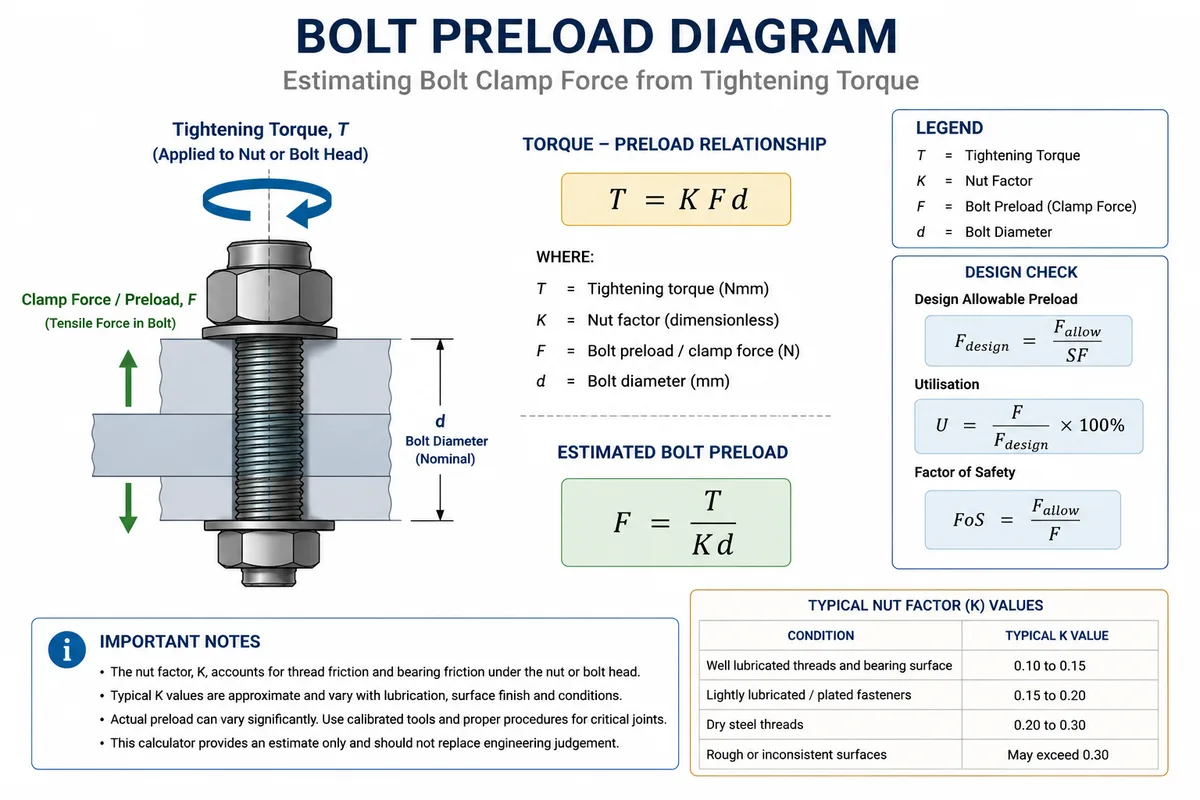

Installing the New Handlebar: From Aligning to Torque

Image source: Bing (Web (fair-use with source credit))

You've got the right size bar and the correct tools. Now it's time to put it together without introducing wobbles or dangerous play.

Threaded quill installation. Slide the new one-piece bar into the fork steer tube. Align the handlebars so they're perpendicular to the front wheel. Tighten the center bolt just enough to feel resistance, then stand in front of the scooter and sight down the wheel.

Adjust if needed. Tighten firmly. Don't overtighten, as the wedge can crack the steer tube.

Threadless installation. Slide the stem onto the steer tube. Install the compression cap and tighten it to remove any play in the headset (the bearings that let the fork turn). The fork should turn smoothly without any up-and-down movement.

Then align the handlebars with the wheel and tighten the stem clamp bolts evenly. Use a crossing pattern if there are four bolts. Manufacturer torque recommendations typically range from 6 to 8 Nm.

If you don't have a torque wrench, tighten gradually until the bars can't be twisted by hand. Then ride a few feet and check again.

Gooseneck folding clamp installation. Slide the handlebar into the neck until it bottoms out or reaches the marked minimum insertion line. Align with the wheel. Tighten the clamp bolts or close the quick-release lever firmly.

The bar should not rotate when you push on it.

After installation, do a safety check. Lift the front of the scooter and turn the handlebars side to side. They should move freely without binding or clunking.

Grip the front wheel and try to twist it relative to the bars. Any movement means the clamp or compression cap is too loose. Tighten and repeat.

The Mistakes That Turn a 20-Minute Job Into a Headache

Even with clear steps, a few common errors can derail the repair. Here's what to watch for.

Skipping the shim. If your bar has a 31.8 mm clamp diameter but your fork uses a 34.9 mm stem, you need a shim. Riding without one means the clamp bolts won't apply even pressure, and the bar can slip mid-ride. That's a safety hazard.

Over-tightening clamp bolts. Many scooter stems have clamp bolts threaded into soft aluminum. Crank them too hard and you strip the threads or crack the clamp. Tighten only until the bar feels secure.

Stop when the Allen key starts to require significant effort.

Forgetting the headset adjustment (threadless systems). If you only tighten the stem clamp bolts and skip the compression cap, your headset bearings will have play. That creates a wobble in the front end that gets worse over time.

Misaligning the bar before tightening. You can end up with handlebars that point slightly left or right. The ride feels crooked and you'll naturally steer off line. Always check alignment from directly in front of the scooter before the final tighten.

Reusing stretched grips. Removing grips often stretches or tears them. Putting them back on a new bar with a slightly different diameter leaves a gap. Buy new grips.

They're cheap and prevent the handlebar ends from becoming a hazard.

Ignoring cracks on the old bar. If your original bar broke, inspect the new one for the same weakness. A bent bar from a crash often means the fork or headset took damage too. Replace those if needed.

Avoid these pitfalls and you'll have a solid, safe setup that rides like new.

When to Replace the Bar vs. When to Replace the Scooter

A bent handlebar is a fixable problem. A bent fork is a different story. Here's how to decide whether you're doing a repair or buying a new ride.

Replace just the handlebar if:

• The bar itself is bent, dented, or ovalized at the clamp point.
• The steering tube and fork are straight and spin freely.
• The scooter is otherwise in good shape.

Replace the whole scooter if:

• The fork steer tube is bent. A bent fork makes the wheel track offline. Per ASTM F2264, structural damage to the steering system is a safety concern.
• The head tube or deck weld is cracked. No replacement bar can fix a broken frame.
• The gooseneck clamp is stripped or broken beyond simple bolt replacement.

Cost decides the rest. A basic replacement bar runs $15 to $40. A pro-grade bar runs $30 to $100.

A new basic kick scooter costs $50 to $60. If you're spending more on parts than the scooter is worth, walk away.

One more thing: if the handlebar snapped during a crash, inspect the fork and headset welds carefully. Aluminum can crack invisibly. Run your finger along every weld and seam.

Any hairline crack means the bar can fail again mid-ride.

Can't identify the scooter model? Check the deck or fork for a brand stamp. Many manufacturers list part numbers there.

When in doubt, contact the manufacturer directly or check their official parts diagram. A few minutes of research beats buying the wrong bar.

FAQ: Quick Answers on Stuck Bars, Loose Clamps, and Odd Sizes

How do I remove a stuck handlebar from my kick scooter?

Loosen the center bolt or clamp bolts completely. If the bar still won't move, apply penetrating oil around the joint and wait 15 minutes. Tap the bar gently sideways with a rubber mallet.

Never use a pry bar, as you'll damage the fork or steer tube.

Why does my new handlebar wobble after installation?

You probably skipped the compression cap adjustment in a threadless system, or you missed a shim. Check that clamp bolts are snug and the headset has no vertical play. Retighten bolts in a crossing pattern.

Wobble is never normal, so fix it before riding.

Can I use a shim to fit a smaller handlebar?

Yes, for a size gap of 1 to 2 mm. A 31.8 mm bar in a 34.9 mm stem needs a proper metal shim. Never use tape or cardboard.

They crush under pressure and let the bar slip, which damages the clamp and creates a crash risk.

What tools do I need for a handlebar replacement?

Most scooters need a 5 mm and 6 mm hex key, a flathead screwdriver for grips, penetrating oil, and a rubber mallet. Calipers help you verify clamp diameter before buying parts. A torque wrench is optional for basic scooters but recommended for pro models.

How much does kick scooter handlebar replacement cost?

Replacement bars cost $15 to $100. Basic steel bars sit near the low end. Chromoly pro bars sit near the high end.

Add $5 to $15 for a shim and $10 to $20 for new grips. Most DIY jobs come in under $50 total.

Should I repair the handlebar or buy a new scooter?

Repair if the bar is the only broken part. Buy new if the fork, steer tube, or deck welds are cracked or bent. Also weigh the cost.

If a repair bill passes half the scooter's value, replacement is the smarter call.
