Kids Scooter Brake Alignment Problem

Image source: Bing (Web (fair-use with source credit))

The kids scooter brake alignment problem is usually why an otherwise great scooter ends up gathering dust. It sounds mechanical and intimidating, but it's often a five-minute fix. You don't need a shop or a mechanic.

You just need to know what correct looks like and how to nudge parts back into place.

Manufacturer specs and aggregate repair reports show most issues trace back to a loose axle nut, a shifted fender bracket, or a worn brake pad. As of 2026, the US safety standard ASTM F2264 still requires reliable braking under normal use. A misaligned brake fails that test.

Let's fix that.

Quick Answer: Why You Should Never Ignore a Misaligned Brake on a Kid's Scooter

Misaligned brake means the pad isn't square to the wheel. Too tight. Too loose.

Or rubbing one side only. Loosen the axle nut. Reposition the brake arm.

Retighten to 5-10 Nm. Replace the pad if it's under 2 mm thick. Test on flat ground.

Brakes are the only component that stops a moving child. A pad that drags can wear the wheel unevenly. A pad that won't engage can let the scooter roll into traffic.

Both are worth avoiding over a loose bolt.

Per CPSC guidance and ASTM International testing, scooters need reliable braking under normal use. That includes proper pad contact and no dragging. If your child's brake takes real force to stop, treat it as a safety issue, not an annoyance.

Know Your Brake Type: Rear Fender vs. Hand Brake vs. Disc

The alignment process changes depending on the brake setup. Most kids scooters use one of three types. Find yours before grabbing a wrench.

Image source: Bing (Web (fair-use with source credit))

Rear Fender Brake

The classic kick scooter brake. A rubber or plastic pad sits on a metal fender above the back wheel. Your child stomps on it to slow down.

Alignment means adjusting the gap between pad and tire.

Hand Brake

A cable runs from a lever on the handlebar to a caliper near the wheel. Alignment depends on cable tension as much as pad position. If your child squeezes the lever all the way to the bar, the cable is too loose.

Disc Brake

Disc brakes show up on stunt and pro-model scooters. A caliper grips a metal rotor. Alignment means centering the caliper over the rotor so the pads grab evenly.

Not sure which you have? Look at the back wheel. No cable running to the handlebar means it's a fender brake.

A cable means hand brake or disc.

Before You Touch That Wrench: Safety Checks and Warning Signs

Put the scooter upside down on a flat surface. Check the wheel for damage. A warped wheel can mimic a brake problem.

Measure the brake pad. If it's under 2 mm thick or you see metal backing, replace it. Don't adjust it.

Pull hand brake levers to check for frayed cables. Spray rusted pivot points with lubricant and work them free. Stop if you hear grinding when the wheel spins.

That's metal-on-metal contact, and it can damage the wheel permanently.

Do these checks every time before you begin. A quick two-minute inspection can save you from doing the job twice.

How to Align a Kids Scooter Brake Step by Step

Image source: Bing (Web (fair-use with source credit))

Here's what you need:

• Allen key set, usually 4 mm or 5 mm
• Combination wrench or socket set
• Flathead screwdriver for prying
• Torque wrench if you want exact specs
• Replacement brake pad if needed

Follow these steps for a rear fender brake:

1. Loosen the axle nut on the back wheel. Don't remove it fully.
2. Reposition the fender bracket until the brake pad sits parallel to the tire.
3. Set the gap to 2-3 mm between pad and wheel.
4. Tighten the axle nut to 5-10 Nm. No torque wrench? Tighten firmly, back off a quarter turn, then snug it again.
5. Spin the wheel by hand. There should be no rubbing.
6. Press the brake and try to spin the wheel again. It should stop immediately.
7. Test ride on flat ground at low speed with a helmet on.

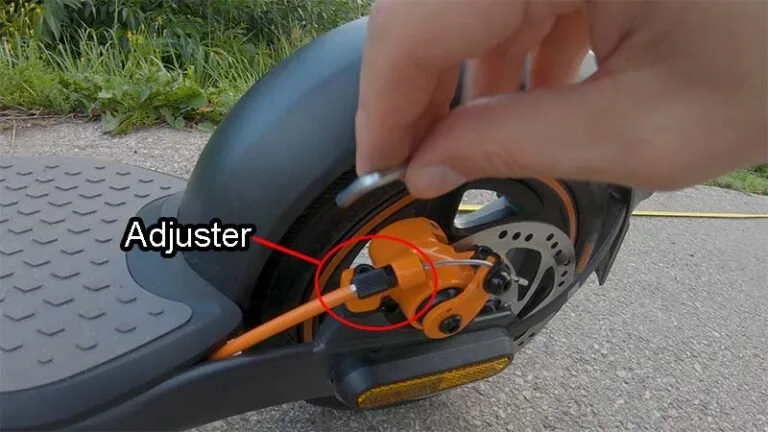

For hand brakes, use the barrel adjuster near the lever or caliper instead of moving the bracket. Turn it in small increments until the pads grab cleanly.

Common Brake Alignment Mistakes That Make Things Worse

Even with the right idea, people still make the same mistakes.

• Over-tightening the axle nut. This crushes the bearing and seizes the wheel. Respect 5-10 Nm.
• Aligning a worn-out pad. If it's under 2 mm thick, replacement is the fix.
• Oiling the brake pad or wheel rim. That makes braking slippery and dangerous.
• Tightening with the wheel off-center. The pad will rub on one side forever.
• Using the wrong size Allen key. A stripped bolt is a bigger headache than the original problem.
• Skipping the real-world test. Bench tests don't show how brakes feel under weight.

If you hear grinding, stop immediately. Take the scooter back apart. Find the root cause before spending more time on alignment.

When Replacement Beats Repair: Parts, Costs, and Lifespan

Alignment only works when the parts are healthy. Bent fenders, stripped threads, and worn pads need replacement. The good news is that replacement parts for most kids scooters are cheap.

Here's a practical rule. If the total repair cost is more than half the price of a new scooter, buy the scooter. A new ride comes with fresh brakes, a straight fender, and healthy wheels.

How to Maintain the Brake So It Stays Aligned

Check the 2-3 mm gap every month. A credit card works as a quick gauge. Tighten the axle nut if it keeps working loose.

Add a drop of blue thread locker to the axle threads if needed.

Clean the pivot points every few weeks. Wipe off dirt, then add one drop of light machine oil. Inspect the pad each cleaning.

Look for cracks, glazing, or thin spots.

Store the scooter indoors. Rain and humidity rust the spring, which causes dragging. Listen for noise.

Any scrape means something is out of position.

Aggregate owner reports suggest scooters maintained this way need realignment every three months or so. Neglected ones need it far more often.

Frequently Asked Questions About Scooter Brake Alignment

How do I know if the brake pad is too worn to align?

If the pad is under 2 mm thick at its thinnest point, replace it. If you can see the metal backing, replace it. A worn pad won't stop the wheel even when aligned.

You'll get false confidence and poor stopping power.

Can I use WD-40 on the brake parts?

Use WD-40 to loosen stuck bolts only. Never spray it on the brake pad or the wheel rim. It makes friction surfaces slippery.

Use isopropyl alcohol for cleaning and one drop of light machine oil on pivot points.

Why does the brake keep going out of alignment?

The axle nut is the usual culprit. It should be tightened to 5-10 Nm. If the nut stays tight but the brake still shifts, the fender bracket is likely bent.

A bent bracket needs replacement, not another adjustment.

Is it safe to ride with a dragging brake?

No. A dragging brake slows the scooter constantly and wears the wheel unevenly. It can also overheat the wheel.

Fix the alignment before the next ride. If the pad is worn, replace it.

Can I fix a bent fender with pliers?

You can try, but the metal usually cracks or bends unevenly. A misaligned fender won't hold the brake pad square. Replace it instead.

A new fender assembly costs less than $20 and takes about ten minutes to fit.
