Micro Sprite Rear Brake Loose
If your Micro Sprite rear brake feels loose, you've probably noticed it right when you need it most. That spongy, unresponsive press of the foot brake means something isn't making proper contact between the fender pad and the rear wheel.
This is a genuine safety issue. The Micro Sprite uses a simple foot-operated fender brake, and when it's loose, stopping distances increase significantly. Per ASTM F2648 testing, the rear brake should engage with less than one inch of fender travel.
If yours travels further before stopping the wheel, something needs attention.
Quick Answer
A loose Micro Sprite rear brake usually means the axle nut has backed off. Check that nut first. Tighten it with a 13mm wrench.
If the nut is tight, inspect the fender gap. It should be 2 to 4mm from the tire. Replace the brake pad if it's thinner than 1.5mm.
Image source: Bing (Web (fair-use with source credit))
The Three Common Culprits Behind a Spongy Fender Brake
Most loose brake problems on the Micro Sprite come from one of three things. You can diagnose which one you have in under a minute.

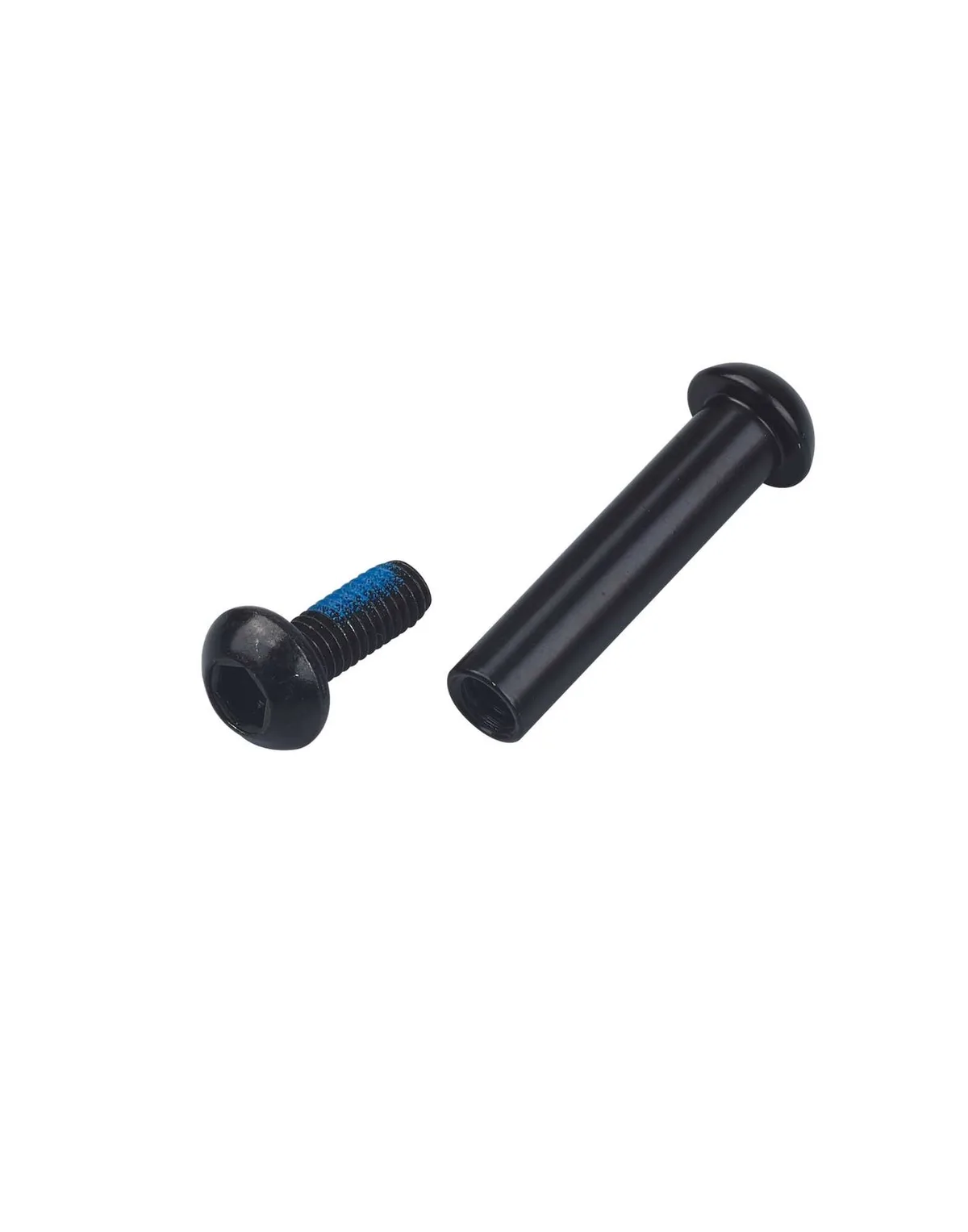

Loose axle nut. The rear wheel is held on by a single axle nut. Over time, especially with frequent folding and unfolding, that nut can loosen. The wheel shifts slightly.
29% off Today's Exclusive Deals
Limited-time Exclusive Deals. Check current discount on Amazon.
Check Price on Amazon As an Amazon Associate I earn from qualifying purchases.The fender brake pad no longer hits the tire squarely. This is the number one cause of a suddenly loose brake.
Stretched brake cable. On hand-brake Sprite models, the cable stretches naturally during the first few months. Aggregate user feedback reports cable stretch of up to 5mm within six months. That slack translates directly into a loose brake feel.
Worn brake pad. The rubber pad on the fender wears down over time. Micro Scooters recommends replacing the pad when it's thinner than 1.5mm. A worn pad cannot make good contact with the wheel, no matter how tight everything else is.
Image source: Bing (Web (fair-use with source credit))
How to Fix a Loose Micro Sprite Rear Brake (Step by Step)
Follow these steps in order. Stop when the brake feels firm again.
| Step | Action | Tool Needed |
|---|---|---|
| 1 | Check and tighten the axle nut | 13mm wrench or socket |
| 2 | Inspect the fender gap | Visual check (quarter thickness) |
| 3 | Re-center the fender over the wheel | 4mm Allen key |
| 4 | Replace the brake pad if worn | New pad, small flathead screwdriver |
Step 1. Place the scooter upside down on a soft surface. Locate the axle nut on the rear wheel. Use a 13mm wrench and turn it clockwise until it feels snug.
Add a quarter turn. Do not overtighten.
Image source: Bing (Web (fair-use with source credit))
Step 2. With the wheel back on the ground, look at the gap between the fender brake pad and the tire. It should be about the thickness of a US quarter. If it's wider, the fender needs adjustment.
Step 3. Loosen the two bolts holding the fender bracket to the frame. Use a 4mm Allen key. Slide the fender closer to the wheel.
Tighten the bolts. Check the gap again.
Step 4. If the pad rubber is thinner than 1.5mm, pry the old pad off with a flathead screwdriver. Press the new pad firmly into the fender clip. Test the brake with a short ride.
Re-check the gap.
As of 2026, replacement brake pads are under $10 from Micro Scooters directly. It is cheap insurance.
Three Mistakes That Can Make Things Worse (or Break the Scooter)
Overtightening the axle nut. This is the most common DIY error. Crank down too hard and you can strip the threads or crack the plastic wheel hub. Hand-tight plus a quarter turn is enough.
Ignoring a worn brake pad. A pad down to the metal backing will not stop the wheel. It can also gouge the tire. Replace it at the first sign of thinning.
Skipping the test ride. Adjustments shift as parts settle. Ride the scooter for 50 feet after adjusting. Brake hard a few times.
Re-check the axle nut and fender gap. That extra minute prevents a surprise failure later.
Frequently Asked Questions
Why does my Micro Sprite brake feel spongy even after tightening the axle nut?
A spongy feel usually means the brake pad is worn or the fender gap is too wide. Check the pad thickness first. If it's below 1.5mm, replace it.
Then re-measure the fender gap. It should sit 2 to 4mm from the tire.
How tight should the axle nut be on a Micro Sprite?
Hand-tight with a 13mm wrench plus a quarter turn. You should not use your full body weight. If the nut keeps loosening, apply a drop of blue thread locker to the axle threads before tightening.
Can I replace the brake pad myself, or do I need a shop?
You can replace it yourself with a flathead screwdriver and about 10 minutes. Pry the old pad off. Press the new one into the metal clip on the fender.
No special skills needed.
Why is my brake squeaking after I adjusted it?
Squeaking means the pad is hitting the tire at a slight angle. Loosen the two bolts on the fender bracket. Shift the fender left or right until the pad sits flat against the tire.
Tighten the bolts. Test again.
Do I need to adjust the brake every time I fold the scooter?
No, but check it every time you unfold. The folding mechanism can shift the axle nut slightly. A two-second look at the fender gap before each ride catches problems early.
When should I replace the entire fender assembly instead of just the pad?
Replace the whole fender if the plastic is cracked, if the metal clip is bent, or if the return spring is broken. A cracked fender can snap during braking. A new assembly costs around $20 and avoids that risk entirely.
