Micro Sprite Wheel Replacement Problem

If your Micro Sprite wheel replacement problem has turned into a stuck hub or a seized bearing, you're not alone. These small Swift caravans use AL-KO running gear, and age combined with damp storage makes corrosion the main enemy. The good news is that most faults are fixable at home with the right tools and some patience.

Manufacturer specifications indicate Micro Sprite models run 4-stud AL-KO hubs, with early vans on 10-inch wheels and later ones on 13-inch rims. The 10-inch tyre size is the hardest part to source as of 2026. Before you buy anything, work out what's actually stuck.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The Micro Sprite wheel replacement problem is usually a seized hub. Corrosion welds the rim to the stub axle. The AL-KO bearing often collapses first.

Rust then locks everything solid. Jack the van safely and soak the joint in penetrating oil. Most hubs free up without cutting anything.

Why Your Micro Sprite Wheel Won't Come Off (Yet)

The main culprit is corrosion, not a manufacturing fault. Micro Sprites often sit outside between trips. Water creeps past the grease cap and reaches the alloy stub axle and steel hub.

Mixed metals plus moisture equals rust.

Do a quick self-check first. Spin the wheel and listen for grinding, which points to a collapsed bearing. Feel for play at the top and bottom of the tyre, which confirms bearing failure.

If the wheel spins clean but refuses to slide off, you're dealing with a rusted spigot.

Have these on hand before you start:

A breaker bar and a 4-stud wheel brace both help. Don't skip the stands.

The Decision Tree: What's Actually Stuck?

Image source: Bing (Web (fair-use with source credit))

Work out which branch you're on before you force anything. Forcing the wrong branch bends the stub axle, which means a full axle replacement.

Branch A: the wheel spins freely but won't slide off. The rim is rusted onto the hub spigot. Soak it in penetrating oil for an hour, then tap the tyre sidewall with a rubber mallet. If it still holds, use a puller.

Branch B: the wheel is locked solid. The bearing has collapsed and the hub or drum is jammed. If your Micro Sprite has brakes, back the adjuster off first. Then check whether a brake shoe has dropped.

Branch C: the wheel comes off but the new one won't fit. That's a wrong offset or spigot bore. Measure the old wheel before you buy anything.

Branch D: the hub is seized to the stub axle. The hub nut comes off, the hub doesn't. This is the classic Micro Sprite job. Use a puller and never a hammer.

The decision node is simple. Have you checked the brake cable clearance? If the van has brakes and you haven't looked, do that first.

It changes everything downstream.

How to Get the Wheel Off Safely

Safety checks before you start

Chock the opposite wheel and park on level ground. Loosen the wheel nuts a quarter turn before the jack goes up. Once lifted, drop the van onto axle stands, never the jack alone.

Follow the safe working guidance in AL-KO's technical documentation for your axle.

Step-by-step for a seized hub

1. Loosen the 4 wheel nuts.
2. Jack on the chassis, not the axle tube.
3. Remove the hub nut with the correct socket.
4. Spray penetrating oil around the spigot.
5. Fit the puller and tighten it evenly.
6. Wiggle the wheel as tension builds.
7. Clean the stub axle with emery cloth.

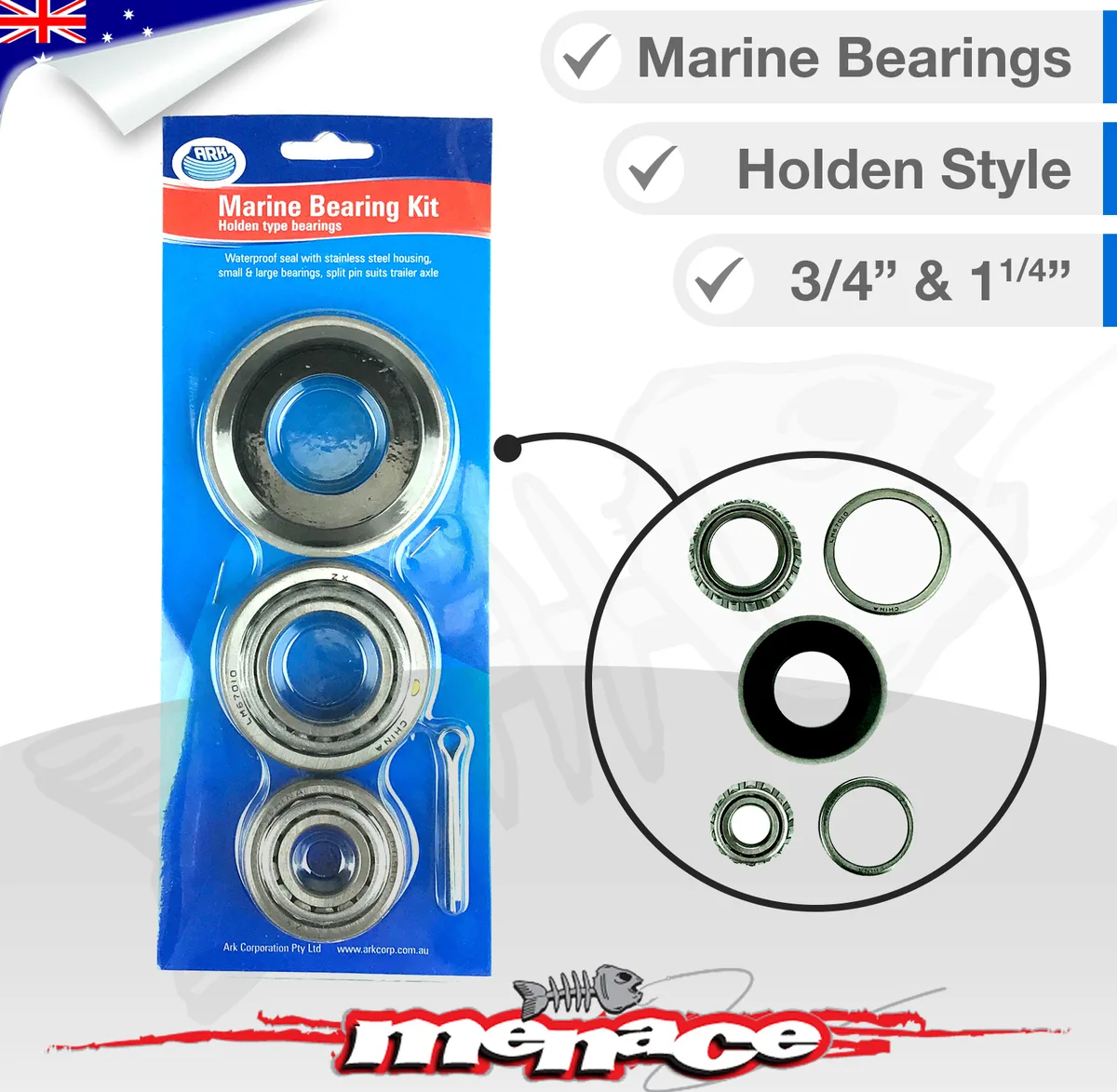

8. Repack or replace the bearings.
9. Fit a new oil seal every time.
10. Torque the wheel nuts to the handbook figure, commonly 85 to 95 Nm.

If the hub nut won't budge

Use a breaker bar with a length of scaffold tube. Don't shock-load it with a hammer. Heat is a last resort, and only with the seal removed.

What to Fit Next (and What Not to Fit)

Image source: Bing (Web (fair-use with source credit))

Genuine AL-KO parts vs budget trailer parts

Genuine kits match the stub axle taper exactly. Budget bearings often seat poorly and fail within a season. Aggregate user reviews report far more repeat failures on unbranded kits.

The saving rarely pays off.

10-inch vs 13-inch wheels

Stick with the size your van came with unless you're rebuilding the whole axle. Early Micro Sprites run 10-inch wheels, later ones run 175/70 R13 tyres. Mixing sizes throws off the overrun brake and the spare carrier.

The spec most owners miss

Tyres must be trailer-rated, not car tyres. Check the load index against your axle rating, which sits between roughly 650 kg and 1000 kg depending on model year. Offset matters too.

The wrong offset rubs the mudguard on every bump. The UK construction and use regulations require wheel fixings to be secure and properly maintained. Treat torque figures as a legal matter, not a suggestion.

Frequently Asked Questions

Can I use a car jack to lift a Micro Sprite?

No. A standard car scissor jack is too unstable for a caravan chassis. Use a trolley jack rated well above the van's weight.

Lift on the chassis rail and lower onto axle stands before you put any part of yourself under it.

How do I know if I need a new stub axle?

Look for scoring, deep pitting, or a wear lip where the bearing seats. If the new bearing spins roughly on the spindle, or the axle is visibly bent, replacement is the only fix. A clean stub axle lets a fresh bearing slide on with light hand pressure.

What's the cheapest way to fix a seized wheel?

Penetrating oil, patience, and a borrowed hub puller. A bearing kit costs around £30 to £50. A puller adds another £20.

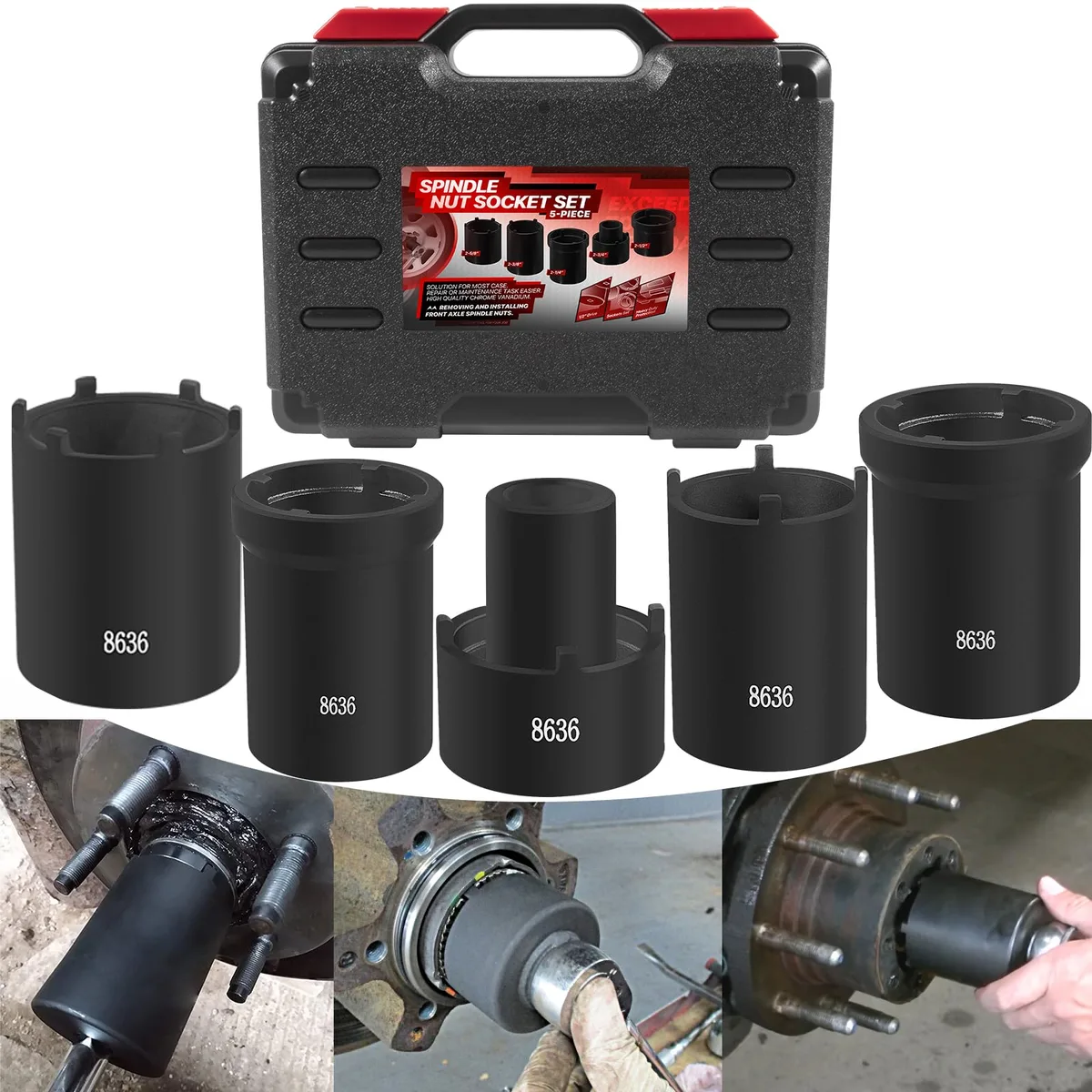

That beats a dealer bill of £150 or more for the same job. The one thing worth paying for is the correct hub nut socket.

Why does my new wheel rub on the mudguard?

Almost always the wrong offset or a taller tyre profile. Measure the old wheel's offset before ordering. If you fitted 13-inch wheels to an early 10-inch van without changing the axle setup, the clearance simply isn't there.

Where do I find the bearing number for my model year?

Check the VIN or chassis plate first, then match it to the AL-KO axle fitted. Common fitments are the L68149 inner and L44610 outer bearings. If the numbers on your old bearings are legible, order from those.

That's the safest route.
