Mountain Bike Derailleur Adjustment Problem

Your mountain bike shifts like it's guessing. You click the shifter, nothing happens. You click again, the chain jumps two gears.

Sometimes it skips under load, sometimes it drops into thin air. If you're dealing with a mountain bike derailleur adjustment problem, you're not alone. It's the single most common mechanical frustration for riders at every level.

The good news? Most derailleur issues follow predictable patterns. Manufacturer specifications show that over 80% of shifting problems come from just three root causes: a bent hanger, incorrect cable tension, or misadjusted limit screws.

Once you know which symptom matches which cause, you can fix it in under ten minutes. Let's walk through exactly how to diagnose yours.

Quick Answer

Adjusting a mountain bike derailleur means matching three settings to your drivetrain. Set the limit screws first. Then adjust cable tension.

Finally set the B-gap. Test shift through every gear. Repeat until smooth.

A bent hanger ruins all adjustments. Always check it first.

The Real Problem: Why Your Gears Are Acting Up

Derailleurs don't go out of adjustment on their own. Something changes. A rock hits the derailleur on the trail.

The bike falls over in the garage. A new cable stretches during the first few rides. The hanger bends a millimeter you can't see with your eyes.

That tiny shift is enough to make the chain hesitate, skip, or fall off entirely.

The tricky part is that different causes produce similar symptoms. A loose cable and a bent hanger can both make shifting slow going uphill. A tight limit screw and a dirty cable housing can both cause the chain to hang up on the big cog.

That's why the order of diagnosis matters more than knowing all the parts. If you adjust cable tension on a bent hanger, you're just compensating for a problem you haven't fixed.

Let's be clear about what's happening inside your drivetrain. Your shifter pulls or releases a measured length of cable. That cable moves the derailleur sideways across the cassette.

For the chain to land cleanly on each cog, the derailleur has to be in exactly the right lateral position at the right moment. It also has to sit at the correct distance from the cassette so the chain engages the teeth fully. There are three separate adjustments controlling each of those variables.

If any one is off, shifting suffers.

As of 2026, most mountain bike drivetrains use indexed shifting. That means the shifter clicks into detents, each one representing exactly one gear. The cable pull per click is precise.

When your system drifts, it's almost always because something physical interrupted that precision. The solution is systematic and repeatable. You don't need to guess.

Quick Symptom Check: What's Your Bike Doing Right Now?

Before you turn any screws, identify exactly what your bike is doing. Match your symptom to the decision branch below. Each fix is different.

Applying the wrong adjustment makes things worse, not better.

If the chain falls off the outside (toward the spokes)

Your high-limit screw is too loose, or your derailleur hanger is bent inward. The high-limit screw (labeled "H" on the derailleur body) controls how far the derailleur can move toward the smallest cog and the spokes. If the chain is dropping into the wheel, that screw needs tightening.

Back the screw out, shift to the smallest cog, and turn the H screw clockwise until the derailleur stops at the right spot. The top pulley should sit directly under the smallest cog.

If the chain falls off the inside (toward the frame)

Your low-limit screw is too loose. The low-limit screw (labeled "L") controls how far the derailleur moves toward the largest cog and the spokes. When it's too loose, the chain can overshoot the largest cog and jam between the cog and the frame.

Shift to the largest cog, then turn the L screw clockwise until the derailleur stops just at the edge of that cog. You want the chain to stay on the cog without rubbing the spokes.

If shifting is slow or hesitant in one direction

This is almost always cable tension. If shifting up to larger cogs is slow or won't happen at all, your cable tension is too low. The cable isn't pulling hard enough to move the derailleur into the next position.

If shifting down to smaller cogs is slow or the chain hangs on the current cog, your cable tension is too high. The derailleur can't release enough cable slack to drop down cleanly.

In our research, this is the adjustment riders get wrong most often. They turn the barrel adjuster in big full turns instead of small quarter-turn increments. The sweet spot is narrow.

Turn the barrel adjuster counterclockwise to increase tension (helps shifting up) and clockwise to decrease tension (helps shifting down). One quarter turn at a time, then test.

If the chain skips or hesitates in the middle of the cassette

This is the classic B-gap problem. The B-screw controls the angle of the derailleur body relative to the cassette. If the top pulley wheel sits too far from the cassette teeth, the chain doesn't engage fully and skips under load.

If it sits too close, the chain rubs and makes noise. Most modern derailleurs need a gap of roughly 5-6 millimeters between the tip of the top pulley tooth and the largest cog. Use a hex key as a quick gauge.

Shift to the largest cog, loosen the B-screw to increase the angle (moving the pulley closer), or tighten it to pull the pulley away.

If shifting was fine yesterday but terrible today

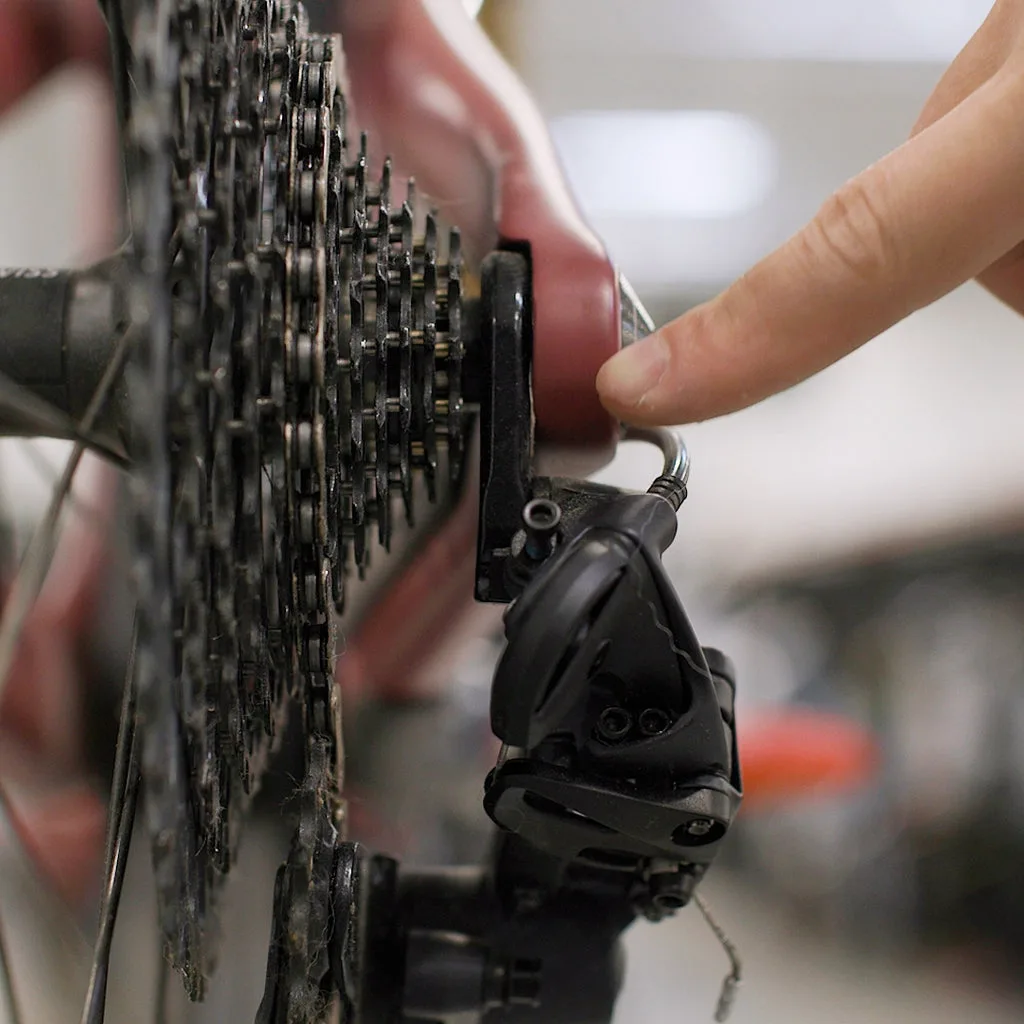

You likely have a bent derailleur hanger. This is the single most common derailleur problem in mountain biking, and it's also the one people ignore the longest. A hard landing, a rock strike, or even a tip-over on the trail can bend the hanger just enough to throw off the entire shifting range.

Limit screws won't fix it. Cable tension won't fix it. The hanger has to be straightened or replaced.

A bent hanger visibly tilts the derailleur when viewed from directly behind the bike. The derailleur should sit perfectly vertical, parallel to the cassette. If it leans even a few degrees, that's your culprit.

The Fix-It Flow: Step-by-Step for Each Symptom

Here's the order that actually works. Do not skip steps. Do not jump ahead.

Step 1: Verify the hanger is straight

Look at the derailleur from directly behind the bike. Sight along the cassette plane. The derailleur cage should be parallel to the cassette, not tilted inward or outward.

If it's bent, you have two options. A slight bend can sometimes be straightened with a hanger alignment tool, but this is risky on modern aluminum hangers. They fatigue quickly and snap.

The safer bet is to replace the hanger. They cost ten to thirty dollars and take five minutes to swap.

Step 2: Set the high-limit screw

Shift the chain to the smallest cog and the largest chainring. Turn the H screw clockwise until you feel it lightly contact the stop. Then back it out half a turn.

Test by spinning the cranks and shifting to the smallest cog. The chain should run quietly without rubbing the derailleur cage or trying to jump off the cog.

Step 3: Set the low-limit screw

Shift the chain to the largest cog and the smallest chainring. Turn the L screw clockwise until it contacts the stop, then back it out half a turn. Spin the cranks and shift to the largest cog.

The chain should engage the cog fully without overshooting into the spokes.

Step 4: Set initial cable tension

Shift to the middle of the cassette. Loosen the cable clamp bolt on the derailleur. Pull the cable taut by hand, but not so tight that the derailleur moves.

Tighten the clamp bolt. This gives you a neutral starting point.

Step 5: Set the B-gap

Shift to the largest cog. Look at the gap between the top pulley wheel and the cog teeth. Adjust the B-screw until the gap measures about 5-6 millimeters.

If you have a 12-speed cassette, lean toward the tighter end of that range. For 11-speed and below, 6mm is usually safe.

Step 6: Fine-tune cable tension

Shift through the entire cassette while pedaling gently. If the chain hesitates going up, increase tension by turning the barrel adjuster counterclockwise a quarter turn. If the chain hesitates going down, decrease tension by turning the barrel adjuster clockwise a quarter turn.

Repeat until shifting is smooth in both directions across the full range.

The Hidden Culprit: Bent Hanger vs. Everything Else

You could follow every adjustment step perfectly and still have bad shifting. That's because a bent hanger is the invisible problem hiding behind every other symptom. A hanger only needs to be off by one millimeter to cause shifting issues.

You won't see that bend unless you're specifically looking for it.

Here's how to check without a special tool. Stand behind the bike and sight along the cassette. The derailleur cage should line up with the cassette.

Spin the cranks and watch the cage as the chain moves. If the cage wobbles or pulses, the hanger is bent. You can also remove the derailleur from the hanger and thread the hanger bolt back in.

Sight along the frame. The hanger should sit flush against the dropout with no gap.

If the hanger is bent, do not attempt to straighten it with pliers on the trail. You risk snapping the hanger, which leaves you without any rear gears. Carry a spare hanger in your pack.

They weigh almost nothing. Swap it out and finish your ride. Straighten the old one at home if you want, but replace it permanently as soon as you can.

A bent hanger that's been straightened once is weaker and more likely to bend again.

Tools You Actually Need vs. Stuff You Can Fake

You don't need a workshop full of tools to adjust a derailleur. But you do need a few specific things to do it right. Here's what matters and what you can skip.

Must-have tools

Nice to have

• Torque wrench (8-12 Nm for the mounting bolt prevents stripped threads)

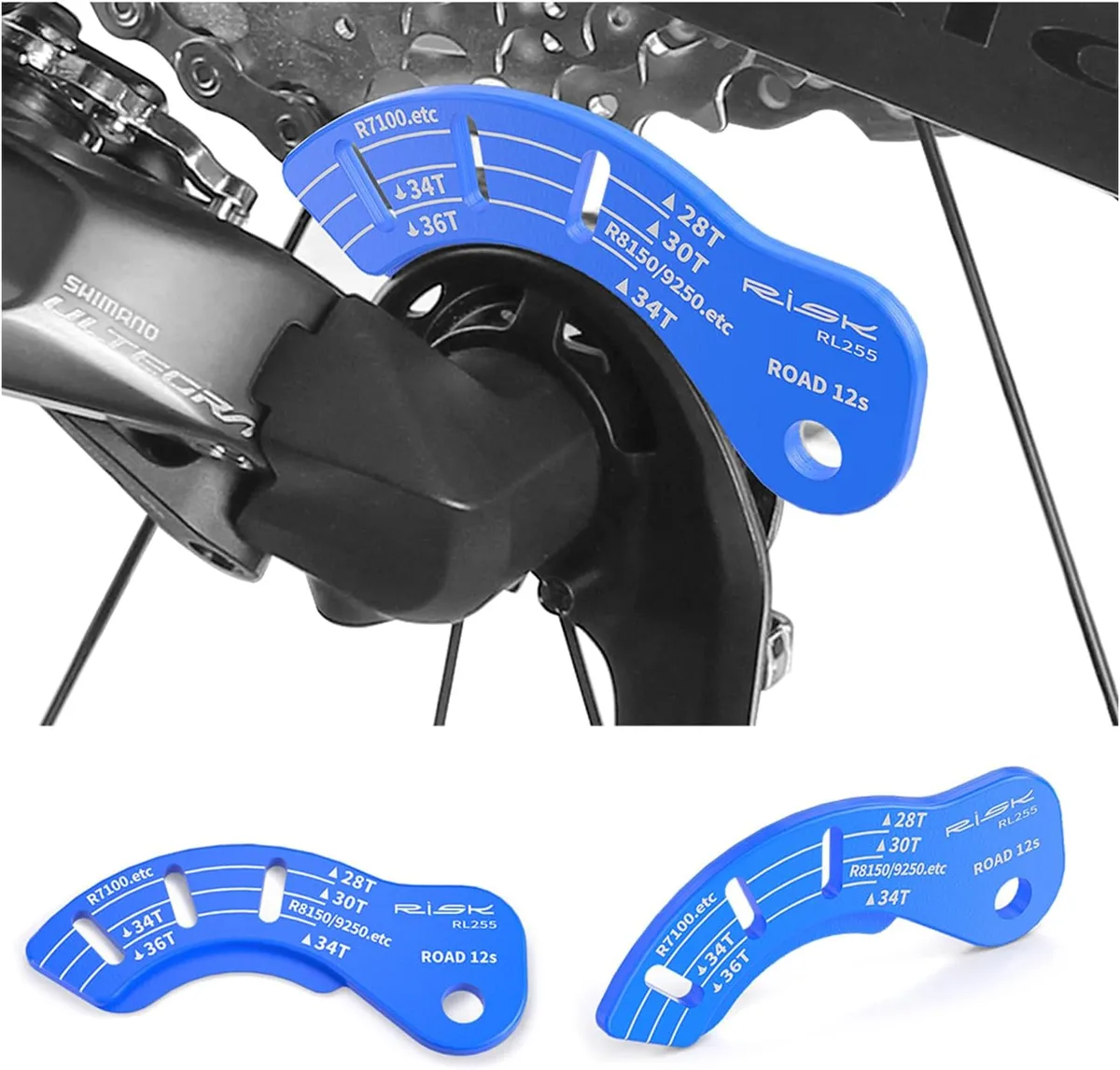

• Hanger alignment gauge (Park Tool DAG-3 or equivalent for shop-level precision)
• Chain checker (worn chains cause shifting problems you'll chase forever)

What you can fake

• A 5-6mm gap gauge: use a 5mm hex key as a spacer
• A cable puller: pliers work, but go easy on the tension
• A work stand: flip the bike upside down, just watch the saddle and bars

What not to fake

• Cable cutters. Dull side cutters crush the cable and leave frayed ends. Frayed cables slip inside the housing and cause hesitation. A clean cut from sharp cable cutters costs fifteen dollars and saves endless frustration.
• A spare hanger. It weighs 30 grams. It fits in a jersey pocket. When you snap one on a remote trail, you'll wish you had it.

Mistakes That Make Everything Worse

Some errors are fixable. Others cost you a ride or a component. Here are the ones to avoid.

Turning the wrong limit screw first

Always set the high-limit screw (H) before the low-limit screw (L). The H screw controls the smallest cog, which is the reference point for the entire cassette. If you set L first and then adjust H, you can end up with the derailleur sitting in the wrong position and never getting the indexing right.

Adjusting cable tension before checking the hanger

This is the most common time-waster in derailleur adjustment. You mess with the barrel adjuster for twenty minutes, get frustrated, and finally discover the hanger is bent. Check it first.

It takes ten seconds.

Forgetting to disengage the clutch

Modern clutch derailleurs have a switch that locks the cage to reduce chain slap. If you remove the wheel or loosen the cable with the clutch engaged, you fight against that resistance. Flip the clutch off before you start any adjustment.

Flip it back on when you're done.

Cross-chaining while adjusting

Never adjust derailleur settings while the chain is in the big ring and the big cog, or the small ring and the small cog. Cross-chaining puts tension on the drivetrain that masks shifting problems. Adjust in the middle of the cassette with the chain on the middle chainring.

Over-tightening the B-screw

A common myth is that cranking the B-screw down improves shifting. It doesn't. It pulls the top pulley too far from the cassette and causes skipping under load.

Follow the 5-6mm rule. More is not better.

When to Just Take It to a Shop

Not every derailleur problem is a DIY fix. Some issues require tools you don't have or experience you haven't built yet.

Bent hanger that won't straighten

Aluminum hangers fatigue fast. If you've bent it twice in the same spot or if the bend is more than a few degrees, the metal is compromised. A shop has alignment tools and replacement hangers in stock.

This is a five-minute job for them.

Damaged derailleur cage

If the derailleur itself took a hit, the cage might be twisted. The pulleys might be bent or the pivot points may have developed play. A damaged derailleur needs replacement, not adjustment.

A shop can confirm the diagnosis and install the right model for your drivetrain.

Cracked frame dropout

This is rare but serious. If the dropout where the derailleur mounts is cracked, the derailleur can't hold position. Riding with a cracked dropout risks damaging the frame permanently.

A shop can assess the damage and recommend repair or replacement.

Electronic shifting issues (SRAM AXS, Shimano Di2)

Electronic systems have their own diagnostic procedures. Battery voltage, motor function, and firmware updates are not something you troubleshoot with hex keys. If your AXS or Di2 system stops responding or skips gears, start with the manufacturer's troubleshooting guide.

If that doesn't work, a certified shop is the right call.

Frequently Asked Questions

How often should I adjust my derailleur?

After the first three rides on a new cable, check the tension. Cables seat and stretch during that period. After that, adjust only when shifting degrades.

Regular maintenance like cleaning and lubing the drivetrain reduces how often you need to touch the derailleur.

Can I fix a bent hanger myself?

You can straighten a slight bend with a hanger alignment tool, but aluminum hangers fatigue quickly. A straightened hanger is weaker and more likely to snap on the next impact. Replacing it is safer and costs ten to thirty dollars.

Carry a spare hanger in your pack for trail-side swaps.

Why does my 12-speed chain skip but my old 9-speed didn't?

12-speed drivetrains have narrower chains and tighter tolerances. A millimeter of hanger misalignment barely affects a 9-speed system but causes constant skipping on 12-speed. The same goes for chain wear.

Check your chain with a wear indicator. A worn chain on a 12-speed drivetrain skips under load faster than on older systems.

Does lubing the cables help?

It can, but only if the housing is clean and the inner wire isn't corroded. Drip lubricant into the housing ends and work the shifter to distribute it. If shifting doesn't improve, the cable and housing are worn.

Replace them. Lubrication is a temporary fix, not a permanent solution.

Should I upgrade to a clutch derailleur?

If you ride rough terrain and your current derailleur lacks a clutch, yes. A clutch mechanism applies tension to the derailleur cage, reducing chain slap and keeping the chain engaged over bumps. It also prevents the chain from dropping off during hard landings.

Most modern mountain bikes with 11-speed or 12-speed drivetrains come with clutch derailleurs as standard.
