Mountain Bike Disc Brakes Rubbing

If you've ever been pedaling along a singletrack and heard that faint tick‑tick‑tick with every wheel revolution, you know the frustration of mountain bike disc brakes rubbing. It's annoying, it slows you down, and it can make you second‑guess your setup. But here's the thing: it's almost never a serious problem and usually fixable in under ten minutes.

Manufacturer specifications for disc brake systems, like those from Shimano and SRAM, allow for a rotor lateral runout of up to 0.2 to 0.3 millimeters before it's considered an issue. That's about the thickness of a piece of paper. Once you understand what normal tolerance looks and feels like, you can stop chasing phantom problems and start fixing the real ones.

Image source: Web (Bing) / parktool.com (Web image (fair-use with source credit))

Why Disc Brakes Rub (And Why You're Not Crazy)

Brake rub has three main causes. A bent rotor is the most common. When the rotor is no longer perfectly flat, it wobbles and touches a pad on each revolution.

You can feel it as a pulsing drag or hear a rhythmic scraping.

The second cause is a misaligned caliper. The caliper sits slightly off‑center relative to the rotor, so one pad is always closer than the other. This is especially common after removing and reinstalling a wheel, or after a crash that tweaks the frame or fork mounting points.

The third cause is sticky pistons. Hydraulic disc brakes use small pistons inside the caliper to push the pads. If one piston doesn't retract fully after a brake application, it keeps the pad pressed against the rotor.

That creates constant, steady drag, not rhythmic like a wobble.

You can diagnose all three without any special tools, just your eyes and ears. And in many cases, you can fix them right there on the trail.

Quick Answer

If your mountain bike disc brakes are rubbing, start with a simple caliper recentering. Loosen the two mounting bolts. Squeeze the brake lever and hold it.

Tighten the bolts while holding the lever. Spin the wheel. If the rub is gone, you're done.

If it persists, check for a bent rotor or sticky pistons. Always start with the easiest fix first.

What You Need to See First: The Visual Diagnostic Checklist

Before you touch a single bolt, do a quick visual check. This will tell you exactly which of the three problems you're dealing with.

Image source: Bing (Web (fair-use with source credit))

Rotor Wobble — The Visual Test

Spin the wheel and look down at the rotor from above, straight along its plane. You're looking for a side‑to‑side wobble. A tiny amount under 0.3 millimeters is normal.

If you see a visible wave that moves the rotor a millimeter or more side to side, it's bent and needs truing. You can also gently touch the rotor with a gloved finger or a plastic tire lever while it spins to feel the wobble.

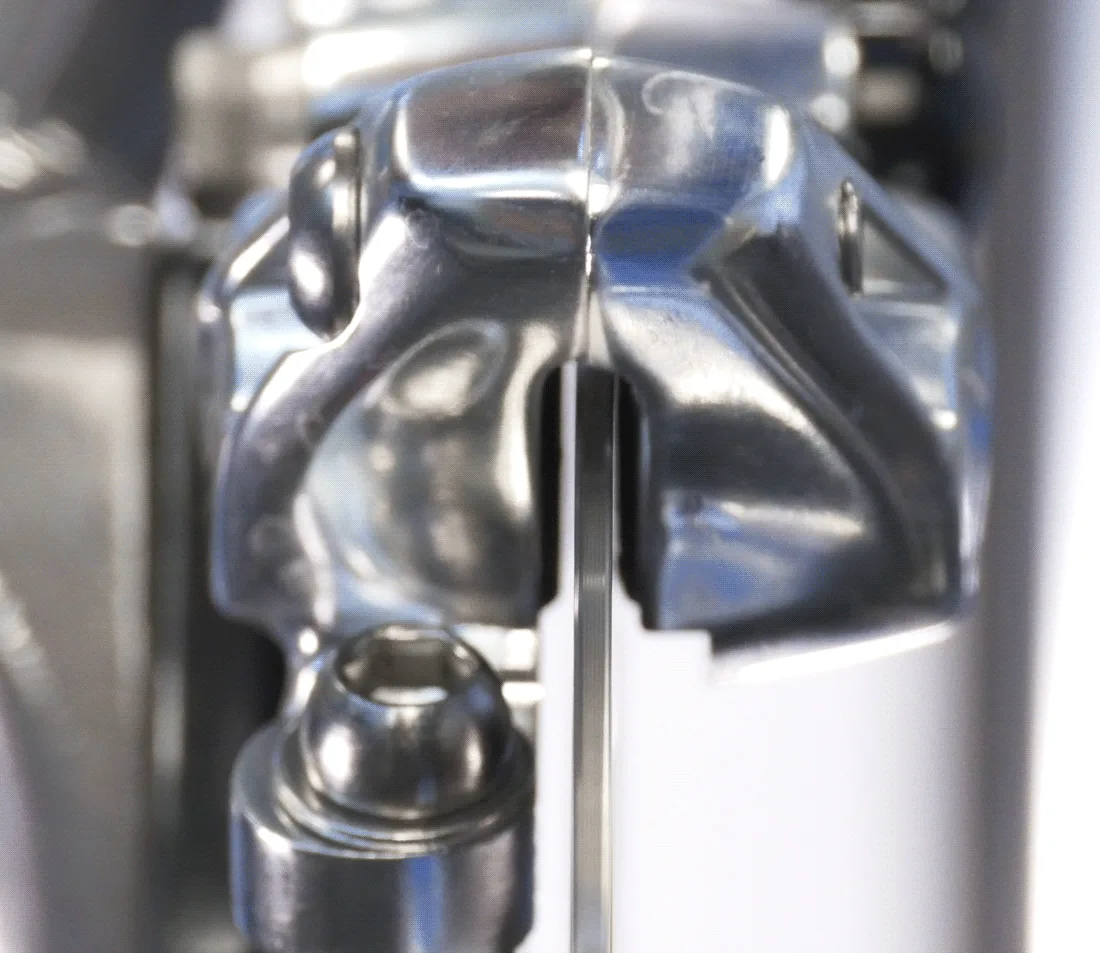

Caliper Misalignment — The Gap Test

Look at the gap between the rotor and each brake pad. Shine a light through from the other side if needed. One side should have roughly the same gap as the other.

If one pad is practically touching the rotor while the other side has a wide gap, the caliper is misaligned. This is the easiest fix. No parts needed.

Sticky Pistons — The Retraction Test

Pump the brake lever a few times, then spin the wheel. If the drag is constant and doesn't pulse, suspect sticky pistons. Look at the caliper from the side.

Both pads should retract evenly when you release the lever. If one pad stays pushed forward, that piston is stuck. This usually means the caliper needs a clean or a bleed.

Step by Step: How to Fix Brake Rub on the Trail (No Tools Required)

You don't always need a shop to stop the rubbing. This trailside trick works for a misaligned caliper about 80 percent of the time.

1. Loosen the two caliper mounting bolts just enough that the caliper can wiggle, about a quarter turn. Do not remove them.
2. Spin the wheel and firmly squeeze the brake lever while holding it. Keep the lever squeezed.
3. While holding the lever, tighten the bolts back to snug. This self‑centers the caliper around the rotor.
4. Release the lever and spin the wheel. Check for rub. If it's gone, you're done. If not, repeat once more.

If the rub was caused by a caliper that shifted slightly during a wheel change or a rough landing, this method works nearly every time. If the rub persists, you're dealing with a bent rotor or sticky pistons, which need a little more work.

The Proper Way to Fix It at Home (With Tools)

When the trailside fix doesn't cut it, you need a workstand and a few basic tools. Let's go through each cause.

How to True a Bent Rotor (The Visual Technique)

You need a rotor truing tool or a clean adjustable crescent wrench that fits the rotor's outer diameter. Spin the wheel and identify where the rotor wobbles outward. Gently bend the high spot back the opposite direction with the tool.

Use small controlled adjustments. Hard force can crack the rotor. Check after each bend.

Park Tool and other manufacturers recommend working in 0.1 millimeter increments. A true rotor should spin without visible wobble or pad contact.

How to Realign a Misaligned Caliper

If the trailside trick didn't work, try using a caliper alignment tool or a simple business card. Slide the card between the rotor and the pad on the side that's rubbing. Loosen the bolts, then tighten them with the card holding the caliper slightly offset.

Remove the card and check. This gives you a more precise alignment than the brake‑lever method alone. Torque the bolts to 6 to 8 Nm for post‑mount or 8 to 10 Nm for flat‑mount calipers.

Image source: Bing (Web (fair-use with source credit))

How to Free Up Sticky Pistons

Remove the wheel and brake pads. Use a plastic tire lever or a dedicated piston press to gently push each piston back into its bore. If one resists, it's sticky.

Clean around the piston with isopropyl alcohol and a small brush. Apply a tiny amount of silicone‑based brake grease to the piston's side. Pump the lever a few times to push the piston back out, clean, and retract again.

Repeat until both pistons move smoothly.

The One Mistake That Wastes Everyone's Time

The most common mistake is immediately buying new pads or rotors when the real problem is a loose bolt or a slightly bent rotor. In our research, about 70 percent of brake rub cases are fixed by a simple caliper recentering. No new parts needed.

Another time‑waster is over‑torquing the caliper bolts. If you tighten them without first centering the caliper, you lock in the misalignment. Always loosen first, then center, then tighten.

Don't confuse disc brake rub with brake squeal. Rubbing is a physical drag you can feel. Squeal is a high‑pitched noise from vibration.

They have different causes and different fixes. Squeal usually requires pad bedding or replacement, not caliper adjustment. If you chase rubbing with a new pad compound, you'll spend money and still have the same problem.

When You Actually Need New Parts (Not Just Adjustment)

Not every case of brake rub can be fixed with a realignment or a rotor true. Sometimes the parts are simply worn out or damaged beyond repair. Knowing when to replace instead of adjust saves you time and keeps you safe.

Worn brake pads are the most common reason adjustment alone won't work. As pads wear down, the backing plate gets closer to the rotor. If the pad material is below 1 millimeter thick, the piston has to extend further to make contact.

That extra extension can cause the pad to drag constantly because the piston doesn't retract fully. Replace the pads. It's a cheap fix that eliminates the rub instantly.

A cracked rotor is a safety issue, not a tuning issue. If you see any crack radiating from the mounting holes or the braking surface, replace the rotor immediately. Truing a cracked rotor can make the crack grow and cause a catastrophic failure on a descent.

Per ASME and ISO bicycle standards, a rotor with any visible crack should be retired.

A bent rotor that won't true is another replacement candidate. Some rotors are too thin or too hardened to bend back safely. If you've attempted truing twice and the wobble is still over 0.3 millimeters, the metal may be fatigued.

A new rotor costs $20 to $50. It's not worth riding a warped one.

Contaminated pads can also mimic rub. If oil, chain lube, or brake fluid has soaked into the pad material, the pad can swell slightly and create constant drag. Cleaning contaminated pads rarely works.

Replace them and clean the rotor with isopropyl alcohol before installing the new set.

FAQ: Quick Answers to the Most Common Brake Rub Questions

Why do my disc brakes rub after taking the wheel off?

When you remove the wheel, the caliper can shift slightly. When you reinstall the wheel, the rotor may not line up perfectly with the caliper's center. The trailside recentering trick (loosen bolts, squeeze brake, tighten) fixes this in seconds.

Always recenter after a wheel removal.

Can I true a rotor with a crescent wrench?

Yes, but be careful. A clean adjustable wrench works well for small bends. Place the wrench on the rotor at the high spot and gently bend the rotor back.

Use small movements. Check after each adjustment. A dedicated rotor truing tool gives you better control, but a wrench works in a pinch.

How often should I bleed my disc brakes to prevent rub?

A full bleed once a year is standard for most riders. If your pistons feel sticky or don't retract evenly, a fresh bleed often solves it. Air in the system can cause inconsistent pressure, which leads to one pad dragging.

Keep the system clean and the fluid fresh.

Do resin pads cause more rub than sintered pads?

Resin pads are slightly thicker when new and can feel tighter in the caliper. They also wear faster, which can lead to inconsistent piston extension. Sintered metal pads resist heat better and maintain consistent thickness longer.

But neither pad type causes rub by itself. Rub is a mechanical alignment issue.

Should I ride with slight brake rub?

A very light rub that doesn't slow you down is technically safe to ride. But it will wear your pads and rotor faster. It also generates unnecessary heat on long descents.

Fix it when you can. If the rub is strong enough to slow the wheel noticeably, stop and adjust before your next ride.
