Mountain Bike Fork Leaking Oil

You notice a little pool of oil under your front wheel after a ride. Or maybe you spot a thin sheen of oil running down the fork leg. A mountain bike fork leaking oil is one of those things that's easy to brush off, but it's actually a serious signal.

That oil isn't just lubricant, it's what controls how your fork compresses and rebounds.

Manufacturer specifications show that losing as little as 5 to 10 cc of oil from a fork leg can change damping performance by 20% or more. As of 2026, most quality forks run between 15 and 30 cc of oil per leg. When that volume drops, your fork can feel harsh, unpredictable, or even lock up mid-trail.

Let's walk through what's actually happening and what you should do about it.

Image source: Web (Bing) / reddit.com (Web image (fair-use with source credit))

Quick Answer

A mountain bike fork leaking oil usually means a wiper seal is worn, a stanchion is scratched, or the air spring side is over-pressurized. Stop riding immediately and inspect the stanchion for damage. If the tube is clean, a simple lower leg service with fresh seals and oil often fixes it.

If the stanchion is scratched or the leak is at the top cap, professional repair is needed.

Why This Isn't Just a Mess, It's a Safety Issue

Oil inside your fork does two jobs. It lubricates the bushings and it provides damping resistance. When you lose oil, those bushings run dry.

Metal on metal contact happens fast.

The first thing you'll notice is a change in feel. Your fork might feel sticky at the top of the stroke. Or it might dive through the travel too quickly.

Both are signs that the oil volume is low and the damping circuit isn't working right.

Here is what actually happens when you keep riding with a leak:

• Bushing damage. The bronze bushings inside the lower legs rely on a constant oil film. Without it, they score the aluminum lower leg. This creates rough spots that ruin performance permanently.
• Stanchion scoring. Dirt that passes a bad wiper seal scratches the upper tube. Once the hard coating is breached, the tube is never smooth again.
• Air spring failure. Some forks use oil in the air spring side for lubrication. If that oil leaks out, the air piston seal dries out and starts leaking air. Your fork loses pressure mid-ride.
• Loss of control. A fork that sticks or dives unexpectedly can throw you over the bars or wash out a front wheel on a corner.

The real danger is that a leaking fork doesn't fail all at once. It degrades slowly. You adapt without realizing it.

Then on one rough descent, the fork doesn't respond the way you expect, and you crash.

Aggregate reviews from rider forums and mechanic reports consistently show that forks serviced at the first sign of a leak last two to three times longer than forks ridden until they stop working entirely. That's a good reason to take it seriously.

The Two Most Common Leaks (And How to Tell Which You Have)

Not all fork leaks are the same. The fix depends entirely on where the oil is coming from. Let's break down the two main types.

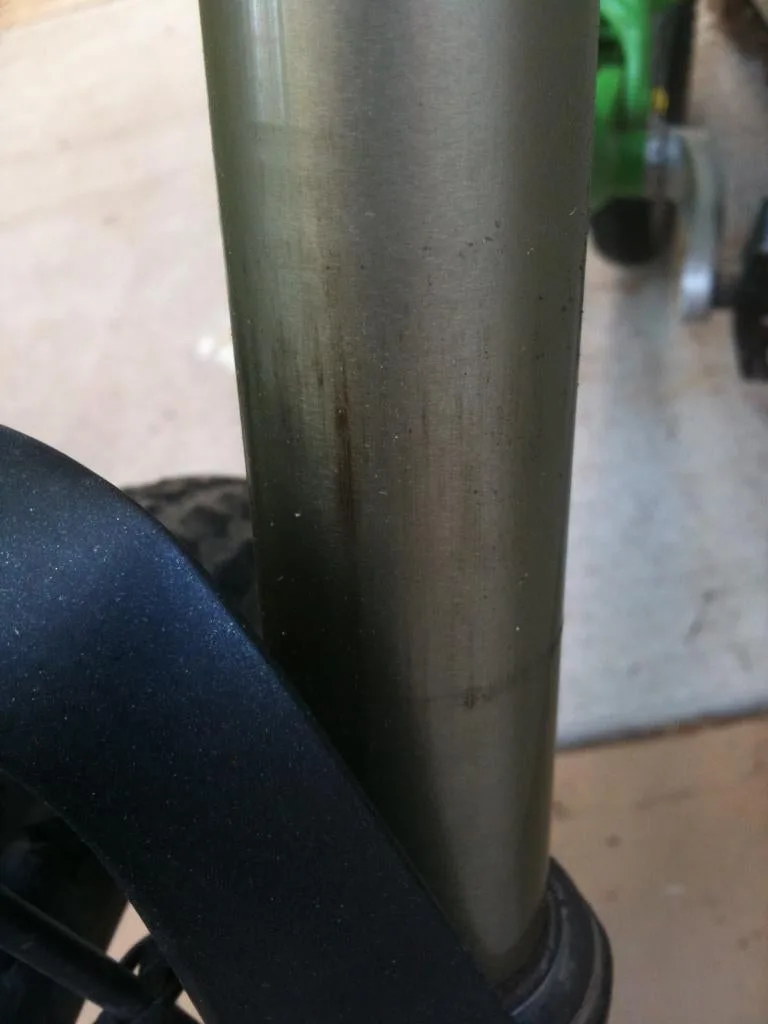

Wiper Seal Leak

This is the most common one. You see oil on the stanchion or running down the lower leg. It usually looks like a thin film or a few drops near the seal.

What causes it. The wiper seal is a rubber ring that sits at the top of the lower leg. It wipes dirt off the stanchion and keeps oil inside.

Over time, that rubber hardens or gets debris lodged under it. Once the seal loses its grip, oil seeps past during compression.

If the stanchion is smooth and scratch-free, this is a straightforward fix. A lower leg service with fresh seals costs about $15 to $40 in parts and takes an hour at the workbench.

Air Spring or Damper Leak

Oil at the top of the fork is a different story. If you see oil around the air valve, the top cap, or the rebound adjuster, that means the internal seals inside the air spring or damper cartridge have failed.

This is more serious. The damper cartridge is a sealed unit that controls compression and rebound damping. When it leaks, you lose damping entirely.

The fork feels like a pogo stick.

Air spring leaks are also problematic. If the air side loses oil, the seal that holds air pressure dries out. You'll notice the fork losing pressure overnight or during a ride.

The fix here is either a damper rebuild or a cartridge replacement. That usually runs $100 to $200 at a suspension shop.

Quick Visual Check

Look at the oil itself. Wiper seal leaks tend to leave clean, light-colored oil on the stanchion. Damper oil is darker and thinner because it runs through the cartridge valving.

Air spring oil is often a thicker, yellow-tinged grease mix. Compare what you see to these descriptions and you'll know which part is failing.

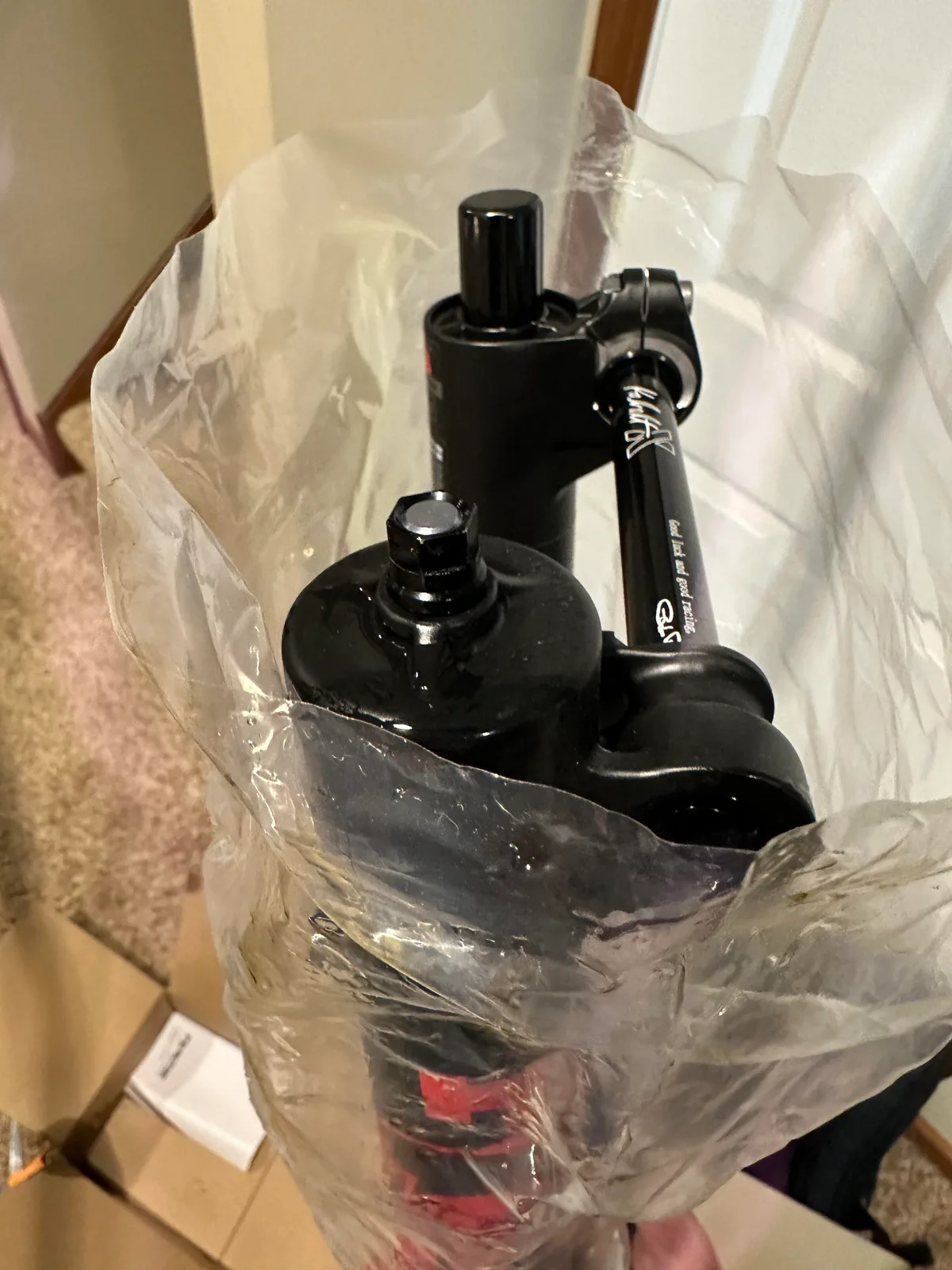

Quick Decision Guide: Do You Need a Shop or Can You Fix This?

Image source: Web (Bing) / mtbr.com (Web image (fair-use with source credit))

Before you pull out tools, run through this checklist. It will tell you if you can handle the repair yourself or if it's time to visit a mechanic.

Check the Stanchion First

Run your fingernail along the stanchion where the oil appears. If you feel a groove, nick, or rough spot, you have a scratched tube. A scratched stanchion cannot be fixed with a seal kit.

The scratch will destroy any new seal within a few rides. You need a new CSU assembly or a new fork.

If the tube feels glass-smooth, proceed to the next step.

Identify the Oil Location

Check the Oil Color

Wipe the oil on a clean rag. Thin, dark oil with a distinct smell suggests damper oil. That means the damper cartridge is leaking, which requires a full rebuild.

Thicker, lighter oil is typical of lower leg lubricant. That is the easy fix.

Decide Your Skill Level

A lower leg service is straightforward. If you can remove a wheel and turn a hex wrench, you can do it. You will need a seal kit, fresh oil, a torque wrench, and about 60 minutes.

A damper rebuild requires specialized tools and knowledge. It is easy to damage internal shims or reassemble the cartridge incorrectly. Unless you have done it before, send it to a shop.

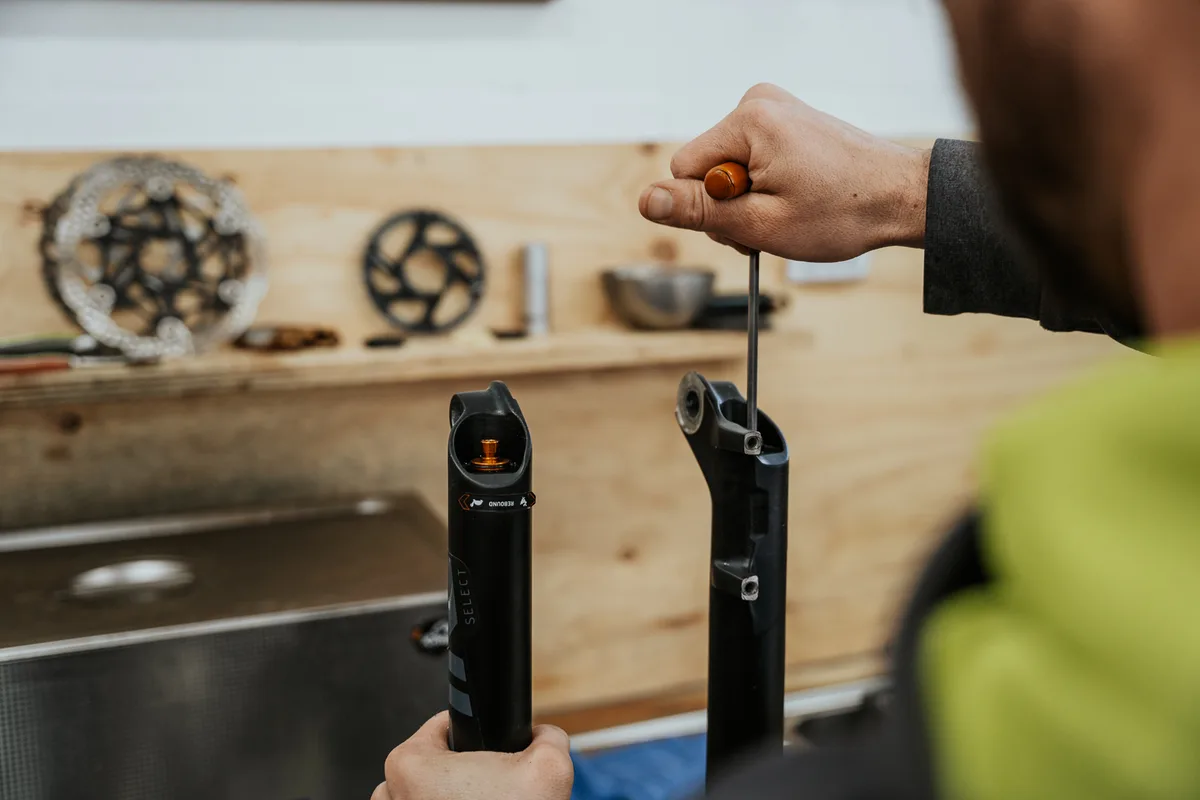

Step-by-Step: Lower Leg Service (The First Thing to Try)

Image source: Bing (Web (fair-use with source credit))

If your leak is coming from the wiper seal and the stanchion is clean, this is the fix. It is the most common suspension service and it solves 80 percent of fork leaks.

Tools and Parts You Need

• Seal kit specific to your fork model (Fox, RockShox, Marzocchi, etc.)
• Suspension oil in the correct weight (usually 5wt for lower legs)
• Shock pump
• Torque wrench
• Hex keys (usually 4mm and 2.5mm)
• Pick tool or small flathead screwdriver
• Clean rag
• Measuring syringe

Step 1: Remove the Wheel and Brake Caliper

Take the front wheel off. Remove the brake caliper from the fork leg. Hang it with a zip tie so the hose doesn't kink.

Do not let the caliper hang by the hose, it can damage the line.

Step 2: Remove the Lower Legs

Locate the bolts at the bottom of each fork leg. On Fox forks, these are 4mm hex bolts. On RockShox, they are often Torx T25.

Remove them. Some forks have a rubber plug over the bolt, pop that out first.

Once the bolts are out, slide the lower legs off the stanchions. If they stick, pump the fork a few times while holding the crown. They should pop off.

Step 3: Drain and Measure the Old Oil

Turn the lower legs upside down over a container. Let the old oil drain out. Measure how much came out.

Compare that to the manufacturer spec for your fork. If you lost 5 cc or more, the leak was significant.

Step 4: Replace the Wiper Seals and Foam Rings

Use your pick tool to pry out the old wiper seals from the lower legs. Be careful not to scratch the inner surface. Remove the foam rings underneath.

Clean the seal groove and the inside of the lower leg with a rag. Install the new foam rings, soak them in fresh oil, then press the new wiper seals in by hand. Use a seal press tool if you have one.

A 36mm socket also works.

Step 5: Add Fresh Oil

Syringe the correct volume of fresh oil into each lower leg. Most trail forks take 15 to 20 cc per leg. Check your fork manual for the exact number.

Step 6: Reassemble and Pump

Slide the lower legs back onto the stanchions. Install the bottom bolts and torque them to spec. Fox bolts usually torque to around 100 inch-pounds.

RockShox to about 90 inch-pounds.

Pump the fork slowly a few times. Do not rush this. Air gets trapped inside.

Burp the air spring by pressing the air valve with your shock pump until air escapes.

Step 7: Test for Leaks

Compress the fork several times. Wipe the stanchions clean. If no new oil appears after 10 compressions, your fix worked.

If oil returns, the leak is coming from the damper side and needs a shop.

Common Mistakes That Make the Leak Worse

Even a straightforward lower leg service can go wrong. Here are the mistakes that turn a small leak into a big problem.

Overtightening the Lower Leg Bolts

Those small bolts at the bottom of the fork legs are easy to overtighten. The torque spec is around 90 to 100 inch-pounds. That is not very tight.

If you crank them, you can strip the threads in the aluminum lower leg. Worse, overtightening pinches the inner seal and causes a new leak.

Use a torque wrench. Guesswork here costs you a new set of lowers.

Mixing Oil Weights

Different fork brands use different oil weights. Fox typically uses 5wt oil in the lower legs. RockShox often uses 5wt as well, but some models call for 10wt or a specific blend.

Mixing weights changes the damping curve.

Stick with the manufacturer spec for your exact fork model. The wrong weight can make the fork feel sluggish or harsh.

Skipping the Stanchion Inspection

This is the most common mistake. You see oil, buy a seal kit, install it, and the new seal leaks within two rides. Why?

There was a tiny scratch on the stanchion that you missed.

Always run your fingernail over the stanchion before you buy parts. If you feel anything, the seal kit is a waste of money.

Forgetting to Burp the Air Spring

After reassembly, air gets trapped between the lowers and the air spring. If you don't release it, the fork feels harsh and may push oil past the new seals. Always open the air valve with a shock pump for a second before you ride.

When to Replace vs. Rebuild vs. Send to a Shop

Not every leak is a DIY job. Here is how to decide which path is right for you.

DIY Lower Leg Service (The Easy Win)

This covers 80 percent of leaks. Cost is $15 to $40 in parts. Time is about one hour.

You need basic tools and a clean workspace.

Best for wiper seal leaks with a clean stanchion.

Damper Rebuild (Shop Territory)

Damper cartridge work requires specialty tools. You need a damper shaft clamp, seal driver set, and reference to internal shim stacks. The cost at a suspension shop runs $100 to $200.

Best for leaks at the rebound knob or top cap, or oil that smells like gear oil.

CSU Replacement (Expensive Fix)

If the stanchion is scratched, the only fix is a new crown-steerer-upper assembly. This costs $200 to $400 depending on the fork model. In some cases, a new fork is actually cheaper.

Best for scratched stanchions that cannot be polished out.

Complete Fork Replacement

If your fork is more than five years old and the leak is internal, replacement often makes more sense. A new fork with modern damping can be more cost effective than a full rebuild on an old chassis.

Pro Maintenance Tips to Prevent Future Leaks

Once your fork is fixed, keep it that way. A little regular care makes a big difference.

Clean the Seals After Every Ride

After a dusty or muddy ride, wipe the stanchions clean. Gently work the wiper seal with a clean rag to push out trapped dirt. This removes abrasive particles before they work past the seal.

Service on a Schedule

Most fork manufacturers recommend a lower leg service every 50 hours of riding. That is roughly every 5 to 10 trail rides for a frequent rider. Damper oil should be changed every 100 hours or at least once a year.

Watch the Pressure

Over-pressurizing the air spring can force oil past seals. Stay within the maximum PSI rating for your fork. Most forks are rated to 120 to 150 PSI.

Going over that can blow the wiper seals.

Avoid Pressure Washers

A pressure washer can blast water and dirt past the wiper seals instantly. Use a garden hose with a spray nozzle or a bucket of soapy water instead. If you must use a pressure washer, never aim directly at the seals.

Frequently Asked Questions

Can I just add more oil instead of fixing the leak?

No. Adding oil without replacing the seals just means the new oil will leak out too. The oil is escaping because the seal is worn or the stanchion is damaged.

A temporary top-off might get you through a ride, but the underlying problem will return.

How long can I ride with a small weep?

A slow weep can last a few rides before performance degrades noticeably. But aggregate reports from mechanics show that a weep becomes a steady leak within 20 to 30 miles of rough trail. Fix it as soon as you notice it to avoid bushing damage.

Will a seal kit fix every leak?

No. Seal kits only fix wiper seal leaks on the lower legs. If the leak is from the damper cartridge, air spring, or a cracked lower leg, a seal kit will not help.

Identify the leak location before buying parts.

Is it safe to ride if the fork still feels smooth?

Not necessarily. The fork can feel smooth while losing damping oil from the damper side. The loss of control may not show up until you hit a high-speed g-out or a hard pack corner.

A fork that is leaking any oil should be inspected before the next ride.
