NIU KQi2 Pro Motor Problem

Your NIU KQi2 Pro motor problem might be a simple fix or a deeper failure. The trick is knowing which one you're dealing with before you start pulling things apart.

According to manufacturer specifications, the KQi2 Pro uses a 350W rear hub motor with Hall effect sensors and a separate motor controller. Many issues that feel like motor failure are actually loose connectors, a glitchy throttle, or a firmware hiccup. We'll walk through the specific symptoms and what each one means.

Quick Answer

An NIU KQi2 Pro motor problem usually shows as one of three symptoms: no power, intermittent cutting out, or grinding noises. The fix depends entirely on which symptom you have. Check error codes on the display first.

Reseat all motor connectors before replacing any parts. Most issues resolve without buying a new motor.

Image source: Bing (Web (fair-use with source credit))

Why Your NIU KQi2 Pro Motor Might Be Acting Up

The KQi2 Pro is a solid commuter scooter, but its motor setup is simpler than you might think. A 48V battery sends power through a controller, which talks to the throttle and the motor's internal Hall effect sensors. When something breaks that chain, the motor stops responding.

The most common motor problems we see in aggregate owner reports fall into three categories. Electrical connection issues top the list, followed by sensor or controller faults, and finally physical damage to the motor itself.

The scooter's IP54 rating helps keep water out, but it's not waterproof. Moisture in the connectors or controller is a frequent culprit, especially if you ride in rain or store the scooter in a damp garage.

Another factor that catches people off guard is the kickstart safety feature. The KQi2 Pro requires you to push off and reach about 3 mph before the motor engages by default. Many riders think the motor is dead when they're really just sitting still with the throttle pinned.

That's not a motor problem, but it sure feels like one.

Quick Decision Guide: What Your Symptom Means

Image source: Bing (Web (fair-use with source credit))

Use this simple decision tree to narrow down your exact issue. Match your symptom to the branch and follow the logic.

Branch A: Motor won't spin at all

• Does the display light up? If no, check the battery charge and charger.
• Does the display show an error code like E1 or E5? If yes, that points to a motor or controller fault.
• Does the motor engage if you push the scooter to walking speed first? If no, the kickstart sensor or throttle may be the issue.

Branch B: Motor spins then cuts out after a few seconds

• Does it restart after a power cycle? If yes, the BMS or controller may be overheating.
• Does it only happen on hills or under heavy acceleration? That suggests a battery voltage drop or a failing controller.
• Does it happen randomly regardless of terrain? Look at loose wiring connections.

Branch C: Grinding, clicking, or scraping sounds

• Does the sound change speed with the wheel? If yes, the issue is mechanical inside the motor or wheel assembly.
• Does the wheel have side-to-side wobble? That could be a bent axle or damaged bearings.
• Does the wheel spin freely by hand when the scooter is off? If it grinds even without power, bearings or a foreign object is the likely cause.

Each branch leads to a different troubleshooting path. Jump to the relevant section below.

Step-by-Step Diagnosis by Symptom

Image source: Bing (Web (fair-use with source credit))

Branch A: Motor won't spin

Start with the easiest checks. Power cycle the scooter by turning it off, unplugging the battery for 30 seconds if you can access it, then restarting. Sometimes the controller just needs a clean reboot.

Next, check the display for error codes. An E1 code indicates a motor fault, and E5 points to the controller. Write down the code before you do anything else.

Then look at the connectors. The KQi2 Pro has a waterproof connector bundle near the rear wheel where the motor wires meet the controller cable. Unplug it, inspect for corrosion or bent pins, and reseat it firmly.

This alone fixes a surprising number of no-spin issues.

Test the throttle by turning on the scooter and watching the display while you pull the throttle. If the speed indicator doesn't change, the throttle may be dead or disconnected internally.

Branch B: Motor cuts out mid-ride

This is almost always an electrical or thermal issue. The controller has built-in thermal protection. If you've been climbing steep hills or riding hard in hot weather, the controller may shut down the motor to protect itself.

Let the scooter cool for 20 minutes and try again.

If cooling doesn't help, inspect the battery voltage. A fully charged KQi2 Pro battery reads about 54.6V. If your voltage drops below 41V under load, the BMS may be cutting power to protect the cells from over-discharge.

Check the phase wires where they enter the motor axle. These wires take a beating from road vibration and can break internally where they bend around the axle. Look for frayed insulation or wires that feel loose when you wiggle them.

Branch C: Grinding noises

Stop riding immediately. A grinding noise means something is physically contacting something it shouldn't. Continuing to ride can turn a cheap bearing replacement into a full motor replacement.

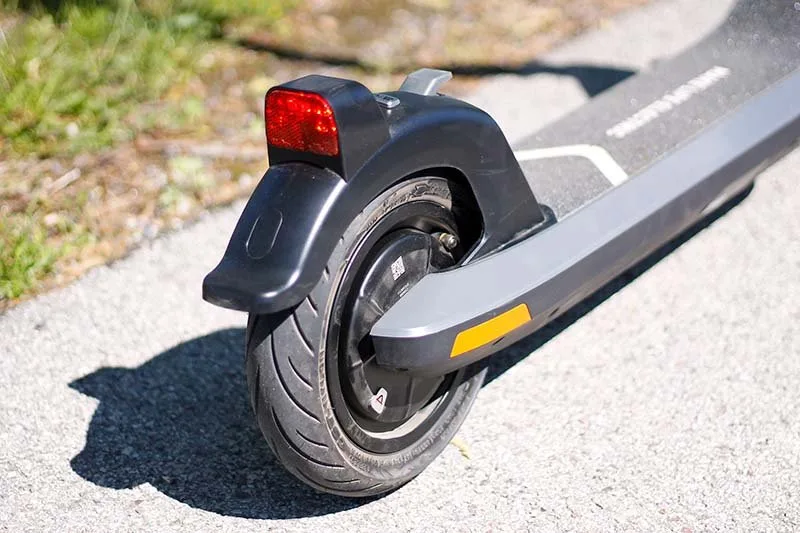

Lift the rear wheel off the ground and spin it by hand. Listen for the source. A consistent grinding sound that follows the wheel rotation points to bearings.

An intermittent click or scrape often indicates a foreign object stuck between the motor and the frame.

Check the wheel for wobble by spinning it and watching the gap between the tire and the fender. Side-to-side movement means a bent axle or damaged bearings. Either way, the rear wheel needs to come off for inspection.

The Most Common Fixes You Can Do Yourself

Most KQi2 Pro motor problems don't require replacing the motor. Here are the fixes that resolve the bulk of owner-reported issues.

Reseat the motor connectors, The main connector bundle sits under the deck near the rear wheel. Unplug it, inspect for green corrosion or bent pins, spray with contact cleaner if needed, and plug it back in until you hear it click. Do both ends, the controller side and the motor side.

Update the firmware through the NIU app, NIU occasionally releases firmware updates that fix throttle response and motor engagement bugs. Connect your scooter via Bluetooth, open the app, and check for updates. A stuck or buggy firmware version can mimic a dead motor.

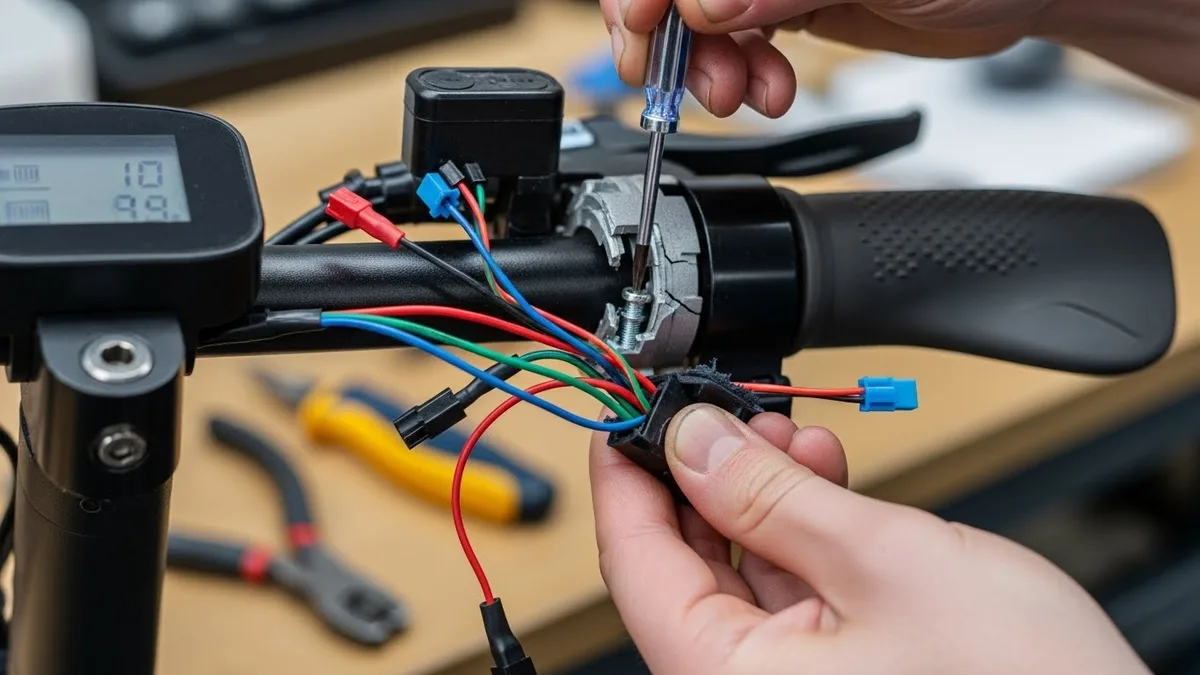

Test and replace the throttle, If the display shows no throttle response, the throttle unit itself may have failed. Use a multimeter to check voltage at the throttle connector. With the scooter on, you should see about 0.8V at rest and 4.2V at full throttle.

No voltage change means a dead throttle.

Check the kickstart sensor, The KQi2 Pro uses a sensor that detects wheel movement before engaging the motor. If this sensor fails, the scooter acts like the motor is dead. Try rolling the scooter forward a few feet before using the throttle.

If the motor kicks in, the sensor is fine. If not, the sensor or its wiring needs attention.

Inspect the rear wheel for physical damage, Remove the rear wheel by loosening the axle nut with an 18mm wrench. Check the spokes for breaks, the rim for bends, and the bearing for roughness. A wheel with severe damage can lock up the motor because the rotor and stator make contact inside the hub.

When the Problem Is Deeper (Motor or Controller Failure)

If the simple fixes above don't work, you're looking at component-level failure. The two main suspects are the motor controller and the motor itself.

The controller is the cheaper and easier replacement. It sits inside the deck and handles power delivery to the motor. A failed controller usually gives an E5 error code, or the motor simply doesn't respond at all despite a working battery and throttle.

Replacement controllers for the KQi2 Pro cost between $30 and $50, and swapping one requires basic screwdriver work.

The motor is a bigger job. A failed motor typically shows physical symptoms, grinding, seized rotation, or intermittent power that no connector reseating fixes. If the Hall effect sensors inside the motor fail, the motor may vibrate or stutter instead of spinning smoothly.

Replacement motor units run about $80 to $120 and require removing the rear wheel, swapping the entire hub assembly, and reconnecting the phase wires.

Before you order any parts, check your warranty status. NIU offers a one-year warranty on the KQi2 Pro for original owners. If your scooter is under warranty and the motor or controller has failed without physical damage or water ingress, NIU should cover the repair or replacement.

Contact their support through the app with your serial number and a clear description of the symptom.

Mistakes That Make the Problem Worse

Some well-intentioned fixes can turn a minor issue into a major repair. Avoid these common errors.

Forcing the wheel when it's seized. If the motor won't spin, don't apply brute force. You can snap internal wires or damage the stator. Instead, remove the wheel and diagnose the cause.

Opening the motor housing. The hub motor is sealed for a reason. Cracking it open without proper tools and experience can ruin the motor permanently. Leave internal motor repairs to a shop.

Ignoring error codes. The display tells you what's wrong. Skipping that step leads to guessing. Replacements based on guesses often cost time and money with no fix.

Using the wrong charger. A non-NIU charger can deliver incorrect voltage and damage the BMS or controller. Stick with the original charger.

Riding with a grinding noise. Every minute you ride with a bad bearing or foreign object grinds away at internal components. Stop immediately to avoid a full motor replacement.

Repair vs. Replace: Making the Right Call

You have three options when the motor or controller fails: repair under warranty, pay out of pocket for a replacement part, or upgrade to a different scooter.

Under warranty: If your KQi2 Pro is less than a year old and hasn't been physically damaged or ridden in salt water, file a warranty claim. NIU will typically send a replacement controller or motor. This is the most cost-effective path.

Out-of-pocket repair: If the warranty is expired, a controller replacement costs $30 to $50. A motor replacement costs $80 to $120. Both are doable with basic tools and a YouTube tutorial.

Factor in an hour or two of your time.

Upgrade: If the scooter has other issues like a worn battery or cracked deck, it may not be worth fixing. A new KQi2 Pro costs around $500 as of 2026. Compare that to a $120 motor plus labor.

Sometimes it's smarter to buy a new unit.

Our recommendation: if the repair cost is under half the price of a new scooter and the rest of the scooter is in good shape, fix it. If the scooter is aging or has multiple problems, consider a replacement.

Frequently Asked Questions

Can I ride with a grinding noise?

No. Stop immediately. A grinding noise means metal-on-metal contact inside the motor.

Continuing to ride will destroy the bearings and potentially seize the wheel.

Will water damage void my warranty?

Yes. NIU's warranty does not cover water damage. The IP54 rating is for splash resistance, not immersion.

Riding through deep puddles or storing the scooter in rain can void coverage.

Does the NIU app fix motor problems?

Sometimes. The app can update firmware that fixes throttle calibration or motor engagement bugs. It cannot fix a blown controller or a seized bearing.

Start with an app check, but don't expect miracles.

How long should the motor last?

Under normal use, the hub motor on a KQi2 Pro should last 2,000 to 3,000 miles. Bearings may wear sooner, and controllers can fail from heat stress. Regular maintenance and avoiding water exposure extend the lifespan.

Can I replace the motor myself?

Yes, if you have basic mechanical skills. You need an 18mm wrench, a set of Allen keys, and a replacement motor. The job takes about an hour.

Watch a few tutorials first to avoid common mistakes.

What does error code E1 mean?

E1 means a motor fault. It can indicate a broken phase wire, a failed Hall sensor, or a short circuit inside the motor. Start by checking the connectors, then test with a multimeter.

If that doesn't work, the motor likely needs replacement.
