Razor A4 Rear Wheel Problem

Image source: Bing (Web (fair-use with source credit))

The Razor A4 scooter is a blast for getting around, but a wobbly or stiff rear wheel can quickly turn that fun into a frustrating ride. Addressing a Razor A4 rear wheel problem doesn't have to be a huge headache. We've broken down the most common issues and how to tackle them yourself.

Most rear wheel problems boil down to a few key culprits: loose hardware, worn-out bearings, or a damaged wheel itself. Manufacturer specifications for the A4 often indicate standard 608 bearings, which are common across many scooters and skateboards. Let's figure out what's going on with your wheel so you can get back to cruising smoothly.

Diagnosing Your Razor A4 Rear Wheel Wobble

When that rear wheel starts to feel off, the first step is figuring out why. A wobble or looseness usually points to a few specific issues. Is the wheel just a bit loose, or is it genuinely uneven?

Does it feel stiff and hard to turn, or does it spin freely but still wobble? Asking yourself these questions helps narrow down the possibilities considerably. We’ll walk through the most likely scenarios.

• Loose Axle Bolt/Nut: This is the most frequent offender. Over time, vibrations from riding can loosen the bolt or nut that holds the wheel to the scooter. If it's loose, the whole wheel assembly can shift, causing wobble.
• Worn or Damaged Bearings: Scooter wheels use bearings to allow them to spin smoothly. If these bearings are dirty, corroded, or have simply worn out, they won't allow the wheel to rotate freely. This can cause stiffness, grinding noises, and even a wobbly sensation if one bearing is much worse than the other.
• Bent Axle or Wheel Hub: Less common, but possible, especially after a hard impact. If the axle bolt itself is bent, the wheel won't sit straight. Similarly, if the plastic or metal hub of the wheel is deformed, it can lead to uneven spinning and wobble.
• Debris in the Wheel Assembly: Small rocks, dirt, or other debris can get lodged between the wheel and the frame, or within the bearing assembly, causing friction and a less-than-smooth roll.

Is It the Wheel, Bearings, or Axle?

Pinpointing the exact cause is crucial for fixing your Razor A4 rear wheel problem efficiently. Think of it like a detective case for your scooter. You need to examine the evidence to determine the culprit.

This diagnostic phase saves you from replacing parts you don't need to.

• Spin Test: Lift the rear wheel off the ground. Give it a good spin.
  • Spins freely and quietly but still wobbles: Likely a loose axle or a bent axle/hub.
  • Spins slowly, feels gritty, or makes grinding noises: This strongly suggests worn or dirty bearings.
  • Doesn't spin at all, or barely moves: Check for obvious debris or a severely damaged bearing/axle.
• Visual Inspection:
  • Axle Bolt/Nut: Is it visible and appears secure? Can you wiggle the wheel side-to-side when the scooter is stationary?
  • Wheel Tread: Look for uneven wear patterns, cuts, or chunks missing from the urethane tire.
  • Bearings: Can you see dirt or damage around the bearing seals?
• Wiggle Test: With the scooter on its side or upside down, try to wiggle the rear wheel from side to side. Excessive play indicates a loose axle or worn bearings.

How to Check the Axle and Bearings

To get a closer look, you’ll need a tool, typically an Allen wrench that fits your scooter's axle bolt. For most Razor scooters, this is a 5mm Allen wrench.

1. Locate the Axle Bolt: It's at the center of the rear wheel.
2. Check for Tightness: Try to tighten it. If it turns easily and feels loose, that’s your problem.
3. Remove the Wheel (if necessary): For a thorough bearing check, you might need to remove the wheel entirely. Loosen and remove the axle bolt. The wheel should slide off. If it's stuck, it might be due to the bearings being too tight or debris.
4. Inspect Bearings: Once the wheel is off, you’ll see the bearings on either side of the wheel hub. Can you see dirt packed in? Do they feel rough when you try to spin them with your finger?

Quick Fixes: Tightening and Cleaning

Often, the most common Razor A4 rear wheel problem, a loose or slightly wobbly wheel, can be solved with simple tightening and cleaning. These are quick wins that can get you back on the road without needing to buy new parts. It’s always best to try these simple solutions first before moving on to more involved repairs.

Tightening the Axle

If your spin test or wiggle test indicated looseness, tightening the axle is your first move.

• Tools Needed: A 5mm Allen wrench is typically required for Razor scooters.
• The Process:
  1. Locate the axle bolt on the outside of the rear wheel.
  2. Insert the Allen wrench and turn it clockwise.
  3. Tighten it until the wheel is snug. You don't want it so tight that the wheel can't spin freely, but you also don't want any side-to-side play.
  4. Spin the wheel again to ensure it rotates smoothly. If it feels stiff after tightening, you may have over-tightened it or there's another issue.

Cleaning Debris

Sometimes, a stiff wheel or a slight rubbing noise is just a bit of dirt or debris causing trouble.

• Tools Needed: A brush (an old toothbrush works well), a damp cloth, and possibly a can of compressed air.
• The Process:
  1. If the wheel is loose enough to wiggle out slightly without full removal, try cleaning around the outside of the bearings and the inside of the wheel hub.
  2. Use the brush to dislodge any visible dirt, sand, or grime.
  3. Wipe down the area with a damp cloth.
  4. For tougher grime, compressed air can help blow debris out from around the bearing seals.
  5. If you removed the wheel, clean the axle bolt and the inside of the wheel hub thoroughly.

Important Note: Avoid spraying lubricants like WD-40 directly into scooter bearings unless you plan to clean and re-lube them properly afterward. Many lubricants attract dust, which can worsen bearing performance over time.

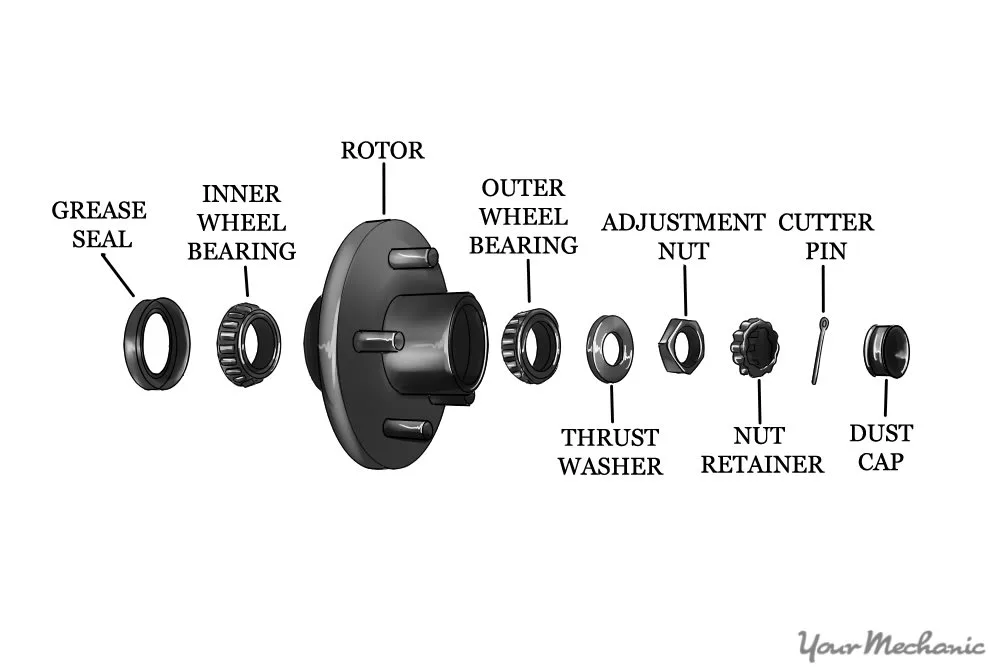

When Bearings Need Replacing

If tightening the axle and basic cleaning didn't solve your Razor A4 rear wheel problem, the bearings are likely the next suspect. Worn-out bearings can cause a variety of issues, from a wheel that rolls like it’s stuck in molasses to a disconcerting grinding sound when you ride. Thankfully, replacing them is a common and manageable repair.

Bearings, often standard 608 size (22mm outer diameter, 8mm inner diameter, 7mm width), are what allow your wheel to spin on the axle. Over time, they can accumulate dirt, get water damage, or simply wear down from use. You'll know they need replacing if the wheel:

• Spins poorly: It stops quickly, feels rough, or makes a grinding noise.
• Has excessive side-to-side play: Even with the axle tight, the wheel feels loose.
• Shows visible damage or rust: Corrosion or nicks on the bearing races or balls are bad signs.

Image source: Bing (Web (fair-use with source credit))

How to Replace Razor A4 Wheel Bearings

Replacing bearings involves carefully removing the old ones and installing new ones.

Tools You'll Likely Need:

• 5mm Allen wrench (for the axle)
• Bearing puller or a substitute method (like a vise and socket, or a sturdy screwdriver handle)
• New 608 bearings (ensure they are for scooters/skateboards)
• Optional: bearing lubricant, bearing press (or use the vise method)

Step-by-Step Guide:

1. Remove the Rear Wheel: Loosen and remove the axle bolt with your 5mm Allen wrench. Slide the wheel off the axle.
2. Remove Old Bearings:
   • Using a Bearing Puller: This is the cleanest method. Place the puller into the bearing and leverage it out.
   • Using a Vise and Socket: Place the wheel on its side. Position a socket (that fits snugly around the bearing's outer race but not the inner core) against one bearing. Carefully lower the wheel in a vise so the socket rests on a stable surface and the wheel is held securely. Slowly close the vise, pressing the bearing out of the wheel hub. Repeat for the other side.
   • Using a Screwdriver: Sometimes, you can carefully pry old bearings out with a sturdy flathead screwdriver, working your way around the edge. Be cautious not to damage the wheel hub.
3. Clean the Wheel Hub: Once the old bearings are out, clean any dirt or debris from inside the wheel hub and the channels where the bearings sit. A clean surface helps the new bearings seat properly.
4. Install New Bearings:
   • Method 1 (Pressing by Hand): Align a new bearing with the opening in the wheel hub. Press it in firmly and evenly with your thumbs until it sits flush. Repeat for the other side.
   • Method 2 (Using a Vise): Place the new bearing over the wheel hub opening. Use a socket that fits the bearing's outer race. Carefully place the wheel in a vise, so the bearing is supported. Slowly close the vise, pressing the bearing into the hub until it's fully seated. Repeat for the other side.
   • Method 3 (Using a Bearing Press): Follow the instructions for your specific bearing press tool.
5. Reinstall Spacers (if applicable): If your A4 uses a spacer between the bearings, make sure to put it back in place before installing the second bearing.
6. Reinstall the Wheel: Slide the wheel back onto the axle, ensuring the bearings are properly seated on the axle. Reinsert and tighten the axle bolt.
7. Test the Spin: Spin the wheel to ensure it rolls smoothly and quietly. You've successfully replaced your bearings!

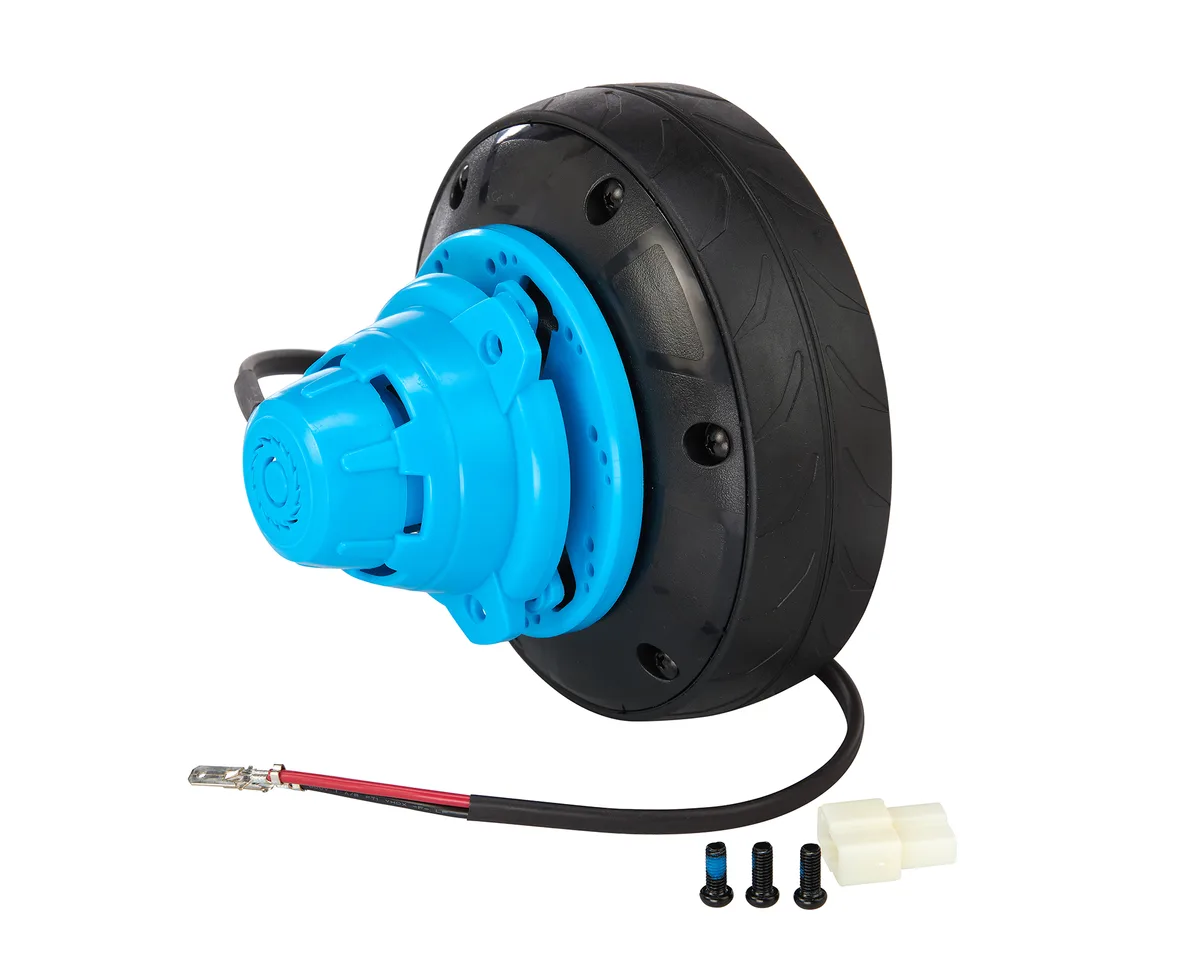

Replacing the Entire Rear Wheel Assembly

Sometimes, the damage goes beyond the bearings. If your Razor A4 rear wheel problem involves a visibly bent wheel, a deeply gouged tire, or a damaged wheel hub that won't let bearings seat correctly, it’s time to swap out the whole assembly. This is often more straightforward than bearing replacement, especially if you can find a complete wheel unit.

A complete rear wheel assembly typically includes the wheel, the urethane tire, the hub, and often the bearings already installed. This is a great option if you're not comfortable with bearing removal and installation, or if the existing wheel is beyond repair.

Image source: Bing (Web (fair-use with source credit))

Choosing the Right Replacement Wheel

When you need a new rear wheel for your Razor A4, make sure you get the right one. The Razor A4 typically uses a 125mm urethane wheel. Always double-check the specifications if possible, as different Razor models can have slightly different wheel sizes.

Key things to look for in a replacement:

• Size: Confirm it's a 125mm wheel.
• Bearings: Does it come with bearings pre-installed? If not, you’ll need to buy standard 608 bearings separately.
• Material: Most Razor A4 wheels are urethane for grip and durability.
• Compatibility: Ensure it's listed as compatible with the Razor A4 scooter or similar Razor models if an exact match isn't available. You can find compatible parts on the official Razor USA website.

Where to Find Replacement Parts:

• Official Razor Parts: The manufacturer's website is the most reliable place to get genuine parts.
• Reputable Online Retailers: Many online stores that sell scooters and scooter parts offer compatible replacements.
• Specialty Scooter Shops: Local brick-and-mortar shops might carry replacement wheels or be able to order them for you.

Steps to Replace the Wheel Assembly:

1. Gather Your Tools: You'll likely need a 5mm Allen wrench. If the replacement wheel doesn't come with bearings, you'll also need a bearing puller and press, or the vise method described earlier.
2. Remove the Old Wheel: Use the Allen wrench to loosen and remove the axle bolt. Slide the old wheel assembly off the scooter.
3. Prepare the New Wheel: If the new wheel doesn't come with bearings pre-installed, you'll need to install them first using the methods described in the "When Bearings Need Replacing" section. Make sure any required spacers are also in place.
4. Install the New Wheel: Slide the new wheel assembly onto the axle. Ensure it's oriented correctly and sits flush against the frame or any existing spacers.
5. Secure the Axle: Reinsert the axle bolt and tighten it firmly with the Allen wrench. Again, ensure the wheel spins freely without excessive side-to-side play.
6. Test Ride: Give the scooter a gentle push to confirm the new rear wheel is rolling smoothly and without wobbles.

Common Mistakes When Fixing Your A4 Rear Wheel

When you're trying to sort out a Razor A4 rear wheel problem, it's easy to make a few slip-ups. Knowing what to avoid can save you time, frustration, and prevent further damage. These are some of the more common errors editorial analysis of user feedback reports.

Over-Tightening the Axle

This is probably the most frequent mistake. You feel that wobble, you grab your Allen wrench, and you crank that bolt down as hard as you can. While it might seem like a good idea to make things super secure, over-tightening the axle bolt crushes the bearings.

This causes them to bind up, making the wheel spin poorly, feel stiff, and potentially leading to premature bearing failure.

• What to do instead: Tighten the bolt until there's no side-to-side play, but the wheel can still spin freely when you give it a good flick. It should feel snug, not forced.

Using the Wrong Lubricant (or Too Much)

Many people reach for WD-40 or similar penetrating oils when they think of lubricating. While these can help loosen seized parts, they're often not ideal for bearings. They can wash away the grease that bearings need and attract dirt and grit, which then acts like sandpaper inside the bearing.

• What to do instead: For bearings, use a specialized skate or bearing lubricant. If you're just cleaning debris, a dry brush and cloth are usually enough. If you've removed bearings for cleaning, allow them to dry completely before re-lubing and reinstalling.

Forcing Damaged Parts

If your axle bolt is noticeably bent, or the wheel hub is cracked or deformed, trying to force them back into place rarely works and can cause more damage. A bent axle won't allow the wheel to spin true, and a cracked hub compromises the entire wheel's integrity.

• What to do instead: Recognize when a part is too far gone. Order replacement parts that match the original specifications. For the Razor A4, this means getting the correct size wheel or a new axle if it’s bent.

Not Replacing Bearings in Pairs

When one bearing starts to fail, the other is often not far behind. Replacing just one bearing can lead to uneven wear and potentially throw off the wheel's balance, even if the new one spins smoothly.

• What to do instead: Always replace both bearings in a wheel at the same time. They are inexpensive, and it ensures consistent performance and longevity for the wheel assembly. If you're buying a new complete wheel, it should come with bearings already installed.

Frequently Asked Questions

How long does it take to fix a wobbly rear wheel?

Most quick fixes, like tightening an axle or cleaning debris, take about 5-10 minutes. Replacing bearings or the entire wheel assembly might take 20-30 minutes, depending on your comfort level with tools and the specific scooter.

Do I need special tools to fix the rear wheel?

Typically, you'll need a 5mm Allen wrench for the axle bolt. For bearing replacement, a bearing puller and press are ideal, but you can often get by with a vise and socket or a sturdy screwdriver.

Can I ride my scooter with a wobbly rear wheel?

It’s not recommended. A wobbly rear wheel can make steering difficult, cause uneven tire wear, and potentially lead to a loss of control or further damage to the scooter's components. It's best to address the problem promptly.

Where can I buy replacement parts for my Razor A4?

You can often find replacement parts like wheels and bearings on the official Razor USA website, as well as through various online retailers specializing in scooter parts. Ensure you're purchasing parts compatible with the Razor A4 model.

How often should I check my scooter's wheels?

It’s a good idea to give your scooter's wheels a quick visual check before each ride, looking for obvious issues. A more thorough check of the axle tightness and bearing spin can be done monthly or after significant use. Proper maintenance helps prevent common Razor A4 rear wheel problems.
