Razor A5 Handlebar Wobbling

Razor A5 handlebar wobbling is one of the most common complaints among scooter owners. It turns a smooth commute into a shaky, nerve-wracking ride. The good news is that most wobbles trace back to two specific areas you can diagnose with your eyes and hands alone.

The Razor A5 uses a 125mm wheel setup and a folding mechanism with multiple bolt points. These can loosen over time, especially on rough pavement. As of 2026, Razor still lists routine bolt checks in the A5 owner's manual as the primary maintenance recommendation.

Image source: Bing (Web (fair-use with source credit))

Why Visual Diagnosis Is the Only Way to Fix This

Telling someone to "just tighten everything" wastes time if you don't know what's actually loose. The A5 has two main areas that create handlebar wobble: the headset bearings at the top of the fork and the folding joint lower down the column.

Visual diagnosis means watching where the movement happens. Is the entire handlebar assembly rocking forward and backward? Or does the shake go side to side only when you grip the bars?

The direction of movement tells you exactly which bolts need attention.

Skipping this step leads to over-tightening the wrong parts. That can strip threads in the aluminum frame or damage bearings prematurely. Taking two minutes to look saves you real money and frustration.

Image source: Bing (Web (fair-use with source credit))

Start by placing the scooter on a flat surface. Squeeze the front brake lever firmly. Now try rocking the handlebars toward you and away from you.

This isolates the headset. Next, hold the handlebar and wiggle it side to side. This tests the folding mechanism's lateral stability.

A close visual inspection also reveals wear you can't feel yet. Look for rust on bolt threads, cracks near the folding mechanism's housing, or grease that has turned gritty and dark. These signs mean parts may need replacement, not just tightening.

Aggregate repair reports from scooter technicians consistently point to headset looseness as the number one cause of this issue.

Step 1: The Visual Wobble Test to Pinpoint the Problem

This systematic test takes two minutes and separates three distinct issues: headset play, clamp looseness, and folding joint instability.

Isolate the headset wobble:

• Place the front wheel between your feet to hold it steady.
• Grip both handlebar grips firmly.
• Pull the handlebar toward your body, then push it away.
• Visual Cue: If you see a gap open between the headset top cap and the stem, or hear a clunk, the headset is loose.

Test the handlebar clamp:

• Keep the wheel secure between your feet.
• Grip one handlebar and try to twist it independently of the steering column.
• Visual Cue: If the bar rotates before the wheel turns, those clamp bolts need attention.

Examine the folding joint:

• Unlock the folding mechanism as if you're about to fold the scooter.
• Grip the handlebar and push it side to side.
• Visual Cue: Any lateral movement at the pivot point means a loose joint bolt or worn bushing.

Most wobbles originate at the headset, so checking there first is a smart move. For general scooter troubleshooting techniques, our Segway ZT3 Pro repair guide covers similar diagnostic principles.

Step 2: Headset versus Folding Joint, A Visual Comparison

These two assemblies look different and need different fixes. Confusing them is the most common DIY mistake on the Razor A5.

If movement happens at the very top where the stem meets the deck, focus on the headset. If the shake occurs at the hinge point, you're dealing with the folding joint. Use this table to confirm your diagnosis before picking up a wrench.

Step 3: A Visual Walkthrough of the Tightening Sequence

The order you tighten things matters. Doing it wrong can strip threads or leave the whole assembly loose anyway.

Tools you need:

• 4mm, 5mm, and 6mm Allen keys (check your specific A5 model)
• An adjustable wrench for the folding joint nut

Headset tightening, step by step:

1. Loosen the stem clamp bolts first. These are the two side bolts that attach the handlebar stem to the fork's steerer tube. You can't adjust the headset properly with these tight.
2. Adjust the top cap bolt. This single bolt sits on top of the stem. Turn it clockwise in small quarter-turns. You're compressing the headset bearings.
3. Check for play after each turn. Repeat the forward-and-backward wobble test from Step 1. Stop when the clunking disappears but the steering still spins freely. Over-tightening causes binding and kills bearing life fast.
4. Re-tighten the stem clamp bolts evenly. Alternate between the two bolts to ensure even pressure. This locks your adjustment in place.

For a stuck rear wheel situation, similar methodical tightening principles apply to other scooter and bike components. For the folding joint, locate the main pivot bolt and tighten it with your wrench until lateral play disappears but the joint still folds smoothly when unlocked.

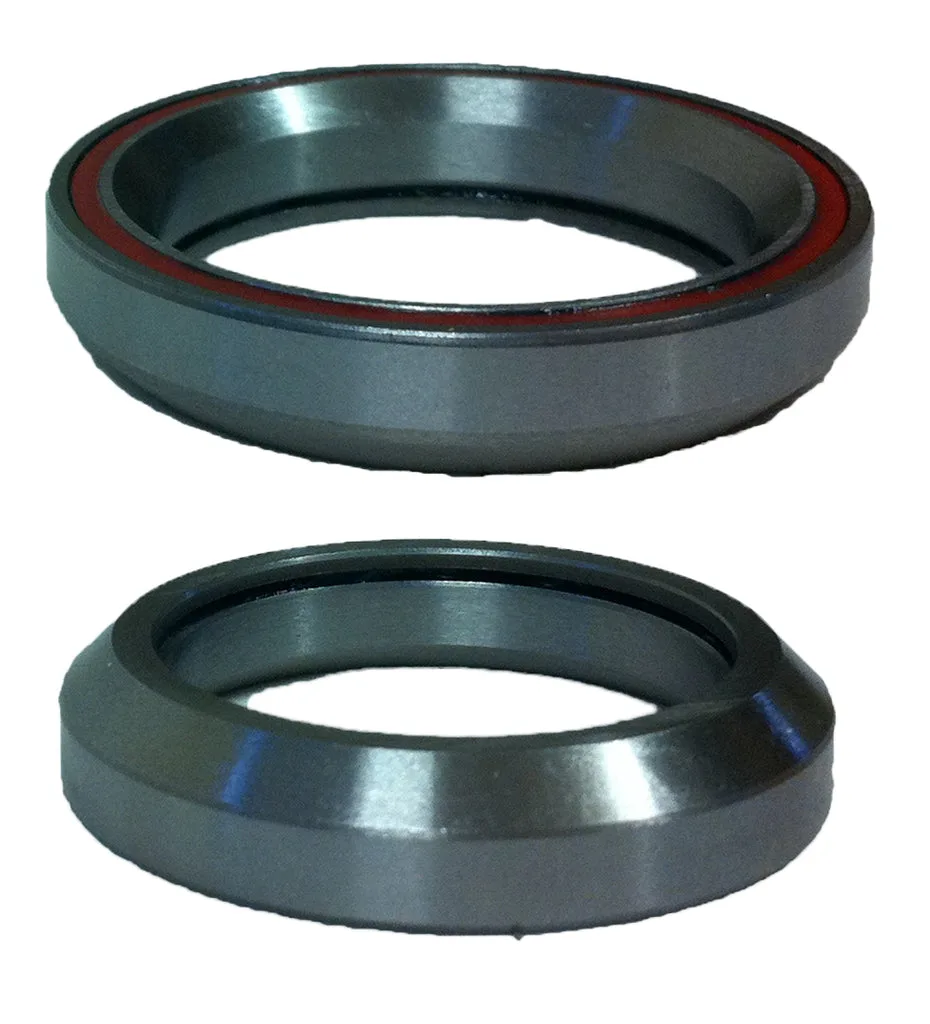

Step 4: Identifying Worn Bearings by Sight and Feel

Sometimes tightening doesn't help because the bearings themselves are damaged. You can often spot the problem before taking anything apart.

Visual signs of bearing failure:

• Rust or corrosion: Reddish-brown stains on the bearing races or ball surfaces.
• Pitting: Tiny dents visible on the smooth bearing surfaces under good light.
• Gritty grease: Old lubricant mixed with black or brown particles.

Image source: Bing (Web (fair-use with source credit))

The notched steering test:

Lift the front wheel off the ground. Slowly turn the handlebars from lock to lock. A healthy headset feels smooth throughout.

If you feel or hear distinct clicks or notches as the bars turn, the bearing cups have developed flat spots.

Notched bearings need full replacement. Riding on them accelerates wear on every other steering component. Per ASTM F2264, the consumer safety standard for non-powered scooters, steering assemblies must operate without perceptible play or binding.

Worn bearings violate this requirement.

If you spot rust or feel notching, stop riding the scooter until parts arrive. For guidance on bent brake components from similar impact damage, we cover inspection techniques that transfer well to scooter forks.

When to Stop DIY: Visual Signs You Need a Shop

Some damage goes beyond what a wrench and Allen key can fix. Continuing to ride can be dangerous.

Cracks in the frame or housing: Inspect the folding mechanism and fork crown under bright light. Any visible cracks in the alloy mean the component must be replaced. Do not attempt to weld or patch cracked structural parts.

A bent steering column: View the scooter head-on from the front. The steering column should be perfectly straight. Any visible bend means it was compromised in a fall.

A bent column cannot be safely straightened and will always cause wobble.

Stripped threads: If bolts spin freely without increasing resistance, the threads are gone. This is common on the folding joint bolt in the aluminum frame. Repairing stripped aluminum threads usually requires a helicoil insert or full component replacement.

That's a job for a bike or scooter shop.

Persistent wobble after correct adjustment: If your visual check confirms tight clamps and a properly adjusted top cap but the shake remains, the internal headset cups may be deformed or seated crookedly. This requires specialized press tools to fix. For more on rider safety fundamentals, our beginner safety guide covers why mechanical integrity matters so much.

Frequently Asked Questions

Can I ride my Razor A5 with a wobbly handlebar?

No. A wobbly handlebar signals a loss of structural integrity in the steering assembly. This can lead to a complete loss of control, especially at speed or on uneven ground.

Stop riding and diagnose the issue right away to prevent a fall.

What size Allen key do I need for a Razor A5?

Most Razor A5 models use 4mm, 5mm, and 6mm Allen keys. The top cap bolt is typically 5mm, while the stem clamp bolts are often 4mm. Always check your specific model, since hardware varies by production year.

How often should I check my scooter's headset for tightness?

A quick wobble check should happen before every ride, just like checking your brakes. For a full tightening inspection, monthly is reasonable for regular riders. Also check any time you notice the first clunk or shake.

Is handlebar wobbling covered under Razor's warranty?

It depends on the cause and your purchase date. Wobble from normal wear or skipped maintenance is typically not covered. Frame cracks or defects in the folding mechanism might be.

Contact Razor support with your serial number to find out.

Can I replace the headset bearings myself?

Yes, but it requires a headset press tool for proper installation. Most riders find it more practical to visit a scooter or bike shop. If you're comfortable with hands-on repairs and own the right tools, replacement bearing sets for the Razor A5 are available online.

Should I use thread locker on the bolts?

A medium-strength thread locker like Loctite Blue 242 can help prevent future loosening, especially on the stem clamp bolts. Apply a small amount to the threads before tightening. Avoid high-strength formulas, since you'll want to remove these bolts again for future maintenance.
