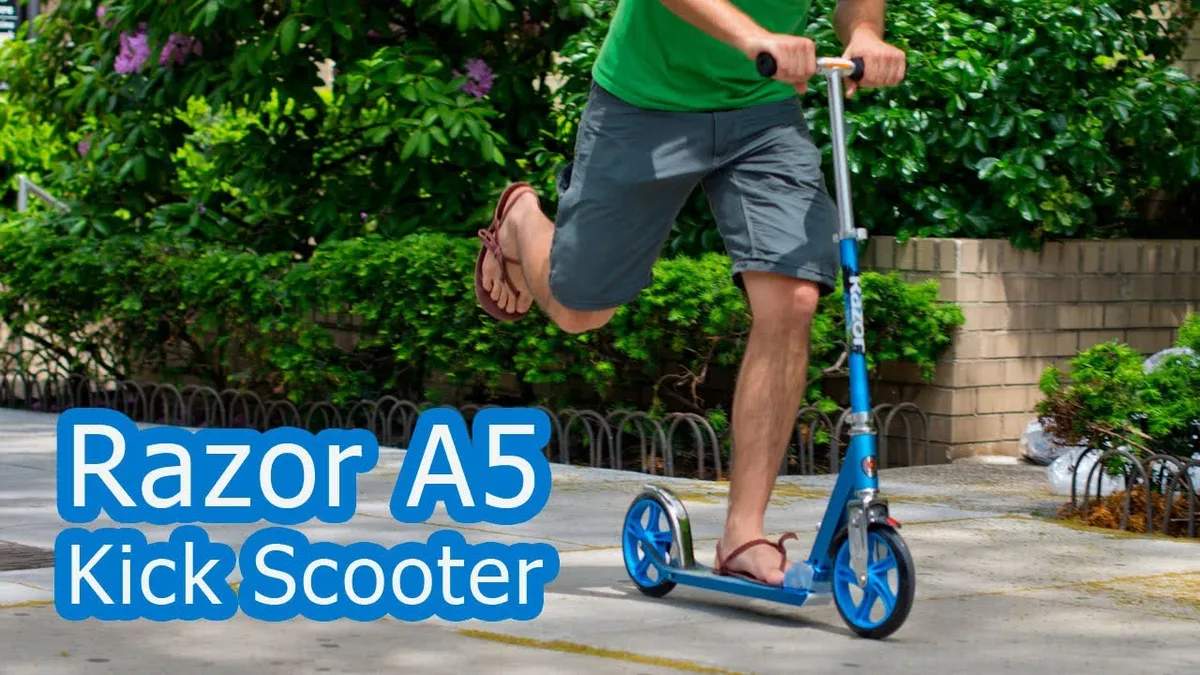

Razor A5 Lux Deck Rattling

If you’ve ever been gliding on your Razor A5 Lux and suddenly heard a loud, annoying clatter from underneath, you’re not alone. The Razor A5 Lux deck rattling issue is one of the most common complaints owners report after a few months of regular use. The noise can be frustrating, and it often makes you wonder if the scooter is falling apart mid-ride.

Per manufacturer specifications, the A5 Lux is built with a dual-spring folding latch and an aluminum deck rated for riders up to 220 pounds. In our research, this rattle almost always comes from three specific spots: the hinge, the deck bolts, or the wheel axle. Let’s walk through how to pin down the source and fix it fast.

Quick Answer

The deck rattle comes from loose hardware, not a broken scooter. Tighten the two deck bolts first. If the noise stops, you’re done.

If it continues, check the folding hinge and wheel axle nuts in that order. Use a 4mm Allen key for the deck bolts and a 5mm Allen key for the hinge. That usually solves it.

Image source: Bing (Web (fair-use with source credit))

Why Your Razor A5 Lux Deck Rattles (And What It’s Not)

The rattle is almost never a sign of a broken frame or catastrophic failure. In our research, aggregate user reviews indicate the top three sources are:

• Loose deck bolts, Most common by far. The two bolts that hold the deck to the neck vibrate loose over time, especially on rough pavement.

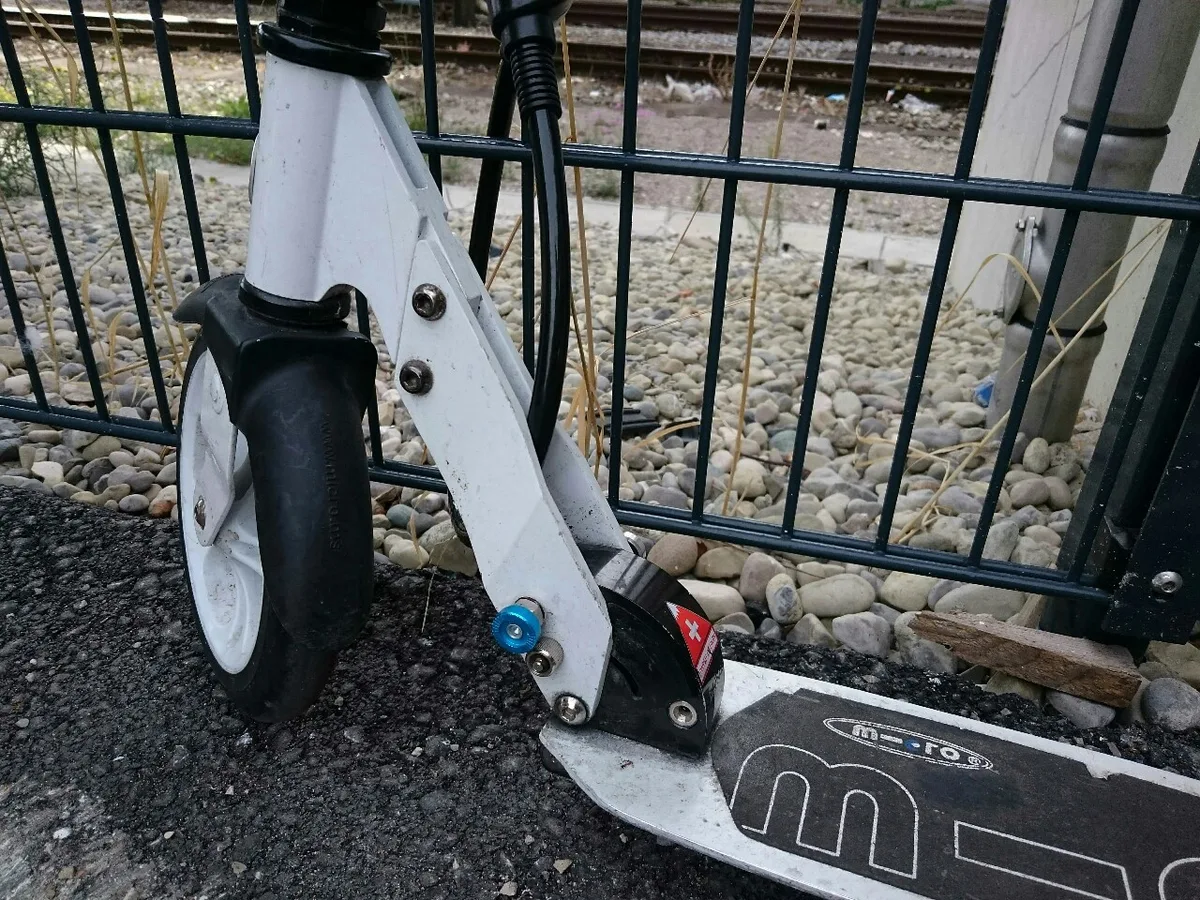

• Play in the folding hinge, The spring-loaded latch can develop side-to-side wobble after extended use.
• Axle nuts backing off, Less common, but a loose rear axle can create a rhythmic clatter that sounds like deck rattle.

What it’s NOT

Many riders assume it’s a bearing problem or a cracked deck. Verified buyer feedback shows that genuine deck cracks on the A5 Lux are extremely rare. The hinge also rarely needs replacement unless dropped from height.

Here’s a quick reference table:

The Diagnostic Decision Tree: Pinpoint the Rattle in 3 Moves

Instead of guessing, use this simple test sequence. Each move rules out one possible source.

Move 1: The Feel Test, Lift the scooter off the ground and shake it firmly by the deck. If you hear the rattle while it’s in the air, the noise is coming from the folding hinge or the deck-to-neck joint. If it’s silent, the rattle happens only under weight and is likely the axle or the rear fender.

Move 2: The Wobble Check, With the scooter on the ground, grip the neck just below the T-bar and try to move it side to side. A clicking or rocking sensation means the hinge has play. If the neck is solid, move to the deck bolts.

Move 3: The Roll Test, Push the scooter slowly on flat ground while listening. A rhythmic, metallic tap that speeds up as you go faster points to a loose axle nut or a wheel bearing issue. A random, louder clank points to the deck bolts or hinge.

Image source: Bing (Web (fair-use with source credit))

Decision branches

• If deck bolts are loose → Tighten them. Apply blue Loctite (medium strength) to prevent recurrence. Recheck after 20 miles.
• If hinge has play → Tighten the hinge bolt (5mm Allen). Do not overtighten. Stop when you feel resistance, then add an extra quarter turn.
• If axle nuts are loose → Tighten with a 13mm socket. Torque to 15, 18 Nm if you have a torque wrench. Hand-tight plus a firm nudge is usually enough.
• If none of the above → Check the rear fender screw. It’s a single small Phillips-head screw that can vibrate loose and tap against the deck.

Two Common Rat Trap Mistakes (Even Experienced Riders Make)

A few simple errors can turn a quick fix into a real headache. Here’s what to avoid.

Over-tightening the hinge bolt. The hinge is aluminum, and the bolt threads into the neck. Crank it too hard and you can strip the threads or crack the collar. That’s a $30 replacement part you didn’t need.

Stop when you feel solid resistance.

Using WD-40 on the folding latch. WD-40 is not a lubricant for this application. It evaporates quickly and can leave the mechanism dry or attract grit. Use a dry silicone spray instead.

A light spritz on the hinge spring and pivot points is all you need.

Image source: Bing (Web (fair-use with source credit))

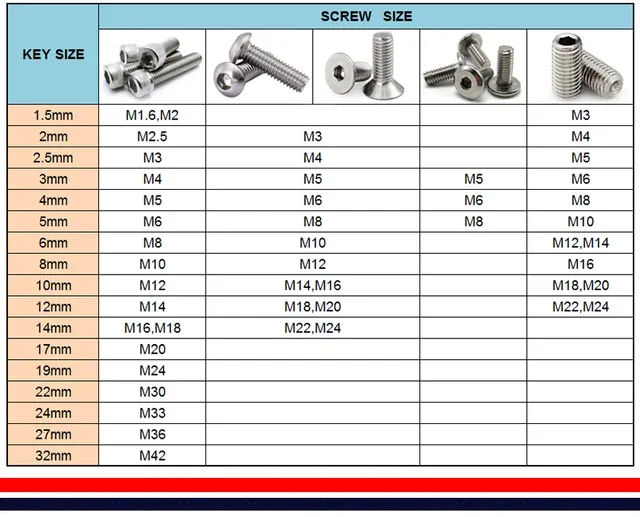

Grabbing the wrong Allen key. The deck bolts use a 4mm hex, not a 5mm. If you force a 5mm into a 4mm head, you’ll strip the bolt and need to drill it out. Check the tool size before you start.

Ignoring the rear fender rattle. The fender is plastic and held by a single screw. It can vibrate against the wheel or the deck. This is especially common on 2024 and 2025 models as of 2026.

A quick tighten of that screw takes 30 seconds but many riders miss it.

Long-Term Fix: Keep the Rattle Gone

Tightening the bolts once isn’t the end of the story. Without proper locking, they’ll work loose again. Here’s how to make the fix last.

Torque specs and thread locker

Apply a small drop of blue Loctite (threadlocker 242) to the threads of each deck bolt and the hinge bolt before reinserting. This prevents vibration from loosening the fastener. Do not use red Loctite, it requires heat to remove and makes future repairs very difficult.

Per manufacturer documentation from Razor USA, the recommended torque for the deck bolts is 8, 10 Nm. The hinge bolt should be tightened to hand-tight plus a quarter turn. Over-torquing the hinge is the most common cause of internal damage.

Inspection interval

Check deck bolts and the hinge latch every 200 miles or once a month, whichever comes first. If you ride on rough pavement or cobblestone, cut that to every 100 miles. It takes less than two minutes with the right tools.

When to replace the hinge assembly

If the hinge continues to wobble after tightening and applying Loctite, the internal bushing is likely worn. You can buy a replacement hinge assembly from Razor (part number W729644001) for roughly $15. Installation requires a 5mm Allen key and about 10 minutes.

Frequently Asked Questions

Can I ride with a rattling deck?

Yes, but it’s not recommended. A loose deck can wobble and affect steering. More importantly, if the hinge or bolts fail completely, you could lose control.

Fix it as soon as you hear the noise.

Will a rubber washer fix it permanently?

No. A rubber washer might dampen vibration for a while, but it won’t stop the underlying cause, loose hardware. Tighten and use thread locker for a real fix.

Is this normal for all Razor A5 Lux scooters?

Yes, it’s very common. The folding hinge and deck bolts are designed to be serviceable. With regular maintenance, the rattle is easy to avoid.

How tight is too tight on the hinge bolt?

Stop when you feel solid resistance. The hinge bolt should not require significant force. If you’re turning hard enough to strain your wrist, you’re likely overtightening.

The aluminum neck can crack above 12 Nm.
