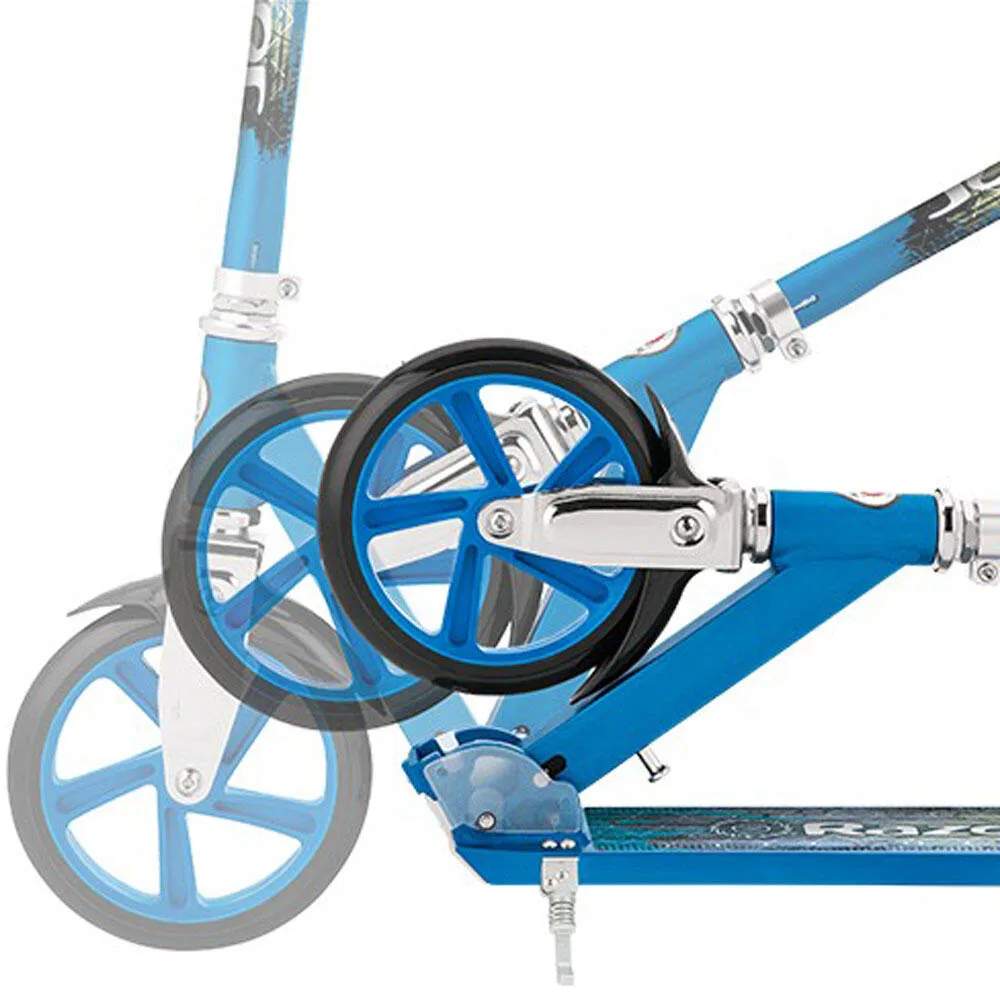

Razor A5 Lux Wheels Not Spinning

If your Razor A5 Lux wheels not spinning is the problem, you're probably dealing with one of three issues: seized bearings, an over-tightened axle, or a dragging brake. Each one has a straightforward fix that takes about 15 minutes with basic tools.

As of 2026, the Razor A5 Lux uses standard 608 bearings (8mm inner diameter, 22mm outer, 7mm wide). Per manufacturer specifications, the correct axle torque is hand-tight plus no more than a quarter turn with a wrench. Let's walk through the diagnosis and fixes.

Quick Answer

Your Razor A5 Lux wheel isn't spinning because of one of three causes: seized or rusted bearings, an axle nut that's too tight, or a brake disc that's rubbing. Start with the diagnosis below.

Image source: Bing (Web (fair-use with source credit))

Quick Diagnosis: Is It the Bearings, Brake, or Axle?

Is the wheel completely locked or just hard to spin?

If the wheel won't budge at all, check the brake first. Look at the rear disc brake caliper. If it's clamped tight against the disc, you've found the problem.

A simple caliper realignment usually fixes this.

If the wheel spins but feels gritty or rough, the bearings are the culprit. You'll hear a grinding noise when you spin it by hand. This means dirt or moisture got past the bearing seals.

Replacement bearings cost about $5 per pair and take 10 minutes to swap.

If the wheel spins smoothly when the axle nut is loose but tightens up when you tighten it, the axle is pinching the bearings. This happens when the spacer setup is wrong or the nut is overtightened. Per the Razor owner's manual, the spacer order matters on both sides.

Image source: Bing (Web (fair-use with source credit))

Step-by-Step Fix for Each Problem

Once you know the cause, here's the fix.

For seized bearings:

1. Remove the wheel by loosening the axle nuts with a 13mm or 15mm wrench.
2. Remove the wheel and tap out the old bearings with a drift punch or a screwdriver (work from the opposite side).

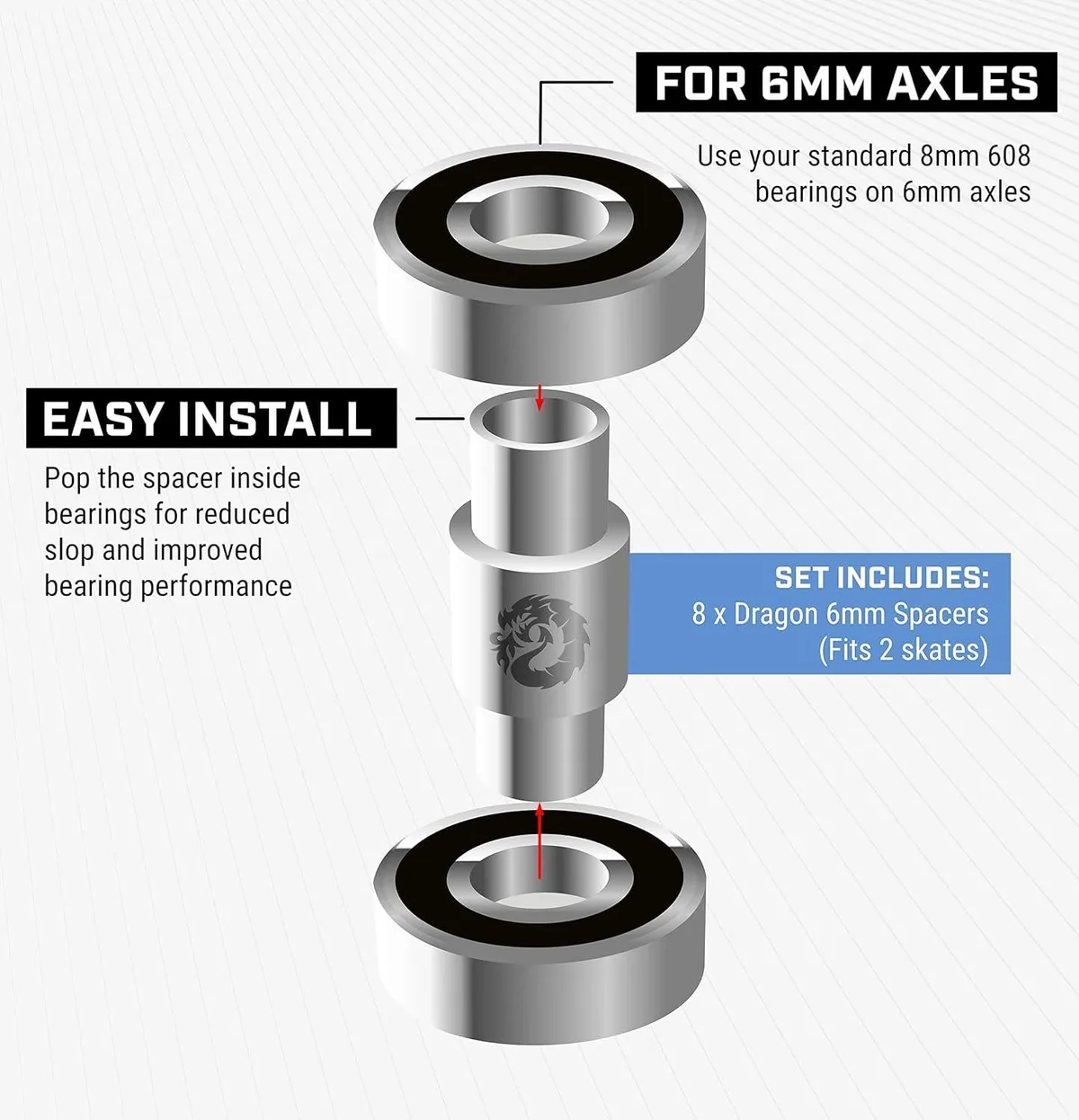

3. Press in new 608RS sealed bearings (sealed, not shielded). Sealed bearings keep dirt out better.
4. Reinstall the wheel with spacers in the correct order: spacer, bearing, wheel, bearing, spacer, washer, nut.

For a pinched axle:

1. Loosen the axle nut completely.
2. Spin the wheel to confirm it's free.
3. Retighten finger-tight, then add only a quarter turn with a wrench.
4. If the wheel drags again, add an extra thin washer between the bearing and the spacer.

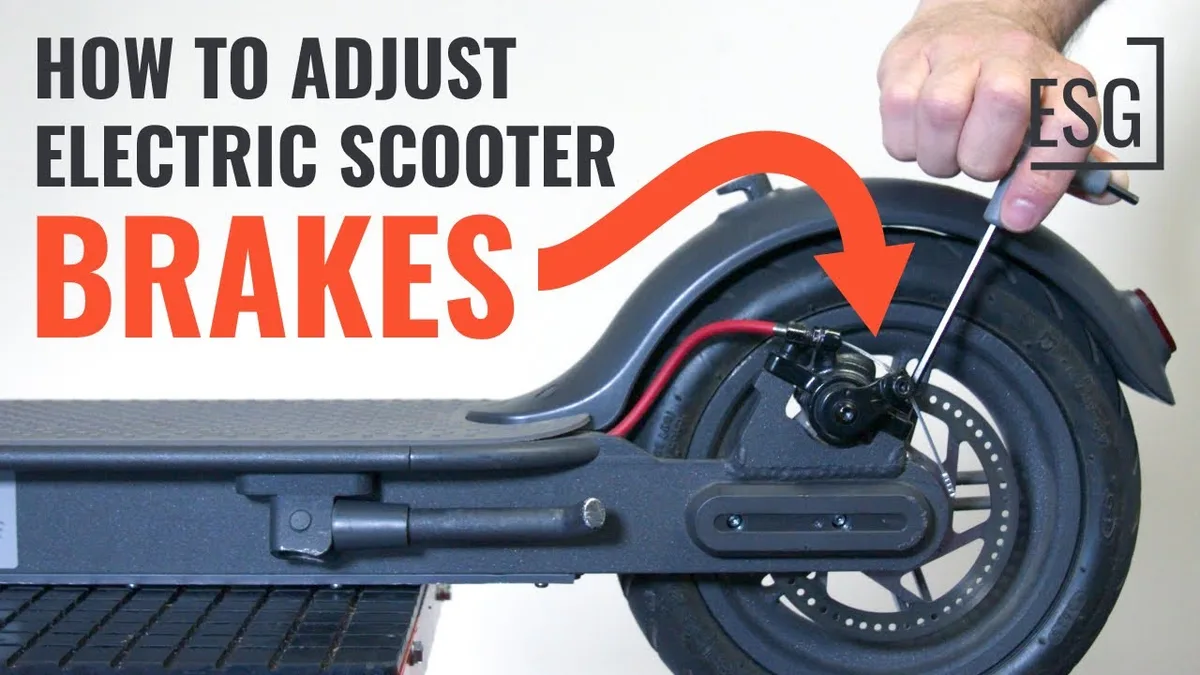

For a dragging brake:

1. Loosen the two bolts holding the brake caliper to the frame.
2. Spin the wheel with your hand to seat the caliper centered on the disc.
3. Squeeze the brake lever and hold it while you tighten the bolts.
4. Release the lever and check if the wheel spins freely.

Image source: Bing (Web (fair-use with source credit))

Common Mistakes That Make It Worse

Overtightening the axle nut is the number one mistake. Most people think "tight is better" and crank down hard. This crushes the bearing balls against the race and creates permanent drag.

Hand-tight plus a quarter turn is the rule for 8mm axles.

Using the wrong spacer order is another frequent error. If you put the spacer on the wrong side or skip it entirely, the bearing inner race gets pinched. The correct order is spacer first, then bearing, then wheel, then the opposite spacer.

Spraying WD-40 into seized bearings only makes things worse. WD-40 is a solvent, not a lubricant. It washes out whatever grease remains, leaving the bearings dry and even more prone to rust.

Use lithium grease or bearing-specific oil instead.

Neglecting the brake adjustment after a bearing swap is common. If the wheel spins freely off the scooter but drags when installed, the caliper is likely off-center. Realign it as described above.

When to Replace vs Repair

Seized bearings are almost always worth replacing rather than cleaning. A new set of 608RS bearings costs about $5 and takes 10 minutes. Cleaning old bearings rarely restores them to full smoothness.

Replace the entire wheel assembly only if the hub or disc mount is damaged. That happens if you hit a curb hard or run over something sharp. Otherwise, bearings, axle nuts, and brake adjustments cover 90 percent of wheel-spin problems on the Razor A5 Lux.

Frequently Asked Questions

How do I know if my Razor A5 Lux bearings are bad?

Spin the wheel by hand. If you feel grinding, hear a gritty sound, or notice uneven resistance, the bearings are failing. A smooth wheel should coast for several seconds after a firm spin.

If it stops immediately, inspect the bearings.

Can I use WD-40 on scooter bearings?

No. WD-40 is a solvent that dissolves existing grease. It leaves the bearings dry and prone to faster wear.

Use a light lithium grease or a bearing-specific lubricant instead. If bearings are already seized, replace them.

What size bearings does the Razor A5 Lux use?

The scooter uses two 608 bearings per wheel. That's an 8mm inner diameter, 22mm outer diameter, and 7mm width. Always buy sealed 608RS bearings rather than shielded 608Z.

Sealed ones block dirt and moisture much better.

Why does my wheel spin freely off the scooter but drag when installed?

That's almost always a brake alignment issue. When you bolt the wheel back on, the caliper shifts slightly off-center. Loosen the caliper bolts, spin and squeeze the brake lever, then retighten as described above.

How tight should the axle nut be?

Hand-tight plus a quarter turn with a wrench. No more. Over-tightening crushes the bearings and creates permanent drag.

If you've been cranking it down hard, that's likely your whole problem.

When should I replace the entire wheel instead of just the bearings?

Only if the hub is cracked, the disc mount is bent, or the axle threads are stripped. Those happen from hard impacts. For normal wear, replacing just the 608 bearings costs about $5 and restores smooth spinning.
