Razor E300 Charger Problem

So your Razor E300 won't charge. Maybe the light on the charger stays green the second you plug it in. Maybe there's no light at all.

Or the scooter ran fine yesterday and now it's dead. You're not alone. This Razor E300 charger problem is one of the most common issues owners run into.

The good news is it's usually something simple to fix.

The stock charger outputs 24 volts DC at 1.5 amps. That's designed to fill two sealed lead-acid batteries wired in series under the deck. But there's also a 15-amp glass fuse tucked in there.

That little fuse is the culprit more often than you'd think. Let's walk through what's really happening and how to fix it without wasting time or money.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The Razor E300 charger problem usually comes down to a blown 15-amp fuse. A dead battery pack is another common cause. A faulty charger is possible but less likely.

Check the fuse first. It costs about two dollars.

When Your Razor E300 Won't Charge — What's Actually Happening

The Razor E300 uses a straightforward electrical system. Two 12-volt SLA batteries sit under the deck connected in series. That gives you 24 volts total.

The charger plugs into a barrel jack on the side of the scooter. A 15-amp glass fuse protects everything from short circuits.

Here's the part most people miss. The power switch on the deck must be in the OFF position for the charger to work. If the switch is ON, the battery stays connected to the motor controller.

That can confuse the charger's sensing circuit. It's a small thing, but it trips up plenty of owners.

The charger has an indicator light. Red means it's actively charging. Green means the battery is full or the charger senses no load.

If you plug it in and get green immediately, something is preventing the charger from seeing the battery. That something is usually a broken connection. The fuse is the weakest link in that chain.

As of 2026, these scooters have been on the market for over a decade. Replacement parts are widely available. But you don't need to buy anything before you diagnose the problem.

The fix starts with observation and one cheap tool.

The 3-Question Diagnostic (Your Decision Tree)

You don't need to be an electrician to troubleshoot this scooter. You just need to follow a logical order. Skip around and you'll replace parts that were fine all along.

Stick to the sequence and you'll find the problem in under ten minutes.

Ask yourself three questions in this exact order:

1. What color is the charger light when I plug it in?
2. Does the scooter run at all?
3. Do I have a multimeter to test voltage?

Each answer points you down a different branch. Start with the charger light. It's free information.

No tools required. You plug the charger into the wall, plug it into the scooter, and look at the LED. That single observation eliminates about half the possible causes before you open the battery compartment.

Write down what you see. That's your starting point. Now let's walk through each branch one at a time.

Question 1: What Color Is Your Charger Light?

The charger light tells you whether the charger thinks it's connected to a good battery. Here's what each scenario means.

Green light immediately. This is the most common complaint. You plug it in and the light goes straight to green. But the scooter won't run.

That means the charger sees an open circuit. It's sending voltage but nothing is coming back. The fuse is the first thing to check.

A blown fuse breaks the circuit between the battery and the charger port. The charger reads that as a fully charged battery and shows green.

Red light stays red for hours. The charger is working. It's pumping current into the battery. But it never switches to green.

That means the battery is taking a charge but won't reach full voltage. This happens when one or both batteries have sulfated from sitting discharged too long. The charger keeps trying but the battery can't hold enough voltage to trigger the green light.

No light at all. The charger isn't getting power. Try a different wall outlet first. If that doesn't work, check if the charger itself is dead.

Plug it into the wall without connecting it to the scooter. A working charger shows a green light even when unplugged. If you get nothing, the charger is likely faulty.

Dim or flickering light. This points to a bad connection. The charging port on the scooter might have a bent pin. The plug end might have a broken wire inside the strain relief.

Or the fuse holder has corrosion. A dim light means the circuit is barely making contact.

Question 2: Does the Scooter Run at All?

This question narrows things down fast. The answer tells you whether the battery has any usable charge left.

If the scooter runs fine but won't charge. You have a charging circuit issue. The battery is good enough to power the motor. But something between the charging port and the battery is broken.

The fuse is the top suspect. A fuse can blow while you're riding if you hit a bump or overload the motor on a hill. The scooter keeps running on battery power until you drain it.

Then it won't recharge.

If the scooter doesn't run and won't charge. This is the worst case. You likely have dead batteries, a blown fuse, or both. A fuse that blows while riding leaves you stranded.

And if the batteries have been dead for months, they may be too sulfated to accept a charge even after you replace the fuse.

If the scooter runs a little then stops. This is a classic dead battery symptom. The battery shows voltage when sitting still but drops under load. The charger might even show red for a while.

But the battery can't sustain power. You'll need new batteries in this case.

Image source: Bing (Web (fair-use with source credit))

Question 3: Do You Have a Multimeter?

A multimeter turns guessing into knowing. You can pick one up for under twenty bucks at any hardware store. If you don't have one, this is the moment to get one.

It's the only tool you need to diagnose the entire system.

With a multimeter, you can test three things:

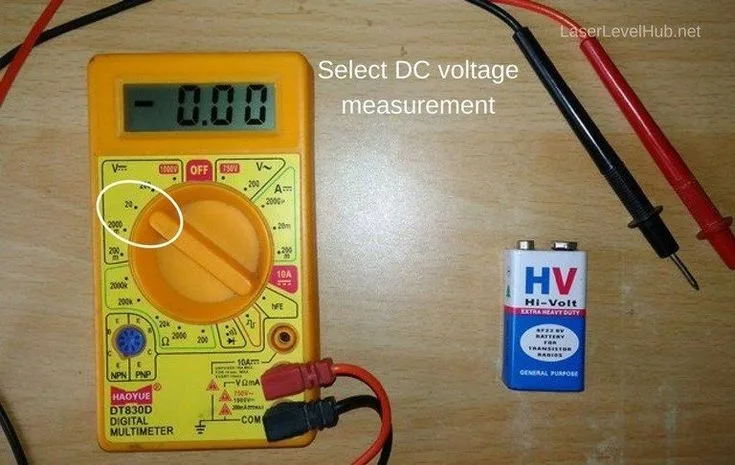

1. Battery voltage. Set the meter to DC volts in the 200V range. Probe the battery terminals directly. A fully charged pair should read between 25.2 and 26.4 volts. Below 20 volts means the batteries are deeply discharged or dead.

2. Charger output voltage. Unplug the charger from the scooter. Plug it into the wall. Set your meter to DC volts. Touch the probe tip to the center pin of the barrel plug and the other probe to the outer barrel. You should see around 24 volts. If you get zero, the charger is dead.

3. Fuse continuity. Remove the fuse from its holder. Set your meter to continuity mode or ohms. Touch the probes to both ends of the fuse. A good fuse shows near-zero resistance. A blown fuse shows infinite resistance or no continuity.

Image source: Bing (Web (fair-use with source credit))

Testing voltage at the charging port is also useful. With the scooter switch OFF, plug the charger in and measure voltage between the center pin and outer barrel inside the scooter's port. If you get 24 volts at the port but the battery shows lower voltage, the problem is between the port and the battery.

That's likely the fuse or a broken wire.

If you don't own a multimeter yet, check the official Razor USA support page for basic troubleshooting steps. They have downloadable manuals that show the wiring diagram. It's a good reference even if you're comfortable with tools.

The $2 Fix Everyone Misses: The Fuse

The 15-amp glass fuse is the most overlooked part on this scooter. Owners replace batteries and chargers before thinking to check it. But the fuse costs about two dollars and takes thirty seconds to swap.

Here's how to check it. Flip the scooter over. Remove the six screws on the bottom of the deck using a Phillips head screwdriver.

Lift the plastic cover. You'll see the battery pack and a small fuse holder clipped to one of the battery terminals. Pull the fuse out of the holder.

Look at the glass tube. A blown fuse often has a broken wire inside or a dark smudge on the glass. But sometimes the break is invisible to the naked eye.

That's why a multimeter continuity test is more reliable. If the fuse is blown, replace it with another 15-amp 3AG glass fuse. Don't use a higher amperage fuse.

That creates a fire hazard.

Why do fuses blow on the E300? The most common reason is sudden load. Hitting a big bump at full speed.

Riding up a steep hill. Or the battery being so dead that it draws high current the moment the charger connects. Some owners also blow fuses by turning the power switch ON while the charger is plugged in.

Replace the fuse. Test the scooter. Nine times out of ten, that's the end of the problem.

When It's Actually the Battery or Charger

If the fuse is good and the scooter still won't charge, the battery or charger is the problem. Here's how to tell which one.

Battery issues are more common. SLA batteries last about 300 to 500 charge cycles. That's roughly one to three years depending on use. Leaving them discharged for months causes sulfation.

The lead plates inside develop crystal buildup that prevents charging. Once that happens, no charger in the world will revive them.

To confirm bad batteries, check the voltage at the terminals. A reading below 20 volts with no load means they're too far gone. Replace both batteries at the same time.

Mixing an old battery with a new one creates imbalance that kills the new battery faster.

Charger failures happen less often. The stock charger is a simple wall adapter with no moving parts. When chargers fail, they usually stop outputting voltage entirely. A multimeter test confirms this instantly.

If you get zero volts from the charger plug, it's time for a replacement.

Stick with a 24-volt charger rated at 1.5 to 2 amps. That matches the original spec. Higher amp chargers can overheat the batteries.

Never use a 12-volt car battery charger. That can damage the scooter's electrical system.

Mistakes That Waste Your Money

These are the most common mistakes owners make when troubleshooting the E300 charger problem.

Replacing the battery before checking the fuse. This is the number one money waster. The fuse is two dollars. A battery pair costs forty to sixty dollars.

Check the fuse first.

Replacing the charger when the outlet was dead. Test the wall outlet with a phone charger or lamp before buying a new scooter charger. Dead outlets happen more than you'd think.

Replacing only one battery. SLA batteries wear as a pair. Replacing just one leaves you with a mismatched set. The new battery will overwork trying to compensate for the old one.

Both die faster.

Using the wrong charger. A 12-volt charger won't charge a 24-volt system. A high-amp charger can cook the batteries. A lithium battery charger can cause a fire risk with SLA batteries.

Stick to the spec.

Bypassing the fuse. Some owners wire around a blown fuse because they don't have a replacement. This removes all circuit protection. A short circuit can melt wires or start a fire.

Never do this.

Quick Reference Table: Symptom → Cause → Fix

Frequently Asked Questions

Why does my Razor E300 charger light stay green?

The charger light stays green when it sees an open circuit. That usually means the 15-amp fuse is blown. Check the fuse before buying new batteries or a new charger.

It's the most common cause.

Can I charge my Razor E300 with a 12-volt charger?

No. The E300 uses a 24-volt system with two 12-volt batteries in series. A 12-volt charger won't supply enough voltage.

It won't charge the batteries and could damage the charger port.

How do I know if my Razor E300 battery is dead?

Test the voltage at the battery terminals with a multimeter. A fully charged pair reads 25.2 to 26.4 volts. Below 20 volts means the batteries are deeply discharged or dead.

If the reading is that low, replacement is needed.

How often should I replace the fuse on my Razor E300?

Only replace the fuse when it blows. It's not a maintenance item. Keep a spare pack of 15-amp 3AG glass fuses on hand so you're not stuck waiting for delivery when it blows.

Can I use a higher amp fuse in my Razor E300?

No. Always use a 15-amp fuse. A higher amp rating removes the circuit protection.

That can cause wire melting or fire if a short circuit happens. Stick to the manufacturer spec.
