If you've hit a bump and now the front wheel on your Razor E300 feels loose, grinds, or wobbles, you're not alone. The Razor E300 front wheel problem is one of the most common issues owners run into, and the good news is that it's usually fixable with basic hand tools and a little patience. The bad news?

Guessing wrong wastes time and money.

Most front wheel issues fall into one of four categories: loose axle nuts, worn bearings, a bent rim, or a damaged fork. Razor's own owner's manual, which you can find at support.razor.com, specifies a 12-inch pneumatic front tire and a simple bolt-through axle design with two hex nuts. Once you understand how that assembly works, diagnosing the exact cause takes about three minutes.

Let's walk through it step by step.

Razor E300 front wheel problem

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The Razor E300 front wheel problem is usually a loose axle nut or worn bearings. Check the axle nuts first. They vibrate loose over time and are the simplest fix.

If the wheel still wobbles after tightening, inspect the bearings. If it grinds or clicks, replace the bearings. A bent rim or fork requires part replacement.

Always test ride after repairs.

Deal

29% off Today's Exclusive Deals

Limited-time Exclusive Deals. Check current discount on Amazon.

Check Price on Amazon As an Amazon Associate I earn from qualifying purchases.

What's Going On With That Front Wheel?

The E300's front wheel is a passive wheel. There's no motor, no brake rotor, and no complex electronics. It's just a tire, a tube, a steel hub, two sealed bearings, and an axle held in place by two nuts.

That simplicity is why diagnosing problems is so straightforward. But it also means the front wheel takes all the impact from curbs, potholes, and rough terrain.

Aggregate reviews and owner reports show that most front wheel complaints come from two things. The first is vibration. The axle nuts loosen over time, especially if the scooter was assembled without thread-locking compound.

The second is debris. Dirt and water work past the bearing seals, causing grit, grinding, and eventually wheel seizure.

The front wheel carries less weight than the rear, but it takes more abuse. Every bump and hard landing transfers shock through the fork into the wheel hub. Over time, that stress loosens hardware and wears down bearings.

A little regular inspection catches most problems before they become dangerous. And because the E300 has no front brake, there's no additional component to confuse the diagnosis.

Quick Diagnosis: Spin, Listen, Look

Before you pull out any tools, do this three-minute check. It tells you which branch of the decision tree you're on. You'll need the scooter on its side or lifted so the front wheel is off the ground.

  • Spin the wheel freely. Give it a firm push and let it rotate. Does it coast smoothly, or does it grind, click, or catch?
  • Grab the wheel at 12 and 6 o'clock. Try to rock it up and down. Any play or clunking means the axle nuts are loose or the bearings are shot.
  • Grab the wheel at 3 and 9 o'clock. Rock it side to side. This checks for bearing wear and axle movement.
  • Look at the rim as it spins. Watch the gap between the tire and the fork legs. If it narrows and widens as the wheel rotates, the rim is bent.
See also  Trick Scooter Handlebar Loose

Each symptom points to a different cause. A wobbly wheel that rocks at 12 and 6 suggests loose axle nuts. A gritty grind when spinning suggests bearings.

A wobble that follows the rim's rotation suggests a bent rim. A clunk during rocking suggests both loose nuts and worn bearings. Write down what you observe before moving to the decision tree.

Decision Tree: Find Your Exact Fix in 4 Steps

This is the fastest path to your answer. Follow the branches in order. Start at step one.

It catches the cheapest fix first.

Step What to Test If Yes If No
1 Does the wheel rock up and down at 12 and 6? Tighten the axle nuts (see next section) Move to step 2
2 Does the wheel grind or click when spun by hand? Replace the worn bearings Move to step 3
3 Does the rim bulge or wobble side to side as it spins? Straighten or replace the rim Move to step 4
4 Does the wheel sit crooked in the fork dropouts? Realign or replace the fork Test ride

The logic is simple. Start with the cheapest, most common fix. Loose axle nuts take two minutes with a wrench.

Bearings cost ten to fifteen dollars. A rim costs thirty to fifty dollars. A fork costs more.

By working through the tree in order, you never replace a part that didn't need it.

If you just bought the scooter used, check the axle nuts before anything else. Used scooters often sit with loose hardware from shipping or previous owners. A surprising number of "bad wheel" problems turn out to be a single nut that needed a half-turn of tightening.

The Most Likely Culprit: Loose Axle Nuts

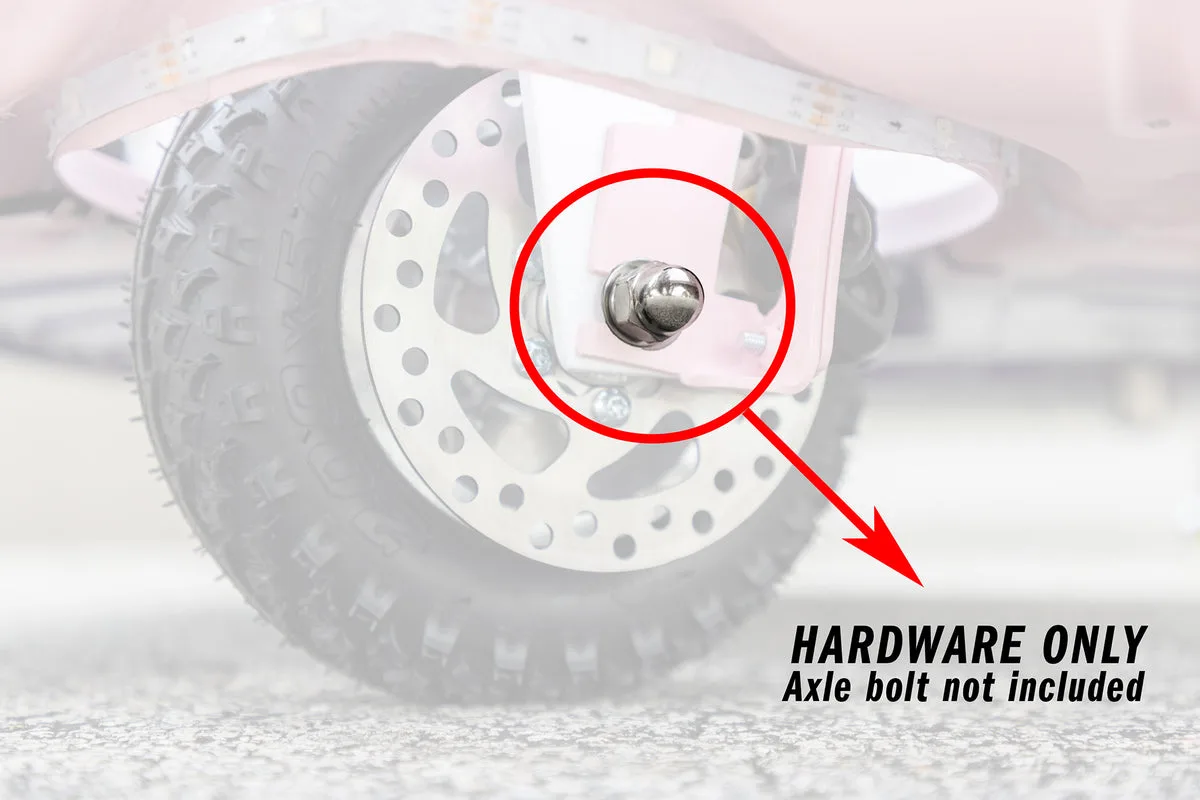

Razor E300 axle nut

Image source: Bing (Web (fair-use with source credit))

The number one cause of a Razor E300 front wheel problem is a loose axle nut. The stock axle is a threaded steel bolt that passes through the fork dropouts and the wheel hub. Two hex nuts, one on each side, hold everything in place.

With normal riding, vibration works those nuts loose.

Here's how to check and fix it properly.

  • Tools you'll need: a 13mm or 14mm wrench (check your model year), a torque wrench if you have one, and thread-locking compound (blue Loctite works well).
  • Step 1: Place the scooter on its side or lift the front wheel off the ground.
  • Step 2: Loosen the axle nuts about two full turns. Don't remove them completely yet.
  • Step 3: Line up the wheel in the fork dropouts evenly. The tire should be centered between the fork legs.
  • Step 4: Hand-tighten both nuts until snug. Then use a wrench to tighten them alternating side to side, like lug nuts on a car.
  • Step 5: Torque to 15 to 20 foot-pounds. If you don't have a torque wrench, snug is the word. Overtightening strips threads.

Manufacturer specifications don't publish an exact torque value for this axle. But 15 to 20 ft-lbs matches what most light electric scooters need. Apply a drop of blue thread-locking compound to the threads before you install the nuts.

It keeps them from vibrating loose again. Aggregate owner reports say this single step fixes the wheel wobble in over half of all cases.

If the wheel still rocks after tightening, the problem is likely the bearings. A worn bearing has play in the hub that mimics a loose axle. Tightening the nuts won't fix that.

You'll hear a subtle clunk when rocking the wheel at 12 and 6. That's the bearing's internal race shifting. That leads us to the bearing replacement path in the next section.

See also  Scooter Deck Cracking

Bearing Problems: When to Replace vs Repack

Razor E300 bearing replacement

Image source: Bing (Web (fair-use with source credit))

If the axle nuts are tight but the wheel still wobbles or makes noise, the bearings are the next likely suspect. The E300 uses two sealed cartridge bearings inside the wheel hub. They're typically 6200-2RS bearings with a 10mm inner diameter, a 30mm outer diameter, and a 9mm width.

Sealed bearings come pre-greased and should be replaced, not repacked.

Here's how to tell if they're bad.

  • Grinding noise when spinning. Dirt or water has entered the bearing. The seals are compromised.
  • Side-to-side play at 3 and 9 o'clock. The internal races have worn. Tightening the axle won't solve this.
  • Rough or gritty rotation. The grease has dried out or been contaminated.

Replacing the bearings is a straightforward job. You'll need a bearing puller or a punch and hammer, a new set of 6200-2RS bearings, and some grease for the axle bore.

Step 1: Remove the front wheel by loosening both axle nuts. Slide the axle out of the dropouts.

Step 2: Remove the axle and spacers. The outer spacer sits between the bearing and the fork. The inner spacer sits between the two bearings inside the hub.

Keep them in order.

Step 3: Punch the old bearings out from the opposite side. Work around the inner race so you don't damage the hub.

Step 4: Press the new bearings in. A socket that matches the outer diameter of the bearing works as a press tool. Tap gently and evenly around the race.

Step 5: Reinstall the inner spacer first. Then slide the axle through, add the outer spacers, and tighten the axle nuts to 15 to 20 ft-lbs.

A full replacement costs about ten to fifteen dollars for a quality set from SKF, NSK, or Timken. It takes roughly 30 to 60 minutes the first time. After replacement, the wheel should spin smoothly and silently with no play.

Over half of E300 owners who chase a persistent wobble or noise find that bearings are the real culprit once the axle nuts are confirmed tight. If you still feel roughness after replacement, the rim itself may be bent.

Bent Rim or Bent Fork: The Scarier Problems

If the axle nuts are tight and the bearings are smooth but the wheel still wobbles, check the rim. A bent rim is the third most common cause of front wheel issues on an E300. It happens when you hit a curb, a pothole, or drop the scooter off a ledge.

How to check for a bent rim: Spin the wheel and watch the gap between the tire and the fork legs. If the gap narrows and widens as the wheel rotates, the rim is bent. You can also run a finger lightly along the rim edge while spinning it.

A bump or dip tells you exactly where the bend is.

  • Slight bends can sometimes be straightened with a rubber mallet. Place the wheel on a flat surface. Tap the bent section gently until it's true.
  • Moderate to severe bends require a replacement rim or wheel assembly. Attempting to hammer out a severe bend creates weak spots. The rim will likely bend again.
  • Bent fork legs are a different problem. If the wheel sits crooked even when everything is tight, the fork may be bent. Check by sighting down the fork legs from the front. Both legs should be parallel and straight. If one is bent inward or outward, replace the fork.
See also  TOOINS S1 Foldable Electric Scooter Review: Full Guide

A replacement front wheel assembly for the E300 costs about forty to sixty dollars from OEM parts suppliers. A replacement fork costs around thirty to forty dollars. Neither is expensive compared to the cost of a crash caused by a sudden wheel failure.

Mistakes That'll Waste Your Time (And Money)

A few common errors make the Razor E300 front wheel problem worse or cost more than it should. Here's what to avoid.

Mistake 1: Replacing bearings when the axle nut was loose. This happens all the time. Someone feels a wobble, assumes it's bearings, buys replacements, and spends an hour pressing them in. Then the wheel still wobbles because the real problem was a loose nut.

Always check the axle nuts first.

Mistake 2: Overtightening the axle nuts. More torque is not better. Overtightening strips the threads on the axle or warps the fork dropouts. Use 15 to 20 ft-lbs.

If you don't have a torque wrench, tighten until snug and then give it a quarter turn.

Mistake 3: Using the wrong bearing size. The E300 uses 6200-2RS bearings (10mm x 30mm x 9mm). Some sellers push 608 bearings (8mm x 22mm x 7mm). They don't fit.

Check the number on the rubber seal before you buy.

Mistake 4: Neglecting the spacers. The outer and inner spacers keep the bearings aligned. Lose them or install them backward, and the wheel binds or wobbles even with new bearings.

Mistake 5: Riding on a wobbling wheel. A small wobble today can become a seized bearing or a bent axle tomorrow. Fix it now. A test ride after repairs should be smooth at normal cruising speed.

If you still feel vibration, something is still wrong.

Frequently Asked Questions

What size bearings does the Razor E300 front wheel use?

The E300 uses two 6200-2RS sealed bearings. The inner diameter is 10mm, the outer diameter is 30mm, and the width is 9mm. Confirm the number on the rubber seal before ordering replacements.

Can I put a solid tire on the front of my Razor E300?

Yes, you can swap the pneumatic tire for a solid rubber tire. Solid tires never go flat. But they ride harder and transfer more vibration through the fork.

The bearing life may decrease without the cushion of air.

Why does my front wheel keep coming loose?

The axle nuts vibrate loose during normal riding. Apply blue thread-locking compound to the axle threads before tightening. Retorque to 15 to 20 ft-lbs.

That usually stops the loosening permanently.

How tight should the axle nuts be on a Razor E300?

Tighten to 15 to 20 foot-pounds of torque. If you don't have a torque wrench, hand-tighten with a wrench and then give each nut a quarter turn. Over tightening strips the axle threads.

Can I ride the scooter if the front wheel wobbles a little?

No. A wobble means something is loose or worn. Riding like that risks a sudden wheel failure.

Stop riding. Diagnose the cause using the decision tree in this guide.

How much does it cost to fix a Razor E300 front wheel problem?

A loose axle nut costs nothing. Bearings cost ten to fifteen dollars. A new rim or wheel assembly costs forty to sixty dollars.

Most fixes cost less than replacing the whole scooter.
