Razor E300 Not Charging

If your Razor E300 is not charging, it's one of the most common issues with these scooters. The good news is you can usually fix it at home with a $10 multimeter and about 15 minutes. The trick is working through the charging system in the right order.

Symptoms can be misleading if you skip steps.

Manufacturer specifications indicate the E300 uses a 36V sealed lead-acid battery pack made up of three 12V batteries wired in series. Its charger outputs roughly 42V DC when healthy. That voltage matters because it's your first clue in a simple process of elimination that separates a dead charger from a dead battery, a loose wire, or a tripped breaker.

Let's walk through it step by step.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Test the charger first. A healthy 36V charger outputs about 42V DC with no load. If it reads 0V, the charger is dead.

If it reads correctly, check the battery pack voltage. A nominal 36V pack should read around 38V to 41V when partially charged. Below 30V means the battery is likely sulfated or has a dead cell.

A 10-minute multimeter test isolates the fault every time.

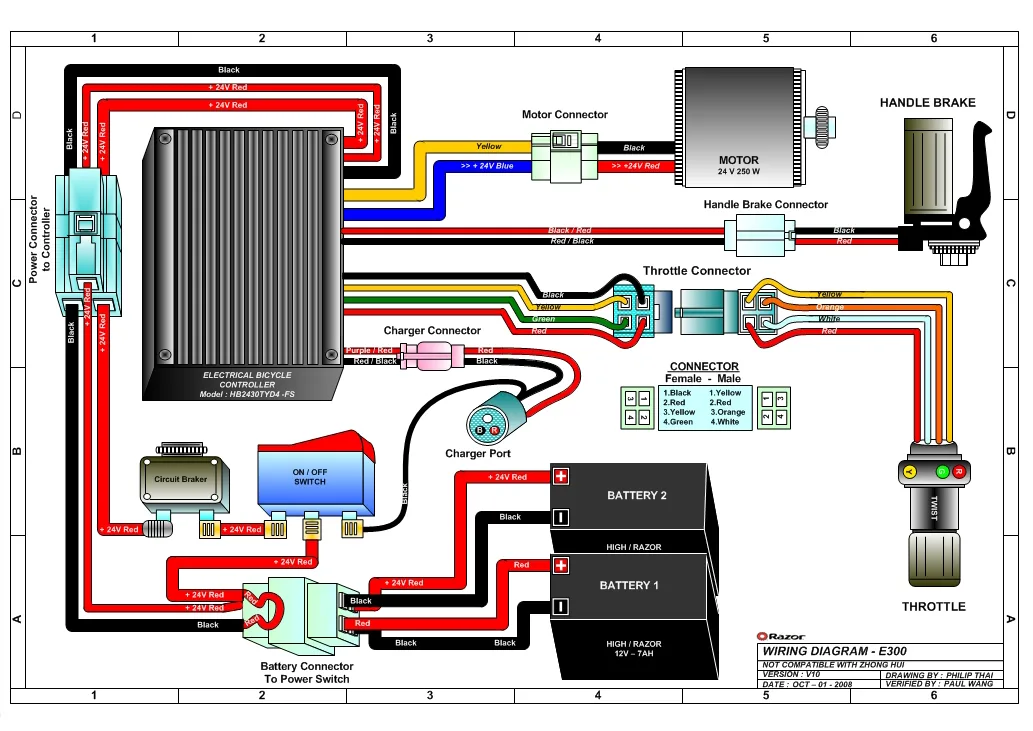

How the E300 Charging System Actually Works

The E300 setup is simple. Power flows from the wall outlet to the charger brick, through the charging port, along the wiring harness, past the fuse or circuit breaker, and directly into the battery pack. The controller just draws power from the battery when you twist the throttle.

The charger itself is smart in a basic way. It sends voltage down the barrel plug and only lights green when it detects the battery connected. No connection means the charger stays in standby mode.

That green light with a dead scooter is a huge clue. It tells you the charger is working but doesn't "see" the battery. That points to a break between the charger tip and the battery terminals, not a dead battery.

Many E300 models include a thermal fuse or circuit breaker. It sits between the charging port and the battery. It trips when something draws too much current.

When tripped, it physically breaks the charging path so the battery never receives power.

One important note: the E300's sealed lead-acid batteries prefer regular, complete charging cycles. Leaving the scooter plugged in too long won't help. Storing it dead will eventually kill the pack.

That's usually what creates this problem in the first place.

Image source: Bing (Web (fair-use with source credit))

Step-by-Step Diagnostic Workflow

This workflow follows simple if/then logic. Work through the steps in order, and you'll find the fault without guessing. The whole process takes about 15 minutes.

Step 1: Check the Charger Itself

This is the fastest test. Plug the charger into the wall but don't connect it to the scooter. Set your multimeter to DC voltage in the 50V range.

Touch the probes to the center pin and outer barrel of the charging plug.

A healthy charger for a 36V system reads around 42V DC. If you see that, the charger is fine. If you read 0V, the charger is the problem.

Replace it. Some chargers have a small LED that stays green even when the output stages fail. The multimeter test is the only reliable way to confirm the charger is actually sending power.

If the charger reads a very low voltage, like 5V or under, it's partially failed. Replace it. Generic 36V sealed lead-acid chargers work fine.

Just make sure the barrel connector size matches the E300's port.

Step 2: Inspect the Charging Port and Wiring

With the charger confirmed working, check the scooter's charging port. Loose connections here are extremely common, especially on scooters that get bounced around or ridden in wet weather. Look at the port for corrosion, bent pins, or black burn marks.

Set your multimeter to continuity mode. Unplug everything. Touch one probe to the center pin of the port and the other to the corresponding wire inside the deck.

Repeat for the outer barrel. No beep means a broken wire or a cracked solder joint. Replace the port if needed.

The charge port costs around $10 to $15. It's a straightforward swap. You unbolt the port, unplug the old wiring, and plug in the new one.

Take a photo of the wiring before you pull it apart so you know which color goes where.

This test often catches the culprit. Wires flex every time the deck is opened or the scooter is ridden. The solder joints on these ports are not the strongest.

A hairline crack can stop all charging while the scooter still runs fine on a full battery.

Step 3: Test the Fuse or Circuit Breaker

Some E300 models include a fuse or a small reset breaker inside the wiring harness. It protects the system against current spikes. It can trip without warning.

When tripped, it breaks the circuit even though the battery and charger are both healthy.

Locate the fuse holder along the main wiring bundle or near the battery compartment. Most E300s use a blade-style automotive fuse rated around 15A to 20A. Remove it and inspect the metal strip inside.

A broken strip means it's blown.

For models with a reset button, press it firmly and try charging again. If it trips again immediately, you likely have a short in the wiring or the battery pack. If the fuse is blown, replace it with the same amperage rating.

Never install a higher-rated fuse. That defeats the protection and can melt wiring or damage the battery.

Step 4: Measure Battery Voltage

Now you're testing the heart of the system. The E300 uses three 12V sealed lead-acid batteries wired in series. That gives a nominal 36V pack.

Locate the battery pack under the deck. Find the main connector that runs to the controller.

Set the multimeter to DC voltage in the 50V range. Touch the probes to the pack's positive and negative terminals. A partially charged pack reads between 38V and 41V.

Below 36V means heavily discharged. Below 30V means the pack is likely beyond recovery.

A dead cell is also common. Check each of the three batteries individually. You're looking for roughly 12V to 13.5V per battery.

If one battery reads considerably lower than the others, that cell is gone. That single battery drags the whole pack down.

Sealed lead-acid batteries don't bounce back from deep discharge well. If the pack voltage is critically low, replacing the full set of three batteries is the reliable fix. Mixing one new battery with two old ones causes the new one to drain faster and fail early.

Replace them as a matched set.

Lead-acid batteries are heavy, roughly 10 to 12 pounds each. They are not cheap. But they are the most likely root cause when a charger tests fine and all the wiring checks out.

The test takes two minutes and settles the question completely.

Image source: Bing (Web (fair-use with source credit))

Common Mistakes People Make

The biggest mistake is replacing the battery before testing anything else. Many E300 owners assume a charging problem means a dead battery. They drop $120 on a new pack only to discover the charger was faulty all along.

That's why the workflow above matters.

Another common error is trusting the charger's LED. A green light doesn't always mean charging is happening. It can mean the charger isn't connected to the battery at all.

Always verify with a multimeter before drawing conclusions.

People also ignore the fuse and breaker. It's a tiny component but it can stop the entire charging process. Checking it costs nothing and takes seconds.

Don't skip it just because it's small.

Skipping the individual battery check is another trap. A pack can read 36V across the terminals while one battery is dead and the others are compensating. That single weak battery will drain the pack again even after charging.

Always test each battery separately.

Leaving a drained E300 in storage is the root cause of many dead packs. Sealed lead-acid batteries self-discharge. When they sit under 12V for weeks, sulfation builds up on the plates.

That process permanently reduces capacity and can make the battery refuse a charge entirely. Charge the scooter fully before storing it. Recharge it every few months during long breaks.

Don't buy a random 36V charger without checking the barrel plug size and polarity. The E300 uses a specific connector. A mismatched charger can damage the port or the controller.

When in doubt, consult the Razor owner's manual. The official manual for your model is available at Razor's support page.

Maintenance That Prevents Charging Problems

Most E300 charging failures come from neglect, not bad luck. A little routine care keeps the system healthy for years. The most important habit is simple: fully charge the scooter after every ride.

Don't leave it sitting dead for weeks at a time.

Keep the charging port clean and dry. Dirt and moisture create corrosion that increases resistance and eventually blocks current flow entirely. A quick wipe with a dry cloth after wet rides goes a long way.

If you ride in the rain often, consider a port cover.

Check the wiring harness occasionally for frayed insulation or loose connections. Focus on the areas near the deck hinge and the charging port. These spots flex with every ride.

Catch a worn wire early and you avoid an intermittent charging problem that's much harder to trace.

If you're storing the scooter for more than a month, give the battery a full charge first. Then recharge it every 4 to 6 weeks to prevent sulfation. A cheap battery tender with an SLA setting works well for this.

It keeps the pack topped off without overcharging.

Use the original charger or a verified replacement. Generic chargers with incorrect voltage profiles can overheat the battery and shorten its life. The E300 needs a charger rated for a 36V sealed lead-acid pack, not a lithium-ion trickle charger.

For proper disposal of old lead-acid batteries, follow your local EPA battery recycling guidelines.

Frequently Asked Questions

Can I use a lithium battery in my Razor E300 instead of lead-acid?

Yes, but it requires a full conversion kit. Lithium batteries use a different voltage range, charge profile, and charger. A direct swap without modifying the controller and charger will not work and can damage the electronics.

Conversion kits exist, but they cost more than replacing the SLA pack.

How do I reset my Razor E300 after it stops charging?

Press the reset button on the circuit breaker if your model has one. It's usually a small button near the battery compartment or along the wiring harness. If there's no button, unplug the battery connector for 30 seconds and plug it back in.

Then try charging again.

Why is my Razor E300 charger light green when the scooter is dead?

A green light with a dead scooter means the charger isn't detecting the battery. This usually points to a broken wire, a loose connection at the charging port, a tripped breaker, or a completely dead battery that can't register on the charger. Use the diagnostic workflow above to find the break.

How long does a Razor E300 battery last before needing replacement?

With proper care, a sealed lead-acid battery pack lasts about 12 to 18 months of regular use. Frequent deep discharges, cold storage, or long periods of sitting dead can shorten that to 6 months. Testing individual cell voltage is the best way to know when replacement is due.

Can a bad controller cause charging issues on an E300?

Rarely. The controller draws power from the battery but does not control the charging circuit directly. If the scooter runs fine on a full charge but won't charge, the controller is almost never the problem.

Focus on the charger, wiring, fuse, and battery first.

Decision Guide: Repair or Replace?

Once you've run through the diagnostic workflow, you need to decide whether to repair or replace parts. Here's how to make that call.

If the scooter itself is in good shape with solid tires, a working throttle, and good brakes, replacing the battery pack makes sense. A used E300 in average condition costs $100 to $200. If you need a charger, battery pack, and port replacement all at once, the total can exceed $200.

At that point, buying a used scooter or a new model is often the smarter move.

A simple fix like a fuse, a charger, or a charging port is always worth doing. Those repairs are cheap and take minutes. Battery replacement is worth it only if the rest of the scooter is in good shape.

If the frame is rusty, the motor is noisy, and the tires are bald, it's time to move on.

The decision comes down to this: total repair cost under half the price of a replacement scooter. If yes, fix it. If no, replace it.

Either way, you now know exactly what's wrong and exactly what it costs to make it right.
