Razor Hovertrax 2.0 Charging Port Problem

Your Razor Hovertrax 2.0 charging port problem probably isn't what you think. The charger sits plugged in, the LED stays green, and the board refuses to wake up. You're staring at a $250 hoverboard that behaves like a brick.

Before you order parts or a whole new machine, ten minutes of testing can pinpoint the real failure.

Manufacturer specifications for the Hovertrax 2.0 show a 36V DC barrel-jack port and a 1.5A to 2A charger. Under UL 2272, the whole charging loop has to stay safe, but that standard doesn't stop wear and tear. In our research, the failure points fall into three predictable categories.

Let's walk through them.

Image source: Bing (Web (fair-use with source credit))

Is It the Port, the Charger, or the Battery? Start Here

The Razor Hovertrax 2.0 charging port problem almost always comes down to one of three components. There's the charger brick, the barrel jack inside the board, or the lithium-ion battery pack with its management system, or BMS. Each one fails differently, and each one has a different repair bill.

Charger failures are the easiest to rule out. The charger is a 36V DC power supply. It either outputs voltage or it doesn't.

Port failures show up as bent pins, loose connections, or cracked solder joints. Battery failures are sneakier, because a pack can sit at zero volts and still be healthy, just locked out by its own protection circuit.

Cost tells you why test order matters. A replacement charger runs $25 to $40. A new port costs $5 to $15.

A battery pack sits at $50 to $80. As of 2026, those prices still hold for genuine replacement parts.

The logic is simple. Test the cheapest part first, then move to the next. If the charger checks out, check the port.

If the port passes, the battery becomes the prime suspect. That sequence is the entire diagnostic workflow.

The good news is you don't need to be a technician to fix most of these. Replacing the charging port is a basic soldering job. Replacing the battery is unplugging one connector and plugging in a new one.

The only step that scares people is opening the case, and that's just a handful of screws.

Quick Symptom Check: What Your Hovertrax 2.0 Is Telling You

Before you grab a multimeter, pay attention to the clues the board already gave you. Each light pattern and charging behavior points to a different fault. Reading these signals narrows the search fast.

The table below maps the most common symptoms to their likely causes and next steps:

The two most common patterns people report are the green light that stays green and the port that only charges at an angle. Both point to the port itself. A green light means the charger isn't sensing any load, which usually means the center pin is bent or broken.

Charging at an angle means the solder joint behind the port has cracked.

If the charger light stays red all night, that's a battery concern. The charger is trying to push current, but the BMS refuses to accept it. That means the battery management system is blocking the charge, not that the pack is dead.

A simple BMS reset often clears the lockout, and that's still a DIY-friendly fix.

Write down which pattern you're seeing. It will save you a lot of guessing later.

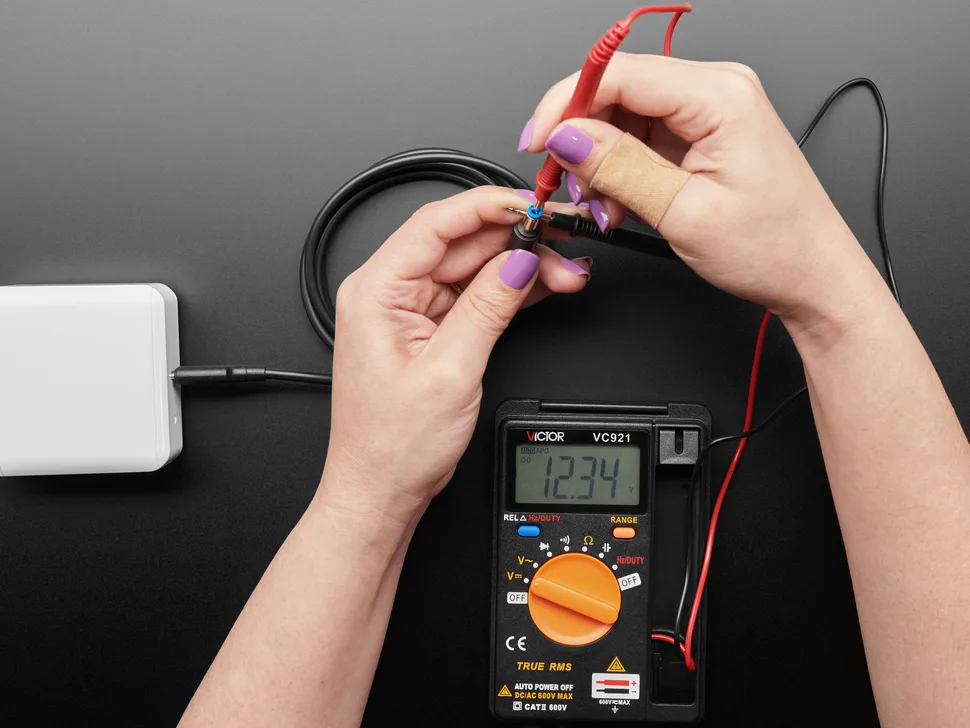

How to Test the Charger First (Saves You Time and Money)

The charger is the cheapest suspect, so it gets tested first. A replacement costs $25 to $40. The port costs $5 to $15.

The battery costs $50 to $80. Every minute you spend on the charger is a minute you don't spend opening the board for no reason.

Image source: Bing (Web (fair-use with source credit))

You need a digital multimeter for this. Set it to DC voltage, around the 50V range. Most cheap multimeters handle this fine.

Here's the process:

1. Plug the charger into the wall outlet.
2. Set the multimeter to DC voltage, 50V or auto-ranging.
3. Touch the red probe to the center pin of the barrel plug.
4. Touch the black probe to the metal sleeve on the outside.
5. Read the display.

A healthy charger outputs between 36V and 42V DC. Most original and replacement chargers stay inside that range. If you get zero, or a reading under 30V, the charger is dead.

Replace it and skip the rest.

The table below shows what your reading means:

One tip: don't rely on the charger LED alone. A green LED only means the charger has standby power. It doesn't mean the charging circuit is doing its job.

The multimeter gives you the real picture.

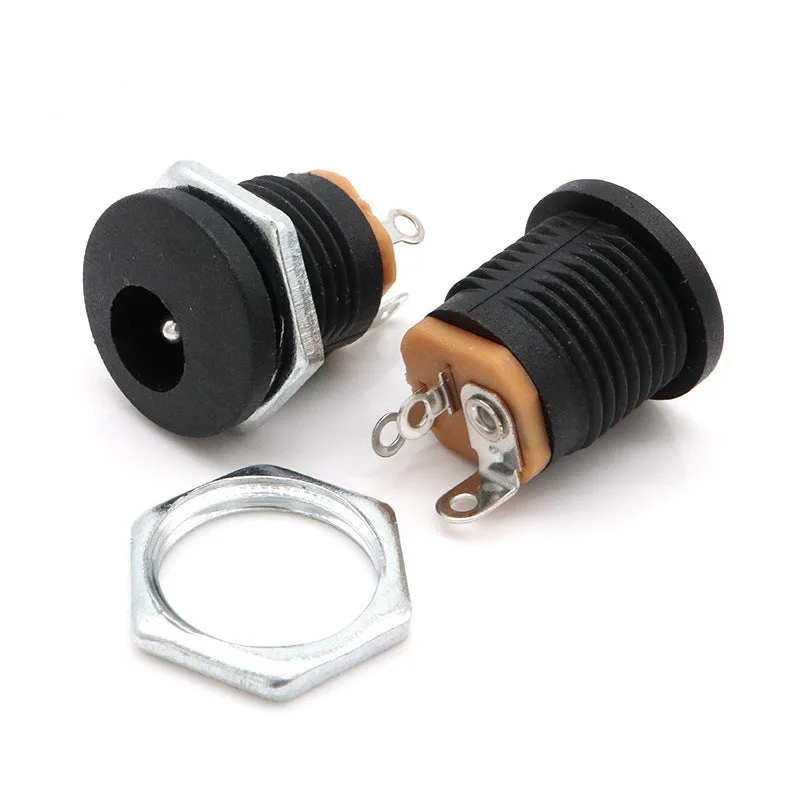

Inside the Charging Port: What Goes Wrong and How to Spot It

The Razor Hovertrax 2.0 charging port is a standard DC barrel jack. The center pin carries positive voltage. The outer sleeve is ground.

When you push the charger tip in, the two metal surfaces have to touch cleanly. Any gap there kills the charge.

The most common failure is a bent center pin. This happens when the plug goes in at an angle, or the board gets dropped while the charger is attached. On a healthy port, the pin stands perfectly straight.

On a damaged port, it tilts to one side. The charger tip slides on but never makes contact. That's your "green light stays green" symptom.

Image source: Bing (Web (fair-use with source credit))

The second failure is cracked solder joints. The port connects to a small wire harness inside the case. Every pull and yank on the charging cable stresses those joints.

Over time, hairline cracks form. The port looks fine from the outside, but the connection breaks the moment you wiggle the plug. That's the "charges only at an angle" symptom.

The third failure is simple grime. Lint, dust, and moisture can build up inside the open barrel. The charger tip doesn't seat fully, or it contacts a layer of dirt.

A quick spray of electronics contact cleaner and a cotton swab often fixes this one.

To inspect, shine a bright light into the port and look at the center pin. Push the charger tip in slowly. A healthy connection has a snug, solid feel.

If the tip rattles, the port is worn. If the pin looks crooked, you've found the problem.

Decision Tree: Choose Your Fix Based on What You Find

By now you've got a multimeter reading and a visual check under your belt. Here's how to pick your next move based on those results:

• Charger reads 0V. Replace the charger. The board was never the problem.
• Charger reads 36V to 42V, and the port pin is bent. Replace the port. Don't bother straightening the pin. It will bend back and fail again.
• Charger reads fine, port pin looks straight, but charging is intermittent. Open the case and inspect the solder joints on the port's wire harness. Re-solder any cracked joints.
• Charger reads fine, port looks perfect, but the board still won't charge. Suspect the battery and its BMS. Disconnect and reconnect the battery connector to reset the BMS. If the pack reads below 30V across its main terminals, replace the battery.
• The port is physically loose in the plastic housing. Replace the port, and if the housing tabs are broken, use a dab of epoxy to hold the new port in place.

Aggregate owner reports show a clear trend. Most Hovertrax 2.0 charging failures trace back to the port itself, not the charger or the battery. The bent pin and cracked solder joint are responsible for well over half of the cases we've found in owner discussions.

Here's a quick reference table for the decision branches:

Pick your branch and stick with it. If you land on "replace the port," you're about to do a simple soldering job. If you land on "replace the battery," that's just unplugging one connector and plugging in a new one.

Both are well within reach for a first-time repairer.

Step-by-Step: Replacing the Charging Port Yourself

You'll need a Phillips screwdriver, a soldering iron, solder, wire cutters, and a replacement 5.5mm x 2.5mm DC barrel jack. The whole repair takes 30 to 90 minutes.

Here's the workflow:

1. Unplug the charger and lay the board upside down.
2. Remove the screws from the bottom cover and keep them in a dish.
3. Lift the cover and locate the charging port inside the case.
4. Note the wire colors. Positive runs to the center pin. Negative runs to the outer sleeve.
5. Cut the wires or desolder them from the old port.
6. Press the old port out of the housing. Two plastic tabs hold it in place.
7. Solder the new port to the harness. Slide heat shrink tubing over each joint before you apply heat.
8. Seat the new port in the housing. A small dab of hot glue on the wire keeps it steady.
9. Reconnect the battery, close the case, and tighten the screws.
10. Plug the charger in. The LED should turn red within a few seconds.

Double-check the polarity before soldering. Center pin positive is standard on the Hovertrax 2.0. Reverse the wires and the BMS can fail instantly.

If your board has a plug-in port connector instead of bare wires, skip the soldering and just plug the new one in. Verify which type your board uses before ordering parts.

When to Replace the Whole Battery Instead

The charger tests fine. The new port is installed. The LED still stays green.

That points to the battery pack.

Open the case and measure voltage across the battery's main connector. A healthy 36V pack reads between 36V and 42V. Below 30V, the BMS locks out and refuses to charge.

The pack isn't dead yet, but it's stuck in protection mode.

Try a BMS reset first. Unplug the battery connector from the main board. Wait 30 seconds.

Plug it back in and attempt a charge. If the LED turns red, the reset worked.

Aggregate owner reports show this is the most common outcome after lengthy storage. The board sat for months, voltage dropped under the cutoff, and the BMS froze.

Replace the battery if the voltage stays stubbornly low or the pack is swollen. Replacement packs for the Hovertrax 2.0 run $50 to $80. Swapping one takes 20 to 40 minutes.

One connector, a few screws, done.

Mistakes That Wreck the New Port (and How to Avoid Them)

A new port fails fast when the old habits come back. These five mistakes cause most repeat failures.

First, forcing the plug at an angle. That bends the fresh center pin immediately. Always push straight in.

Second, pulling the charger cord to unplug it. Grab the plug body instead. Jerking the cable strains the solder joints inside the case.

Third, swapping chargers. Use only a 36V, 1.5A to 2A supply with center-pin positive polarity. A higher-voltage charger overheats the port and the battery.

Fourth, skipping the multimeter test. If the charger is dead, a new port changes nothing. Test the charger before opening the case.

Fifth, melting the housing while soldering. Keep the iron on the joint for only a few seconds. Too much heat deforms the plastic and the port wobbles free.

Safety Warnings You Can't Afford to Ignore

Lithium-ion packs carry real risk. A shorted charge circuit or a damaged cell can start a fire. That's exactly why UL 2272 exists.

It's the safety standard for self-balancing hoverboards.

Respect the charge parameters. Use a charger that outputs 36V DC at 1.5A to 2A. Confirm the center pin is positive before you plug anything in.

Stop charging if the port feels hot, the case bulges, or you smell burning electronics. Unplug immediately and remove the battery for inspection.

Never charge a swollen pack. Never pry open the hard casing around the battery cells. Take old packs to a battery recycling drop-off point.

Razor's official site has the full owner's manual and safety sheet. Refer to it before any repair.

Frequently Asked Questions

Why is my Razor Hovertrax 2.0 not charging?

The cause is usually one of three things: a dead charger, a bent center pin inside the charging port, or a battery whose BMS has locked out. Start with a multimeter. Test the charger output, inspect the port pin, then measure battery voltage.

Testing in that order finds the fault quickly.

Can I just straighten the bent pin inside the port?

Not reliably. Once a center pin bends, it's weakened and prone to snapping. Straightening it might restore contact temporarily, but the next angled plug will bend it again.

A replacement port costs $5 to $15, so skip the shortcut and swap it out.

How much does a replacement charging port cost?

A generic 5.5mm x 2.5mm DC barrel jack runs $5 to $15 online. If you pay a repair shop, expect $50 to $80 for parts and labor. Doing it yourself with a basic soldering iron brings the total to under $30.

How do I reset the BMS on my Hovertrax 2.0?

Open the case and unplug the battery connector from the main board. Wait at least 30 seconds, then reconnect it. Plug the charger in.

A red LED means the BMS accepted the charge. If the LED stays green, the BMS is likely damaged and the battery needs replacing.

Should I repair the board or buy a new hoverboard?

Repair wins if the battery is healthy and the issue is the port or charger. You'll spend under $40. If the battery itself is dead, a replacement costs $50 to $80.

That's still cheaper than a new Hovertrax 2.0, assuming the motors, wheels, and frame are in good shape.
