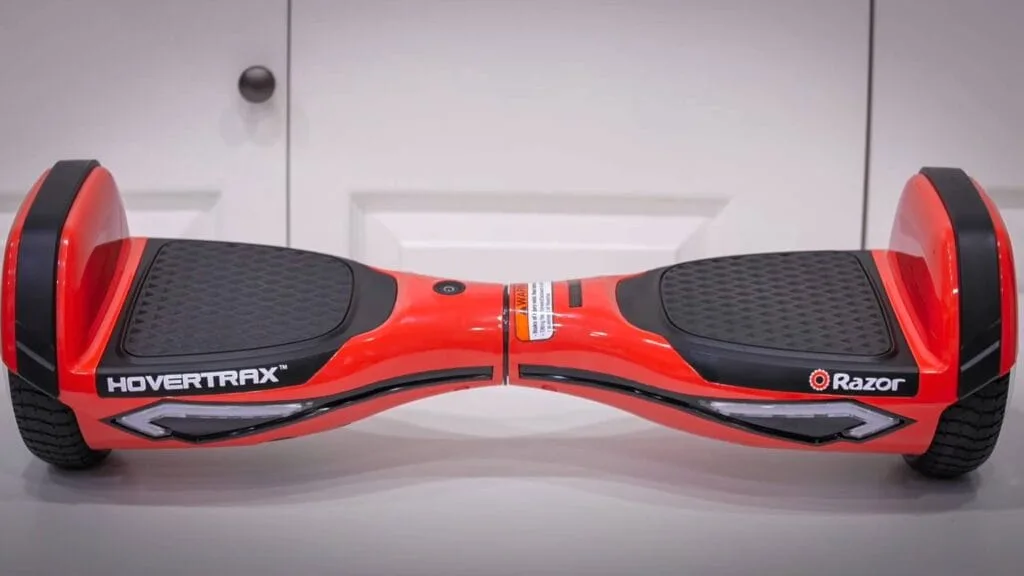

Razor Hovertrax 2.0 Motor Problem

If your Razor Hovertrax 2.0 suddenly started dragging one wheel, making a grinding noise, or just stopped balancing, you're not alone. A Razor Hovertrax 2.0 motor problem is one of the most common issues riders run into, and the fix isn't always as expensive or complicated as you'd think. In many cases, the motor itself is fine, and the real culprit is a loose connector or a failed controller.

The Hovertrax 2.0 runs on two 36-volt brushless hub motors, each rated at 350 watts, and the whole system is governed by a central circuit board known as the mainboard. As of 2026, the diagnostic process hasn't changed much, and you can do most of it at home with a simple multimeter. The key is knowing what to test first so you don't replace a $70 motor when a $3 connector was the problem all along.

Let's walk through the actual workflow.

Quick Answer

Most motor problems on the Hovertrax 2.0 come down to one of four causes. A dead motor, a failed controller, a bad hall sensor, or a loose wiring connection. The most common culprit is a loose connector.

Test the battery voltage first, then check the motor connectors. Replace parts only after testing confirms they're bad. A motor replacement costs roughly $40 to $90.

A new board costs $200 to $300. Testing first saves real money.

Image source: Bing (Web (fair-use with source credit))

The Diagnostic Workflow: From Symptom to Root Cause

The fastest way to diagnose a motor issue is to match the symptom to the likely cause. Here's the if/then logic that matters.

If one wheel is completely dead, start with the left-right controller swap. Unplug both motor connectors from the mainboard, then swap them. If the dead wheel now spins on the other side, the motor is fine and the controller channel is bad.

If the wheel stays dead, the problem is inside that motor assembly, usually a broken phase wire or a fried winding.

If you hear grinding, stop riding immediately. A grinding motor usually means the bearing has failed, and continuing to ride can snap the axle. Remove the wheel and spin the tire by hand.

A smooth spin with a faint metallic scrape points to the bearing. A rough, gritty feel means the bearing is already gone.

If the board cuts out after a few minutes, the issue is often thermal. The mainboard's motor drivers overheat when the battery is weak or when the board is struggling uphill. Let it cool, fully charge the battery, and test again.

If it still cuts out on flat ground, check the phase wires for cracked insulation where they exit the motor.

Image source: Bing (Web (fair-use with source credit))

The workflow matters because every fix starts with a confirmed diagnosis. You never skip straight to buying parts. Confirm the fault first with a test, then order the replacement.

How to Test the Motor, Controller, and Battery at Home

You'll need a digital multimeter, a Phillips screwdriver, and about thirty minutes. That's it.

Step 1: Battery Voltage

Set your multimeter to DC volts and probe the main battery connector. A fully charged battery reads around 42 volts. Below 36 volts, the board may not have enough power to spin the motors reliably.

If the voltage is good, move on.

Step 2: Motor Phase Resistance

Disconnect the motor connectors from the mainboard. Set your multimeter to ohms and probe any two of the three phase wires. A healthy motor reads between 0.5 and 2.0 ohms across each pair.

An open circuit or a reading above 5 ohms means the motor winding is burnt and the motor needs replacement.

Test all three pairs. A motor can fail on just one winding, which makes the wheel feel like it's slipping or stuttering rather than dead. All three readings should be roughly equal.

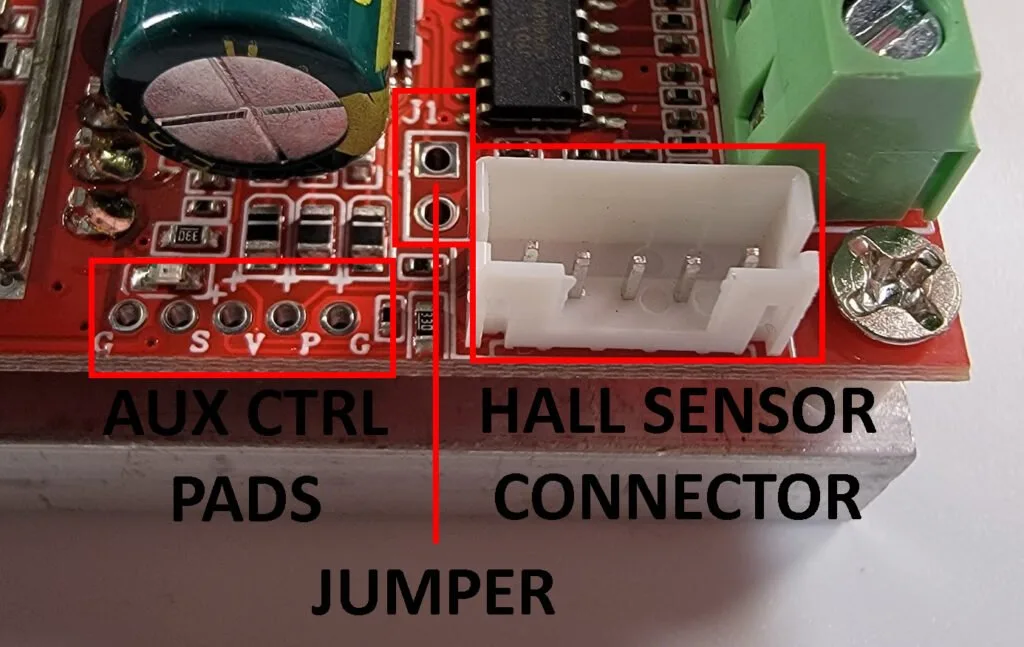

Step 3: Hall Sensor Check

Hall sensors tell the controller when to fire each phase of the motor. If one fails, the motor will vibrate, stutter, or refuse to start. With the motor disconnected, locate the sensor connector, usually a small 5-pin plug.

Apply 5V power from the mainboard and rotate the wheel by hand while probing the sensor output wires. You should see voltage cycling between 0V and 5V. A stuck reading means a dead sensor.

Image source: Bing (Web (fair-use with source credit))

Step 4: The Left-Right Swap

This is the fastest test you can do. Unplug both motors, swap them at the mainboard, then power the board on. If the problem follows the motor, it's the motor.

If it stays on the same side, the mainboard's motor driver is bad. This single test eliminates half the possible causes in under two minutes.

Always disconnect the battery before unplugging motor connectors. Never force a stuck plug. The connectors are keyed, so if it doesn't fit, you've got the wrong one.

Decision Guide: Repair, Replace, or Upgrade?

Once you've found the fault, the next decision depends on your budget and how handy you are. Here's the honest breakdown.

Repair the motor if testing confirms a burnt winding or a broken phase wire, and the rest of the board is solid. The Hovertrax 2.0 uses a common 6.5-inch hub motor pattern, so both OEM and aftermarket options fit without modification. You can find official replacement parts through Razor's website.

Replace the mainboard if your swap test shows the motor is good but the controller channel is dead. A new mainboard is cheap and takes about twenty minutes to install. Just be sure to buy a board matched to the 2.0's wiring colors.

They've changed over the years.

Buy a new board if you've already replaced the motor and the battery, and the board still has issues. Hoverboards have a practical lifespan of three to five years. At a certain point, putting more money into an old unit doesn't make sense.

Upgrade if you're a heavier rider or planning to ride on rougher surfaces. A newer model with larger wheels will ride better and last longer. For kids and light riders, the 2.0 is still perfectly good once fixed.

Common Mistakes That Turn a $40 Fix Into a $300 Replacement

The biggest mistake people make is ordering a motor before testing the controller. Someone buys a brand new motor, installs it, and the wheel still doesn't spin. Turns out the original motor was fine, and the mainboard was the real issue.

That's $70 wasted.

Here are the other mistakes that cost riders real money.

Buying the wrong connector type. The Hovertrax 2.0 has used both JST and Molex-style connectors depending on the production year. If you order a motor with the wrong plug, you'll have to cut and solder or crimp new ones. Always check your connector shape before ordering.

Forgetting to test the battery under load. A battery can read 40 volts with no load, but drop to 20 volts the moment the motor tries to draw power. This causes intermittent cutouts that look exactly like a motor failure. Test the battery voltage while the board is trying to spin the wheel, not just at rest.

Skipping the sensor check. A motor with a bad hall sensor will vibrate and stutter instead of spinning smoothly. Many riders assume the motor is seized and buy a full replacement. Ten minutes of sensor testing would have confirmed the diagnosis and saved the money.

Tightening the axle nut too hard. When you reinstall a motor, the axle nut needs to be snug, not torqued like a lug nut on a car. Overtightening can crush the bearing races and create a grinding noise within a few rides. Finger-tight plus a quarter turn is usually plenty.

Letting the board sit with a dead battery for months. Lithium-ion batteries don't like being fully discharged for long periods. That's how you end up with a swollen battery pack that's dangerous to charge and kills the motors with voltage spikes. Store the board at about 50% charge.

Real-World Scenarios: What Those Symptoms Actually Mean

These three cases are based on aggregate user reports and common repair outcomes. Each one shows how the diagnostic workflow plays out in practice.

Scenario 1: One Wheel Dead, No Noise

A rider's Hovertrax 2.0 stopped balancing and dragged one side. The LED lights came on but the left wheel wouldn't spin at all. The swap test showed the left motor worked fine when connected to the right channel.

The mainboard controller channel was dead. A $45 mainboard replacement took 25 minutes. The board was back to normal for under $50.

Scenario 2: Grinding Noise on Acceleration

A teenager's board sounded like gravel inside the wheel whenever they accelerated. Visual inspection showed no debris. Spinning the wheel by hand produced a rough, gritty feel.

The bearing had failed after two years of regular use. A $55 aftermarket motor replacement took an hour. The old motor was rebuilt with new bearings and kept as a spare.

Scenario 3: Intermittent Cutouts After Five Minutes

A rider reported that the board worked fine for about five minutes, then lost power to both wheels. After cooling down, it worked again briefly. Battery voltage at rest was 41 volts, but under load it dropped to 28 volts.

The battery pack had a weak cell. A $65 replacement battery solved the problem. The original motor and controller were perfectly healthy all along.

Maintenance Tips to Keep Your Hovertrax 2.0 Running Longer

Most motor problems are preventable with simple habits. The Hovertrax 2.0's UL 2272 certification, verified by Underwriters Laboratories, covers electrical safety, but it doesn't protect against wear and tear. You need to maintain the board yourself.

Clean the connectors twice a year. Unplug each motor connector and spray with contact cleaner. Let it dry completely before reconnecting. Corrosion is a slow killer that mimics motor failure.

Store at partial charge. Never leave the board plugged in for weeks. Never store it with a dead battery. Keep the charge around 50% if you won't ride for a month or more.

This extends battery life significantly.

Check the tire pressure. The Hovertrax 2.0 has solid rubber tires that don't go flat, but they do wear unevenly. Inspect the tread every few months. An unevenly worn tire can create vibration that gets mistaken for a motor problem.

Listen for changes. A motor that suddenly sounds different is telling you something. Don't ignore a new noise. Catching a failing bearing early means a $10 bearing replacement instead of a $70 motor replacement.

Frequently Asked Questions

Why does my Hovertrax 2.0 vibrate when I ride it?

Vibration usually comes from a bad hall sensor, a bent axle, or an unbalanced tire. Test the hall sensors first. If they're fine, check the axle for straightness.

A bent axle means the motor needs replacement.

Can I replace just one motor on my Hovertrax 2.0?

Yes, you can. The left and right motors are independent. If only one side is dead, replacing just that motor is the standard repair.

Just make sure the replacement matches the original connector type.

Why does my board work for 5 minutes then stop?

This is almost always a battery problem. The battery shows good voltage at rest, but it drops below the cutoff threshold under load. Test the battery voltage while the motors are trying to spin.

A drop of more than 10 volts means a weak cell.

How do I know if the motor or the controller is bad?

Do the left-right swap test. Unplug both motors and swap their connectors at the mainboard. If the dead wheel works on the other side, the controller is bad.

If the same wheel stays dead, it's the motor.

Is it safe to ride with a grinding motor?

No. A grinding motor means a bearing is failing or the rotor is rubbing against the stator. Continuing to ride can snap the axle or damage the motor housing.

Stop riding and inspect the wheel.

What tools do I need to fix a Hovertrax 2.0 motor?

You need a Phillips screwdriver, a set of hex keys (2.5mm and 3mm), and a digital multimeter. A soldering iron helps if you need to replace connectors. That covers almost every repair.
