Razor Hovertrax Prizma Charging Port Problem

Your Razor Hovertrax Prizma charging port problem can feel bigger than it is. The board won't charge. The light stays green.

And you have no idea why. Here is the truth. Most of the time this is a small electrical fault with a cheap fix.

You just need to diagnose it safely.

Manufacturer specs confirm the Prizma charges through a 36V DC barrel jack. Our research shows loose solder joints behind the port cause most charge failures in this model. A dead battery is far less common.

As of 2026, a replacement port costs under 15 dollars.

Quick Answer

The Razor Hovertrax Prizma charging port problem is rarely a dead battery. It is usually a loose wire or a damaged barrel jack. Check the charger first with a multimeter.

Replace the port if it is broken. Never bypass the port to charge the battery directly.

Image source: Bing (Web (fair-use with source credit))

Is It the Charging Port or Something Else?

Before you grab tools, watch the charger LED. It tells you where the fault lives.

Plug the charger in. The LED should turn red when the battery is low. A green light means the board is not drawing current.

Either the port is not making contact, or the battery management system is rejecting the charge.

Work through this if/then sequence.

Charger outputs 36V DC on a multimeter? The charger is fine. Move to the port.

Charger outputs 0V? Replace the charger first. It is the cheapest part in the system.

Charger passes and the port looks clean? Test continuity across the port pins.

No continuity? The internal contact is broken. Replace the port.

Shine a flashlight into the port. The center pin should sit straight. A bent pin happens when someone forces the charger in at an angle.

It is more common than you would think.

What's Actually Inside the Charging System

Image source: Bing (Web (fair-use with source credit))

The Prizma charging path has four parts.

The charger outputs 36V DC at 1.0 to 2.0 amps. It uses a standard barrel plug. The inner pin is positive.

The outer sleeve is negative. Most Prizma boards use a 2.1mm inner, 5.5mm outer barrel.

The charging port is the female barrel jack mounted in the plastic shell. Two wires connect to it. Red is positive.

Black is negative. Both run to the motherboard.

The motherboard distributes power and controls the LED indicators. It routes charging current to the battery. Some charge failures live here instead of the port.

The battery pack is a 36V lithium-ion pack with a built-in management system. The BMS protects against overcharge and deep discharge. If the BMS decides the pack is unhealthy, it refuses current entirely.

Current flows from charger to port, then motherboard, then BMS, then battery. A failure anywhere along that chain stops charging. But the port is the weak link.

It is physically exposed. It survives drops. And it takes a yank every time someone unplugs the charger.

If the port tests fine, inspect the motherboard solder points. Cracked joints on the charging pins are common on boards that get regular abuse from kids.

The Real Safety Risks

Slow down here. Charging port problems can become fire hazards if handled wrong. Lithium-ion batteries store serious energy.

A short in the charging path creates heat fast.

The Consumer Product Safety Commission has issued multiple hoverboard recalls over the years. Those recalls targeted overheating batteries and chargers. The failure modes that triggered them start exactly like a loose port or damaged wiring.

Here is what you must not do.

• Do not bypass the port by wiring the charger directly to the battery.
• Do not charge a board that smells like burning plastic.
• Do not keep charging if the port gets hot to the touch.
• Do not leave a damaged board charging unattended.

A 36V DC shock is unlikely to kill you. But it hurts. More importantly, a shorted circuit can melt plastic and ignite nearby material.

Most charging incidents involve someone who kept using a visibly damaged port.

Use a charger that matches the original specs. Check Razor's official support site for the correct model. Never grab a random adapter that kind of fits.

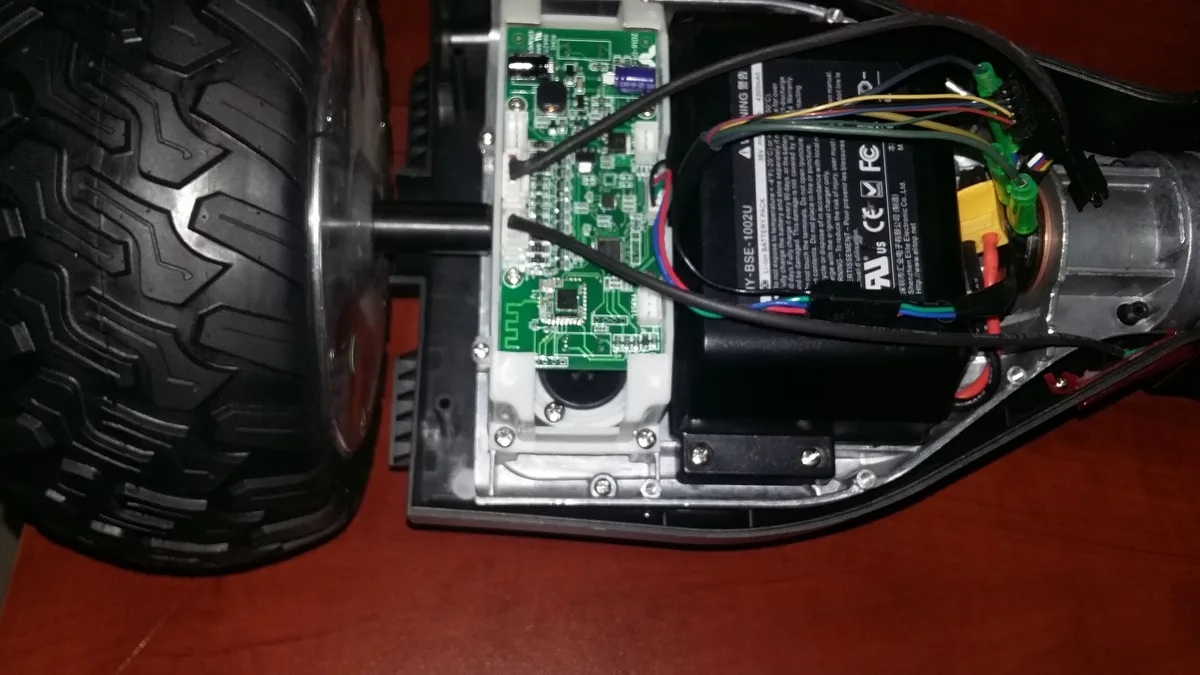

How to Diagnose and Fix the Charging Port Safely

Image source: Web (Bing) / flintlouen.blogspot.com (Web image (fair-use with source credit))

You need a multimeter, a soldering iron, and a replacement port. The part costs 5 to 15 dollars. The total stays under 30 dollars if you own a soldering iron.

Here is the full sequence.

Step 1. Test the charger. Plug it into the wall. Measure the voltage at the barrel plug tip.

You should see around 36V DC. Zero volts means the charger is dead.

Step 2. Test the port from inside. Open the hoverboard case with a Phillips screwdriver. Prizma models keep the screws on the underside.

Set the multimeter to continuity mode. Touch the probes to the port's solder lugs. A beep means the port is internally fine.

Step 3. Inspect the wiring. Trace the red and black wires to the motherboard. Look for pinched, melted, or broken sections.

The bend where wires wrap around the plastic shell is a common damage point.

Step 4. Disconnect the battery before soldering. This is non-negotiable. Find the battery connector on the motherboard.

Unplug it. Then remove the old port.

Step 5. Solder in the replacement. Match wire colors carefully. Red goes to the center pin lug.

Black goes to the outer sleeve lug. Heat the lug and apply fresh solder. A dull, grainy joint is a cold joint.

It will fail again.

Step 6. Test before reassembly. Plug the battery back in. Reconnect the charger.

The LED should turn red. Wait one minute. If nothing heats up, close the case.

The whole repair takes 30 to 60 minutes for someone comfortable with a soldering iron.

When to Walk Away and Call a Pro

Some repairs are not worth doing yourself. If you have never soldered, practicing on your kid's hoverboard is a bad idea. The motherboard solder points are small and close together.

One slip can bridge two pins and short the board.

Here is your honest cost comparison.

Step away and call a shop if any of this applies.

• The battery connector is fused or charred.
• The motherboard shows burn marks.
• A port replacement did not fix the issue.
• You cannot confidently read a multimeter.

A repair shop can diagnose the problem in 15 minutes. You pay for labor. You pay for certainty.

Also factor in the board's age. A Prizma over three years old may have a battery at the end of its lifespan. A new port will not resurrect a battery that refuses to hold a charge.

Compare the cost of a new battery against a newer model. Many current best hoverboards for kids guides highlight boards with USB-C charging. That completely bypasses barrel jacks.

If your rider is around ten, a pick from a best hoverboard for 10-year-old list may serve you better long-term.

Frequently Asked Questions

Can I bypass the charging port and wire directly to the battery?

No. Never do this. Bypassing the port removes all protection from the charging circuit.

It creates a direct short risk. It can cause the battery to overheat, swell, or catch fire. Replace the port or take the board to a shop.

Why does the charger light stay green even when plugged in?

The green light means the board is not drawing current. The charger is connected but the circuit is open. This usually points to a broken wire inside the port, a cracked solder joint, or a dead charger.

Test the charger first with a multimeter.

How do I know if the battery is dead instead of the port?

Test the charger voltage first. If the charger works and the port has continuity, the battery management system may have locked the pack. A battery that reads below 30V on the main terminals is likely dead.

Replacement packs cost 40 to 70 dollars.

Can I use a different charger if I lose the original?

Only if the replacement matches the exact voltage and connector. The Prizma needs 36V DC with a 2.1mm inner, 5.5mm outer barrel. The center pin must be positive.

Using the wrong charger can damage the battery or start a fire.

How long does a replacement charging port last?

A properly soldered replacement port lasts the rest of the board's life. The weak point is the solder joint. Use quality solder and heat the lug fully.

A cold joint will crack again within weeks. Good soldering makes it permanent.

Is it safe to ride the hoverboard while it is charging?

No. Never ride the board while it is plugged in. The charging cable creates a trip hazard.

It also strains the port and wiring. More importantly, the battery management system is not designed for simultaneous charge and discharge. Unplug it before riding.
