Road Bike Chainring Worn

You're rolling along on your favorite road ride, stand up to punch over a short climb, and suddenly your foot goes down. The pedals spin free for a split second before catching again. Your first thought is probably the chain.

But more often than not, a road bike chainring worn beyond its service life is the real culprit.

That momentary skip isn't just annoying. It's a safety warning. A chainring tooth loses roughly 0.5mm of height over 8,000 to 12,000 kilometers of normal use.

Once that leading edge starts hooking backward, your chain can no longer seat properly under load. The result is unpredictable power delivery at exactly the wrong moment. Let's walk through what to look for, how to measure it, and when to replace it.

Why This Matters More Than You Think

A chain skip at 25 mph in a pace line isn't a mechanical inconvenience. It's a crash hazard. When the chain fails to engage the chainring teeth cleanly under load, your pedal stroke drops through.

Your bike lurches forward unexpectedly. Anyone overlapping your rear wheel has zero time to react.

Front shifting happens when you're not applying full power. A worn chainring can shift perfectly fine because the derailleur does the work. The problem emerges when you hammer down.

That's when the hook-shaped teeth let the chain ride up and release under tension. Smooth shifting and safe power delivery are two completely different tests.

Every time you pedal, the chain rollers slide along the leading edge of each tooth. Over thousands of revolutions, that constant friction wears a groove into the tooth face. The steel chain roller is harder than the aluminum chainring.

The tooth gradually takes on a hooked, shark-fin profile. That hook faces backward, creating a ramp the chain can climb under torque. The chain wants to release.

Only chain tension holds it in place. When tension drops even slightly, it lets go.

How a Chainring Actually Wears

Most cyclists think a chainring is worn when the teeth look pointy. That's not accurate. A new chainring tooth is symmetrical with a gentle curve on both sides.

Wear shows up as an asymmetrical change. The drive side of the tooth flattens and develops a concave shape. The back side stays relatively unchanged.

That's why visual inspection matters more than counting miles.

Shark-fin is the term for that backward hook. It looks exactly like a shark's dorsal fin leaning toward the tail. The leading edge becomes longer on one side, creating a slope.

Gravity and pedaling force both push the chain into that slope. Once you can see a visible hook with the naked eye, you're well past the replacement window.

Not every mangled tooth is wear. A dropped chain can bend a tooth sideways without wearing it. A crash can ovalize the entire chainring or bend the spider.

Normal wear is gradual and uniform across all teeth. A bent tooth from a chain drop is isolated to two or three teeth. A bent ring from a crash shows consistent asymmetry when you spin the crankset and sight down the ring plane.

Chain "stretch" is actually pin and bushing wear. As the chain pins wear, the pitch between rollers increases by small fractions of a millimeter. The chain doesn't mate perfectly with the chainring teeth.

Each roller lands harder and slides farther before seating. A chain measured at 0.5 percent stretch or more roughly doubles the wear rate on a chainring compared to a fresh chain. Replace your chain regularly and you extend ring life significantly.

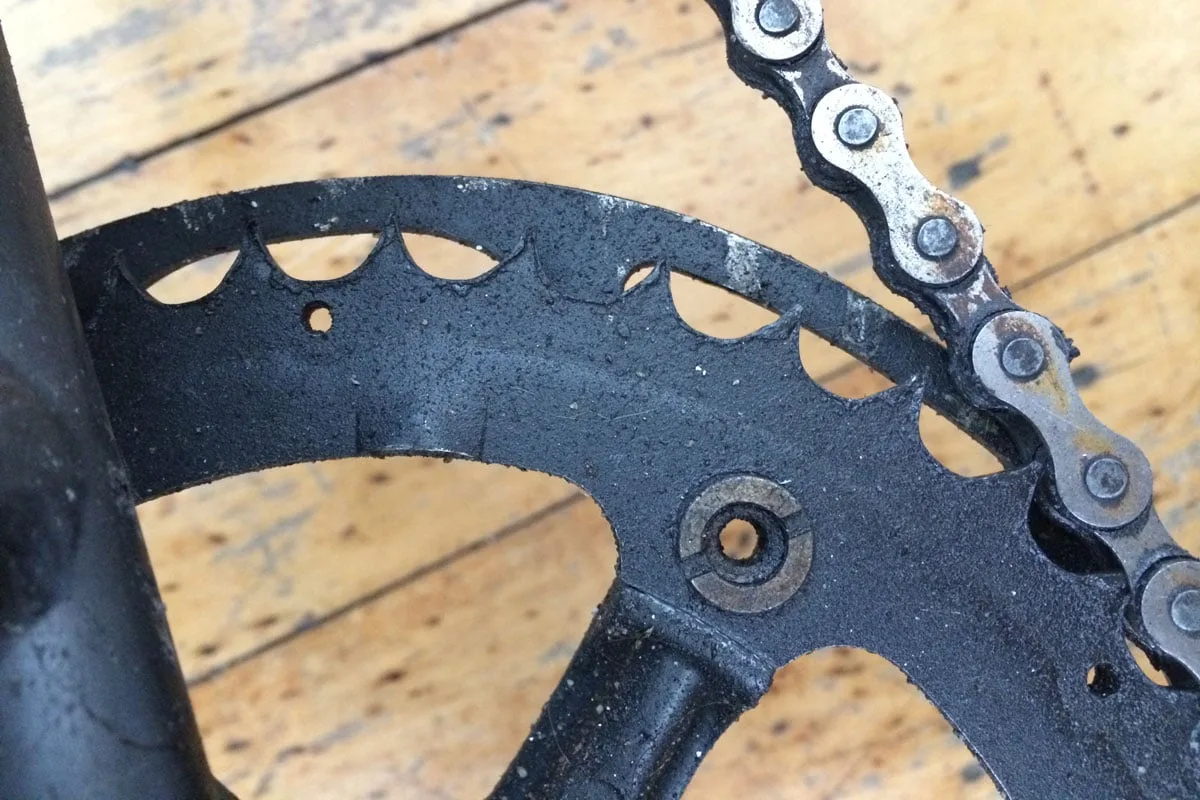

The Visual Inspection: What to Look For

Stand the bike on a stable surface. Crank the pedals backward slowly. Watch the leading edge of each tooth as it passes the top of the front derailleur cage.

On a healthy ring, the leading edge is slightly rounded and symmetrical. On a worn ring, the leading edge has a flat or concave wear patch. The tooth tip appears to lean backward.

If more than half the teeth show any visible flat spot, replace the ring.

If you have a new chainring of the same model, lay it next to the suspect ring and compare tooth height. Even half a millimeter of height loss is noticeable side by side. Use a ruler placed against the tooth tip.

New teeth on a standard road ring measure roughly 4mm from the base valley to the tip. When that measurement drops to about 3.5mm, replacement is due.

Wear isn't just shape. It's surface texture too. A heavily worn tooth face develops a polished, almost chrome-like shine where the chain roller has burnished the aluminum.

That shiny patch on the leading edge is a wear indicator even before the hook becomes obvious. Discoloration from heat is less common on road rings, but if you see blue or brown heat marks near the tooth base, the ring has experienced severe friction and should be replaced.

Chain suck is when the chain sticks to the bottom of the chainring instead of releasing cleanly. It leaves distinctive scratch marks on the inside face of the ring. If you see those scratches, the ring has worn past the point where the tooth profile can release the chain properly.

You can also feel chain suck as a rough dragging sensation when you pedal backward slowly. Any ring that exhibits chain suck is done.

A chain wear tool measures pin wear, not tooth wear. It tells you when to replace the chain, not the ring. If your chain measures beyond 0.75 percent stretch, the ring already has accelerated wear from that stretched chain.

Check the chain first. If the chain is shot, replace both together and inspect the cassette. If the chain is fine and the ring looks worn, the ring likely failed due to high mileage or aggressive riding.

The Chain-Cassette-Ring Triangle

A drivetrain is a system. The chain, cassette, and chainring wear together as a matched set. If you replace only the ring and leave a stretched chain on the bike, the old chain will accelerate wear on the new ring within a few hundred kilometers.

Always check all three components before replacing anything.

The standard replacement threshold for a chain is 0.5 percent stretch for 12-speed systems and 0.75 percent for 11-speed and older. Per Shimano and SRAM technical documentation, once the chain passes 0.5 percent, it should be retired regardless of speed. A 0.75 percent chain will cause rapid wear on any ring it contacts.

If you're measuring a chain at 0.5 percent stretch and the ring is already hooked, you're looking at a full drivetrain replacement: chain, cassette, and both chainrings.

Say you replace just the chain and leave a worn ring. The new chain rollers have a tighter fit than the old ones. They'll bind slightly on the hooked teeth, causing noise, rough pedaling, and accelerated wear on the new chain.

The ring will continue to degrade. Within 500 to 800 kilometers, the new chain will show premature stretch. You've wasted the cost of the chain and delayed the inevitable ring replacement.

Chain speed refers to the number of sprockets on the cassette. An 11-speed chain has inner dimensions that differ slightly from a 12-speed chain. Using a 12-speed chain on an 11-speed chainring can cause the rollers to sit too high in the tooth valley.

An 11-speed chain on a 12-speed ring may sit too tight and cause binding. Always match the chainring speed rating to your drivetrain.

Step-by-Step Replacement Guide

Tools You'll Need

• 4mm, 5mm, and 8mm hex keys (T25 or T30 Torx if your crankset uses them)
• Chainring bolt tool (10mm socket or dedicated spline tool)
• Torque wrench (8 to 16 Nm range)
• Crank puller or self-extracting crank bolt tool
• Chain whip (for cassette removal if needed)
• Rag and degreaser for cleaning the crank spider

Crank Removal and Bolt Torque

Shift to the small ring before stopping. Remove the left crank arm bolt using the appropriate hex key. If your crank has self-extracting caps, turn the cap counterclockwise to push the crank arm off the spindle.

For press-fit cranks, use a crank puller. Once the crank is off, lay it on a clean surface with the chainrings facing up. Remove each chainring bolt using the spline tool on the back side while holding the bolt head on the front side.

Shimano specifies 12 to 14 Nm for chainring bolts. SRAM specifies 8 to 12 Nm for most aluminum rings. Check your specific model's spec.

Overtorquing strips the aluminum threads in the spider.

Aligning the New Ring

On a 2x setup, alignment marks on the crank spider and chainring must line up. Those marks ensure the shift ramps and pins sit in the correct position relative to the crank arm. Rotate the ring until the mark aligns with the crank arm.

Hand-tighten all bolts before final torquing. On a 1x narrow-wide ring, alignment isn't critical. Just check that the ring is centered and all bolts seat evenly.

The Break-In Period

A new ring and chain will feel slightly stiff for the first 50 to 100 kilometers. The rollers need to seat into the fresh tooth surfaces. Avoid full-power sprinting or standing climbs during this period.

Keep your cadence smooth. After about 150 kilometers, recheck chain tension and listen for any odd noises. A slight hum is normal.

Clicking or skipping means either the ring wasn't torqued evenly or the chain speed doesn't match.

Common Mistakes That Cost You Money and Safety

Replacing only the ring without checking the chain is the most common error. A stretched chain will destroy a new ring quickly. Always measure chain stretch before buying a replacement ring.

If the chain is past 0.5 percent, budget for a chain too.

Overtightening chainring bolts is another mistake. Aluminum threads strip easily. Use a torque wrench and follow the manufacturer's specification.

Stripped threads mean a new crank spider or entire crankset.

Mixing brands or speeds incorrectly causes poor shifting and accelerated wear. A Shimano chain on a SRAM ring designed for a different speed will not mate correctly. Check the speed rating stamped on the back of the ring before purchase.

Riding a bent ring thinking it's just wear is dangerous. A bent ring wobbles laterally under load. That wobble causes inconsistent chain engagement and can lead to chain drop.

Spin the crankset and sight down the ring plane. Any side-to-side movement means the ring is bent, not worn, and should be replaced immediately.

Ignoring the inner ring on compact setups is common because the large ring wears faster. But the inner ring carries load during climbing. A worn inner ring can skip under high torque just like a worn outer ring.

Both rings should meet the same visual inspection standards.

When to Call a Shop vs. DIY

Removing a crank requires a crank puller for most non-self-extracting designs. If you don't have one, a shop will charge a small fee to remove the crank and install the new ring. That's often cheaper than buying a tool you'll use once a year.

Compatibility questions can stump even experienced riders. If you're unsure whether a replacement ring matches your crank's BCD and speed rating, bring the old ring to a shop. They can measure it and order the correct part.

Torque-sensitive components like carbon crank arms or power meter spiders are worth a shop visit. Overtorquing a carbon crank arm can crack it. If your crank is carbon, let a professional handle the installation.

Frequently Asked Questions

How many miles does a chainring last?

Most road chainrings last between 5,000 and 12,000 miles depending on rider power, terrain, chain maintenance, and conditions. Wet or gritty riding cuts that range in half. High-power sprinters may wear a ring in 3,000 miles.

Can I replace just one ring on a 2x setup?

Yes, you can replace just the worn ring on a 2x crankset. Match the BCD, tooth count, and speed rating to the existing ring. If the other ring shows visible wear too, replace both to maintain even shifting.

Do oval chainrings wear differently?

Oval chainrings do not wear significantly faster than round rings. The wear pattern may appear uneven because the tooth load varies through the pedal stroke. Apply the same visual inspection standards as round rings.

Is it safe to ride a ring with one slightly bent tooth?

No. A bent tooth can cause chain suck or chain drop at any time. If the tooth is steel, try bending it back carefully with pliers.

If it's aluminum, replace the ring. Aluminum bends permanently and will not hold a correction.

Does a new chainring need new chainring bolts?

No, but inspect the existing bolts for corrosion or stripped hex heads. Chainring bolts are inexpensive and replacing them during a ring swap is cheap insurance. Use thread lock compound on the bolts if your manufacturer recommends it.
