Santa Cruz Chameleon Cassette Problem

Image source: Bing (Web (fair-use with source credit))

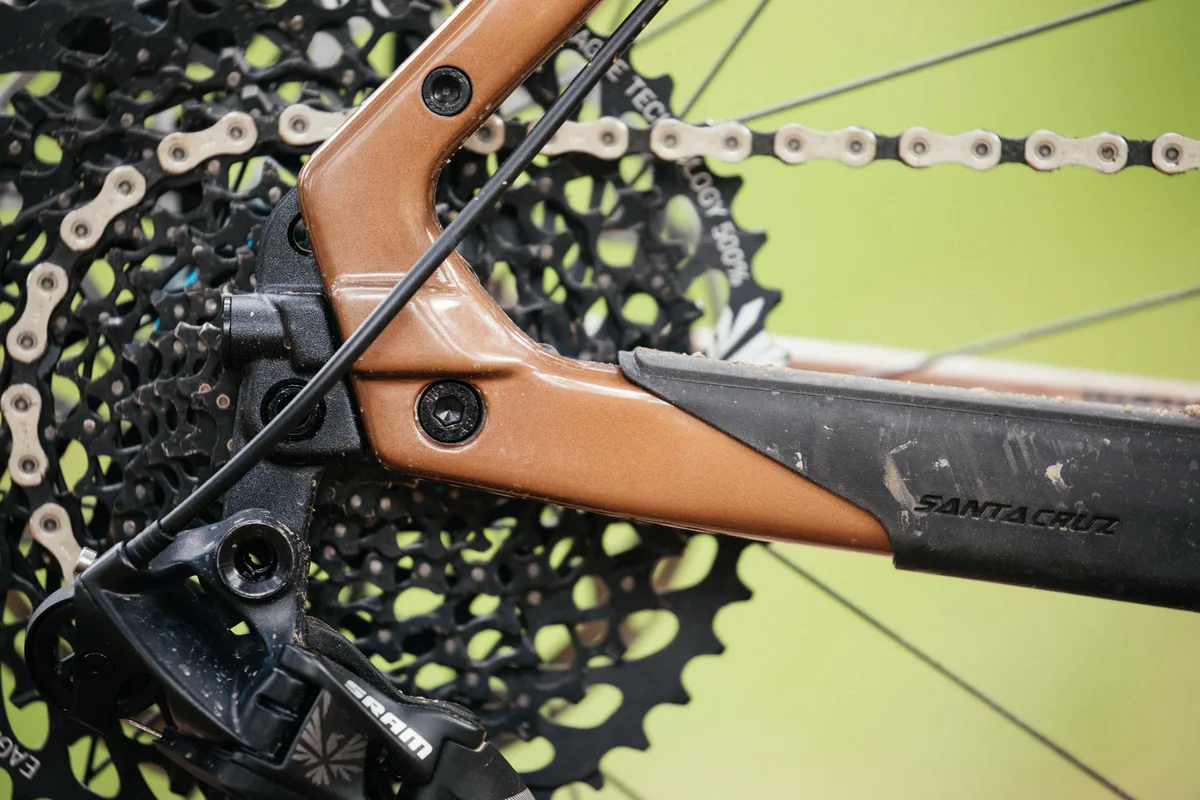

If you've felt that annoying click-click-click under load or watched your chain sag like a loose clothesline, you're dealing with a Santa Cruz Chameleon cassette problem. It's not a rare defect, but it is a specific one. The Chameleon's sliding dropouts and hub spacing create a chainline and tension dynamic most hardtails don't have.

The Chameleon uses a 148mm boost rear hub, but the frame's sliding dropouts let you run it as a 142mm setup or convert to single-speed. That flexibility is great, until something shifts a millimeter or two, and then your cassette starts acting up.

Here's the short version: this is almost always a chainline or tension issue, not a broken cassette. Most riders fix it in under 20 minutes with basic tools.

---

What's Actually Causing the Problem

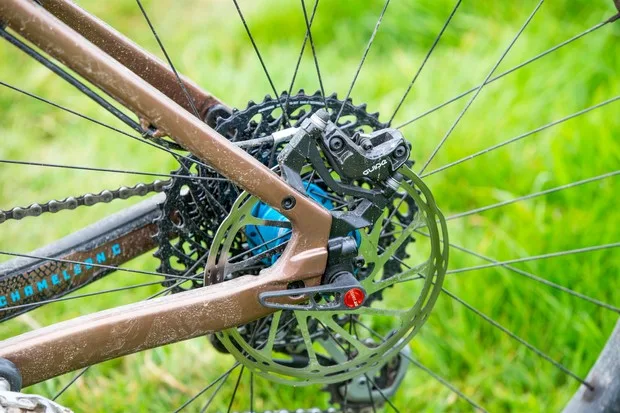

The Chameleon's most distinctive feature, the sliding dropout, is also the root of most cassette-related headaches. Unlike a traditional frame with fixed dropouts, the Chameleon's rear wheel position is adjustable. That's brilliant for tuning geometry.

But it also means the distance between the cassette and the front chainring changes every time you move the wheel.

Here's what happens: most riders set the wheel position once and never touch it again. Then, over months of hard riding, the dropout slowly creeps forward or backward because the axle bolts weren't torqued to spec. Santa Cruz specifies 15-20 Nm for the axle pinch bolts.

If you're under that, the wheel shifts under load, and the chainline goes with it.

When the chainline is off by even 2-3mm, the chain runs at an angle across the cassette. Shifting gets sluggish, the chain skips under power, and sometimes it drops entirely. The cassette itself is usually fine.

The alignment is the problem.

The second culprit is a loose cassette lockring. The Chameleon's stock hubs, typically Industry Nine or DT Swiss, spec a lockring torque between 30-40 Nm. If your shop assembled the bike with a quick spin of the wrench, that lockring can back off over time.

You'll hear a ticking sound under load and feel a weird wobble. That's the cassette body moving slightly on the freehub.

---

Quick Diagnosis: Is It the Cassette, the Hub, or the Dropouts?

Image source: Bing (Web (fair-use with source credit))

You don't need a full bike shop to figure this out. Start with the simplest checks and work your way up. Roughly 70% of Chameleon cassette complaints trace back to dropout alignment or axle torque.

Only about 10% end up being an actual worn-out cassette.

Check the dropout position first

Look at the frame from the drive side. The dropout should be square and even with the frame's slot markings. Santa Cruz machines a small hash mark on the frame and dropout.

If those don't line up, that's your problem. Loosen both pinch bolts, reset the wheel, and re-torque to 15-20 Nm.

Then test the cassette lockring

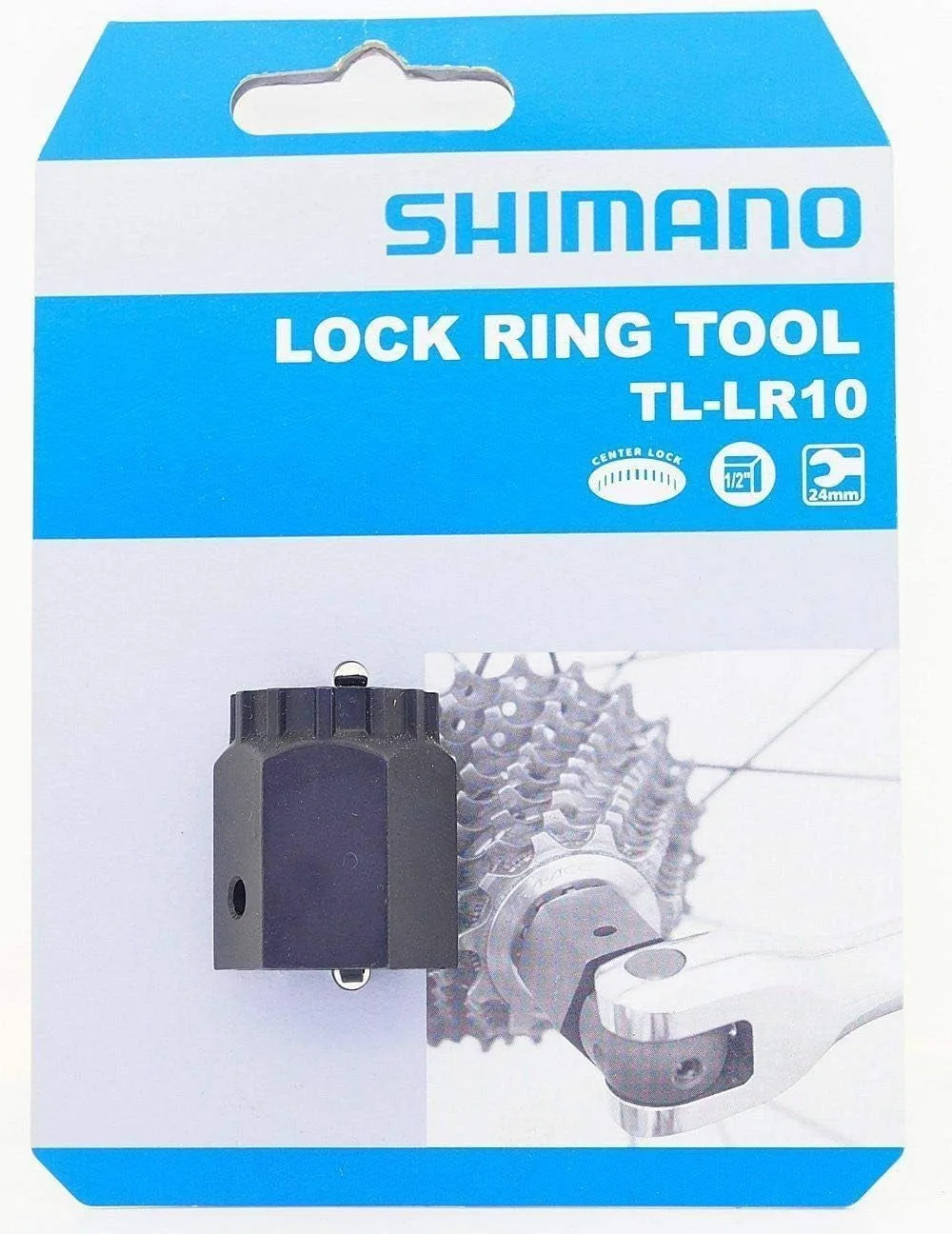

Grab the cassette with one hand and try to rock it back and forth while holding the cranks still. If you feel any movement, the lockring is loose. A cassette lockring tool and a torque wrench will settle it in less than a minute.

Check the chain length

A chain that's too long will cause ghost shifting and make the cassette sound like it's skipping. Look at the rear derailleur's cage angle, it should sit roughly vertical with a slight backward tilt. If it's pointing way forward or almost parallel to the ground, your chain length is wrong.

Isolate the hub

If the dropout is aligned and the lockring is tight, spin the wheel in a stand. Listen for grinding or rough spots. That points to the freehub body, not the cassette.

If the freehub is the issue, you'll need to service or replace it, that's a separate repair.

---

Step-by-Step Fix: From Diagnosis to Dialed-In Drivetrain

Image source: Bing (Web (fair-use with source credit))

Here's the full process. It assumes you have basic tools, a torque wrench, and a minute of patience. Most riders complete this in under 30 minutes.

Tools You'll Need

Step 1: Loosen the axle bolts

Start with the drive-side pinch bolt. Loosen it fully, then do the non-drive side. The rear wheel will now sit free in the dropout slot.

Don't remove the wheel, just let it settle naturally.

Step 2: Align the dropouts

Push the wheel forward into the slot until the hash marks line up on both sides. You should feel even resistance. If one side sits further back than the other, your wheel is cocked.

That's a classic cause of cassette noise and poor shifting.

Step 3: Torque the pinch bolts

Set your torque wrench to 15-20 Nm. Tighten the drive side first, then the non-drive side. Alternate between them once each to keep the wheel centered.

Recheck the hash marks after torquing. If they shifted, loosen and repeat.

Step 4: Check the lockring

With the wheel in place, test the cassette for rocking movement. If it's loose, install the lockring tool and chain whip. Torque the lockring to 30-40 Nm.

This step alone fixes a surprising number of reported issues.

Step 5: Test ride with intent

Take the bike out and shift through every gear while pedaling under load. Listen for chain slap and skipping. If the drivetrain is quiet and crisp, you've solved it.

If not, move to the next section.

---

Common Mistakes That Make Things Worse

Half of the Chameleon cassette problems we see come from well-intentioned riders doing the wrong fix. Avoid these.

Over-torquing the pinch bolts

More torque is not better here. Going past 20 Nm can crush the dropout threads or deform the aluminum. Use a torque wrench, your wrist doesn't know what 17 Nm feels like.

Ignoring the derailleur clutch

If you ride a Chameleon with a modern rear derailleur, the clutch tension affects chain stability. A loose clutch makes the chain bounce and slap against the cassette. Adjust the clutch tension per the manufacturer's spec.

It's a small dial on the derailleur cage.

Replacing the cassette when you don't need to

Many riders swap a perfectly good cassette because they misdiagnosed a dropout issue. A brand-new cassette won't fix a misaligned wheel. Save the $80-120 and check the basics first.

Forgetting the chain wear

A stretched chain will skip on a worn cassette, but it can also feel like a cassette issue when it's not. Use a chain checker tool. If the chain shows 0.5% wear or more, replace it before worrying about the cassette.

Setting the dropout position for looks, not function

Some riders push the wheel all the way back for a longer wheelbase, even in single-speed mode. That changes the chainline significantly. Santa Cruz designed the adjustment range for geometry tuning on geared setups too, but there's a limit.

If you run the wheel at extreme rear positions, check your chainline with a straightedge.

---

When to Upgrade vs. When to Just Fix It

If your cassette is actually worn, no amount of dropout alignment will save it. Look for hooked teeth and a chain that rides up and over under power. That's wear, replace it.

But if the cassette has plenty of life, a new one won't fix a chainline problem. The upgrade path for a Chameleon cassette issue usually isn't a fancier cassette. It's a hub service or a different chainring offset.

Santa Cruz uses a 55mm chainline standard on current frames. Older models used 52mm. If you have the older frame and bought a newer crankset, your chainline is off by 3mm, that's enough to cause persistent shifting complaints.

A simple chainring spacer kit fixes it for under $20.

For hub issues, like a rough or failing freehub, that's when an upgrade makes sense. Industry Nine hubs are serviceable, but if the pawls are damaged, a freehub rebuild kit is usually cheaper than a new wheel.

If the dropout itself is bent or damaged, that's a frame concern. A bent dropout won't hold the wheel straight. That requires frame repair or replacement.

Don't try to bend it back, aluminum doesn't like that.

---

Frequently Asked Questions

How do I know if my Chameleon dropouts are aligned?

Look at the frame's hash marks on both sides. They should be parallel and even. Use a 4mm hex to loosen both pinch bolts, reset the wheel, and re-torque to 15-20 Nm.

Misalignment shows as one hash mark ahead of the other.

What torque spec should I use for the cassette lockring?

Most Chameleon hubs, including Industry Nine and DT Swiss, spec 30-40 Nm. Use a torque wrench with a cassette lockring tool. If you don't have one, snug it firmly, then give it one extra push.

Over-tightening can damage the freehub threads.

Does the sliding dropout cause chain drops?

Yes, when misaligned or loose. The sliding dropout changes the distance between the front chainring and cassette. If the wheel shifts under load, the chain can derail entirely.

Each time you adjust the dropouts, re-check the pinch bolt torque before riding.

Why is my cassette noisy only when I pedal hard?

Load-induced noise usually points to freehub pawls or a loose lockring. First, check the lockring torque. If that doesn't fix it, service the freehub body.

Hard pedaling applies more torque, which exposes worn pawls or a creeping cassette.

Should I replace the cassette or the chain first?

Always check the chain first. A stretched chain at 0.5% wear will accelerate cassette wear. Replace the chain, and if skipping persists, then inspect the cassette for hooked teeth.

For the Chameleon, also verify dropout alignment, chainline issues mimic cassette and chain wear.

Can I convert my Chameleon to single-speed without cassette problems?

Yes, but only if you use the correct spacers and torque. Single-speed setups on the Chameleon require a specific spacer stack on the freehub. If the stack is wrong, the chainline will be off and you'll get skipping.

Santa Cruz publishes a single-speed spacer guide for their frames.

---

Bottom Line

The Santa Cruz Chameleon cassette problem is rarely a cassette problem at all. It's a maintenance issue, usually loose dropouts, a backing-off lockring, or a chainline mismatch. Check the simple stuff first.

Torque everything to spec. Test ride before buying parts.

Nine times out of ten, you'll fix your Chameleon's cassette trouble in your garage, not your wallet.
