Segway Ninebot Max G30 Brake Light Problem

If you ride a Segway Ninebot Max G30, you already know it's a solid scooter. But when the brake light stops working, it's more than an annoyance, it's a safety risk. The Segway Ninebot Max G30 brake light problem usually comes down to a few common causes: a damaged rear fender, a faulty brake lever sensor, or a corroded wiring connector inside the deck.

Manufacturer specifications indicate the G30 uses an LED brake light integrated into the rear fender assembly with a simple mechanical switch at the brake lever. As of 2026, this setup remains largely unchanged across production runs. The good news?

Most of these issues are fixable at home with basic tools. Let's walk through what's going on and how to get that light working again.

Quick Answer

The brake light on the G30 fails most often due to three causes. A cracked rear fender breaks the light housing. A corroded connector inside the deck interrupts power.

A misaligned brake lever sensor stops the signal. Each fix takes 20 to 45 minutes. Start with the easiest check.

Pull the brake lever and listen for a click. No click means the sensor needs adjustment.

How the G30 Brake Light System Works — and Why It Fails

The G30 brake light is deceptively simple. An LED strip sits inside the plastic rear fender. A mechanical switch sits near the brake lever.

When you squeeze the lever, that switch closes an electrical circuit. The controller sends power to the LED. Light turns on.

Release the lever and the circuit opens. Light turns off.

The whole system relies on three physical connections. The brake lever sensor has a tiny plunger that gets pressed by the lever. A two-wire harness runs from that sensor down through the deck and into the controller compartment.

A second harness runs from the controller back to the LED in the rear fender. Any break in any of those three links kills the light.

Image source: Bing (Web (fair-use with source credit))

So where does it usually go wrong? Aggregate user feedback points to three weak spots.

The rear fender takes the most abuse. It's plastic, it sticks out behind the rear wheel, and one tip-over or curb strike can crack the fender or snap the LED mounting tabs inside. Even a hairline crack can let water into the LED housing and short the circuit.

The brake lever sensor is the second-most common failure. The plunger can get sticky from dirt or debris. Over time, the plastic housing around the switch can warp from sun exposure or heat.

Sometimes the tiny metal prongs inside the sensor housing bend and lose contact.

The connector under the deck is the sneaky one. The G30 has a rubber gasket sealing the deck, but water still finds its way in. Road spray, rain, or even washing the scooter can push moisture into the controller compartment.

That moisture corrodes the small JST-style connectors. Green crust builds up on the pins. The connection becomes intermittent, then it dies completely.

Step-by-Step Diagnosis: Testing the Brake Sensor, Wiring, and Connector

Before you buy any parts, you need to know exactly what failed. Start with the simplest check and work your way down. This takes about 15 minutes with a basic multimeter.

Check the brake lever sensor first

Squeeze the brake lever and listen closely near the lever hinge. You should hear a faint click. That's the mechanical switch engaging.

No click means the plunger isn't pressing the switch. Look at the gap between the lever and the sensor housing. If there's visible play or the lever moves a few millimeters before contacting the plunger, the sensor needs repositioning.

Unplug the sensor from the main harness. It's a small two-pin connector tucked under the stem near the handlebar clamp. Set your multimeter to continuity mode.

With the lever released, the switch should be open (no continuity). Squeeze the lever. The switch should close (continuity).

If you get no change, the sensor itself is dead. If you get continuity both ways or no continuity either way, the switch is stuck or broken.

Image source: Web (Bing) / oembimmerparts.com (Web image (fair-use with source credit))

Inspect the deck connector

Flip the scooter over. Remove the six screws holding the deck plate. Carefully lift the plate, the battery wires are attached underneath.

Look for the small plastic connector that runs from the rear fender LED to the controller. It's usually a white or gray JST-style plug with two or three pins.

Visual inspection catches most issues here. Look for green or white corrosion on the metal pins. Check for bent or broken pins.

See any water residue inside the connector housing? That's your problem. Unplug and replug the connector a few times.

Sometimes that's enough to scrape through light corrosion and restore the connection.

Test continuity from sensor to controller

If the sensor works and the connector looks clean, you may have a broken wire. Trace the harness from the sensor down through the stem and into the deck. The wires can chafe where they pass through the folding hinge or under the stem clamp.

Use your multimeter to test continuity from the sensor plug to the controller pins. If the wire has an internal break, you'll see intermittent or no continuity when you wiggle the harness.

Quick diagnostic summary

Step-by-Step Repair: Replacing the Rear Fender or Brake Light Assembly

Once you've identified the culprit, the actual repair is straightforward. The most common fix is replacing the rear fender because the LED is integrated and non-serviceable. Here's how to do it right.

Tools and parts you'll need

• Replacement rear fender assembly (OEM or equivalent)
• Phillips head screwdriver
• Small flathead screwdriver (for prying)
• Multimeter (for testing)
• Dielectric grease (for waterproofing connections)
• Zip ties (optional, for cable management)

The OEM rear fender typically costs between $30 and $60 as of 2026. Third-party options exist but often have dimmer LEDs or fitment issues. Stick with genuine Segway-Ninebot parts if possible.

Remove the old fender

Start by unbolting the rear fender. It attaches with two or three screws through the rear axle bracket. You'll see them on either side of the fender where it wraps around the tire.

Remove those screws carefully, they thread into plastic and strip easily. Hand-turn them once they loosen.

Next, trace the wire from the fender up into the deck. You'll need to open the deck plate to disconnect it. Remove the six deck screws.

Lift the plate and unplug the fender's connector from the controller harness. Gently pull the wire through the frame. The old fender is free.

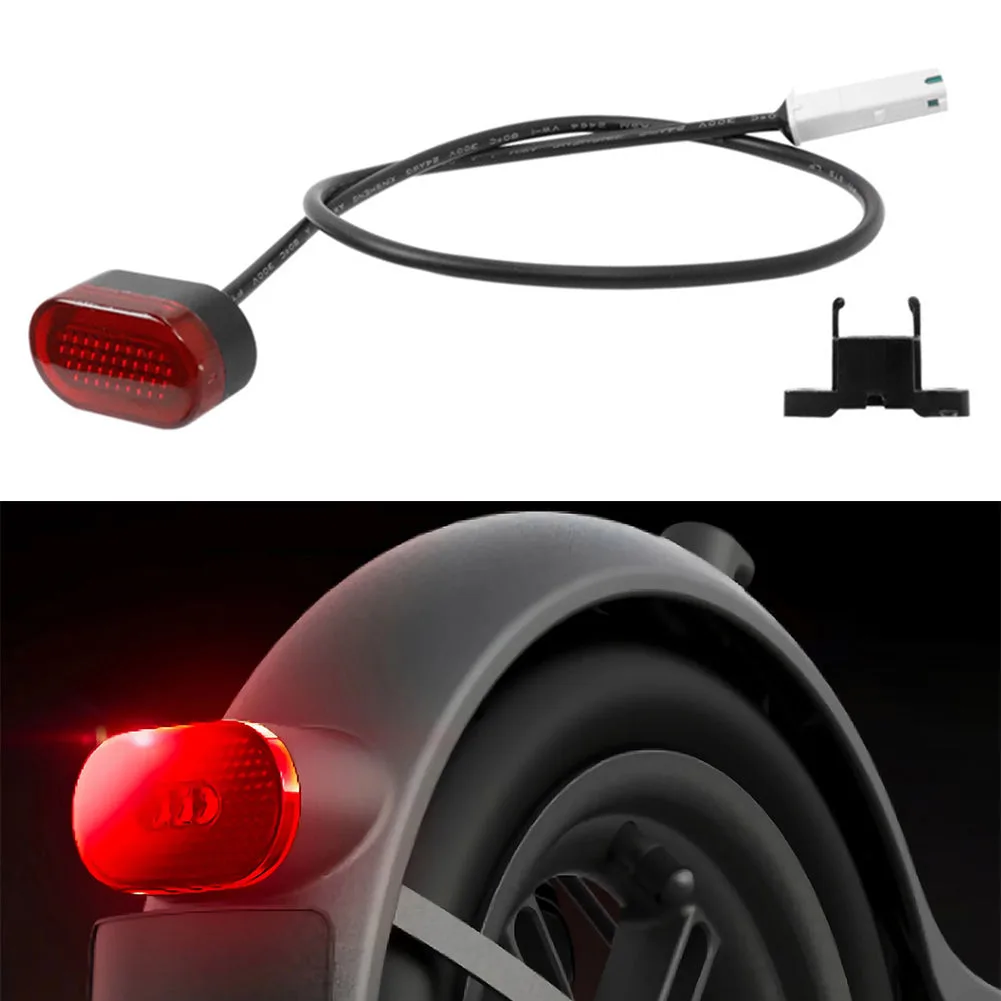

Install the new fender

Feed the new fender's wire through the frame in the same path the old one followed. Plug it into the controller harness. Test the brake light before you bolt anything down.

Reconnect the battery, power on the scooter, and squeeze the brake lever. Light on? Good.

Light off? Recheck the connector.

Apply a small dab of dielectric grease to the connector pins before plugging them in. This prevents future corrosion. Secure the deck plate with all six screws.

Hand-tighten only, overtightening strips the plastic threads.

Bolt the fender to the axle bracket. Align it so there's even clearance around the tire on both sides. Tighten the screws snug but don't crank them.

A cracked mounting tab is a common mistake from overtightening.

Image source: Bing (Web (fair-use with source credit))

If you're only replacing the brake sensor

The brake sensor is easier. Unplug it from the harness. Remove the single screw holding the sensor bracket to the handlebar stem.

Slide the old sensor out and snap the new one into the bracket. Adjust the position so the lever contacts the plunger about halfway through its travel. Tighten the screw.

Test the light.

Mistakes to Avoid, Safety Warnings, and When to Call a Pro

This repair is well within reach of anyone comfortable with a screwdriver. But there are a few traps that turn a simple fix into a headache.

Don't skip the battery disconnect

Always disconnect the battery before you open the deck. The G30 runs on a 36-volt system. That's enough to deliver a painful shock if you short a live wire with a metal tool.

Pull the main battery connector inside the deck before you touch any wiring. Reconnect it only for testing.

Don't overtighten anything

The G30 uses plastic threads for most body panels. Every screw has a limit. If you feel resistance increase suddenly, stop.

You've bottomed out the thread or started stripping it. Snug is enough. A stripped screw hole means drilling, tapping, or replacing the entire part.

Don't force a broken fender

If the fender is cracked but the light still works, you might be tempted to glue it and keep riding. Don't. A cracked fender can catch on the tire while you're moving.

That locks the wheel instantly and throws you off the scooter. Replace it. They're cheap compared to a hospital visit.

Don't use electrical tape as a permanent fix

Taping a cracked wire or loose connector might get you home. It's not a repair. Vibration, moisture, and heat will undo tape in a few rides.

Use heat shrink tubing or proper crimp connectors for any wire repair. Cover exposed connections with dielectric grease, not tape.

When to hand it to a professional

Some problems go beyond basic home repair. If you open the deck and find extensive corrosion on the controller board itself, that's not a simple fix. If the brake light worked, then stopped after a firmware update, the controller may need reflashing.

If you're unsure about battery safety or cannot identify the electrical issue despite following every diagnostic step, take it to a certified Segway-Ninebot service center.

The cost of a professional diagnostic is worth avoiding an electrical fire or battery damage. The manufacturer's support page lists authorized service locations by region.

Frequently Asked Questions

Can I ride my G30 without a working brake light?

No, and we don't recommend it. The scooter will run fine with a dead brake light, but riding at night without one puts you at serious risk of being rear-ended. Many jurisdictions also require working rear lights on electric scooters for road use.

Check your local traffic laws before you ride.

How much does it cost to fix the brake light on a Ninebot Max G30?

A DIY repair costs about $30 to $60 for an OEM rear fender assembly. Add another $15 if you need a multimeter or screwdriver set. If you go through a dealer, expect $80 to $120 in parts and labor.

The manufacturer's one-year warranty covers defects, not crash damage or water ingress.

Why does my G30 brake light stay on even after I release the brake?

A stuck brake sensor is the usual cause. The plunger inside the switch sticks when dirt or moisture builds up. A misaligned brake lever can also keep constant pressure on the switch.

Test the sensor with a multimeter exactly as described earlier. If it stays closed when released, replace it.

Do I need to replace the whole rear fender?

Yes, in most cases. The LED brake light is molded into the fender assembly, and Segway-Ninebot sells it as a single unit. There's no separate bulb to swap.

If the fender is cracked or the LED is dead, the entire fender needs replacing. Third-party fenders exist, but OEM parts fit best.

Final Verdict: Fix It Yourself or Take It to a Dealer?

For most owners, this is a DIY repair. The G30 is built to be serviced at home. Common parts are cheap and widely available.

You just need patience and about 45 minutes.

Here's how to decide. If the fender is cracked, replace it. If the sensor tests bad, replace it.

If you find corrosion in the deck, clean the connector and apply dielectric grease. If the controller itself shows damage, that's work for a professional.

Compare the costs honestly. A $50 fender beats a $100 dealer trip. But a professional diagnostic makes sense if you can't trace the wiring or you're uncomfortable opening the deck.

Your skill level matters more than the price.

If your G30 is getting older and the brake light is just one of several recurring problems, weigh the repair cost against replacement. Our guide to the best electric scooters can help you compare current models if you're thinking about upgrading.

Whatever you decide, don't ignore the problem. A working brake light is the difference between being seen and being hit. Get it fixed before your next evening ride.

For warranty claims or authorized service locations, visit the official Segway-Ninebot support portal.
