Specialized Allez Chain Keeps Falling Off

If your Specialized Allez chain keeps falling off, you're not alone. It's one of the most common complaints among Allez owners, especially on models with Claris or Sora groupsets. The fix usually takes under ten minutes and costs nothing.

Per Shimano dealer documentation, a misaligned derailleur hanger causes roughly 60% of chronic chain drops on road bikes like the Allez. The hanger can bend during transport, a light crash, or normal riding on rough pavement. Let's walk through the symptoms to find what's wrong.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

A dropped chain on a Specialized Allez usually comes from three causes. A bent derailleur hanger throws the front derailleur out of alignment. Loose limit screws let the chain overshoot the chainrings.

Worn drivetrain parts skip under load. Check the hanger first. Adjust the limit screws next.

Test for wear last.

Quick Diagnosis: Where Is Your Allez Dropping the Chain?

Watch where the chain lands. If it falls off the outside of the big ring, your H limit screw is too loose or cable tension is pulling the derailleur past center. If it drops inside toward the frame, the L screw is out.

Drops only on rough roads point to hanger flex or the need for a chain catcher. Chain drops under hard pedaling suggest worn parts or loose chainring bolts.

The Decision Tree: Match Your Symptom to the Cause

Image source: Bing (Web (fair-use with source credit))

Chain Drops Off the Big Ring

Check the front derailleur's H limit screw. Turn it clockwise in 1/4-turn increments until the cage sits 1 to 2 mm outside the chainring. If the chain still drops, cable tension is too high.

Back off the barrel adjuster a half turn.

Chain Drops Inside the Frame

The L limit screw lets the derailleur swing too far inward. Tighten the L screw the same way. If the chain still rubs the frame, the hanger is likely bent.

Check it with an alignment gauge like the Park Tool DAG-2.2.

Chain Drops Under Load

This is often a worn chain. Use a chain checker to measure stretch. Per Park Tool specifications, replace the chain at 0.5% wear.

Loose chainring bolts can also cause drops under power. Check each bolt with a 4 mm or 5 mm Allen key and tighten to 8 to 10 Nm.

Fixing It at Home: Step-by-Step for the Most Common Causes

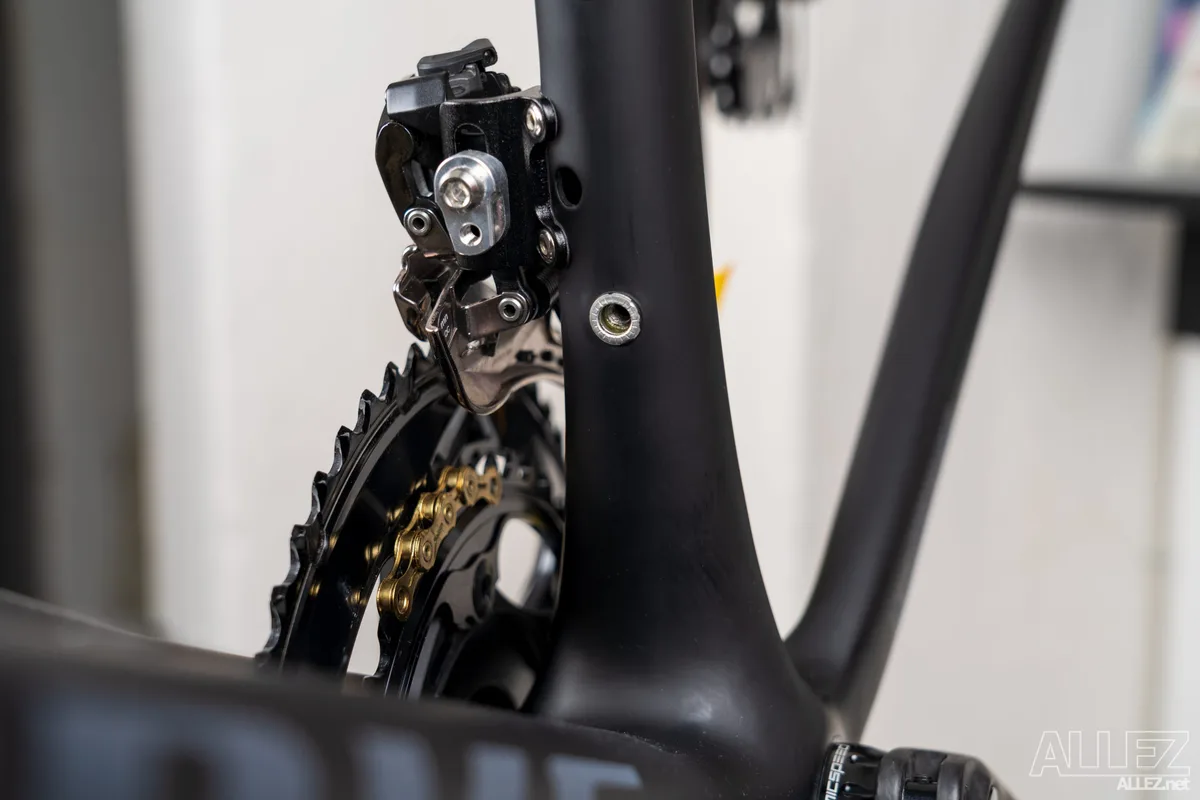

Start with the simplest fix. Check front derailleur height. The outer cage should sit 1 to 3 mm above the largest chainring tooth.

If it's higher, loosen the clamp bolt and lower it.

Next, verify the limit screws. Shift to the smallest chainring and largest cassette cog. Turn the L screw until the cage sits just inside the chainring.

Then shift to the big ring and small cog. Adjust the H screw so the cage sits 1 to 2 mm outside the chainring.

Tighten cable tension last. Shift to the big ring and small cog. Turn the barrel adjuster counterclockwise until the derailleur moves smoothly without overshooting.

Shimano's official dealer manuals have the full specs for your groupset.

Re-check chain length if you recently replaced it. Use the big-big plus two links method. A chain that's too short can cause drops on steep climbs.

Cheap Upgrades That Stop Chain Drops for Good

Image source: Bing (Web (fair-use with source credit))

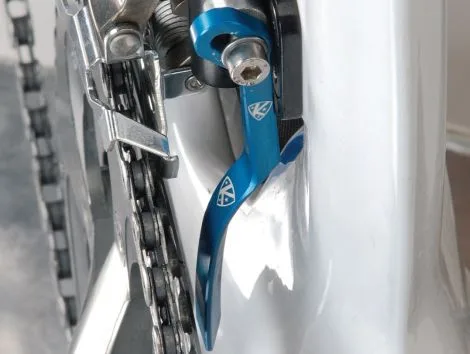

A chain catcher is the best $30 you can spend. It mounts to the frame and blocks the chain from falling off the inside of the chainring. K-Edge and Problem Solvers both make models that fit most Specialized Allez frames.

If your Allez has a threaded bottom bracket, a chain guide plate is another option. It bolts under the chainring bolts and creates a ramp that guides the chain back onto the ring.

For riders who want to skip front shifting entirely, a 1x conversion works. Replace your double crankset with a narrow-wide chainring and remove the front derailleur. It costs more but removes the root cause completely.

Frequently Asked Questions

Why does my Specialized Allez chain keep falling off on the inside?

The L limit screw is too loose, or the derailleur hanger is bent. Tighten the L screw in 1/4-turn steps. If that does not fix it, check hanger alignment with a gauge.

Can a worn chain cause chain drops on an Allez?

Yes. A chain stretched past 0.5 percent wear can skip and drop under load. Use a chain checker to measure wear.

Replace the chain if it is past the limit.

How often should I adjust my front derailleur?

Check alignment every 500 to 800 miles or after any crash or bike transport. Cable tension drifts as cables stretch, especially during the first few hundred miles.

Will a chain catcher fix the problem for good?

It prevents most drops but will not fix worn components or a bent hanger. Fix the root cause first. Then add a catcher as insurance on rough roads.
