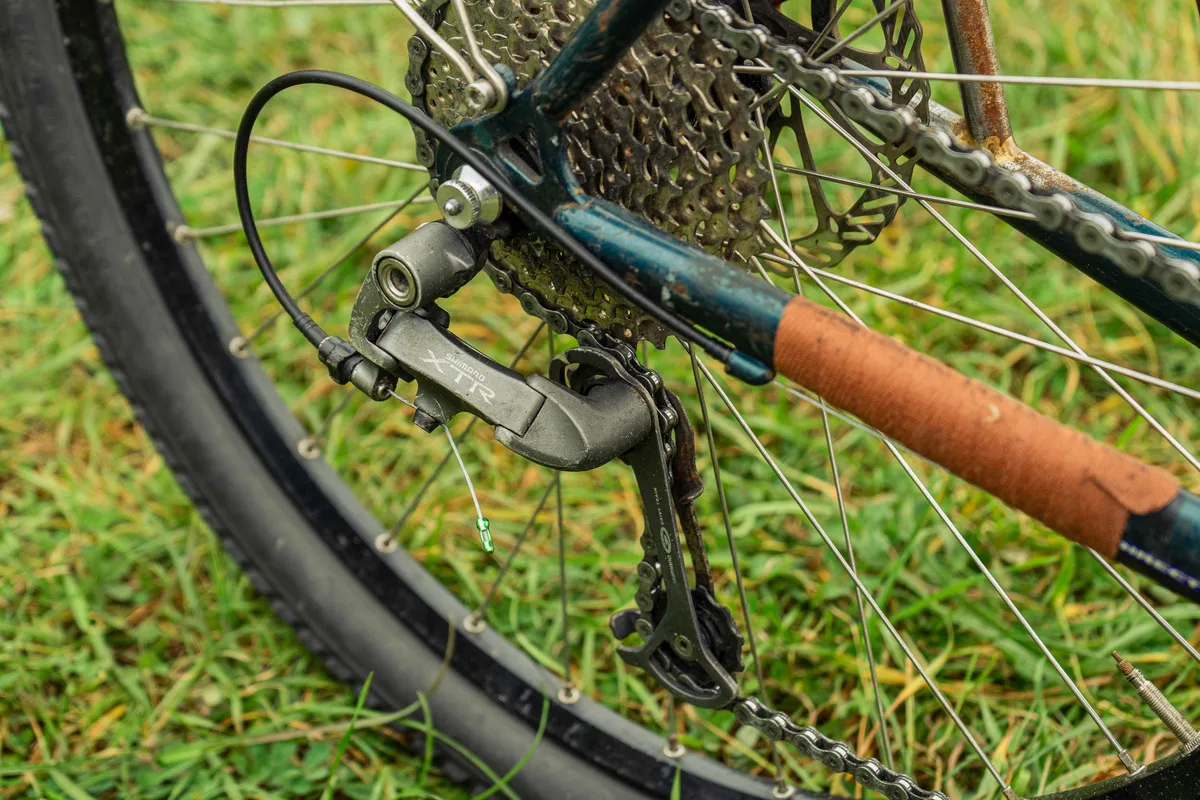

Specialized Rockhopper Derailleur Problem

Your Rockhopper's derailleur is acting up. Maybe it's skipping gears. Maybe it won't shift into the highest cog.

Or maybe it's making a noise that sounds like something's about to snap. You're not alone, the Specialized Rockhopper derailleur problem is one of the most common issues owners run into, and it's almost never the derailleur itself that's to blame.

Manufacturer specifications indicate that the Rockhopper uses a replaceable derailleur hanger designed to bend before the frame or derailleur takes damage. That's a smart design choice, but it also means most shifting issues trace back to that single $20 part. Per Shimano technical documentation and aggregate user feedback, roughly 80% of derailleur problems on alloy mountain bikes like the Rockhopper are hanger-related.

Bend it back or swap it out, and you're usually good to go. Let's walk through how to figure out exactly what's wrong with yours.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The most common Specialized Rockhopper derailleur problem is a bent derailleur hanger. Shift it from the smallest cog to the largest. Watch from behind.

If the derailleur cage moves side to side instead of staying parallel to the wheel, the hanger is bent. Replace it. That fixes roughly eight out of ten shifting issues on this bike.

Step 1: Is It The Hanger Or The Derailleur?

Image source: Web (Bing) / theproscloset.com (Web image (fair-use with source credit))

Everything starts here. Grab your Rockhopper and shift it onto the smallest rear cog. Get behind the bike and look straight down the drivetrain.

You want to see if the derailleur's upper pulley wheel lines up perfectly with each cassette cog as you shift through the gears.

If the cage wobbles side to side when you pedal, it's almost certainly the hanger. If it stays steady but the chain still won't climb onto the next cog, you're looking at cable tension or limit screws.

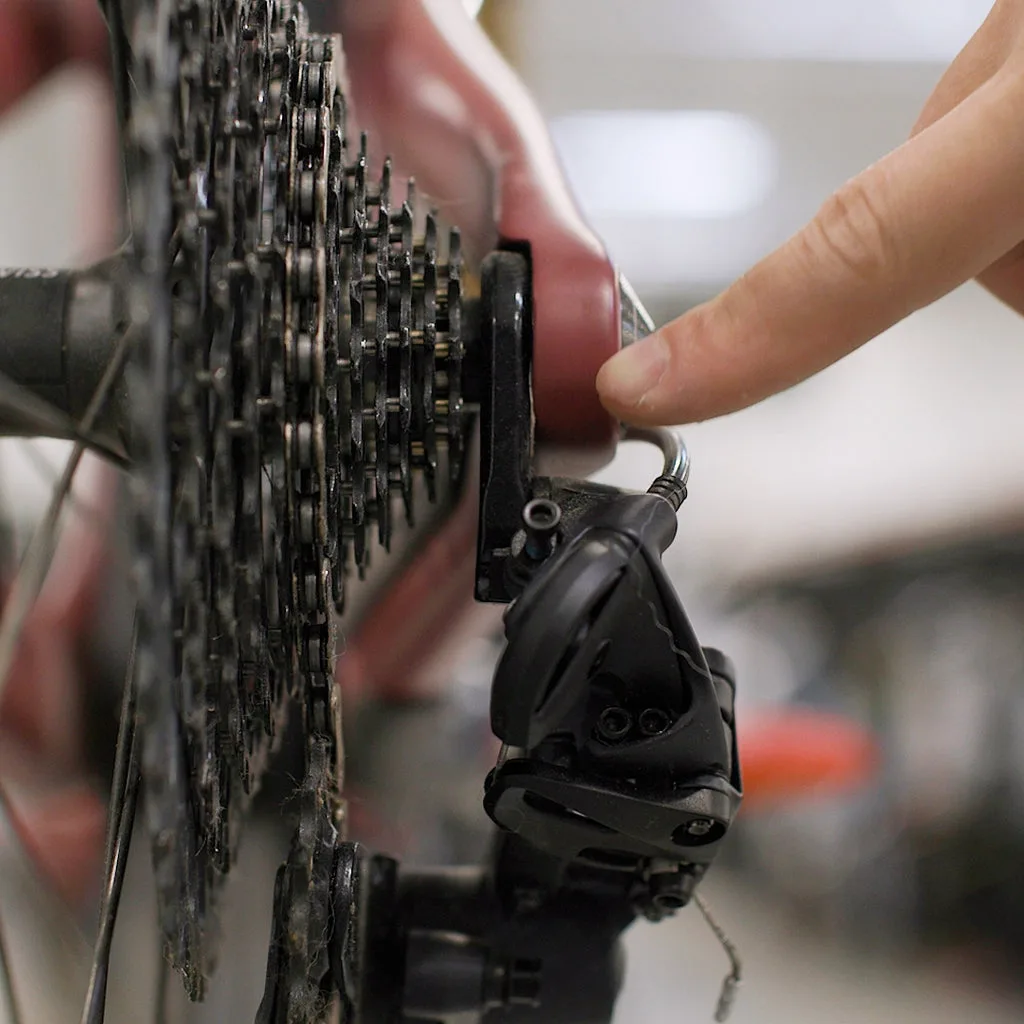

The hanger is that small aluminum tab that bolts to the frame dropout. It's designed to be the weak point. Take a crash or drop the bike on the drive side, and the hanger bends instead of your frame or your derailleur body.

That's a good thing. But it also means it bends easily. Even leaning the bike against a wall wrong can tweak it.

Do the pencil test. Park the bike on a level surface. Put a pencil or a spoke through the derailleur cage, letting it hang straight down toward the ground.

Now spin the wheel. If the pencil swings back and forth as the wheel turns, your hanger is bent. No special tool needed.

If everything looks straight and the cage tracks true, move on to the next section. You're chasing a different problem.

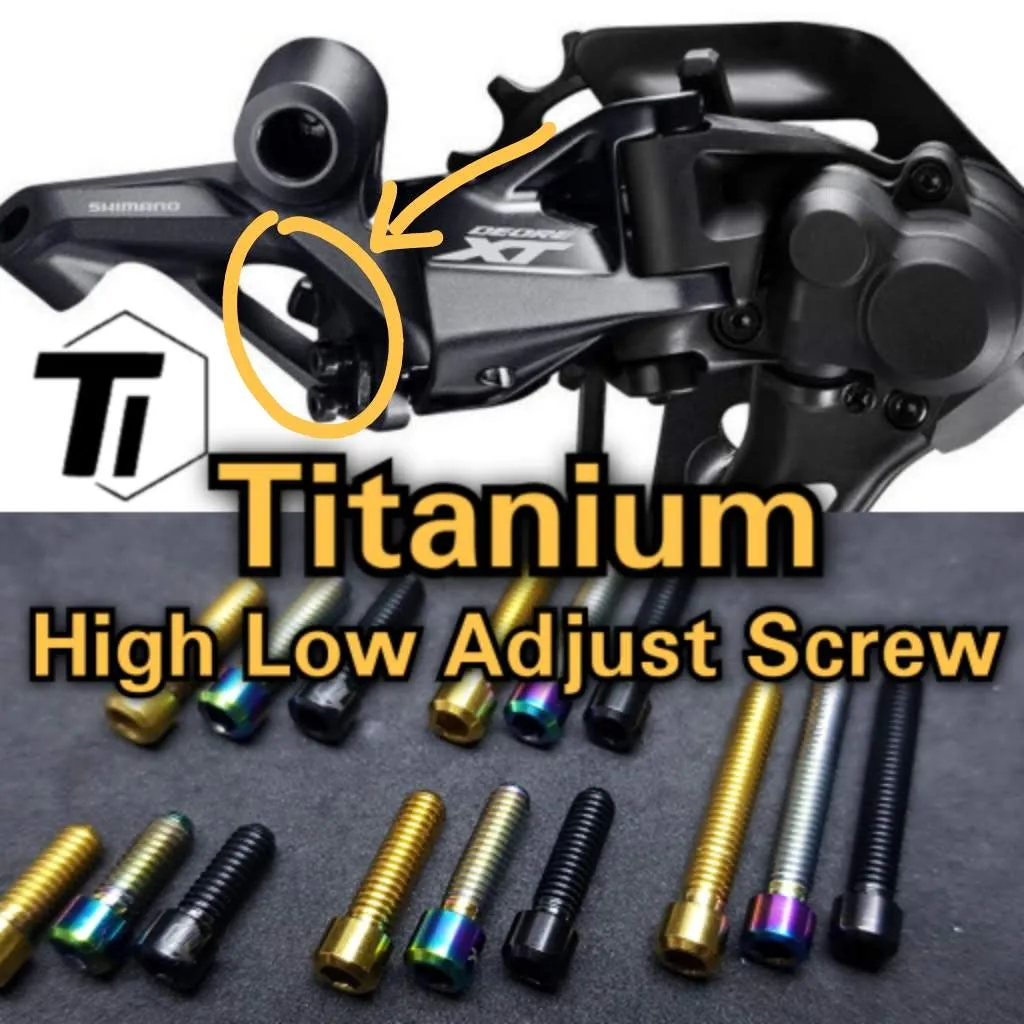

Step 2: Limit Screws – The Most Common Mistake

Image source: Bing (Web (fair-use with source credit))

Limit screws control how far the derailleur can travel. The "H" screw keeps the chain from overshooting the smallest cog and dropping into the spokes. The "L" screw keeps it from going past the largest cog and jamming against the cassette.

Here's where most people mess up. They turn both screws all the way in, thinking they are preventing problems. In reality, they are locking the derailleur in place.

If your chain won't reach the largest cog, the L screw is too tight. If it won't drop to the smallest, the H screw is too tight.

Back both screws out about two full turns from fully seated. That's your starting point. Now shift to the smallest cog.

Pedal and watch the chain. If it tries to drop off the outer side, turn the H screw clockwise a quarter turn at a time until the chain sits centered on the cog.

Now shift up to the largest cog. Same thing. If the chain overshoots into the spokes, turn the L screw clockwise a quarter turn.

If it won't quite reach the largest cog, turn L counterclockwise a quarter turn.

The goal is simple. The chain should sit centered on both end cogs with a tiny gap between the derailleur cage and the spokes on one end, and between the cage and the frame on the other.

Step 3: Cable Tension – Why Your Shifts Feel Mushy

Limit screws set the boundaries. Cable tension does the actual shifting. Your shift cable runs from the shifter, through the housing, to the derailleur.

When you click the shifter, the cable pulls the derailleur sideways to the next cog.

If the cable is too loose, the derailleur won't pull hard enough. You'll click the shifter and hear a noise, but the chain won't move. Or it might hesitate and then skip two cogs at once.

If the cable is too tight, the derailleur will overshoot. You'll aim for the middle cog and end up on the next one up.

The barrel adjuster is your friend here. That's the knurled ring where the cable enters the derailleur or the shifter. On most modern Rockhoppers, it's on the derailleur itself.

Turn it counterclockwise to add tension. Turn it clockwise to release tension.

Shift to the second smallest cog. Pedal forward. Now click the shifter once.

If the chain hesitates before climbing to the next cog, turn the barrel adjuster out one full turn. Pedal again. Repeat until the shift is crisp and immediate.

If the chain overshoots and bounces back, turn the barrel adjuster in a half turn. That reduces tension.

One trick that works almost every time. With the bike stationary, shift to the smallest cog. Pull the exposed cable at the derailleur with your fingers until it's taught with no sag.

Tighten the pinch bolt. That gives you a solid baseline. Then use the barrel adjuster to dial in the final few millimeters.

Step 4: B-Tension – The Overlooked Adjustment

Most people forget this one. The B-tension screw controls the angle of the derailleur body. It sits on the back of the derailleur, usually a small screw that pushes against a tab on the hanger.

When B-tension is wrong, the upper pulley wheel sits too close to the cassette cogs. You'll hear a grinding noise as the chain drags. Too far away, and the chain has to stretch diagonally to reach each cog, causing sluggish shifts.

The rule is simple. Shift to the largest cog and the smallest chainring. Pedal forward.

Look at the gap between the upper pulley wheel and the largest cog teeth. You want about 5 to 6 millimeters of clearance. That's roughly the width of a standard 5mm hex key.

Turn the B-screw clockwise to move the derailleur away from the cassette. Turn it counterclockwise to bring it closer. Check it under load, meaning pedal while you adjust so the chain is actually engaged.

On a Rockhopper with a 34-tooth or larger cassette, you might need more clearance than you think. Shimano documentation recommends 5 to 8 millimeters for cassettes above 34 teeth. If your shifting feels noisy or slow on the largest cogs, this is almost certainly why.

Step 5: When Upgrading Makes More Sense Than Fixing

Sometimes the derailleur itself is worn out. Pulley wheels develop grooved teeth over time. The cage gets bent from a crash that the hanger couldn't fully absorb.

Springs lose tension. At that point, adjusting won't help.

Your Rockhopper likely came with a Shimano Tourney, Altus, or Deore derailleur depending on the year and trim level. Newer models might have SRAM SX or NX. Each has a service life of roughly two to four seasons with regular maintenance.

If you're replacing, check two things. First, make sure the new derailleur's cage length matches your cassette size. A long cage handles cassettes up to 46 teeth.

A short cage tops out around 36 teeth. Second, confirm the derailleur is compatible with your shifter. Shimano shifters only work with Shimano derailleurs.

SRAM shifters need SRAM derailleurs.

The sweet spot for a Rockhopper upgrade is a Shimano Deore M5100 or a SRAM GX. Both offer clutch mechanisms that reduce chain slap and improve chain retention on rough terrain. You'll spend around $60 to $90.

The difference in shifting quality is night and day compared to entry-level derailleurs.

If you have a Rockhopper with a 2x drivetrain and you're considering a 1x conversion, this is the time. A new derailleur paired with a narrow-wide chainring and a clutched rear mech is the most reliable setup for trail riding. Expect to spend about $150 to $200 for the full conversion including a new shifter.

Common Mistakes That Waste Money And Time

Let's cover the stuff that sends people to the shop with a problem they could have fixed in five minutes.

Tightening the pinch bolt too hard. The derailleur pinch bolt only needs enough torque to hold the cable. Over tightening strips the threads. Use a 4mm hex key and turn until snug, not until your knuckles turn white.

Cleaning the drivetrain with a pressure washer. High pressure forces water past the derailleur's seals and into the pivot points. Grease washes out. Rust sets in.

Use a brush and degreaser instead.

Replacing the derailleur without checking the hanger first. This is the most expensive mistake. You buy a new derailleur, install it, and the shifting is still bad. The hanger was bent the whole time.

You just wasted $70.

Ignoring cable housing. Old housing develops friction. The cable drags inside it. No amount of barrel adjuster tuning can fix a rusty housing.

If your cable feels gritty when you pull it by hand, replace the housing. It costs about $10 and takes twenty minutes.

Forgetting to check chain wear. A stretched chain wears out the cassette and chainring. The chain starts skipping under load. A new derailleur won't fix that.

Measure chain stretch with a simple wear indicator tool. Replace the chain if it shows 0.5% wear or more. Replace the cassette if it shows 0.75%.

When to walk away and call a shop. If you've checked the hanger, adjusted the limit screws, set cable tension, dialed in B-tension, and the shifting is still wrong, stop. You might have a bent derailleur cage that needs professional straightening. Or you might have a bent frame dropout, which requires a frame alignment tool that most home mechanics don't own.

A shop visit costs $25 to $50 for a derailleur adjustment. That's cheaper than replacing parts you don't need.

Frequently Asked Questions

Can I use a 12-speed derailleur on my older Rockhopper?

Only if you also swap the shifter and cassette. Derailleurs are not cross-compatible between speeds. An 11-speed shifter pulls a different amount of cable per click than a 12-speed shifter.

Stick with the same speed as your existing drivetrain unless you're upgrading everything at once.

Why does my chain drop even after I adjusted everything?

Your chainring is likely worn or you don't have a narrow-wide chainring. Most Rockhoppers come with a standard chainring that doesn't grip the chain well. A narrow-wide chainring with alternating tooth profiles holds the chain much better.

A clutch derailleur also helps prevent chain drop on rough terrain.

How often should I replace the derailleur hanger?

Replace it when it bends. Some riders go years on the same hanger. Others bend one every season.

Carry a spare on trail rides. They cost $15 to $30 and take two minutes to swap. A bent hanger that you keep bending back stress fractures over time and eventually snaps.

Is it worth upgrading from 2x to 1x?

For trail riding, yes. A 1x setup eliminates the front derailleur entirely. You lose the chain drop issue that front shifts cause.

You also get a clutch derailleur as standard. The trade off is slightly wider gaps between gears. For most Rockhopper owners, the simplicity is worth it.

What's the most common derailleur failure on a Rockhopper?

A bent hanger from a tip over or a crash. Second most common is a seized pulley wheel from lack of lubrication. Pulley wheels spin thousands of times per minute.

A drop of light oil every few rides keeps them moving freely. Dry or dirty pulley wheels add drag and cause slow shifting.
