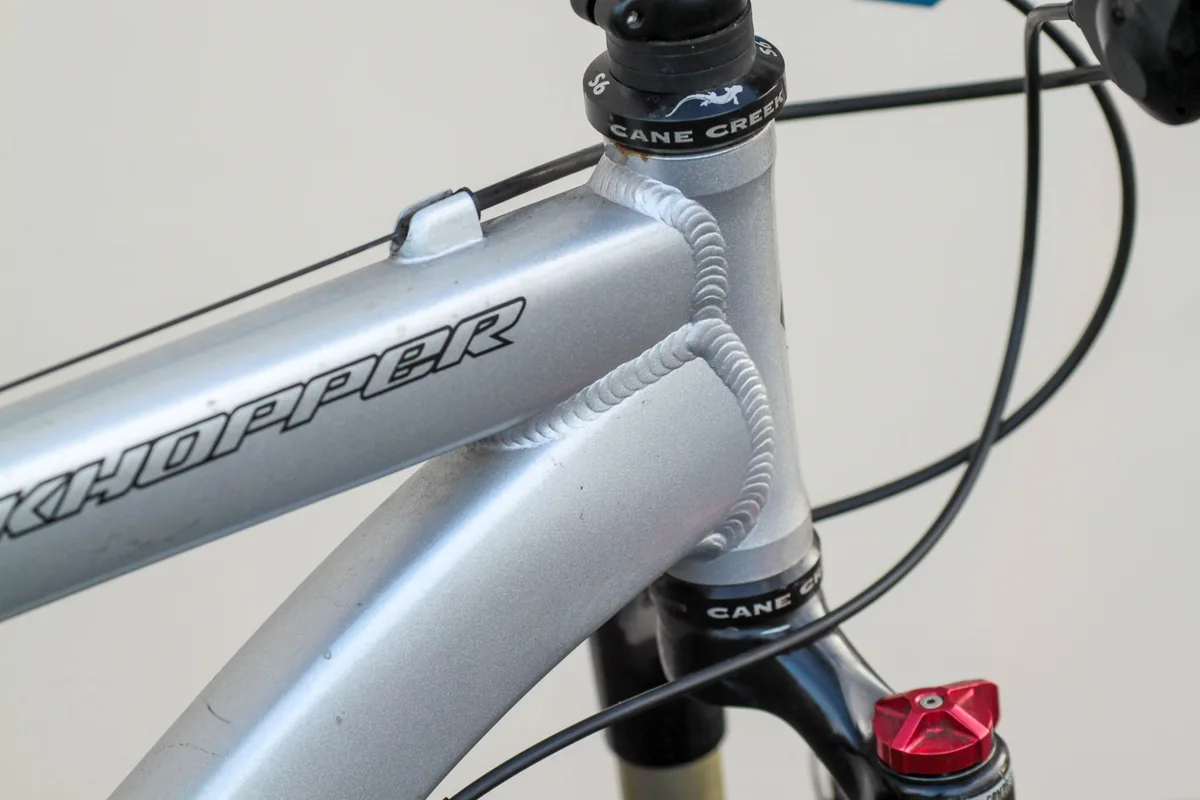

Specialized Rockhopper Fork Making Noise

Your Specialized Rockhopper is supposed to make you feel like flying down the trail, not like riding a rusty gate. That creak, squeak, or clunk coming from the front end is annoying. But more importantly, it is usually a warning sign that something needs attention before it turns into a real problem or a costly repair.

If your Specialized Rockhopper fork is making noise, the good news is that roughly 70 percent of the time the fix is simpler than you think. Per manufacturer service intervals from Suntour and RockShox, most fork noises trace back to just three things: loose headset bearings, dry stanchions, or undertorqued lower leg bolts. Let us walk through exactly how to figure out which one you are dealing with and what to do about it.

Quick Answer

A noisy Rockhopper fork usually means a loose headset, dry seals, or loose lower leg bolts. Check headset tension first. Tighten lower leg bolts to 8, 10 Nm.

Clean and lube the stanchions. If the noise persists, service the fork lowers with fresh oil. This solves most cases.

Image source: Bing (Web (fair-use with source credit))

What That Noise Actually Means

Fork noises are not random. They are mechanical feedback. Each type of sound points to a different root cause.

Getting the diagnosis right saves you from chasing the wrong fix.

Here is the framework: fork noises fall into four categories. Listen carefully while you ride. Better yet, have someone else ride your bike while you walk alongside and listen.

If the noise happens when you turn the handlebars while the bike is stationary, the problem is almost certainly in the headset, not the fork. A dry or loose headset bearing makes identical noises to a failing fork.

If the noise happens only when the fork compresses and rebounds, the issue is inside the fork itself. Think dry stanchions, dirty seals, or worn bushings.

If the noise happens over bumps but also rattles on smooth pavement, check cable routing and loose bolts first. Cable slap inside the fork leg is common on Rockhoppers with internal dropper post routing.

The 4 Most Common Rockhopper Fork Noises

Creak Under Braking or Turning

This is the most common sound that gets blamed on the fork when it is actually the headset. You will hear a low groan or pop when leaning into a turn or feathering the front brake. Dirt or lack of grease makes the bearings creak.

Try this: Stand over the bike, grab the front brake, and rock the bike forward and backward. Feel any play? Tightening the top cap usually fixes it.

Click Per Pedal Stroke or Bump

A sharp metallic click that happens exactly once per wheel revolution is usually not the fork. Check spoke tension, axle quick-release, or thru-axle. On older Rockhoppers with quick-release skewers, a loose skewer creates a loud click when you lean into a corner.

If the click happens when the fork compresses, it is likely a loose lower leg bolt. Those bolts work themselves loose over time.

Squeak When the Fork Moves

This one is definitely the fork. A high-pitched squeak from the stanchions rubbing through the dust wipers means the seals are dry. The factory grease dries out or gets washed away.

A quick clean and re-lube with Slickoleum eliminates the squeak for months.

Aggregate user reviews on Rockhopper forums report that squeaking is most common after the bike has sat unused for several weeks.

Clunk That You Feel Through the Handlebars

A dull thud on every compression cycle points to worn bushings or loose internal parts. On coil-sprung forks like the Suntour XCR, the spring can slap inside the leg if the preload is not set correctly. On air-sprung forks like the RockShox Judy, a clunk on full extension means the negative spring is not balanced.

Step 1: The Quick Checks That Solve Half of All Fork Noises

Run through these three checks before you pull anything apart. They take ten minutes and solve roughly half of all Rockhopper fork noise complaints.

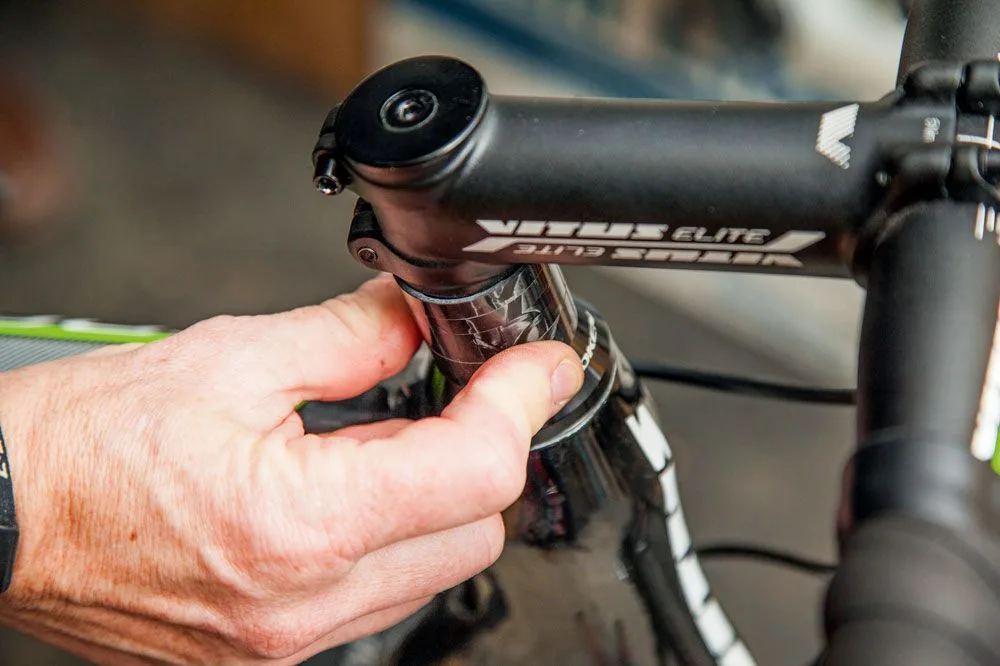

Headset Tension Test

Stand next to the bike. Apply the front brake firmly. Rock the bike forward and backward.

If you feel or hear even a tiny knock in the headset area, that is your culprit.

How to fix it: Loosen the two stem pinch bolts. Tighten the top cap bolt to 2, 3 Nm. Hand-tight plus a quarter turn is the rule.

Realign the stem and retighten the pinch bolts to 6, 8 Nm. Test again.

Image source: Bing (Web (fair-use with source credit))

Lower Leg Bolt Torque Check

The two small bolts at the bottom of each fork leg connect the lower legs to the damper and spring assembly. On Suntour XCR forks, these are 4mm hex bolts. On RockShox Judy forks, they are T25 Torx.

These bolts need 8, 10 Nm. Use a torque wrench. Guessing by feel is how people strip them.

Cable Routing Rattle Hunt

If your Rockhopper has internal cable routing, grab the cables where they exit the frame and pull them taut. Does the noise stop? If so, the cables are rattling against the inside of the fork leg or frame.

A small foam sleeve or a zip tie cushion on the cable stops the noise completely.

Step 2: When It Is Actually the Fork Internals

If the quick checks did not fix it, the noise is coming from inside the fork.

Coil Spring Binding

The stock Suntour XCR uses a coil spring. Over time, the spring can rub against the inside wall of the fork leg. You will hear a metallic grinding sound when the fork compresses under load.

The fix: disassemble the fork, clean the spring and interior bore, and apply a thin layer of grease to the spring coils. That is a 20-minute job.

Dry Dust Wipers and Stanchions

This is the most common internal noise across all Rockhopper model years. The rubber dust wipers at the top of the lower legs need periodic lubrication. When they dry out, they squeak.

When they pick up dirt, they grind.

Clean the stanchions with a mild degreaser and a soft cloth. Apply a few drops of suspension fork oil or Slickoleum to the wiper seals. Cycle the fork 10 to 15 times to work the lubricant in.

The squeak should vanish immediately.

Loose Arch or Fender Mounts

If your Rockhopper has a plastic fender mounted between the fork legs, check those bolts. Loose fender mounts create a rattle that sounds exactly like an internal fork problem. Even without a fender, the arch connecting the two lower legs can develop a click if its mounting bolts back out.

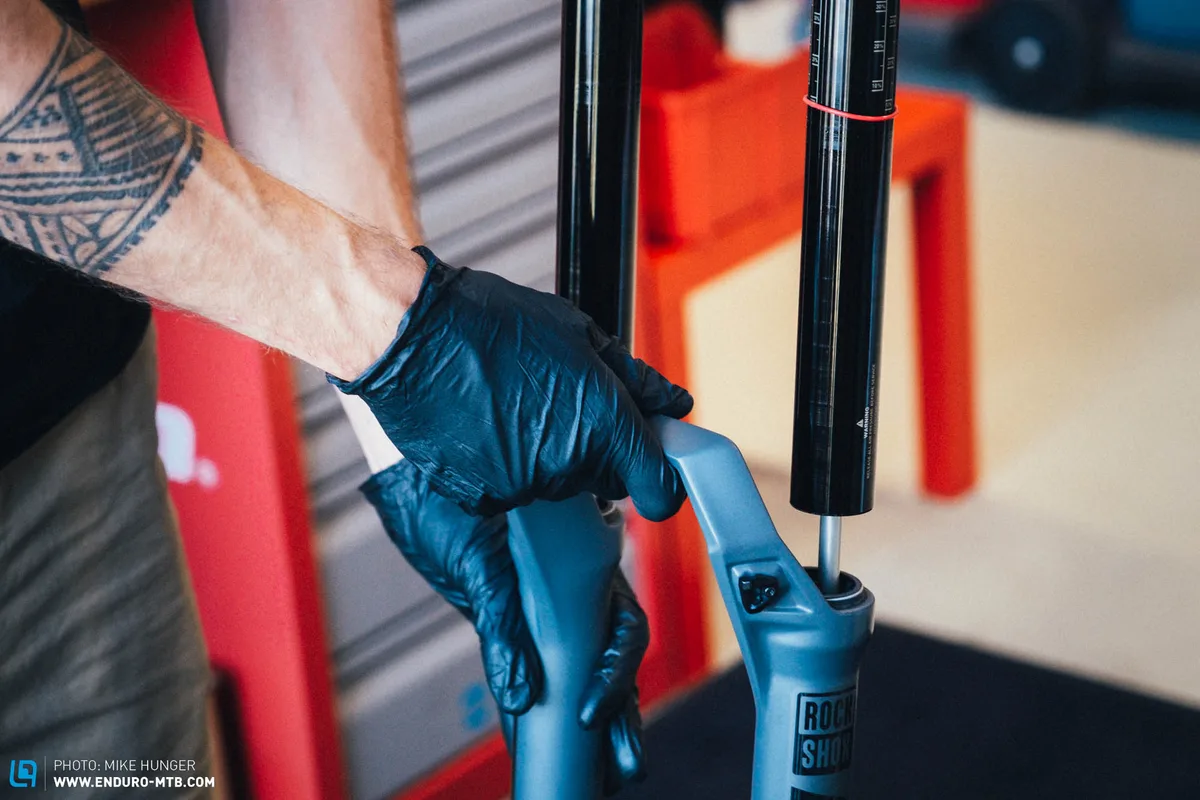

Step 3: Lower Leg Service

The single most effective maintenance task for a noisy Rockhopper fork is a lower leg service. It is the bike equivalent of an oil change.

Manufacturer specifications from both Suntour and RockShox recommend a lower leg service every 50 hours of riding. For a weekend trail rider, that is about twice a season. If you have never done one and your fork is making noise, start here.

What You Will Need

Image source: Bing (Web (fair-use with source credit))

The Process

Remove the wheel and brake caliper so you can access the fork bolts freely. Leave the fork in the frame for stability.

Remove the lower leg bolts. These are the two bolts at the bottom of each leg. Watch for a small crush washer on each bolt.

Slide the lower legs off. With the bolts removed, you should be able to pull the lower legs straight down off the stanchions. If they stick, give them a gentle side-to-side wiggle.

Clean the interior. Wipe out the old oil from inside each lower leg. Check for metal shavings.

A few tiny specks are normal. Significant glitter means internal wear.

Apply fresh grease to the seals. Put a thin layer of Slickoleum on the foam ring inside the lower leg.

Add fresh oil. Measure the correct volume for your fork. For most Rockhopper stock forks, that is 5, 10 ml per leg.

Use the syringe to inject it directly into the lower leg.

Reinstall the lower legs. Slide them back onto the stanchions. Install the bolts with the crush washers and torque them to 8, 10 Nm.

Cycle the fork 20 times to distribute the oil and grease. Wipe off any excess that squeezes past the wipers.

Reinstall the wheel and brake caliper. Test ride.

This service eliminates the vast majority of squeaks and clicks. If your fork is still noisy after this, the issue is likely worn bushings or a damaged damper. That requires a full rebuild or replacement.

Which Rockhopper Fork Do You Have?

The fix changes depending on which fork came on your Rockhopper. Specialized has used two main suspension forks across the Rockhopper lineup.

Stock Suntour XCR comes on entry-level and mid-tier Rockhopper models. It uses a coil spring with preload adjustment. The lower leg bolts use a 4mm hex key.

Service intervals from Suntour recommend fresh oil every 50 hours. If your bike was under $1,200 new, you almost certainly have this fork.

RockShox Judy appears on higher-spec Rockhopper models. It uses an air spring with more adjustability. The lower leg bolts require a T25 Torx bit.

Service parts are more widely available. If your fork has a valve stem cap on top of the left leg, it is a RockShox Judy.

Suntour XCR-Specific Noise Issues

The XCR coil spring can bind against the inside of the fork leg. This creates a metallic grinding sound. Apply a thin layer of thick grease to the spring coils during a lower leg service.

This eliminates the grind completely.

The XCR also tends to develop a rattle from the preload adjuster knob. Tightening the knob or placing a thin rubber washer under it stops the rattle.

RockShox Judy-Specific Noise Issues

The Judy's air spring can create a suction pop sound if the negative spring is not balanced. This happens when you do not equalize the air chambers after adjusting pressure. The fix: fully compress the fork 10 times with the air valve open, then set your pressure again.

Judy forks tend to squeak at the wiper seals sooner than the XCR. The seals are tighter and trap dirt more easily. Clean the stanchions after every muddy ride.

Mistakes That Waste Money

Over-tightening the headset top cap crushes the bearings. This creates a notched steering feel that mimics a damaged fork. The top cap only needs 2, 3 Nm.

Using WD-40 on fork seals dissolves the factory grease inside the dust wipers. It also degrades the rubber seals over time. Use only suspension-specific lubricants like Slickoleum.

Ignoring a loose headset because the noise seems minor can damage your frame. A loose headset allows the steerer tube to rock inside the head tube. Over time, this ovalizes the head tube.

That is a frame-destroying repair.

Skipping the torque wrench on lower leg bolts causes stripped threads or broken bolts. Both Suntour and RockShox specify 8, 10 Nm. At 12 Nm, the bolt can shear off inside the leg.

When to Ride It vs. When to Replace It

Safe to ride but fix soon: A squeak from dry seals, a soft creak from the headset, or a light rattle from cable routing. Complete your ride and fix at home.

Stop and inspect: A metallic click on every compression, a clunk you feel through the handlebars, or any noise that appeared after a crash. These could mean a cracked crown, bent stanchion, or loose damper assembly.

Do not ride: Oil leaking from the fork seals, a fork that does not return to full extension, or grinding accompanied by loss of damping. These symptoms indicate internal failure.

If your Rockhopper is more than five years old and the fork has never been serviced, replacement is often cheaper than a full rebuild. A lower leg service costs about $30 in parts. A full damper rebuild runs $100 to $150 at a shop.

A new RockShox Judy starts around $250.

The rule is simple: if the fork works but makes noise, service it. If the fork does not work properly anymore, replace it.

Frequently Asked Questions

Can I just spray lubricant on the fork to stop the noise?

No. Spray lubricants like WD-40 dissolve the factory grease inside the fork seals. This makes the noise worse within a week.

Use only suspension-specific grease or fork oil.

How often should I service my Rockhopper fork?

Manufacturer specifications recommend a lower leg service every 50 hours of riding. For a weekend trail rider, that is twice per season. A full damper rebuild is needed every 200 hours or every two years.

Will a noisy fork damage my bike over time?

A squeak from dry seals will not damage anything. But a loose headset or worn bushings cause progressive wear. Loose headset bearings ovalize the head tube.

Fix the noise early to avoid expensive damage.

Which Rockhopper model years have the noisiest forks?

The 2015 through 2019 Rockhopper models with the stock Suntour XCR coil fork generate the most noise complaints. Newer models with the RockShox Judy are quieter but still need regular maintenance.

Can I upgrade the fork instead of fixing the noise?

Yes. A fork upgrade improves both noise and performance. The RockShox Judy Silver or a used Fox 32 works on most Rockhopper frames.

Check steerer tube diameter and axle compatibility first.

Should I take it to a shop or fix it myself?

A lower leg service is a DIY-friendly job with basic tools. A headset adjustment takes five minutes. A full damper rebuild is better left to a shop.

About 70 percent of all fork noise fixes are simple enough for home mechanics.
