Swagtron T1 Hoverboard Battery Problem

Your Swagtron T1 hoverboard battery problem probably started the same way it does for most owners. You plug it in, the charger light stays green, and the board refuses to turn on. Or maybe it powers up for a minute and then cuts out mid-ride.

These symptoms point to a few distinct issues inside that 36-volt lithium-ion pack.

Per UL 2272 testing standards, the T1's battery management system includes over-discharge protection that can lock the pack when voltage drops too low. As of 2026, that locked BMS remains one of the most common causes of charging failures across Swagtron models. The good news is that many of these issues have a straightforward fix.

Let's walk through what your board is telling you.

Quick Answer

Most T1 failures trace to three causes: a locked BMS, a dead charger, or swollen cells. Check the charger output with a multimeter first. If that's fine, test the pack voltage at the terminals.

A reading under 30V means the BMS has locked. A simple reset often wakes it up.

Image source: Bing (Web (fair-use with source credit))

Start Here: What Is Your Swagtron T1 Actually Doing?

The right fix depends on the exact symptom. Don't guess. Match your board's behavior to one of these four scenarios before opening anything.

Won't turn on at all. The charger light stays green when plugged in. This usually means the battery pack is in deep discharge. The BMS has shut down to protect the cells.

You'll need a multimeter to confirm the voltage.

Charger light stays green. The green light means the charger sees no load. It thinks nothing is connected. This points to a broken connection.

Inspect the charging port pins first. Then test the charger itself.

Turns on but dies within minutes. The board powers up and then cuts out after a short ride. The battery has lost capacity. Some cells have likely failed.

The BMS detects the voltage drop and shuts down to prevent damage.

Red flashing light or swollen casing. A red error light means the BMS detected a fault. A bulging battery casing means cells have outgassed. This is dangerous.

Stop using the board immediately. Follow the disposal steps later in this guide.

How the T1 Battery System Works (and Why It Fails)

The Swagtron T1 uses a 36-volt lithium-ion battery pack. Inside the sealed case, you'll find 18650 cells wired together. Those cells store the energy.

A small circuit board called the BMS sits on top and controls charging and discharging.

The BMS monitors each cell group's voltage. It prevents overcharging, over-discharging, and short circuits. When a cell drops below roughly 2.5 volts, the BMS cuts output to protect the pack from permanent damage.

That's where most failures start.

Deep discharge. Leave the T1 sitting for months without charging, and the cells slowly self-discharge. Once they drop past the BMS cutoff threshold, the BMS locks itself in protection mode. The board appears dead, even though the pack may still be salvageable.

Cold weather. In freezing temperatures, the BMS refuses to charge. Lithium-ion cells cannot accept a charge below 32°F without risking cell damage. Your board may flash a red light or simply refuse to turn on.

Normal aging. Every 18650 cell loses capacity over time. After 300 to 500 charge cycles, expect shorter run times. That's not a defect.

It's normal wear.

Connector failure. The connector between the battery and mainboard can loosen over time. A single bent pin in the charging port will block all charging current.

Repair or Replace: Which Route Makes Sense?

Some T1 battery issues are easy to fix at home. Others demand a new battery pack. A few mean the hoverboard is ready for retirement.

Fix it yourself when:

• The battery measures between 30V and 36V. The BMS may have locked, and a reset can bring it back.
• The charging port has visible debris or a bent pin. A careful clean or pin adjustment often solves it.
• The charger output reads zero volts. A new OEM charger is cheaper than a battery pack.

Replace the battery when:

• The pack voltage is below 30V and won't rise after a reset. One or more cells have failed.
• The board runs for only a few minutes before dying. The pack has lost significant capacity.
• The battery casing shows any swelling. Do not attempt to reset or recharge a swollen pack.

Retire the hoverboard when:

• The mainboard has also failed. Replacing both the battery and control board often costs more than a new hoverboard.
• The motors or wheels are worn out. Battery plus motor repairs rarely make financial sense.

If you do replace the battery, order an OEM pack from Swagtron. Aftermarket packs work only if the connector and pin layout match exactly. For a younger rider, certified replacement boards matter too.

Our guide to the best hoverboard for a 10-year-old covers models with proper certifications and age-appropriate features. If the board is beyond saving, check our roundup of the best hoverboards for kids before buying new.

Step-by-Step: Diagnosing the Battery Problem with a Multimeter

A digital multimeter is the only tool you really need. You can find one for under 20 dollars at any hardware store. This process tells you exactly what's wrong without guessing.

Step 1: Safety first. Remove the hoverboard from any flammable surface. Work in a well-ventilated area. If the battery casing is swollen or cracked, skip this section and jump to the safety and disposal guide.

Step 2: Test the charger. Plug the charger into the wall but not into the board. Set your multimeter to DC voltage. Touch the probes to the charger connector pins.

A working 36V charger should output between 41V and 42V with no load. If you get 0V, the charger is dead. Replace it.

Step 3: Check the charging port. Look inside the port on the board. A bent or broken pin means current can't reach the battery. Use a small flathead screwdriver to gently straighten bent pins if possible.

Step 4: Open the battery compartment. Remove the screws on the bottom of the hoverboard. Carefully lift the plastic cover. Unplug the connector running from the battery to the mainboard.

Step 5: Measure battery voltage. Touch the multimeter probes to the large terminals on the battery connector. Red to positive, black to negative. A healthy pack reads 36V to 42V.

Anything below 30V means the BMS has locked.

Image source: Bing (Web (fair-use with source credit))

Step 6: Try a BMS reset. If your reading is between 30V and 36V, the BMS may just be asleep. Momentarily short the charge port pins with a small wire for one second. This can wake the BMS.

Then plug the charger in and see if the light turns red.

Step 7: Test individual cell groups. If you have access to the balancing leads on the BMS, measure each cell group. A group reading under 2.5V has a dead cell. At this point, the pack needs replacement.

Do not attempt cell-level repairs unless you have lithium battery experience.

Common Mistakes That Make the T1 Battery Worse

Some well-meaning fixes actually shorten battery life. Avoid these common errors.

Leaving the battery fully dead over winter. This is the number one cause of BMS lockout. Store the T1 with the battery at 50 to 70 percent charge. Check it every two months.

Using a wrong charger. The T1 needs a 36V charger with the correct amperage. A 42V charger meant for a different hoverboard can overcharge the battery and damage the BMS. Always use the original Swagtron charger or an exact OEM replacement.

Forcing a swollen battery back into place. A swollen battery is a fire risk. The cells have outgassed. Squeezing the pack back can puncture the casing and cause thermal runaway.

Remove it carefully and take it to a certified e-waste facility.

Ignoring connector corrosion. Riding in damp conditions can corrode the battery and mainboard connectors. This creates resistance that mimics a dead battery. Clean any green or white buildup with electrical contact cleaner.

Let it dry fully before reconnecting.

Charging immediately after a cold ride. If the board was stored in freezing weather, let it warm up for at least two hours indoors before charging. The BMS will block charging below 32°F anyway, but forcing it on a cold pack causes permanent damage.

Safety, Compliance, and Proper Disposal

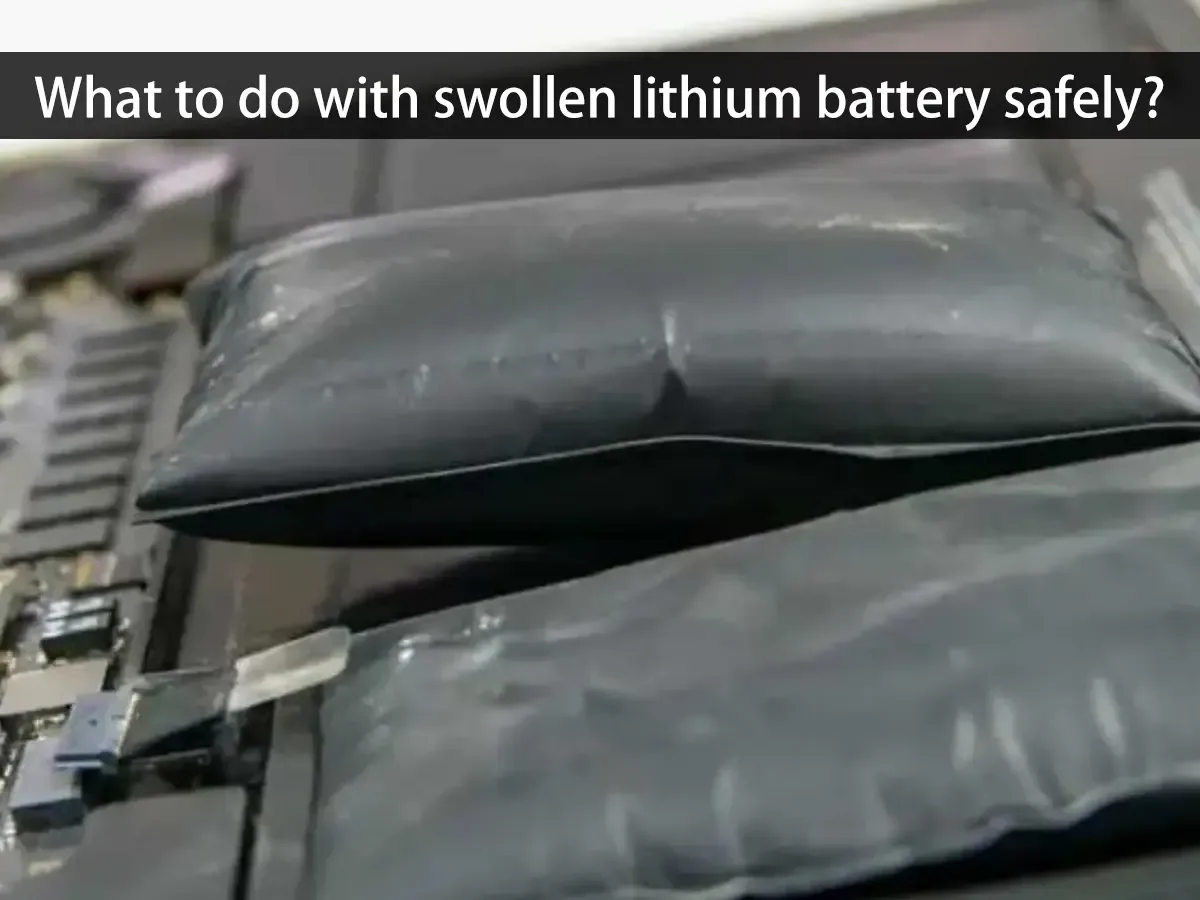

A swollen battery is not repairable. If your T1's casing bulges, the cells have outgassed. Stop using the board immediately.

Do not recharge it, do not reset it, and do not puncture it.

Per UL 2272 certification guidelines, hoverboards with damaged battery packs are a documented fire hazard. The U.S. Consumer Product Safety Commission has published warnings about lithium-ion battery fires in personal mobility devices.

Take it seriously.

Image source: Bing (Web (fair-use with source credit))

Remove the pack carefully. Disconnect it from the mainboard. Place it in a metal container or fireproof bag outdoors, away from your home.

Do not throw it in the trash. Lithium-ion batteries go to certified e-waste recycling centers. Many hardware stores and local waste facilities accept them free of charge.

If the pack leaks or smokes. Evacuate the area and call your local fire department. Per the National Fire Protection Association, water is effective for cooling lithium-ion cells and stopping thermal runaway. A multi-purpose ABC extinguisher also works for the surrounding fire.

Frequently Asked Questions

How long should a Swagtron T1 battery last?

Most packs last 300 to 500 charge cycles. That's roughly 18 to 24 months for daily riders. After that, capacity drops noticeably.

A board that used to run 4 miles might only cover 2.

Can I use any 36V hoverboard battery?

Not always. The T1 uses a specific connector and BMS layout. Some generic 36V packs work, but others don't match the wiring harness.

Compare the connector shape and pin layout before ordering. Swagtron's official replacement is the safest option.

How do I wake up a sleeping BMS?

If the battery voltage reads between 30V and 36V, a BMS reset often works. Disconnect the battery from the mainboard. Short the charger port pins for one second.

Then reconnect and try charging. If the pack reads below 30V, a reset won't help.

Is it safe to charge a hoverboard overnight?

No. Lithium-ion charging should always be supervised. The BMS reduces risk, but it isn't perfect.

Charge on a hard, non-flammable surface. Unplug once the charger light turns green. Overnight charging increases the risk of overheating and battery failure.
