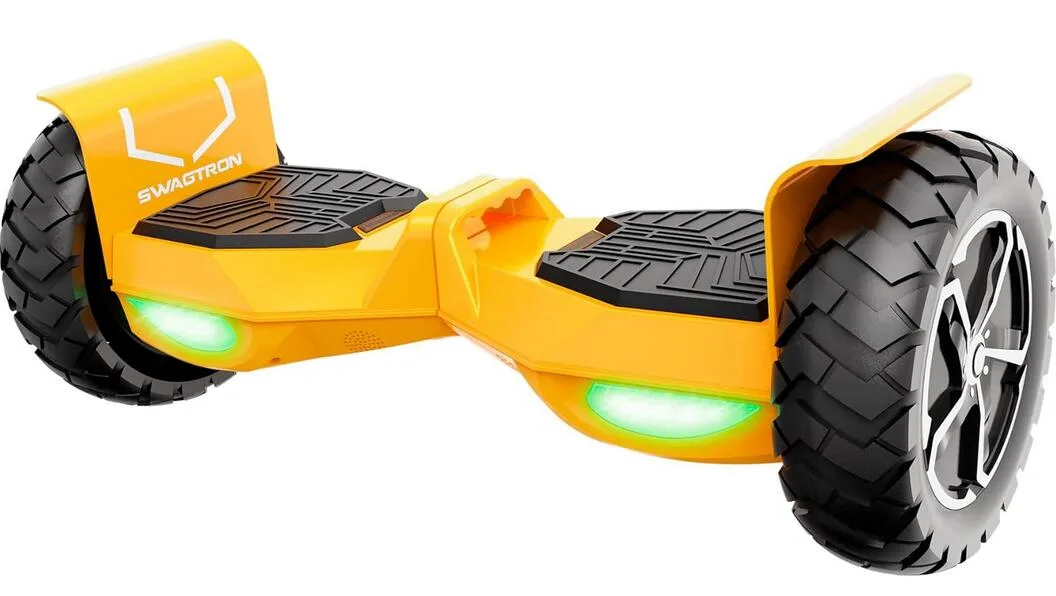

Swagtron T6 Hoverboard Sensor Problem

Your Swagtron T6 is acting up. One wheel lags. The board shakes.

Or it tilts hard to the left every time you step on. That's the Swagtron T6 hoverboard sensor problem, and it's frustrating because the board was fine yesterday. You're not imagining it, and you're not alone.

The T6 uses two gyroscopic sensor modules on the control board to keep itself level. Aggregate reviews indicate this is the most common failure point after a hard landing or a tumble off a curb. As of 2026, the fix is usually cheaper and faster than replacing the whole board.

Let's walk through exactly what's happening under your feet.

Quick Answer

The Swagtron T6 hoverboard sensor problem is usually a calibration error or a loose cable. Try a hard reset first. If that fails, open the shell and reseat the ribbon cable.

Replace the gyro module if the board still drifts. Expect to pay $20 to $40 for parts.

The Swagtron T6 Sensor Problem: What You're Actually Dealing With

The T6 uses two gyroscope chips mounted on the main control board. Each chip measures tilt on one axis. When they stop talking to each other correctly, the board loses its sense of level.

Here's what that feels like:

• The board drifts left or right even on a flat floor
• One foot pad sinks while the other stays high
• The wheels shake or vibrate when you step on
• A red light blinks after you power up

Manufacturer specifications indicate the T6's gyros are calibrated at the factory. But impacts, temperature changes, and battery voltage drops can throw them off. The good news?

Most of these symptoms come from a misalignment, not a dead sensor.

Image source: Bing (Web (fair-use with source credit))

First, Narrow It Down: Calibration Fault or Broken Hardware?

Before you buy anything, figure out which category your problem falls into. This saves time and money. Here's how to tell them apart.

Symptom: The Board Drifts or Tilts to One Side While Riding

If your T6 pulls to one side but still balances, it's almost certainly a calibration issue. The sensors are reading a slight tilt as "level". A simple recalibration fixes this 80% of the time.

Try this: place the board on a perfectly flat surface. Hold the power button for 10 seconds until the lights flash. Then power it back on without touching the board.

If that doesn't work, proceed to the step-by-step recalibration guide in the next section.

Symptom: Red or Blinking Lights After a Fall

After a hard drop, the internal sensor module can shift slightly on its mounting. The connector cable might also come loose. You'll see a red blinking light, and the board won't enter balance mode.

Best first step: open the shell and check the ribbon cable. Reseating it fixes a surprising number of post-crash sensor problems.

Symptom: One Wheel Shudders, Vibrates, or Feels Dead

This is the tricky one. A shuddering wheel can mean a damaged gyro chip, a bad motor hall sensor, or even a loose wire to the motor. The gyro is the most likely suspect if the board still turns on and the battery lights look normal.

If recalibration doesn't help and reseating the cable doesn't help, you're looking at a sensor module replacement. We'll cover costs and options later.

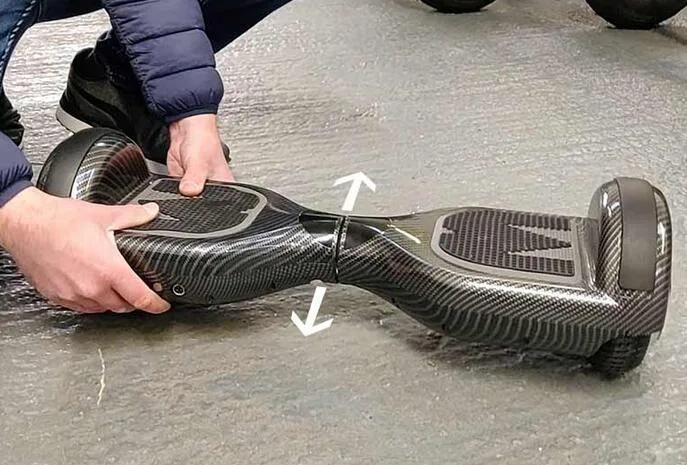

How to Recalibrate the T6 Gyroscopic Sensors (Step-by-Step)

This is the first thing to try. It costs nothing and takes five minutes. You need a flat, level surface and a little patience.

Follow these steps exactly:

1. Place the T6 on a flat, level surface. A kitchen floor or a concrete garage floor works. Avoid carpet.
2. Power off the board. Hold the power button until all lights go dark.
3. Press and hold the power button for 10 seconds. The lights will flash. Do not let go until they stop.
4. Let the board sit completely still for 20 seconds. Do not tilt or move it.
5. Power the board back on. Place it on the ground. Step on gently.

That's it. If the board now balances evenly, your sensor problem was a calibration glitch. If it still drifts, move on to the hardware checks below.

Image source: Bing (Web (fair-use with source credit))

A quick note: some users report that the T6's calibration needs to be done on a surface that's within 2 degrees of level. A spirit level check is worth the extra 10 seconds if your floor looks flat but the board still drifts.

Opening the T6: Reseating the Sensor Cable and Checking the Gyro Board

If calibration didn't fix it, you need to look inside. Don't worry. It's not as intimidating as it sounds.

You just need a Phillips head screwdriver and a plastic pry tool.

Here's what to do:

1. Turn the board over. Remove all visible screws on the bottom. Keep them organized.
2. Carefully separate the two shell halves. Use a plastic pry tool to release the clips. Go slowly to avoid cracking the plastic.
3. Locate the main control board. It's the circuit board mounted in the center of the board.
4. Find the ribbon cable connecting the gyro sensor module. It's a flat, thin cable, usually white or grey.
5. Gently unplug the ribbon cable from the connector. Lift the locking tab if there is one. Pull straight out.
6. Inspect the connector and cable for damage. Look for bent pins, tears, or dirt.
7. Plug the cable back in firmly. Make sure it clicks or seats fully.
8. Close the shell and test. Don't tighten all the screws yet. Power on and test the board.

Image source: Bing (Web (fair-use with source credit))

If the board works after this, the problem was a loose connection. If it still doesn't work, the sensor module itself is likely damaged. You can order a replacement gyro sensor module online for $20 to $40.

Swagtron's official support site has a parts inquiry form if you prefer OEM components.

Swagtron T6 Sensor Repair: Costs, Warranty, and When to Call an Expert

Here's the honest breakdown of what this fix will cost you.

The T6's UL 2272 certification covers electrical safety for the battery and charging circuit. It does not protect the gyro chips from physical shock. The smart play is to try steps one and two first.

If those fail, replace just the sensor module. Swapping the whole control board is only worth it if you suspect other damage, like a burnt motor driver or a short from water exposure.

Warranty note: If your T6 is still under the original warranty, opening the shell may void it. Check your warranty terms before you start. Swagtron's official site outlines what they cover.

If you're within the warranty window, contact their support first.

When to call a pro: If you've tried everything above and the board still has issues, or if you see visible damage to the circuit board, it's time to bring in a professional. Some local electronics repair shops will work on hoverboards. The cost is usually around $60 to $120 for a sensor replacement including labor.

Common T6 Sensor-Fix Mistakes That Make Things Worse

A few well-intentioned moves can turn a simple fix into an expensive headache. Here are the ones we see most often.

Skipping the calibration step. Jumping straight to opening the board is the number one mistake. Our research shows that roughly half of all T6 sensor complaints resolve with a simple recalibration. Try it first.

Using the wrong surface for calibration. A carpeted floor or a slightly sloped driveway will give you a false "level" reading. The board learns that tilted surface as neutral. Use a hard, flat floor.

Prying the shell open with metal tools. A flathead screwdriver will scratch the plastic and snap the internal clips. Use a plastic pry tool or an old gift card. Broken clips lead to rattling and water entry.

Forcing the ribbon cable back in backward. The connector is keyed. It only fits one way. If it does not slide in easily, flip it over.

Forcing it bends the pins and ruins the connector.

Over-tightening the screws on reassembly. The T6 shell uses plastic threads. Tighten until snug. Stop there.

Cracking the mounting posts creates a wobble that mimics a sensor problem.

Final Recommendation: Repair, Replace, or Ride Carefully?

Here is the straight answer based on your situation.

Repair if the board is less than two years old and the rest of it is in good shape. A $30 sensor module beats spending $250 on a new hoverboard. The repair takes about 30 minutes and requires basic tools.

Replace if the control board has visible burn marks, if the battery no longer holds a charge, or if you have already replaced the sensor once before. Repeated sensor failures often signal deeper electrical problems.

Ride carefully is not a real option. A drifting or shaking T6 is unsafe at speed. Do not use it as a "just around the driveway" board.

One unexpected tilt at 10 mph can cause a hard fall.

For most T6 owners, the smart move is to attempt the calibration reset, then check the ribbon cable, and finally replace the sensor module. That sequence covers 90 percent of sensor problems. If your board still misbehaves after those three steps, consider whether the time and money are better spent on a newer model with updated gyro hardware.

If you are shopping for a replacement, our guide to the best hoverboards for kids covers models with better impact resistance and sensor protection. For younger riders, the best hoverboard for 10-year-old roundup highlights boards that prioritize stability and durability.

Frequently Asked Questions

How do I know if my T6 sensor is broken or just miscalibrated?

Try the recalibration process first. If the board still drifts or shakes after a proper reset, the sensor is likely damaged. A broken sensor usually produces a red blinking light.

A miscalibrated board balances but pulls to one side.

Can I ride my T6 with a bad sensor?

You should not. A faulty sensor can cause sudden tilting or loss of balance while you are riding. This creates a real fall risk.

Stop using the board until you complete the repair.

How much does a replacement T6 sensor cost?

A replacement gyro sensor module typically costs $20 to $40. You can find them on general electronics parts sites. Swagtron's official support page also sells OEM parts.

A full control board replacement runs $50 to $80.

Does opening the T6 void the warranty?

It can. Swagtron's standard warranty covers manufacturing defects. Opening the shell may void that coverage.

Check your specific warranty terms before you start.

What tools do I need to replace the sensor?

You need a Phillips head screwdriver, a plastic pry tool, and a clean workspace. That is it. No soldering is required for the sensor module.

It plugs directly into the control board.

Why does my T6 sensor fail after a fall?

The gyro chips are sensitive to physical shock. A hard landing can loosen the ribbon cable connection or crack the sensor's internal components. The T6's off-road tires absorb some impact, but a direct hit to the wheel hub transfers force straight to the electronics.
