Toyota RAV4 Check Engine Light

That yellow symbol on your dashboard is never a welcome sight. A Toyota RAV4 check engine light, or Malfunction Indicator Lamp (MIL), means the engine control module has detected a fault in the emissions, ignition, or fuel system and stored a diagnostic trouble code. The first thing you need to do is look at how it's behaving.

A steady light often allows you to drive carefully to a shop, but a flashing light signals an active misfire that demands an immediate stop. Per SAE J1979 diagnostic standards, the onboard diagnostics system trips the MIL after two consecutive failed drive cycles for most faults.

Image source: Bing (Web (fair-use with source credit))

Solid vs. Flashing: What Your RAV4's Check Engine Light Is Actually Telling You

The light's behavior is your first and most important clue. If it's flashing, you must pull over and shut off the engine as soon as it's safe. A flashing MIL indicates a severe, active misfire.

Unburned fuel is dumping into your exhaust system, where it can quickly overheat and destroy your catalytic converter, a repair that can cost over $1,500.

If the light is solid and steady, it's a warning but not an immediate catastrophe. You can often continue driving to your destination or a repair shop, provided the vehicle drives normally with no major loss of power, rough running, or strange noises. However, you should avoid hard acceleration and long highway trips until it's checked.

Sometimes, the light you see isn't the check engine light at all. The "Maintenance Required" indicator is just a scheduled oil change reminder. The TPMS light indicates low tire pressure.

If both the VSC/TRAC and check engine lights come on together, it often means the check engine light triggered a traction-control fault as a secondary effect.

How Your RAV4 Trips the Light: OBD-II, Two-Trip Logic, and Freeze Frame

Your RAV4's Engine Control Module (ECM) is constantly monitoring sensors. It checks everything from oxygen levels in the exhaust to the electrical response of ignition coils. When a sensor reading falls outside a preset range for long enough, the ECM sets a code.

The system uses a "two-trip" logic. A fault that occurs during one drive cycle sets a pending code. If the same fault occurs on the next drive cycle, the code becomes confirmed and the MIL lights up.

A permanent code is different; it can only be cleared by the ECM itself after the repair is verified through a complete, successful drive cycle.

This data is stored along with freeze frame information. This is a snapshot of exactly what the engine was doing when the fault occurred: vehicle speed, engine load, coolant temperature, and fuel trim values. It's an invaluable diagnostic clue that tells the real story behind the code.

Image source: Bing (Web (fair-use with source credit))

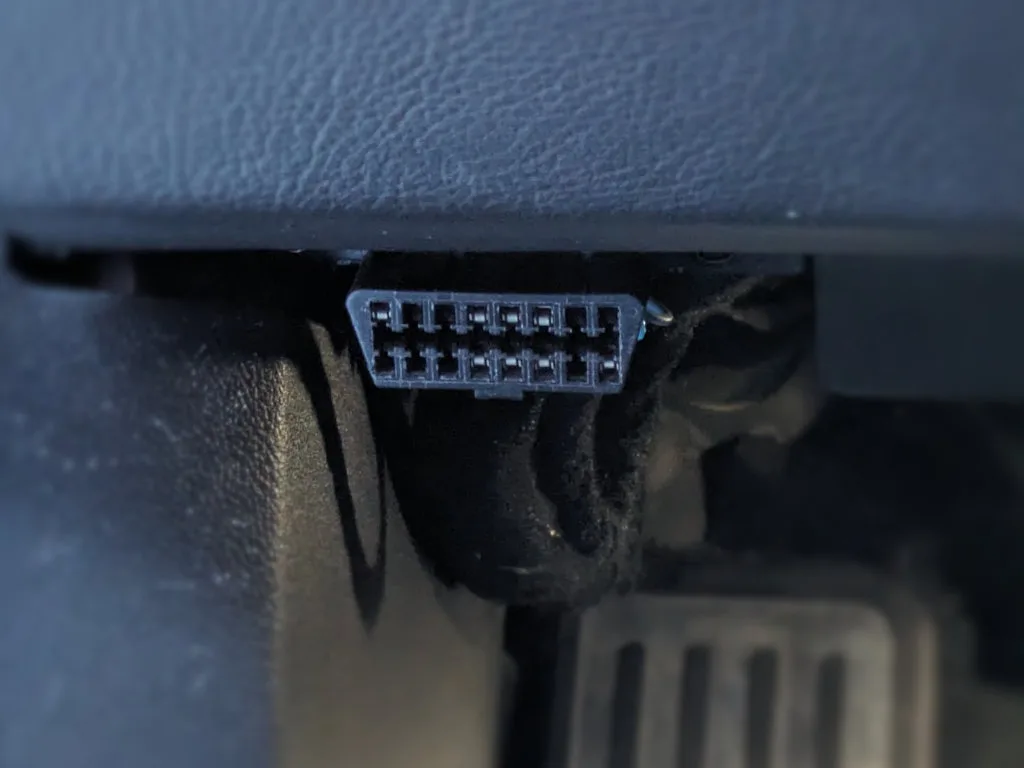

The 16-pin Diagnostic Link Connector (DLC3), required by law under the Clean Air Act, is located under the driver's side dashboard, just left of the steering column. A generic OBD-II scan tool can read emissions-related powertrain codes. However, for hybrid-specific modules or deeper ABS/SRS faults, you need an enhanced scanner or Toyota's own Techstream software.

The RAV4 Check Engine Light Decision Tree

What you do next depends entirely on the situation. Here's how to branch your response.

Branch 1: Flashing light, rough running, or burning smell.

This is an emergency. Do not drive the vehicle. Have it towed to a mechanic.

Continuing to drive risks catastrophic catalytic converter damage.

Branch 2: Steady light with a noticeable symptom (rough idle, power loss, poor MPG).

Drive the vehicle directly to a repair shop or a parts store for a code scan. Avoid highways and heavy loads. The problem is serious enough to warrant prompt professional attention.

Branch 3: Steady light, but the RAV4 drives perfectly fine.

You have some leeway, but don't ignore it. The issue could be a minor EVAP leak or an early sensor degradation. Plan a diagnostic scan within the next few days.

You can likely drive normally for now.

Branch 4: "Check Hybrid System" or a hybrid-specific code.

This is distinct from the standard check engine light. On models like the RAV4 Hybrid, it could indicate a fault in the high-voltage battery, inverter, or electric motor system. If the vehicle goes into "limp mode" with limited power, pull over.

Consult your dealer immediately.

Branch 5: Light came on right after refueling.

First, check that the fuel filler door is closed securely and the gas cap is tight. A loose cap is the simplest and most common cause for an EVAP code like P0456. If the cap is snug, the problem may be in the purge or vent valve system.

Branch 6: Light on the day before an emissions test.

Do not clear the code. Most testing stations will see that the OBD-II readiness monitors are "not ready" and fail you automatically. You need to diagnose and fix the underlying fault, then complete a proper drive cycle.

Decoding the Codes That Actually Show Up on a RAV4

The specific two- or three-digit code is the key. Here are the most frequent offenders and what they usually point to on a RAV4.

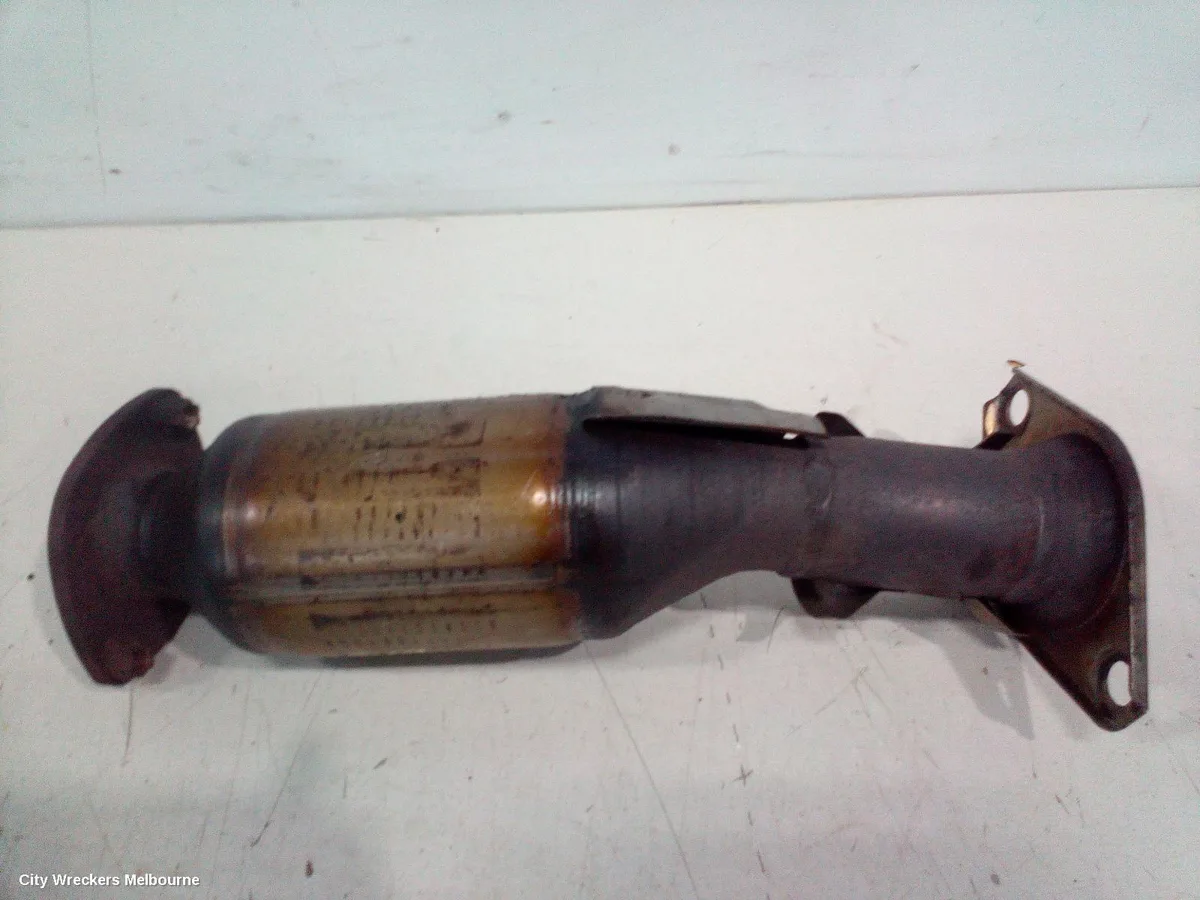

P0420 / P0430 (Catalyst Efficiency Below Threshold)

This is the most commonly reported code. It's often misdiagnosed as a failed catalytic converter. In many cases, the root cause is a lazy upstream air/fuel ratio sensor, an exhaust leak, or excessive engine oil consumption contaminating the catalyst.

Always diagnose upstream sensors first.

Image source: Bing (Web (fair-use with source credit))

P0455, P0456, P0442 (EVAP System Leak)

These indicate a leak in the Evaporative Emission (EVAP) control system. P0455 is a large leak, P0456 is a small leak. The first and cheapest fix is always tightening the gas cap.

If that fails, the issue could be a cracked hose, a faulty purge valve, or a leaking charcoal canister.

P0171 / P0174 (System Too Lean)

These codes mean too much air or not enough fuel is getting into the cylinders. The top suspects are vacuum leaks (cracked hoses, intake manifold gasket), a dirty mass airflow (MAF) sensor, or a weak fuel pump. Live data showing high positive long-term fuel trim values confirms a lean condition.

P0128 (Coolant Thermostat Below Regulating Temperature)

This code is very common in cold climates. It means the engine isn't reaching its optimal operating temperature quickly enough, often due to a thermostat that's stuck open. It hurts fuel economy and increases emissions.

P0A80 (Replace Hybrid Battery Pack)

This is a code RAV4 Hybrid owners dread. It indicates a significant imbalance in the high-voltage battery cells. While it can mean the pack needs replacement, it sometimes points to a failing battery block or a connection issue that a specialist can test and repair more affordably.

U0100 and Other Communication Faults

A U-code (like U0100, meaning lost communication with the ECM) points to an electrical issue, not a mechanical one. The common culprits are a weak 12V battery, corroded ground points, or a damaged CAN bus wire. On newer RAV4s, a failing 12V auxiliary battery causes more phantom codes than most owners realize.

The 'No Code' Scenario

Sometimes the MIL is on, but your generic scanner shows nothing. That's a limitation of your tool, not a mystery. Toyota uses enhanced diagnostics for certain modules, and you'll need a Techstream-compatible interface or a multi-system scanner to see what's stored.

Engine codes vary by platform, and understanding the differences helps with any SUV. If you're curious how the RAV4's 2.5L four-cylinder compares to other engine families, the Jeep 3.6 versus 3.8 comparison gives a sense of how much platform design matters.

Step-by-Step: Scan, Diagnose, Repair, Verify

Step 1: Read and record before you clear anything.

Plug your scan tool into the DLC3 port. Write down every code, including pending and permanent ones, plus the freeze frame data. Never clear codes yet.

That erases the evidence you need.

Step 2: Free visual and electrical checks.

Open the hood. Check the oil and coolant levels, and inspect the battery terminals for corrosion. Look for cracked vacuum hoses, loose intake boots, and chewed wiring.

Listen for an air hissing sound that signals a vacuum leak.

Step 3: Use live data to narrow it down.

Watch the long-term fuel trim. A reading above +10 percent indicates a lean condition, usually a vacuum leak. Watch the upstream oxygen sensor voltage swing between 0.1V and 0.9V.

A flat reading means the sensor is dead, not the catalytic converter.

Step 4: Confirm the cause, then replace the part.

Codes tell you which system failed, not which part is bad. Test the component before spending money. For a P0420, verify sensor switching and check for exhaust leaks before buying a catalytic converter.

Step 5: Clear codes and run a proper drive cycle.

After the repair, clear the codes with your scan tool. Drive the RAV4 for 15 to 20 minutes across varied speeds, including some highway time, to let the ECM run its readiness monitors. Short trips won't complete the cycle.

Step 6: Verify the monitor went "complete."

Re-scan the vehicle. Confirm the MIL is off and the readiness monitors show "complete" or "ready." If the light returns, the root cause was deeper than the first part swapped, and it's time for a professional diagnostic.

Every model generation has its own quirks, and your RAV4's habits differ from a rival SUV's. That's why drivers cross-shop models before buying. If you're weighing a different compact crossover, our size comparison between the Jeep Compass and Renegade is a helpful starting point.

Mistakes That Cost RAV4 Owners Real Money

Some check engine light mistakes are expensive. Here's what to avoid.

Clearing codes before an emissions test. It seems logical, but it backfires. The OBD-II monitor will show "not ready," and the station fails you instantly. Worse, the permanent code stays stored until the ECM verifies the repair itself.

Throwing parts at a P0420. Many owners replace the catalytic converter first, only to find the code returns. Manufactured specifications indicate the upstream air/fuel ratio sensor causes more false catalyst codes than the converter itself. Diagnose the sensor switching and check for exhaust leaks before buying a $1,000 part.

Buying counterfeit sensors. A knockoff oxygen sensor costs half the price of an OEM one, but the calibration is off. The fuel trims react incorrectly, and the light comes back within days. Stick with Denso, Bosch, or genuine Toyota parts.

Ignoring a steady light. A minor EVAP leak today becomes a failed emissions test and a registration headache later. The longer you wait, the more systems get affected. Some owners with P0171 drove until the oxygen sensors and catalyst were damaged.

Assuming every hybrid code means a dead battery. A P0A80 often sends owners into panic about a $6,000 pack. The real fault might be a single weak block or a corroded connection. A specialist can test the pack and often repair just the bad section for a fraction of the cost.

Overlooking free repairs. The Denso fuel pump recall affected certain 2019 and 2020 RAV4s and hybrids. If your VIN is covered, a Toyota dealer fixes the stalling risk for free. Check the NHTSA recall lookup before paying for any diagnosis.

Different SUVs have different failure patterns. That's why our Chevy Equinox versus Jeep Cherokee breakdown looks at long-term ownership rather than just sticker price.

Costs, Coverage, and When to Hand It Off

Know your warranty coverage. Under the Clean Air Act, the catalytic converter and engine control module are covered for 8 years or 80,000 miles. Most other emissions parts carry a 2-year or 24,000-mile warranty. Toyota's hybrid battery coverage extends to 10 years or 150,000 miles on 2020 and newer models.

When should you hand it off? If the same code returns after a repair, or if you need hybrid high-voltage diagnostics, stop guessing. A dealer with Techstream can access data a generic scanner can't see. Independent Toyota specialists charge less than dealers but bring the same know-how.

DIY is still a smart first step. A $30 OBD-II scanner pays for itself on one diagnostic trip. Use it to read codes, check freeze frame data, and clear your own codes after a verified repair. That's the easiest money saved in the whole process.

If you're comparing RAV4 ownership against other SUVs, the diagnostic costs and repair intervals are a major part of the long-term picture. Keep that in mind when weighing your options. And before you dismiss a RAV4 based on a single repair bill, check how the BMW X3 and Jeep Cherokee compare on space and feature content.

Frequently Asked Questions

Can I drive with the check engine light on?

If the light is steady and the car runs fine, yes, but only to get it diagnosed soon. If the light is flashing, changes in your catalytic converter from a misfire can cause damage within minutes. Stop driving, call a tow truck, and don't risk a costly repair.

Your RAV4 will tell you when it's urgent, so listen to the difference.

Why does my check engine light come on after refueling?

This usually points to an EVAP system leak. The most common cause is a loose, missing, or damaged gas cap. On newer RAV4s with capless fuel fillers, the rubber seal around the filler neck can fail.

Tighten the cap, drive a few days, and the light often clears itself if the car has a small leak.

What does the P0420 code mean on a RAV4?

This code means the catalyst efficiency is below the specified threshold. It's one of the most over-diagnosed faults in automotive repair. Testing the upstream air/fuel ratio sensor and checking for exhaust leaks first saves thousands.

Only replace the catalytic converter after those causes are ruled out. Manufacturer specifications indicate that a failed sensor is common.

Will clearing the codes make my RAV4 pass inspection?

No, it will actually make it fail. Clearing codes also clears the readiness monitors. Most states will reject your vehicle for having a "not ready" status.

The proper procedure is to fix the underlying fault, clear the codes, then drive through a complete drive cycle so the ECM can run its self-diagnostics and mark all monitors complete.

What should I do if the light is flashing?

Pull over safely and shut off the engine immediately. A flashing MIL indicates a severe misfire that dumps unburned fuel into the exhaust, which can burn the catalytic converter. Have the RAV4 towed to a mechanic.

Continuing to drive, even to get home, risks turning a minor repair into a major one.
