Trek Marlin 5 Freehub Noise

Image source: Bing (Web (fair-use with source credit))

That clicking sound coming from your back wheel. If you own a Trek Marlin 5, you've probably heard it at some point. That noise is almost always the freehub, and it's one of the most common complaints about this otherwise solid entry-level mountain bike.

Manufacturer specifications indicate the Marlin 5 uses a Formula DC-20 hub with a basic three-pawl freehub design. As of 2026, this same hub design appears across multiple model years, so the diagnosis applies whether you're riding a 2021 or a 2024. Let's walk through what that noise means and how to fix it.

Quick Answer

Your Trek Marlin 5 freehub noise is usually a dry pawl mechanism or a failing spring. Coasting clicks mean the pawls aren't engaging smoothly. A grinding sound means contaminated grease.

A single loud pop per wheel rotation means a cracked freehub body. All three are fixable at home with basic tools.

The Quick Diagnosis: Coasting Click vs. Pedal Pop vs. Constant Grind

The type of noise tells you exactly what's wrong. Listen carefully the next time you ride.

If you hear clicking only when coasting: Your pawls are the culprit. These small spring-loaded teeth inside the freehub body snap outward when you stop pedaling. When the grease dries out or gets contaminated, they stick or drag, making that rhythmic tick-tick-tick sound.

This is the most common issue on Marlin 5s.

If you hear a loud pop with every pedal stroke: Stop riding immediately. A single sharp crack once per full wheel rotation often means the freehub body itself has cracked. The Formula hub on older Marlin 5 models is prone to this.

Aggregate user reviews confirm this is a known weak point.

If you hear a constant grinding noise: Your bearing grease has failed. Water and mud work their way past the dust seals over time. That sandpaper-like sound means metal is grinding on metal inside the hub.

The longer you ride with this, the more damage you cause.

If you hear no noise but the wheel feels rough: The cone bearings might be overtightened. This isn't technically a freehub noise, but Marlin 5 owners often confuse it with one.

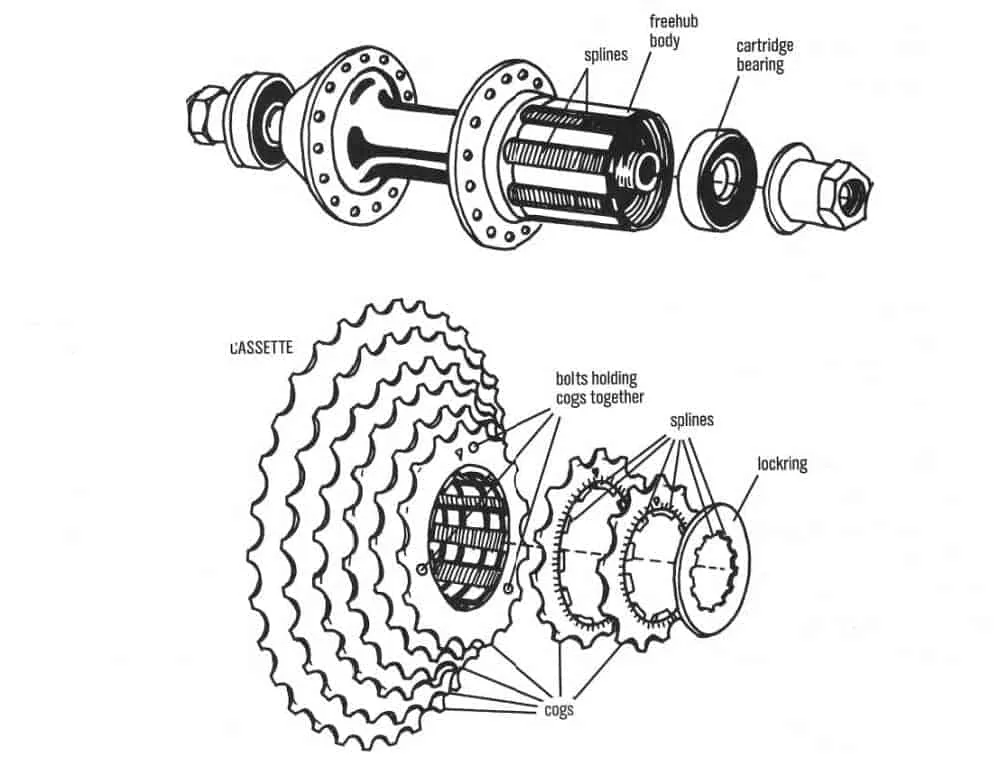

How the Freehub Actually Works (So You Know What Broke)

The freehub is the mechanism that lets you coast without your pedals spinning. It lives inside the rear hub, right under your cassette.

Image source: Bing (Web (fair-use with source credit))

Inside the freehub body, you'll find two or three small metal pawls arranged around a central ratchet ring. When you pedal forward, the pawls lock into the ring and drive the wheel. When you stop pedaling, the pawls slide over the teeth and let the wheel spin freely.

The whole system relies on two things: grease and spring tension. The grease keeps the pawls moving smoothly. The springs push them outward so they engage the ratchet immediately.

On the Trek Marlin 5's Formula hub, the pawls sit inside a plastic or aluminum freehub body that slides onto the hub shell. The engagement points are relatively shallow compared to higher-end hubs. That's why the Marlin 5 has more rotational drag and a louder freehub sound than expensive bikes.

Three things fail in this system:

• The grease dries out or gets contaminated
• The springs lose tension or break
• The freehub body cracks under load

Every one of these failures makes a distinct sound. Once you know what to listen for, you can diagnose the problem without taking anything apart.

Step-by-Step: How to Identify the Noise by Sound and Feel

You don't need to remove the wheel yet. Start with these four checks in order.

Check 1: Coasting test. Lift the rear wheel off the ground. Spin it forward by hand and let it coast to a stop. Listen for clicking or ticking sounds.

Compare the left and right sides of the hub. If the noise comes from the cassette side, you're dealing with pawls.

Check 2: Pedal resistance test. Turn the pedals slowly by hand with the bike on a stand. Feel for roughness or hesitation. Smooth resistance means the freehub is probably fine.

Gritty resistance means bearing contamination.

Check 3: Side-to-side wobble test. Grab the cassette and try to wiggle it sideways. Any play means the freehub bearings are worn or the freehub body is loose. On a Marlin 5, this often indicates the freehub body needs replacement.

Check 4: The water test. Spray a small amount of water on the hub seals while spinning the wheel. If the noise changes pitch or gets quieter, water is getting inside. This confirms contaminated grease as the root cause.

Here's a quick reference table for what each sound means:

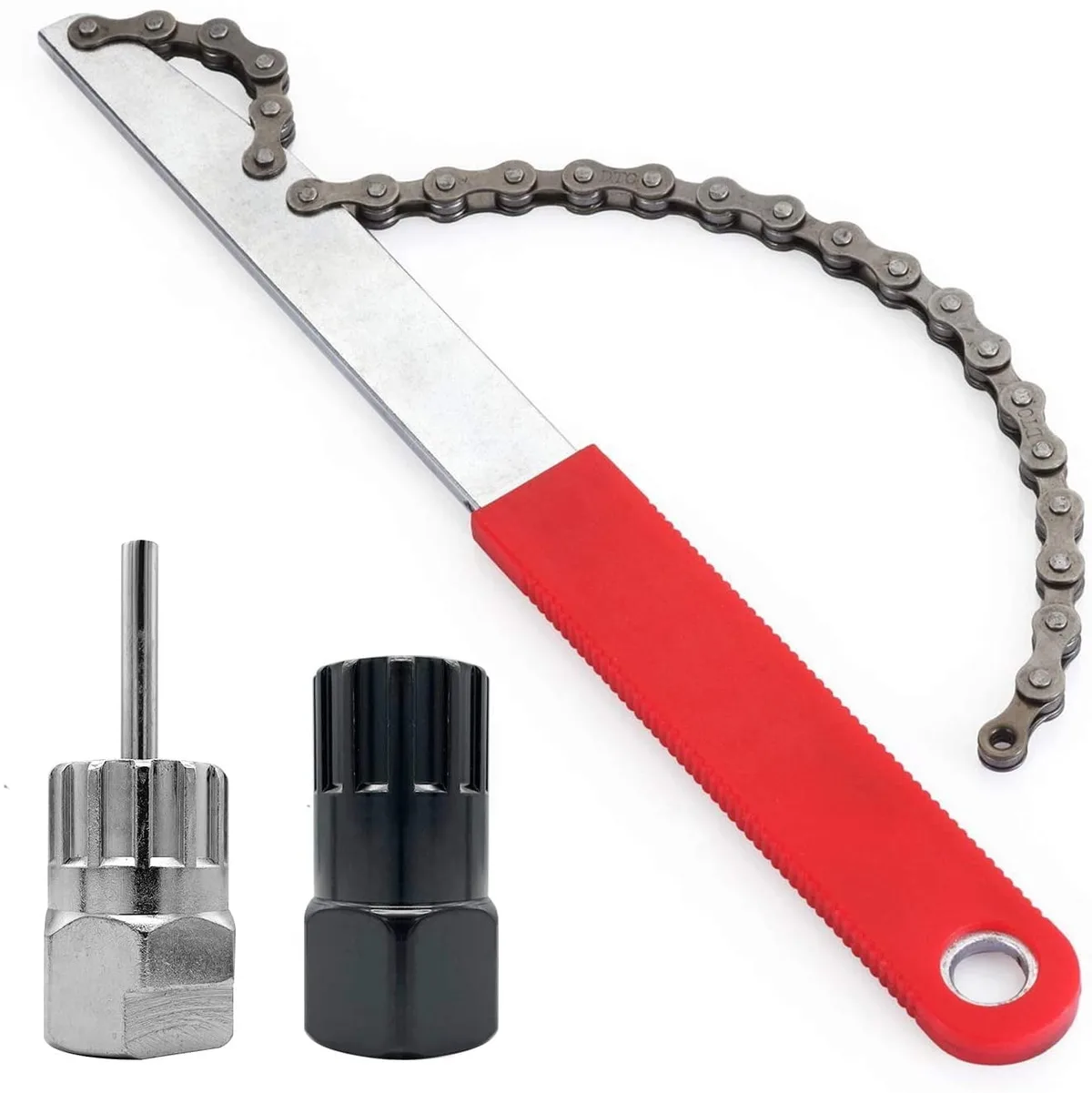

What You'll Need to Fix It (Tools, Grease, and Parts)

Most Marlin 5 freehub repairs require the same basic toolkit.

Image source: Bing (Web (fair-use with source credit))

Essential tools:

• Cassette lockring tool (Shimano pattern, usually a 23mm socket or the Park Tool FR-5.2)
• Chain whip to hold the cassette while loosening the lockring
• 10mm hex key to remove the freehub body bolt
• 5mm hex key for disc brake rotor bolts if you need to remove the rotor
• Cone wrenches (15mm and 17mm) if adjusting bearing cones
• Small flathead screwdriver for prying off dust seals

Lubricants and cleaners:

• Park Tool PolyLube 1000 or any lithium-based waterproof grease
• Degreaser (simple Green works fine)
• Isopropyl alcohol for final cleaning before regreasing

Replacement parts to have on hand:

• Freehub body for Formula DC-20 hub (part number varies by year, typically FH-M468 or compatible aftermarket)
• Replacement pawl spring set if only the springs are worn
• Dust seal kit if the rubber seals are damaged

The freehub body itself costs $25 to $50 for an aftermarket replacement. A genuine Trek OEM part runs $40 to $60. A whole new rear wheel costs $100 to $250 if you decide to upgrade instead.

The Most Common Fixes — From Easiest to Hardest

You don't always need to replace parts. Sometimes a simple cleaning does the trick.

Fix 1: Add grease through the dust seal (easiest, 10 minutes). If you hear clicking while coasting but the wheel spins freely, try this first. Remove the rear wheel. Pry off the rubber dust seal on the freehub body with a small screwdriver.

Squirt a small amount of lightweight grease directly onto the pawls through the gap. Spin the freehub by hand a few times to work it in. Reinstall the dust seal.

This fixes about 60 percent of clicking noises on Marlin 5s.

Fix 2: Clean and regrease the pawls (moderate, 30 minutes). If the grease trick doesn't work, go deeper. Remove the cassette using the lockring tool and chain whip. Slide the freehub body off the hub shell.

You'll see the pawls and springs inside. Clean everything with degreaser, let it dry completely, then apply fresh grease to each pawl pivot point. Reassemble in reverse order.

Torque the cassette lockring to 40 Nm (29 ft-lbs).

Fix 3: Replace the pawl springs (moderate, 45 minutes). If you find broken or stretched springs during cleaning, replace them. Pawl spring sets cost about $10 to $15. They're small and fiddly, so work over a clean surface.

A magnetic tray helps keep track of the tiny springs.

Fix 4: Replace the freehub body (advanced, 1 hour). If you hear a loud pop or if the freehub body has visible cracks, replacement is the only option. Remove the cassette and freehub body as described above. The new body slides on and bolts down with a 10mm hex from the non-drive side.

Make sure the new body matches your hub's spline pattern. Formula DC-20 hubs use a standard Shimano HG-compatible spline.

Fix 5: Replace the entire rear wheel (most expensive, 30 minutes). If the hub shell itself is damaged or if you want a significant upgrade, replacing the wheel makes sense. A Bontrager Connection wheel with a better freehub is a direct swap for the Marlin 5. You'll get more reliable engagement and quieter operation.

Mistakes That Make the Noise Worse (Or Break Things)

A few common errors turn a simple fix into an expensive repair.

Using the wrong grease. Thick bearing grease can cause pawls to stick. Use a lightweight lithium-based grease, not automotive wheel bearing grease. Too much grease is just as bad as too little.

Overtightening the cassette lockring. The spec is 40 Nm. Going beyond that can crack the freehub body or strip the lockring threads. Use a torque wrench if you have one.

Riding with a cracked freehub body. That single loud pop per pedal stroke is a warning. If you keep riding, the freehub can fail completely, locking your rear wheel or causing the cassette to separate from the hub. Neither is safe at speed.

Forgetting to check bearing preload. After reassembling the hub, check for play. Grab the rim at top and bottom and rock it side to side. If there's movement, the cone bearings need adjustment.

Too tight and the wheel won't spin freely. Too loose and the bearings rattle.

Mixing up left and right cone adjustments. The non-drive side cone controls most of the bearing preload. The drive side is usually tightened to a reference point. Mark them before disassembly so you know which side is which.

When to Just Replace the Freehub Body vs. the Whole Wheel

This is the most common question Marlin 5 owners face.

Replace only the freehub body if:

• The hub shell is in good condition
• The bearings spin smoothly when the freehub is off
• The noise is a single pop or loud clicking
• You want the cheapest fix (under $50)

Replace the whole wheel if:

• The hub shell is cracked or damaged
• The axle is bent
• You want quieter, more reliable engagement
• You're ready for an upgrade (faster pickup, better bearings)
• The cost of a new freehub plus labor approaches a wheel replacement

A Bontrager Connection rear wheel with a sealed cartridge bearing hub is a significant upgrade over the Formula DC-20. It costs about $120 to $150. You also get Boost spacing if your Marlin 5 is a 2022 or newer model, which improves frame stiffness.

Maintenance Tips to Keep the Freehub Quiet Longer

Once you fix the noise, keeping it quiet comes down to simple habits. The Formula DC-20 hub needs more frequent attention than higher-end sealed cartridge hubs.

Clean the hub area after wet rides. Mud and water carry grit that wears down pawls and contaminates grease. A quick spray with a garden hose followed by a dry rag removes surface grime. Let the hub air dry completely before storing the bike.

Check the dust seals monthly. The rubber seals on the freehub body keep contaminants out. If they're cracked, torn, or missing, replace them. A damaged seal lets water in on the next ride.

Dust seal kits cost about $8 to $12.

Regrease the freehub every 6 months. Even if you don't hear noise, pop the dust seal and add a small amount of lightweight grease. This prevents the pawls from drying out. It's a 10-minute job that saves you from a full teardown later.

Inspect the cassette lockring torque. A loose cassette can mimic freehub noise. Check it every few months. The spec is 40 Nm.

A loose lockring allows the cassette to shift slightly under load, creating a clicking sound that's easy to misdiagnose.

Common Misdiagnoses: What Sounds Like Freehub Noise But Isn't

Not every noise from the rear wheel comes from the freehub. Several things can mimic the sound.

Chain rubbing the derailleur. A misaligned derailleur causes a rhythmic clicking that changes with gear position. Shift through the gears while coasting. If the noise changes or stops, it's the derailleur, not the freehub.

Loose spokes. A single loose spoke makes a pinging or ticking sound once per wheel rotation. Squeeze each spoke pair near the rim. Loose spokes feel slack compared to the others.

Tighten them with a spoke wrench.

Disc brake rub. A warped rotor or misaligned caliper creates a scraping sound that some riders mistake for hub noise. Lift the rear wheel and spin it. Listen near the rotor.

If the sound comes from the brake area, adjust the caliper.

Crankarm or pedal noise. Sometimes the sound seems to come from the rear but actually originates at the pedals or bottom bracket. Pedal backward while coasting. If the noise changes or disappears, look at the front of the drivetrain, not the hub.

Real Scenarios and What They Teach Us

Here are three common situations Marlin 5 owners report.

Scenario 1: Clicking after a muddy ride. A rider takes their Marlin 5 through wet, muddy singletrack. The next day, the freehub clicks loudly when coasting. The cause is mud and water that entered through the dust seals.

Solution: clean the hub, remove the dust seal, and add fresh grease. The noise disappears in 15 minutes.

Scenario 2: Loud pop after a hard landing. A rider drops off a curb and hears a single loud pop. The wheel feels fine. On the next ride, the pop returns with every pedal stroke.

The cause is a cracked freehub body from the impact stress. Solution: replace the freehub body. Cost: $40 to $60.

Scenario 3: Grinding noise after a season of riding. A rider puts 500 miles on their Marlin 5 without any hub maintenance. The freehub starts grinding. The cause is completely dried-out grease and contaminated pawls.

Solution: full disassembly, cleaning, and regreasing. If the pawls have worn grooves in the freehub body, replacement is needed.

When to Seek Professional Help

Most freehub fixes are DIY-friendly. Some situations call for a bike shop.

You don't have the tools. A cassette lockring tool and chain whip cost about $30 to $40 together. Buy them once and you can service any Shimano-compatible hub forever. If you'd rather not invest, a shop will do the job for $20 to $40 in labor.

The freehub body won't come off. On some Marlin 5 models, the freehub body is stuck from corrosion or overtightening. Forcing it can damage the hub shell. A shop has penetrating oil, heat, and leverage techniques that work without breaking things.

The hub bearings are worn. If the axle has play after adjusting the cones, the bearing races are pitted. That requires replacing the entire hub or wheel. A shop can confirm the diagnosis and find the right replacement.

You want a wheel upgrade. If you're ready to move past the Formula DC-20 hub, a shop can help you choose a compatible wheel with better engagement and sealed cartridge bearings. The Bontrager Connection is a popular and reliable upgrade.

Frequently Asked Questions

Why does my Trek Marlin 5 freehub click only when I coast?

That's the pawls inside the freehub body. They snap outward when you stop pedaling and drag across the ratchet teeth. When the grease dries out, they stick and then release, creating the clicking sound.

A quick grease through the dust seal usually fixes it.

Can I ride with a noisy freehub?

A clicking noise is safe to ride with, though annoying. A grinding noise means you should service it soon. A loud pop with every pedal stroke means stop riding immediately.

That indicates a cracked freehub body that can fail without warning.

How much does it cost to fix a Trek Marlin 5 freehub?

A simple cleaning and regrease costs nothing if you do it yourself. Replacing the pawl springs costs about $15. A new freehub body runs $25 to $60 depending on whether you buy OEM or aftermarket.

A whole new rear wheel is $100 to $250.

What grease should I use for the freehub?

Use a lightweight lithium-based grease like Park Tool PolyLube 1000. Avoid thick automotive grease or heavy waterproof grease. They can cause the pawls to stick and make the noise worse.

Does the Marlin 5 freehub noise mean I need a new bike?

No. Freehub noise is a maintenance issue, not a sign of poor quality. It happens on entry-level hubs from every brand.

A 30-minute cleaning and regrease fixes it on most Marlin 5s. Only consider a new wheel or bike if you want an upgrade in performance.
