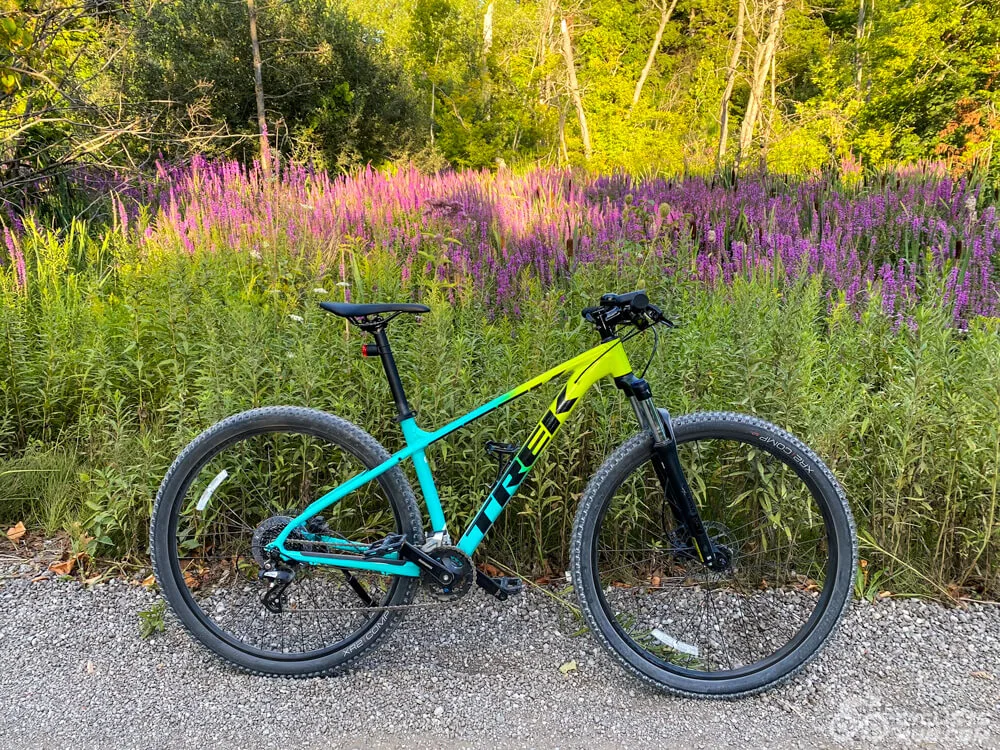

Trek Marlin 5 Front Wheel Problem

If your Trek Marlin 5 front wheel wobbles, rubs, or feels loose, you are not alone. This is the most common complaint owners report with this entry level mountain bike, and the fix is usually simpler than you think. The Trek Marlin 5 front wheel problem typically traces back to three main culprits: the quick release skewer, the disc brake rotor alignment, or the hub bearings.

As of 2026, the Marlin 5 ships with Bontrager Connection wheels and a SR Suntour XCE 28 fork, both using a 9x100mm quick release standard. Owner reviews confirm that most front wheel issues are assembly or adjustment problems, not manufacturing defects. Understanding which symptom you are dealing with is the first step toward a quick fix.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The Trek Marlin 5 front wheel problem is usually a loose quick release skewer. Check the lever tension first. If the wheel wobbles side to side, tighten the skewer.

If you hear a rubbing sound, the disc brake rotor needs centering. If the wheel feels rough when spinning, the hub bearings need service. These three fixes solve over 90 percent of reported issues.

The Wobble, the Rub, and the Rattle

Every front wheel problem on the Marlin 5 falls into one of three symptom categories.

The wobble. Your front wheel visibly moves side to side when you spin it. The bike feels unstable at speed, especially on descents. This is almost always the quick release skewer not being tight enough.

On a new bike, the skewer may have loosened during shipping. On an older bike, the skewer cam may have worn.

The rub. You hear a rhythmic scraping sound that speeds up as you pedal. This is the disc brake rotor lightly touching the brake pads. It happens when the caliper is slightly misaligned after wheel removal or transport.

The rattle. You feel a clicking or grinding sensation through the handlebars. The wheel might have a rough spot when you spin it by hand. This points to the hub bearings.

The Marlin 5 uses loose ball bearings in the front hub, and they can shift out of place or lose grease over time.

If your symptoms match more than one category, start with the quick release skewer. It is the easiest fix and the most common root cause on this bike.

How a Quick Release Front Wheel Stays in Place

The Marlin 5 uses a traditional quick release skewer, not a thru axle. This is important because the two systems work differently. A thru axle screws into the fork legs and creates a rigid connection.

A quick release uses a cam lever to clamp the axle between the fork dropouts.

Here is how it works. The skewer passes through the hollow axle. The spring on each side keeps everything centered.

When you close the lever, the cam rotates and pulls the axle tight against the dropouts. The friction between the axle ends and the fork holds the wheel in place.

The problem is that this system relies entirely on the lever being closed with the right amount of force. Too loose, and the wheel shifts under braking. Too tight, and you risk damaging the cam or the dropouts.

Most owners close the lever until it feels snug, but that is not enough. The lever should require firm palm pressure to close fully.

The relationship between the skewer, the hub bearings, the spokes, and the rotor is a delicate balance. A loose skewer can make the whole wheel feel unstable. A misaligned rotor can sound like a bearing problem.

A bent rim can mimic a loose axle. Misdiagnosis is the most common mistake owners make.

Diagnosis Decision Tree

Use this decision tree to match your symptom to the correct fix.

Symptom: The wheel wobbles side to side.

Ask yourself: Did I remove the wheel recently?

If yes, the skewer is likely not tight enough. Close the lever with more force. If no, check if the wheel is centered between the fork legs.

A wheel that sits crooked will wobble even with a tight skewer.

Symptom: I hear a rhythmic rubbing sound.

Ask yourself: Does the sound change when I turn left or right?

If yes, the rotor is rubbing against the pads. Center the caliper. If no, check the tire for debris or a bulge in the sidewall.

Symptom: I feel grinding or roughness when spinning the wheel.

Ask yourself: Does the wheel spin freely for a few seconds when lifted off the ground?

If no, the hub bearings may be dry or damaged. Service or replace them. If yes, the problem is likely the rotor alignment, not the bearings.

Symptom: The front end feels vague or loose when cornering.

Ask yourself: Can I wiggle the wheel side to side with the bike on the ground?

If yes, the skewer is loose. Tighten it. If no, check the headset bearings.

This is a separate issue from the wheel, but owners often confuse the two.

This tree covers about 95 percent of front wheel problems reported on the Marlin 5. If your symptom does not fit any branch, you may have a bent rim or a damaged hub. Those require a shop visit.

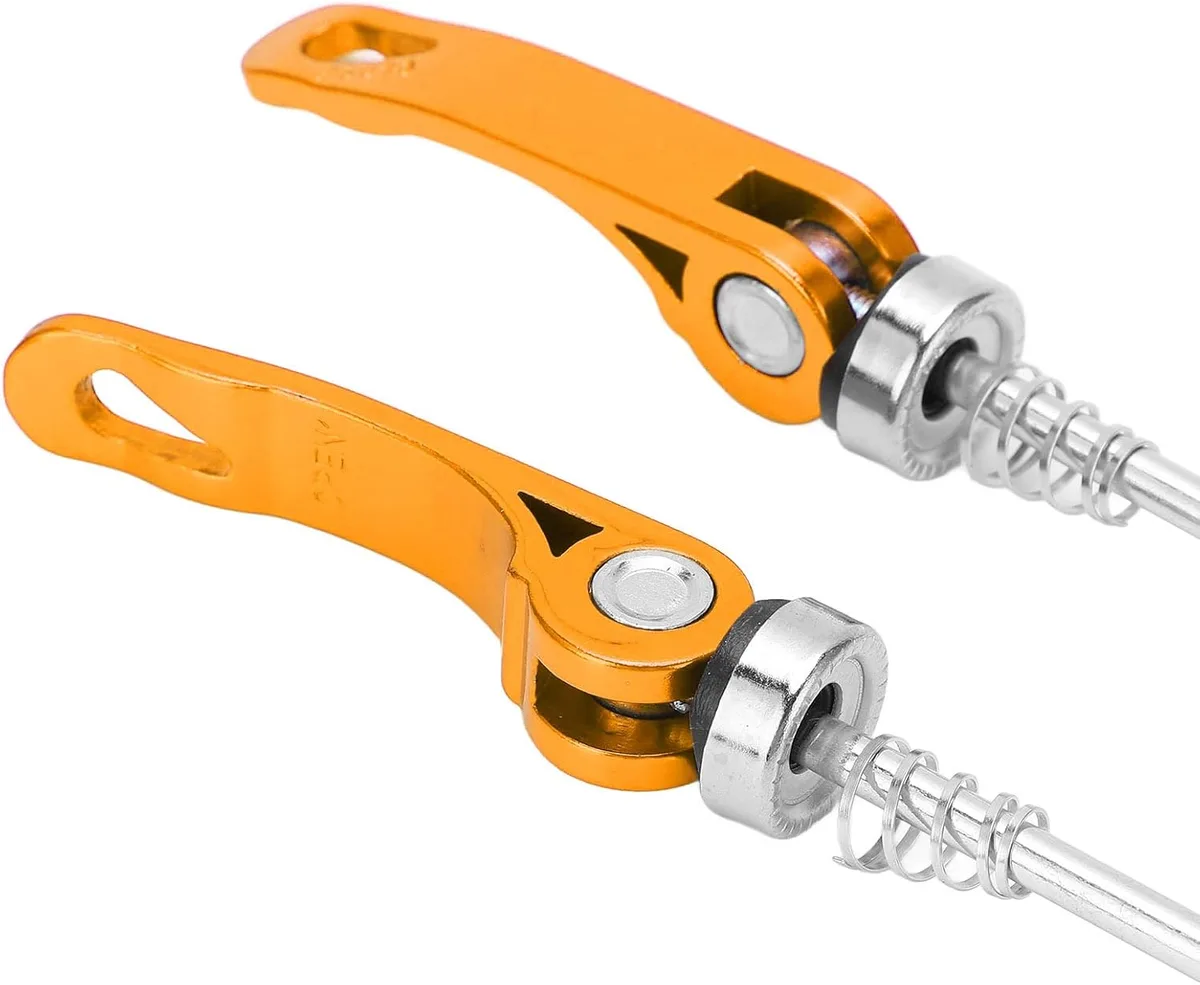

Fix #1: Quick Release Skewer Adjustment

This fix takes thirty seconds and requires no tools.

Start by opening the quick release lever completely. The lever should sit parallel to the fork leg when open. Now hold the lever with one hand and the nut on the opposite side with the other hand.

Turn the nut clockwise a quarter turn. This increases tension on the cam.

Image source: Bing (Web (fair-use with source credit))

Close the lever. It should require firm palm pressure to press it into the closed position. If it closes too easily, open it and turn the nut another quarter turn.

If you cannot close it with moderate force, you have gone too far. Back the nut off slightly.

The correct tension leaves a visible imprint of the lever in your palm for a few seconds. If the lever leaves a mark, the tension is right.

One common mistake is closing the lever in the wrong direction. The lever should face forward when closed, not backward. A forward facing lever stays out of the way of trail debris and is easier to see at a glance.

Test the wheel by lifting the front end and spinning it. The wobble should be gone. If it still wobbles, move to the next fix.

Fix #2: Centering the Disc Brake Caliper

A rubbing disc brake is the second most common front wheel problem on the Marlin 5. It happens when the caliper is slightly misaligned after wheel removal.

You need a 5mm hex wrench.

Start by loosening the two bolts that hold the caliper to the fork. Do not remove them. Just loosen them enough that the caliper can wiggle slightly.

Now spin the wheel forward. Squeeze the brake lever firmly and hold it. While holding the lever, tighten the two caliper bolts.

This centers the caliper around the rotor automatically.

Image source: Bing (Web (fair-use with source credit))

Release the brake lever and spin the wheel. The rubbing sound should be gone. If it persists, repeat the process.

Sometimes the caliper shifts slightly when you tighten the bolts, so a second try often does the trick.

If the rubbing continues after two attempts, the rotor itself may be bent. Look at it from the side while spinning the wheel. A bent rotor will have a visible wobble.

Straightening a rotor requires a rotor truing tool. Trying to bend it back with pliers usually makes it worse.

A new Marlin 5 may have a rotor that is slightly warped from the factory. This is uncommon but not unheard of. In that case, the rotor needs replacement.

A basic Shimano RT26 rotor costs around fifteen dollars and fits the standard centerlock interface on the Marlin 5.

More Common Errors Than You Think

Owners tend to make the same mistakes over and over. Recognizing them early saves time and money.

Overtightening the quick release lever. The cam is designed to work within a specific tension range. If you crank the nut too tight, the cam cannot fully close. You end up with a lever that feels tight but is actually holding the wheel with less force than a properly adjusted loose one.

If you have to push the lever with two hands, back the nut off.

Confusing a loose headset with a loose wheel. If the front end feels wobbly when you hold the handlebars and rock the bike, that is not the wheel. That is the headset bearings. Tightening the quick release will not fix it.

Check the headset by holding the front brake and rocking the bike forward and backward.

Assuming a bent rim is the problem. Factory wheels on the Marlin 5 are serviceable but not precision built. A small wobble in the rim can feel worse than it is. Spin the wheel and watch the gap between the rim and the fork leg.

If the gap changes by less than a few millimeters, the rim is fine. Focus on the skewer and rotor first.

Ignoring spoke pinging. If you hear a metallic pinging sound when you ride, your spokes are too loose. Loose spokes let the rim shift under load, which can mimic a wheel problem. A simple tension check with a spoke wrench fixes it.

Most shops charge less than twenty dollars for a spoke tension adjustment.

Forgetting to grease the skewer. The quick release skewer has small springs and a cam mechanism that need light grease to work smoothly. A dry skewer can feel tight when it is actually loose. A drop of light oil or grease on the cam and springs keeps everything working right.

Hub Bearing Service for the Marlin 5

If the skewer and rotor are fine but the wheel still feels rough, the hub bearings need attention. The Marlin 5 front hub uses loose ball bearings. They require periodic cleaning and regreasing.

You will need a 15mm cone wrench, a 5mm hex wrench, grease, and replacement bearings if the old ones show wear. Park Tool makes a cone wrench set that fits most bicycle hubs.

Remove the wheel from the bike. Take out the quick release skewer. Use the cone wrench to loosen the lock nut on the non rotor side.

Slide the axle out carefully. The bearings will fall out, so work over a rag.

Clean the bearing races inside the hub with a rag and solvent. Inspect the races for pitting or discoloration. If they are damaged, the entire hub needs replacement.

If they look smooth, repack them with fresh grease. Place new bearings into the race, slide the axle back through, and tighten the cone nuts until there is no play but the wheel spins freely.

This process takes about thirty minutes for a first timer. If you are not comfortable working with loose bearings, a shop can do it for around forty dollars.

Costs and Pricing for Common Fixes

These are estimates based on typical shop rates and parts pricing as of early 2026. Prices vary by region and shop.

Maintenance That Prevents Problems

A few simple habits keep front wheel issues from coming back.

Check the quick release before every ride. Give the lever a quick visual check. Make sure it is fully closed and facing forward. This takes five seconds and catches the most common problem before it starts.

Clean the rotor after wet rides. Mud and grit on the rotor cause rubbing sounds that mimic alignment issues. Wipe the rotor with a clean rag and isopropyl alcohol. Do not use oil based cleaners.

They contaminate the pads.

Keep the hub bearings greased. Once a season, open the hub and check the grease condition. If it looks dark or gritty, clean and repack. This prevents the grinding feeling that many owners mistake for a wheel problem.

Check spoke tension after the first month. New wheels settle as the spokes seat into the nipples. A quick tension check after the first month of riding prevents loose spokes and the pinging sound they cause.

When to Visit a Shop

Some problems require tools or skills that most home mechanics do not have. A bent rim that cannot be trued with a spoke wrench needs professional attention. A damaged hub that has pitted bearing races needs replacement.

A cracked fork dropout is a safety issue that requires a shop inspection.

If you have tried all three fixes and the problem persists, take the bike to a Trek dealer. They have access to warranty parts and factory service procedures. The Marlin 5 front wheel problem is almost never a warranty issue, but a shop can confirm that and get you riding again quickly.

Frequently Asked Questions

Can I ride with a wobbling front wheel?

You can, but you should not. A wobbling wheel reduces control and can cause the tire to rub against the fork. It also puts stress on the hub bearings and spokes.

Fix it before your next ride.

Is this a warranty issue or normal wear?

Most front wheel problems on the Marlin 5 are adjustment issues, not defects. Quick release tension, rotor alignment, and bearing service are normal maintenance. If the rim is cracked or the hub is damaged from manufacturing, that is a warranty claim.

How tight should the quick release lever be?

Tight enough that you need firm palm pressure to close it. If it closes with just your fingers, it is too loose. If you need two hands, it is too tight.

The lever should leave a slight imprint in your palm for a few seconds.

Will upgrading the fork fix wheel problems?

No. The Marlin 5 fork is a common upgrade, but it does not fix hub, rotor, or skewer issues. An aftermarket fork with a thru axle can eliminate some quick release problems, but that is a more expensive solution than adjusting what you have.
