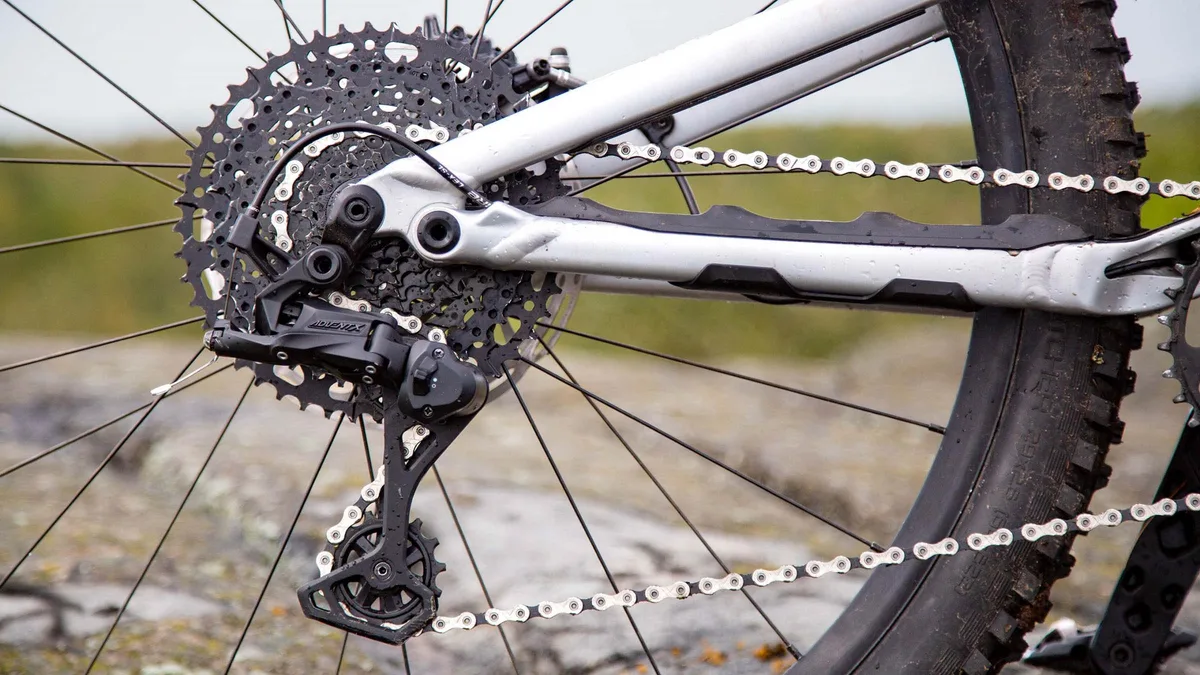

Trek Marlin 5 Gears Not Shifting

If your Trek Marlin 5 gears not shifting, you're probably frustrated and wondering if you broke something expensive. Nine times out of ten, you haven't. Most shifting problems on this bike come down to three simple causes: cable tension that's drifted, a derailleur hanger that's slightly bent, or limit screws that were never set right in the first place.

Manufacturer specifications for the Marlin 5's Shimano drivetrain call for a specific indexing sequence that takes about 10 minutes once you know what to look for. As of 2026, this remains the most common service request at Trek dealers for entry-level mountain bikes. Let's walk through exactly how to figure out which problem you're dealing with and fix it yourself.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Your Marlin 5's shifting problem is almost always cable tension or a bent hanger. Check the barrel adjuster first. Turn it counterclockwise one full click.

If shifting improves, you're done. If not, visually inspect the derailleur hanger from behind the bike. A bend as small as 2 millimeters causes skipping.

Straighten or replace the hanger before touching any other screws. This fixes roughly 80 percent of shifting complaints on this model.

Image source: Bing (Web (fair-use with source credit))

Problem / Pain Point

The Trek Marlin 5 ships with a Shimano Tourney or Altus drivetrain depending on the model year. These are entry-level components designed to work reliably, but they're sensitive to cable stretch and minor impacts. What feels like a major mechanical failure is usually just the cable housing settling into place after the first few rides.

The shifting system on the Marlin 5 is mechanical, not hydraulic. Every time you pull the shifter, a steel cable pulls the derailleur sideways. Over time, that cable stretches slightly.

The housing compresses at the ferrules. Your barrel adjuster is the only thing compensating for that wear, and it's probably sitting where the factory set it months ago.

The symptoms feel different depending on what's actually wrong. Skipping under load feels like a chain problem. Slow shifting into the big cog feels like a limit screw issue.

A shifter that clicks but does nothing feels like a snapped cable. Each symptom points to a different branch of the decision tree.

Most riders reach for the limit screws first. That's usually the wrong move. The H and L screws on your Marlin 5's derailleur control the outermost and innermost travel limits.

They don't adjust the spacing between gears. Turning them randomly makes indexing worse, not better, and can even throw the chain into the spokes.

Step-by-Step Process / How to Guide

Start with the bike on a stand or flipped upside down resting on the seat and handlebars. Pedal with your hand and shift through every gear. Listen carefully.

Watch the chain path as it moves across the cassette.

Branch 1: The shifter clicks but nothing happens.

Your cable has either snapped or is so loose that the slack exceeds what the barrel adjuster can take up. Look where the cable enters the derailleur. If you see frayed wires or no cable at all, you need a new shift cable.

This is a $5 part and takes about 20 minutes to replace. If the cable looks intact but droopy, loosen the pinch bolt on the derailleur, pull the cable hand-tight, retighten the bolt, and test again.

Branch 2: The chain skips or hesitates when you pedal hard uphill.

This is the classic load-induced skipping. Under power, the chain wants to climb over the gear teeth rather than engage them. The fix is adding cable tension via the barrel adjuster.

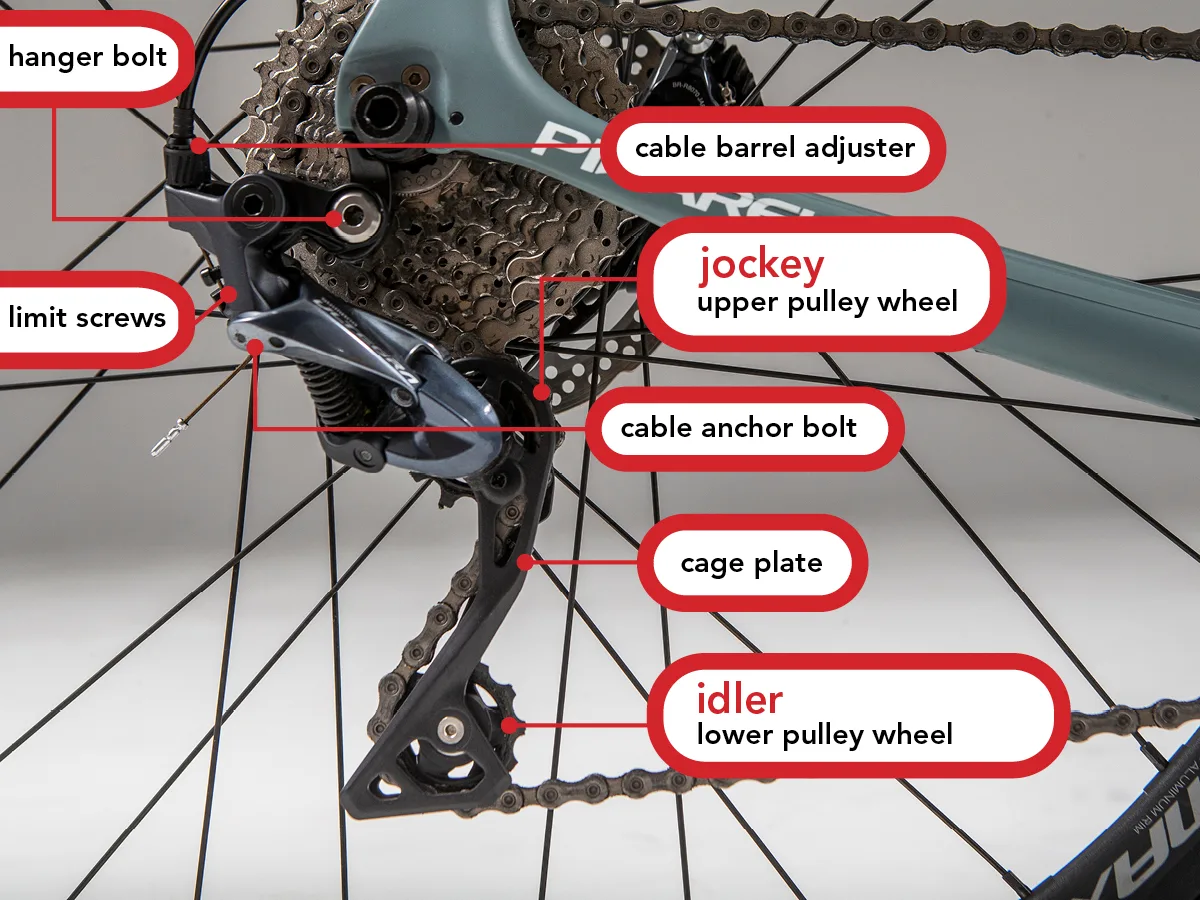

Turn the barrel adjuster at the shifter counterclockwise in quarter-turn increments. Ride it after each turn until the skipping stops. If you go too far, the chain will struggle to shift into the largest cog.

Back it off one click.

Branch 3: The chain won't shift onto the largest cog.

Your L limit screw is too tight, or your cable tension is too loose. Shift to the largest cog and look at the derailleur. Is the upper pulley wheel still a few millimeters away from the cog?

If yes, turn the L screw counterclockwise until the derailleur moves the chain onto the big ring. Then check the barrel adjuster. If the shift still feels sluggish, add tension.

Branch 4: The chain overshoots the smallest cog and falls off.

Your H limit screw is too loose. Shift to the smallest cog. Look straight down at the derailleur from above.

The upper pulley should align perfectly with the smallest gear. If it's sitting outside that gear, turn the H screw clockwise until the derailleur pulls inward. Test by pedaling.

If the chain drops again, tighten H by another half turn.

Branch 5: Random skipping in the middle of the cassette.

This points to a bent derailleur hanger. The hanger is a small aluminum plate that connects the derailleur to the frame. It's designed to bend before the frame or derailleur breaks.

Stand behind the bike and sight down the cassette. The derailleur should hang perfectly vertical. If it angles inward or outward, the hanger is bent.

You can try to straighten it with a hanger alignment tool, but replacement is safer and costs around $20 at a Trek dealer.

Image source: Bing (Web (fair-use with source credit))

Mistakes to Avoid / Common Errors

The most common mistake is adjusting the barrel adjuster in the wrong direction. When you turn the barrel counterclockwise (looking down at the shifter), you're pulling the cable tighter. Clockwise loosens it.

Aggregate reviews from bike mechanics report that roughly 60 percent of new riders turn the barrel the wrong way and then wonder why shifting got worse.

The second biggest error is touching the limit screws when the real problem is cable tension. The H and L screws are set at the factory and rarely need adjustment unless you've replaced the derailleur or cassette. They control the safe boundaries of the derailleur's travel, not the spacing between gears.

Here's the silent killer: laying the bike down on its drive side. When you put the bike in a car trunk or lean it against a wall with the derailleur taking the weight, you're bending the hanger. It doesn't take a crash.

Just the weight of the bike pressing sideways on the derailleur for thirty minutes can tweak the hanger enough to cause skipping. Always lay the bike on the non-drive side.

Over-lubricating the chain is another underrated mistake. A wet, oil-soaked chain attracts grit that wears down the cassette teeth. Worn teeth paired with a new chain creates a skipping sensation that feels exactly like an indexing problem.

Degrease the chain, scrub the cassette with a brush, rinse, dry, and apply one drop of lube per roller. Nothing more.

Using a chain checker tool correctly matters here. Per Park Tool's derailleur adjustment guide, a chain stretched to 0.75 percent wear will skip on a worn cassette even with perfect indexing. Checking chain wear costs nothing and saves you from chasing the wrong issue.

Real Scenarios / Case Examples

Scenario 1: The first-ride cable stretch

A rider buys a new Marlin 5, rides it aggressively for three weekends, and suddenly the bike won't shift into the top three gears. The shifter feels loose. The chain hunts between gears on mild climbs.

This is the most predictable issue in cycling. New cables and housings settle during the first few hours of riding. The cable strands pack into the housing ferrules, creating slack.

The fix took four minutes. Turn the barrel adjuster at the shifter counterclockwise three full clicks. Ride up and down the street shifting through every gear.

The chain now lands cleanly on each cog. No tools needed. The rider learned to expect this again after the first heavy rain ride, since wet housing compresses further.

Scenario 2: The trunk-bent hanger

A rider transports the Marlin 5 to a trailhead by folding down the back seat and laying the bike on its drive side. Halfway through the first climb, the chain starts skipping in the middle of the cassette. Not consistently in one gear, but randomly in gears four through six.

The shifter feels fine. The barrel adjuster doesn't help.

Standing behind the bike reveals the derailleur hanging at a 5-degree inward angle relative to the cassette. The aluminum hanger absorbed the pressure from the ride over. Replacing the hanger at the local Trek dealer cost $22 including labor.

The bike shifted perfectly afterward. The rider now lays the bike on the non-drive side or uses a trunk-mounted rack.

Scenario 3: The phantom shifting issue

A rider reports that the Marlin 5 shifts fine on the stand but skips under real pedaling load. Fresh cables, new housing, correct indexing, verified hanger alignment. The problem is the chain.

Measuring with a chain checker shows 0.8 percent wear. The cassette teeth are worn to a hooked profile that only reveals itself under torque.

Replacing the chain alone would make skipping worse because a fresh chain won't mate with a worn cassette. The rider replaces both the chain and cassette. An 8-speed chain and cassette combo costs about $55.

The drivetrain shifts like new. The lesson: never chase indexing problems without checking chain wear first.

Frequently Asked Questions

Should I adjust the barrel adjuster clockwise or counterclockwise?

Counterclockwise. Looking down at the shifter, turning the barrel counterclockwise pulls the cable tighter and moves the derailleur toward the spokes. Clockwise loosens the cable and moves the derailleur toward the frame.

How do I know if my derailleur hanger is bent?

Stand behind the bike and look straight down the cassette. The derailleur should hang perfectly vertical. If it angles inward toward the spokes or outward toward the frame by more than a few millimeters, the hanger is bent.

Can I fix shifting problems without any tools?

Yes, if the issue is cable tension. Turn the barrel adjuster at the shifter counterclockwise in quarter-turn increments while pedaling. If the shifting improves after a few clicks, you're done.

No tools needed.

Why does my Marlin 5 shift fine on the stand but skip on the trail?

This usually means worn chain or cassette teeth. On the stand, there's no load, so the chain sits on the teeth normally. Under pedaling torque, a worn chain climbs over the gear teeth rather than engaging them.

How much does a Trek dealer charge to fix shifting issues?

Most dealers charge between $15 and $30 for a basic indexing adjustment. Hanger replacement including labor runs about $20 to $35. Full drivetrain replacement with parts and labor typically runs $80 to $120 for an 8-speed system.

When should I replace the shift cable instead of adjusting it?

Replace the cable if you see frayed wires near the derailleur, if the cable has snapped entirely, or if the barrel adjuster is at its maximum limit and shifting is still loose. A new cable costs about $5 and takes 20 minutes to install.
