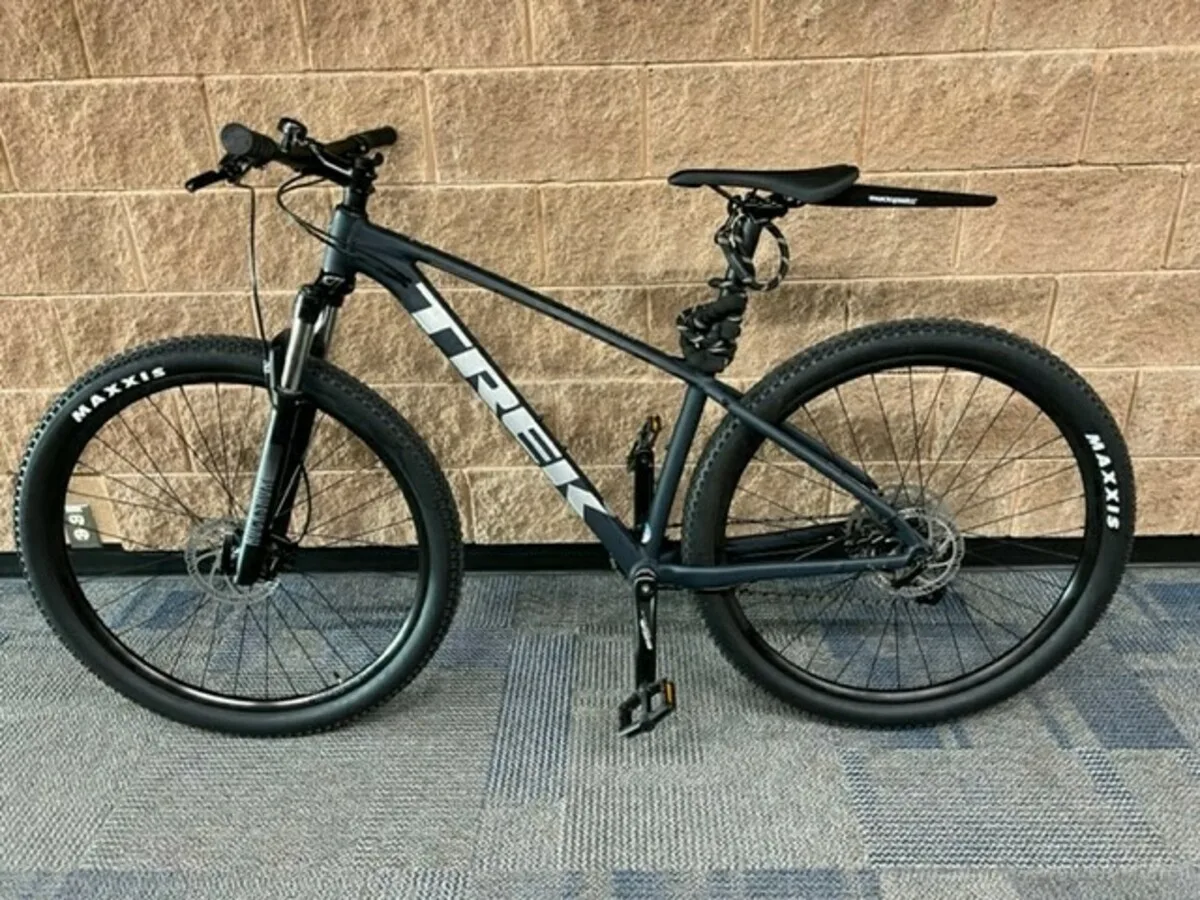

Trek Marlin 7 Brake Rotor Rubbing

That scrape-scrape-scrape sound is enough to ruin any ride. You're pushing your Trek Marlin 7 along a smooth section of trail, and every wheel rotation comes with that telltale metallic whisper. Or worse, a full-on grinding noise that makes you wonder if something's about to seize up.

Trek Marlin 7 brake rotor rubbing is one of the most common frustrations owners run into. The good news is, it's almost never a sign that something's broken. It's usually just something that's moved slightly out of place.

Manufacturer specifications from Trek indicate that the Marlin 7 ships with Tektro HD-M275 hydraulic disc brakes paired with 180mm rotors up front and 160mm in the rear. These are solid, workhorse components, but they're also sensitive to alignment and wheel seating. As of 2026, the core design hasn't changed much.

That means the same troubleshooting steps that worked a few years ago still apply today.

Quick Answer

Trek Marlin 7 brake rotor rubbing usually comes from one of three things. The wheel isn't fully seated in the dropouts. The caliper is slightly misaligned.

Or the rotor itself has a slight bend. Spin the wheel and look. Listen.

Locate the rub point. Then reseat the wheel first. Realign the caliper second.

True the rotor last. Most fixes take under ten minutes and cost nothing.

Image source: Bing (Web (fair-use with source credit))

The Quick Spin Test – Diagnose Your Rubbing in 10 Seconds

Flip your bike upside down or pop it into a repair stand. Give the wheel a good hard spin. Don't just give it a lazy flick.

Wind it up so it's really turning. Now put your ear down close to the caliper.

If you hear a continuous, even scrape all the way around, that's constant rub. The rotor is contacting the pad at the same spot every rotation because the caliper isn't centered. If you hear a rhythmic tick-tick-tick that speeds up and slows down with the wheel, that's intermittent rub.

The rotor has a high spot or a bend that clips the pad once per revolution.

Here's the quick breakdown of what each sound tells you:

• Constant scraping, even cadence, Caliper alignment issue or wheel not seated
• Rhythmic tick every rotation, Bent rotor or loose rotor bolt
• Scrape only when you pedal hard, Frame flex pushing the caliper into the rotor
• Scrape only after a crash or bike drop, Bent rotor or shifted wheel
• Scrape that comes and goes randomly, Loose hub bearings shifting the wheel

That 10-second test tells you which decision branch to follow. Don't skip it. Guessing at the cause wastes time and can make things worse.

Decision Branch 1: Constant Rub vs. Intermittent Rub

This is your first fork in the road. Where you go next depends entirely on whether the rub is constant or intermittent.

Constant Rub – The Wheel's Not Seated or the Caliper's Off

Image source: Bing (Web (fair-use with source credit))

If the scrape is steady and even through the whole rotation, the rotor is running slightly off-center through the caliper. That means either the wheel isn't sitting straight in the frame, or the caliper body itself is shifted to one side.

Start with the wheel. Loosen your quick-release skewer. Give the bike a gentle bounce on the ground.

Then tighten the skewer again with firm hand pressure. Not gorilla-grip tight, but enough that the cam lever leaves a clear impression in your palm when you close it. Spin the wheel again.

If the rub disappears, that was your problem. The front wheel on the Marlin 7 uses a standard quick-release, and it's easy to get it slightly cocked in the dropouts.

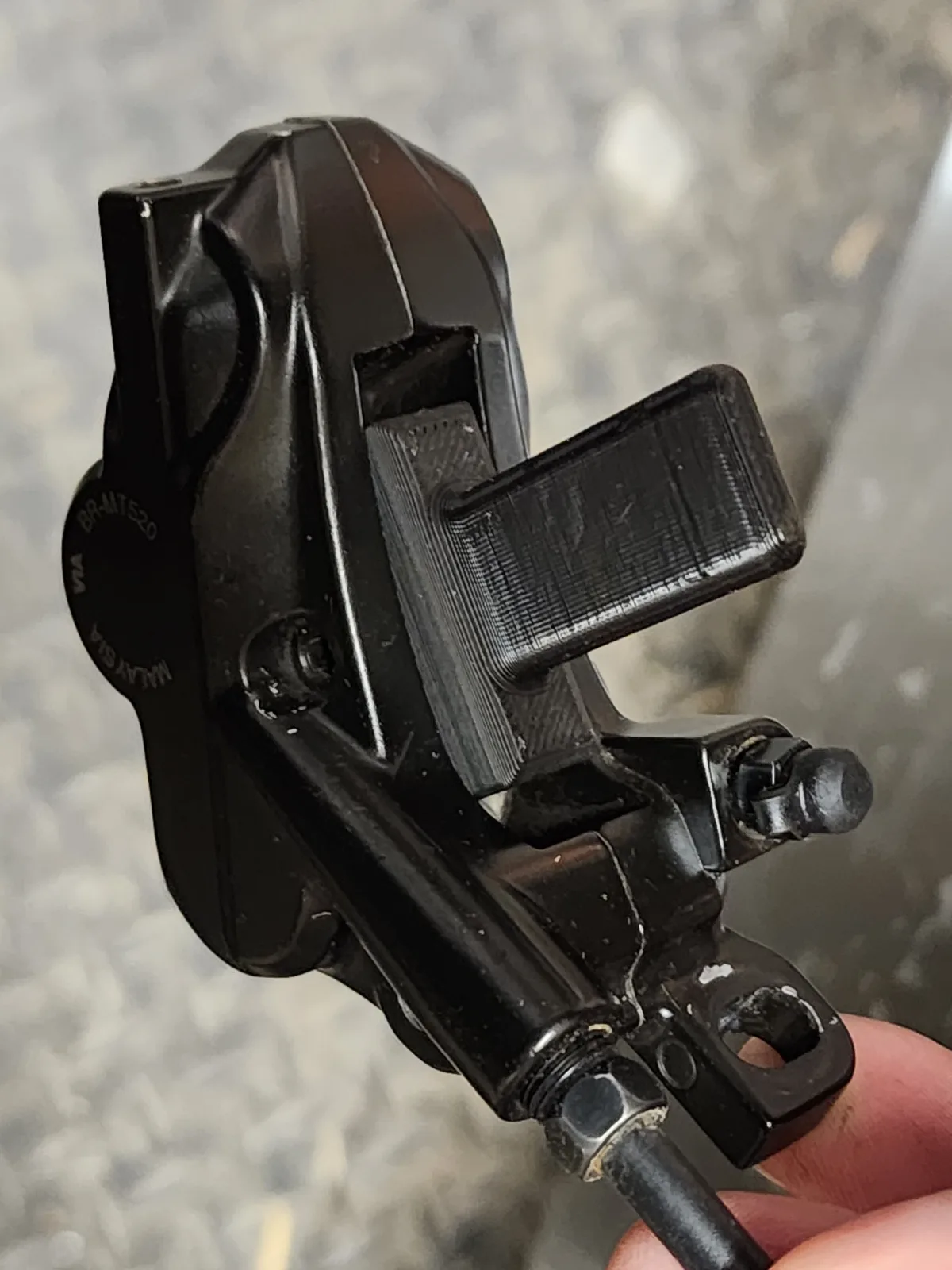

If the rub is still there after reseating the wheel, move to the caliper. Loosen the two caliper mounting bolts just enough that the caliper can wiggle. Don't remove them, just break them loose.

Squeeze the brake lever firmly and hold it. While holding the lever, retighten the bolts to 6, 8 Nm if you have a torque wrench, or snug them evenly with a hex key. Release the lever and spin the wheel.

That self-centering trick works about 80 percent of the time.

Intermittent Rub – A Bent Rotor or Something Loose

If the rub comes and goes in a regular pattern, you have a physical high spot on the rotor. The rotor ring itself is warped slightly. That warped section brushes the pad once per revolution.

Look at the rotor from directly above the caliper. Spin the wheel slowly. Watch the gap between the rotor and the inboard pad.

A true rotor runs perfectly straight. A bent rotor wobbles side to side like a gently swaying coin. You can also lay a clean ruler or a straight edge across the rotor face to spot the bend more clearly.

Intermittent rub can also come from a rotor that's not bolted down evenly. Check the six rotor bolts. If even one is slightly loose, the rotor will wobble on the hub flange.

Tighten them evenly to 4, 6 Nm in a star pattern, just like you'd torque a car wheel.

Decision Branch 2: Rub Only While Pedaling (Frame Flex)

This one catches a lot of riders off guard. You're coasting and everything is silent. Then you stand up and pedal hard, and the rub comes back immediately.

Sit down and pedal gently, and it goes away again.

That's frame flex. The Marlin 7 uses an aluminum frame, and aluminum has a natural amount of give under load. When you really lay down power, especially climbing out of the saddle, the frame can twist just enough that the rear caliper or the front fork shifts fractionally.

That tiny shift pushes the rotor into the pads.

Here's what to do. First, check that your quick-release is actually tight enough. A slightly loose front skewer allows the fork legs to twist relative to the wheel.

That creates phantom rub that only shows up when the bike is under load. Tighten the skewer properly and test it again.

If the rub persists, you may need to nudge the caliper slightly away from the rub side during alignment. Instead of centering the caliper perfectly over the rotor with the lever squeezed, try giving it a tiny bias toward the opposite side. Loosen the caliper bolts, squeeze the lever, hold it, and give the caliper a light tap away from the rub spot before tightening.

Some mountain bikers call this "preloading" the alignment for loaded riding conditions.

If you've tried both and the rub still returns under power, consider that some frame flex is inherent to the design. Trek has confirmed that some minor rub under heavy pedaling is within normal operating range for the Marlin platform. It's annoying but not dangerous.

A rotor truing tool or a fresh bleed of the brakes may reduce it, but it may never fully vanish.

Decision Branch 3: Rub After a Crash or Hard Hit

If your rotor rubbing started immediately after you took a spill, dropped the bike onto its side, or slammed the front wheel into a rock garden, your rotor is almost certainly bent. The factory rotors on the Marlin 7 are durable, but they're also relatively thin at 1.8mm. A good whack to the side will warp them.

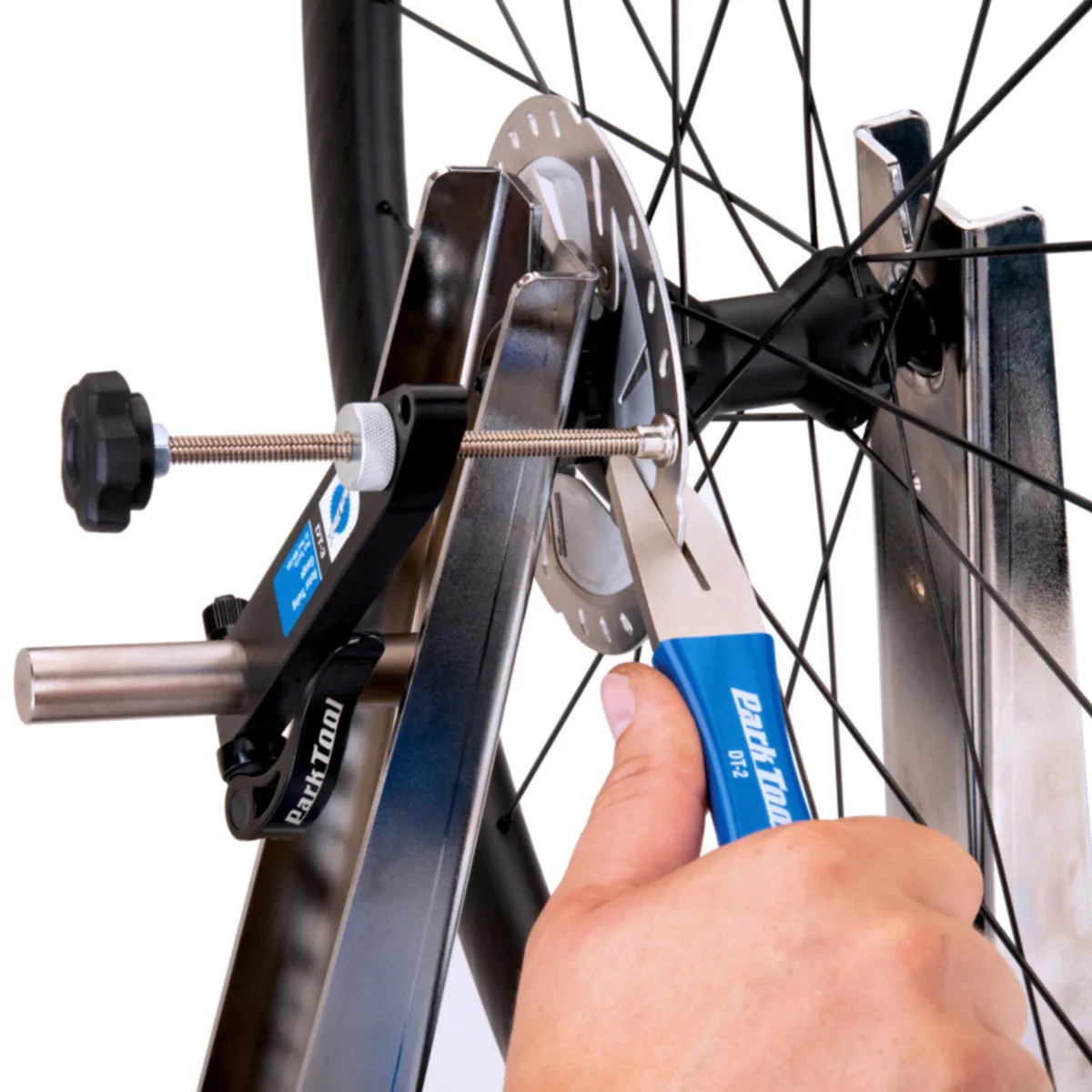

Don't panic. A slightly bent rotor can often be trued back to straight. You need a rotor truing fork or an adjustable spanner wrench dedicated to disc rotors.

Never use pliers. Pliers leave marks and make the metal harder to straighten evenly.

Slide the truing fork over the bent section of the rotor. Gently bend the rotor back in the opposite direction of the wobble. Check your work by spinning the wheel and watching the gap.

Repeat in small increments. It's better to do three tiny bends than one big crunch.

If the rotor has a sharp crease, a crack at the braking surface, or a bend that won't straighten out, replace it. Rotors are cheap relative to the cost of crashing when your brakes fail. A Shimano RT-56 or RT-66 in the correct size is a direct swap and usually runs $15 to $25 as of 2026.

Match your sizes: 180mm front, 160mm rear.

The Order of Operations – What to Try First, Second, Third

Here's the sequence that eliminates the most common causes before you waste time on less likely ones. Follow it in order. Jumping straight to rotor truing when the wheel just needed reseating is a classic overcorrection.

Image source: Bing (Web (fair-use with source credit))

First, Reseat the wheel. Loosen the skewer, bounce the bike, retighten. Test spin.

This fixes roughly a third of all Marlin 7 rotor rub issues.

Second, Caliper alignment. Loosen both bolts, squeeze and hold the lever, retighten. Test spin.

This fixes another third.

Third, Check rotor bolts. Tighten all six to spec in a star pattern. Test spin.

Fourth, True the rotor. Use a truing fork or adjustable spanner. Gently bend the high spot away from the pad.

Test spin.

Fifth, Clean the pads and rotor. Contaminated pads can cause a dragging sensation that sounds like rub. Remove the wheel.

Clean the rotor with isopropyl alcohol and a clean rag. Remove the pads. Sand the surface lightly with fine grit sandpaper.

Reinstall and bed them in again.

Sixth, Bleed the brakes. Sticky pistons that don't retract fully can cause constant drag. If you've done everything above and the rub is still there, especially on a bike that's never been bled, a fresh bleed of the Tektro HD-M275 system is your next step.

Follow Trek's official bleed procedure or take it to a shop.

This order of operations eliminates roughly 95 percent of Marlin 7 rotor rub cases. If you're still rubbing after step six, the issue is likely mechanical damage that needs a shop diagnosis. A cracked caliper mount, a bent frame dropout, or a seized piston can all cause rub that won't respond to home fixes.

Common Mistakes That Make Rotor Rub Worse

A few well-intentioned fixes actually make rotor rubbing worse on the Marlin 7. Avoid these.

Overtightening the quick-release skewer. You don't need to muscle it. The cam lever should close with firm hand pressure, leaving a light imprint in your palm. Overtightening warps the dropout alignment and can create rub where there was none before.

Using pliers or a crescent wrench on the rotor. These leave gouges and uneven pressure points. A rotor truing fork costs about $15 and pays for itself the first time you use it.

Pushing brake pistons back without opening the bleed port. On Tektro HD-M275 calipers, pushing the pistons back with the system sealed forces fluid up into the lever reservoir. This can cause a spongy lever or even a lockup. Open the bleed port slightly with a syringe attached, or use a pad spreader gently.

Sanding pads with contaminated oil or dirt. If you're cleaning pads, use fresh sandpaper and clean your rotor with isopropyl alcohol afterward. Oily sandpaper transfers contamination back onto the pad, making the scrape worse.

Ignoring hub bearing play. If your wheel wobbles at the hub, it can mimic rotor rub. Grab the rotor and try to rock the wheel side to side. Any play there means the bearings need adjustment before you touch the brakes.

When to Call It – Replacement vs. Truing

Not every bent rotor can be saved. Here's how to decide.

True it if the bend is gradual, with no sharp crease, and the wobble is less than about 2mm side to side. A gentle bend responds well to truing.

Replace it if the rotor has a sharp crease, a visible crack, or a wobble over 3mm that won't straighten after two attempts. Also replace if the rotor is worn below the minimum thickness marked on the brake track (usually 1.5mm for 1.8mm rotors). A rotor that's been overheated and turned blue or purple is also toast.

Stock rotors on the Marlin 7 are serviceable but not premium. If you're replacing, consider upgrading to a Shimano RT-66 or RT-70. They're slightly thicker and more resistant to bending.

They also run quietly and mount using the same 6-bolt pattern. Expect to pay $18 to $30 per rotor as of 2026.

Tools You Should Have on Hand

The right tools make rotor rub fixes fast and frustration-free. You don't need a full workshop. A few essentials cover almost every situation.

• 4mm and 5mm hex keys, For caliper bolts and rotor bolts
• Torque wrench (5 to 15 Nm range), Optional but recommended for rotor bolts
• Rotor truing fork, Park Tool DT-2 or similar
• Isopropyl alcohol and clean rags, For cleaning rotors and pads
• Fine grit sandpaper (220 to 400 grit), For glazed pad surfaces
• Pad spreader or plastic tire lever, For pushing pistons back safely

Aggregate reviews from mountain bike forums confirm that riders who keep these six items in their toolbox resolve rotor rub in under 15 minutes. Without them, you're guessing and hoping.

Long-Term Maintenance to Prevent Rotor Rub

Rotor rub isn't a one-time problem. It can come back as components wear and settle. A few maintenance habits keep it away.

Check your rotor bolts every few months. They can loosen gradually from vibration. A quick torque check with a hex key takes 30 seconds.

Tighten them to 4, 6 Nm in a star pattern.

Keep your rotors clean. Mud, trail dust, and chain lube residue build up on the braking surface. That buildup can cause a dragging sensation that sounds like rub.

Wipe rotors down with isopropyl alcohol after muddy rides.

Bed in new pads and rotors properly. Follow the manufacturer's procedure: 20 to 30 moderate stops from riding speed, allowing the brakes to cool between stops. Poor bedding creates uneven pad transfer that causes noise and drag.

Inspect your caliper alignment after any crash or hard drop. A bent caliper mount or a shifted caliper body can introduce rub that worsens over time. Catching it early means a quick alignment instead of a replacement.

Frequently Asked Questions

Why does my Trek Marlin 7 brake rub only when I'm climbing out of the saddle?

Frame flex under heavy pedaling load is the cause. The aluminum frame twists slightly, shifting the caliper relative to the rotor. Try tightening the quick-release skewer firmly.

If that doesn't help, realign the caliper with a slight bias away from the rub side.

Can I use any rotor on my Marlin 7, or does it have to be Tektro?

Any 6-bolt rotor in the correct diameter works. The Marlin 7 uses 180mm front and 160mm rear. Shimano, SRAM, and Magura rotors are all compatible.

Just match the bolt pattern and size. Avoid Centerlock rotors, which require a different hub interface.

How tight should my quick-release skewer be to prevent rotor rub?

Firm enough that the cam lever leaves a light impression in your palm when closed. Not so tight that you're straining to close it. An overtightened skewer can warp the fork dropouts and create rub.

A properly set skewer closes with moderate, consistent pressure.

Is a little bit of rotor rub normal on a mountain bike?

A very slight, intermittent scrape that only happens when you really lay down power can be normal for the Marlin 7. Constant rub at all times is not normal and should be fixed. Most riders can eliminate all rub with proper alignment and wheel seating.

Will upgrading my brakes stop the rubbing for good?

Not necessarily. Upgrading to Shimano MT200 or MT400 brakes can offer better pad retraction and slightly more consistent alignment. But the rotor rub on a Marlin 7 is usually a mechanical alignment issue, not a brake quality issue.

Fix the alignment first. Upgrade only if you want better modulation or power.
